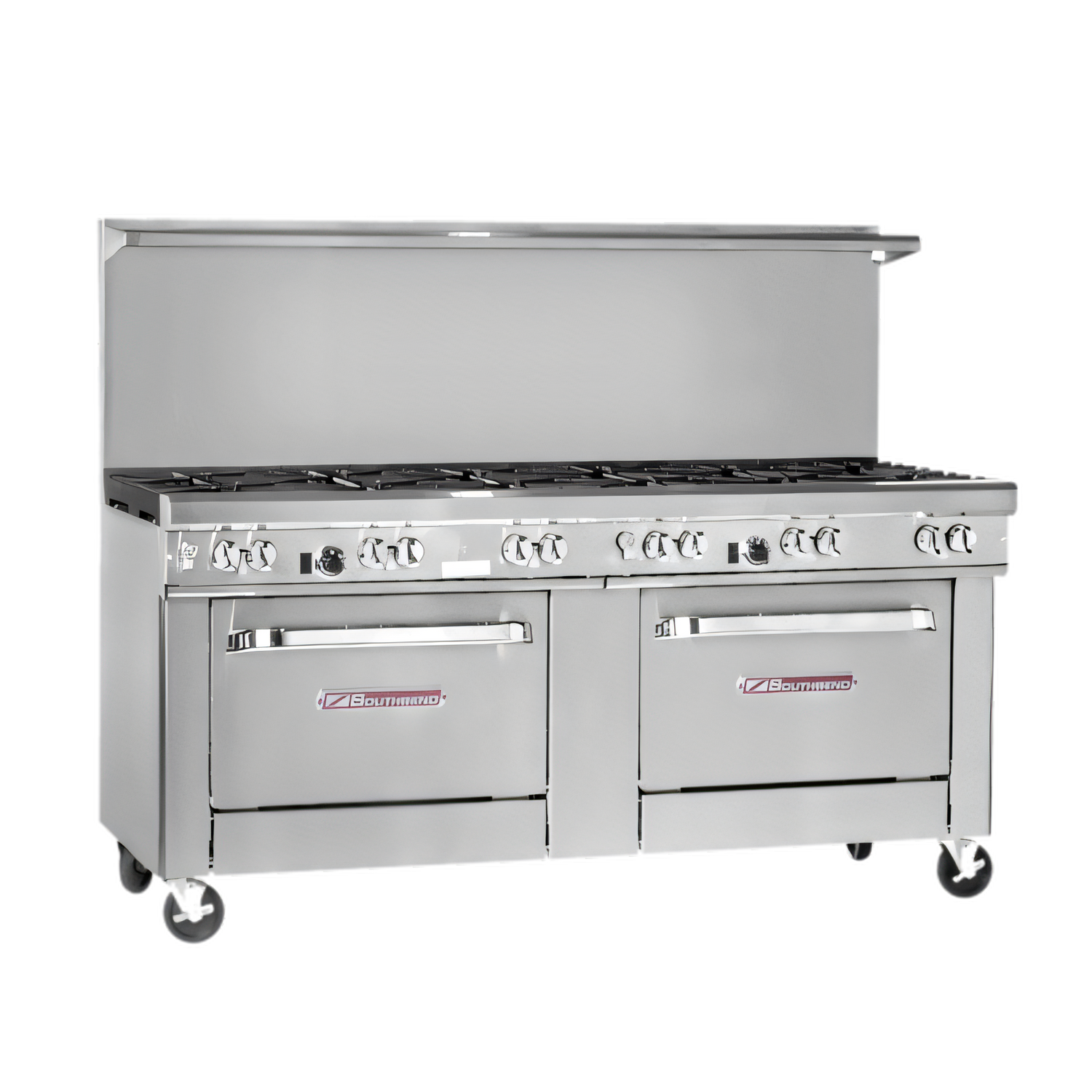

Southbend (Middleby) 4721AA-3CR Ultimate Gas Ranges
Southbend (Middleby) 4721AA-3CR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4721AA-3CR Ultimate Gas Ranges
Description

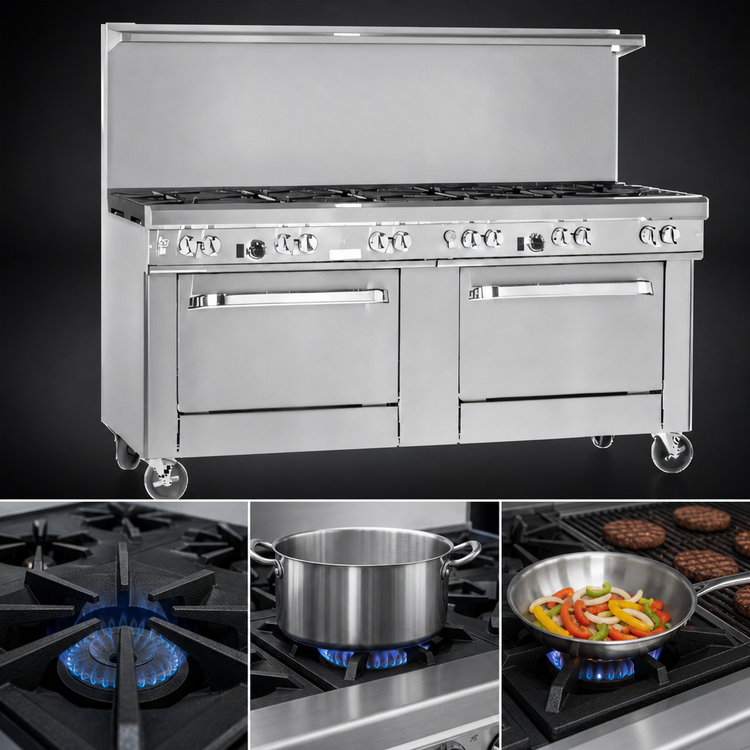

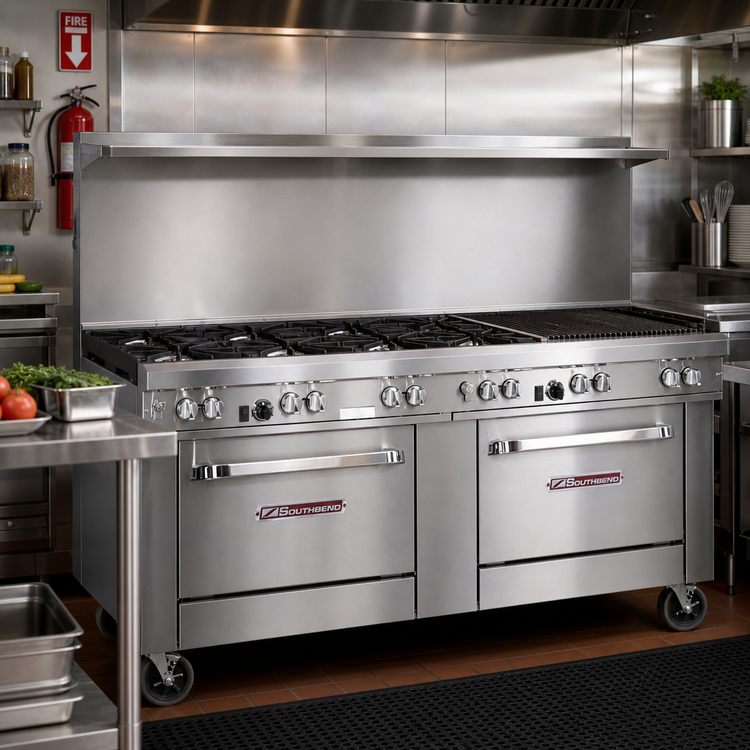

Southbend “Ultimate” 72" Gas Restaurant Range
6 Non-Clog Burners • 36" Right-Side Charbroiler • (2) Convection Ovens • 358,000 BTUBuilt for high-volume kitchens that refuse to compromise, the Southbend Ultimate 72" Range combines open-top versatility, true charbroiler flavor, and twin convection power in one rock-solid footprint. Heavy-gauge stainless steel, lifetime clog-free burners, and a battery-spark ignition system keep you cooking through the busiest rush with confidence.
Key Performance Features

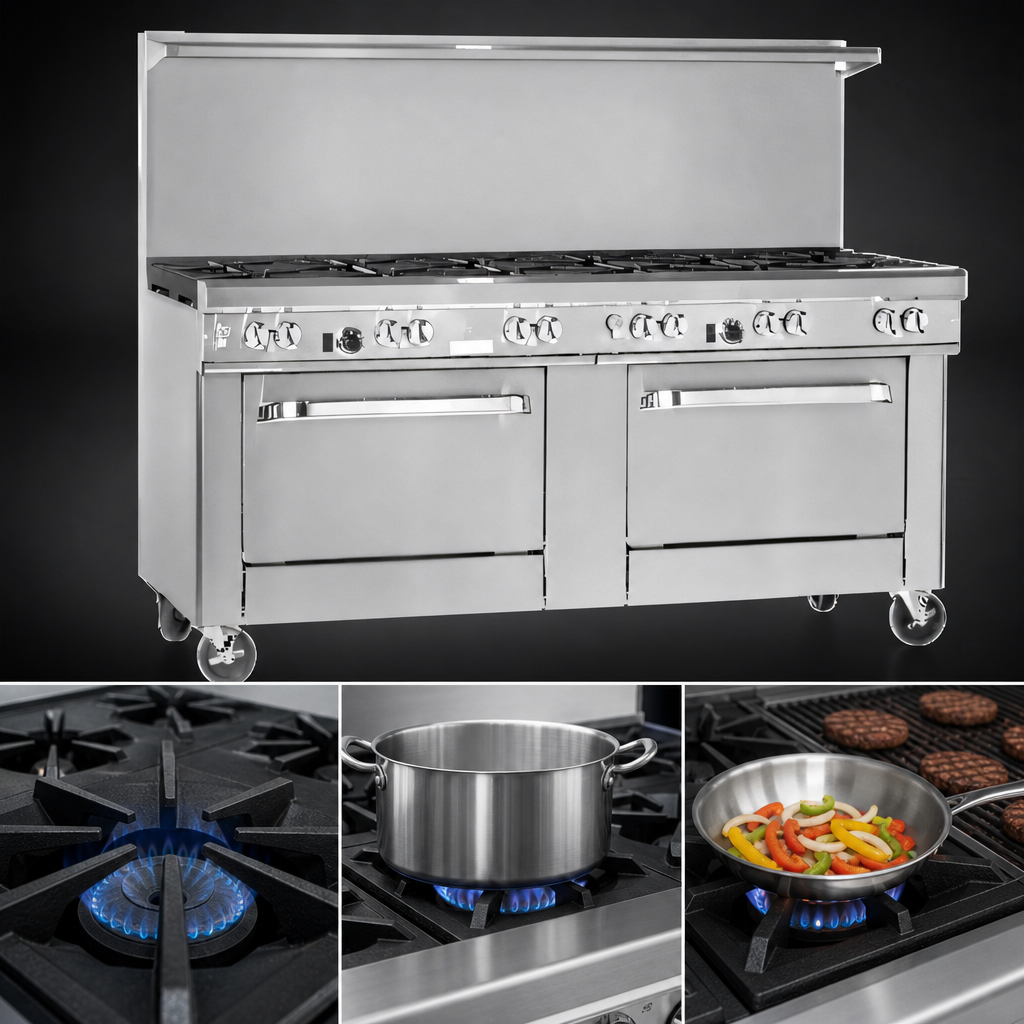

- (6) patented 33,000 BTU cast-iron non-clog burners with standing pilots.

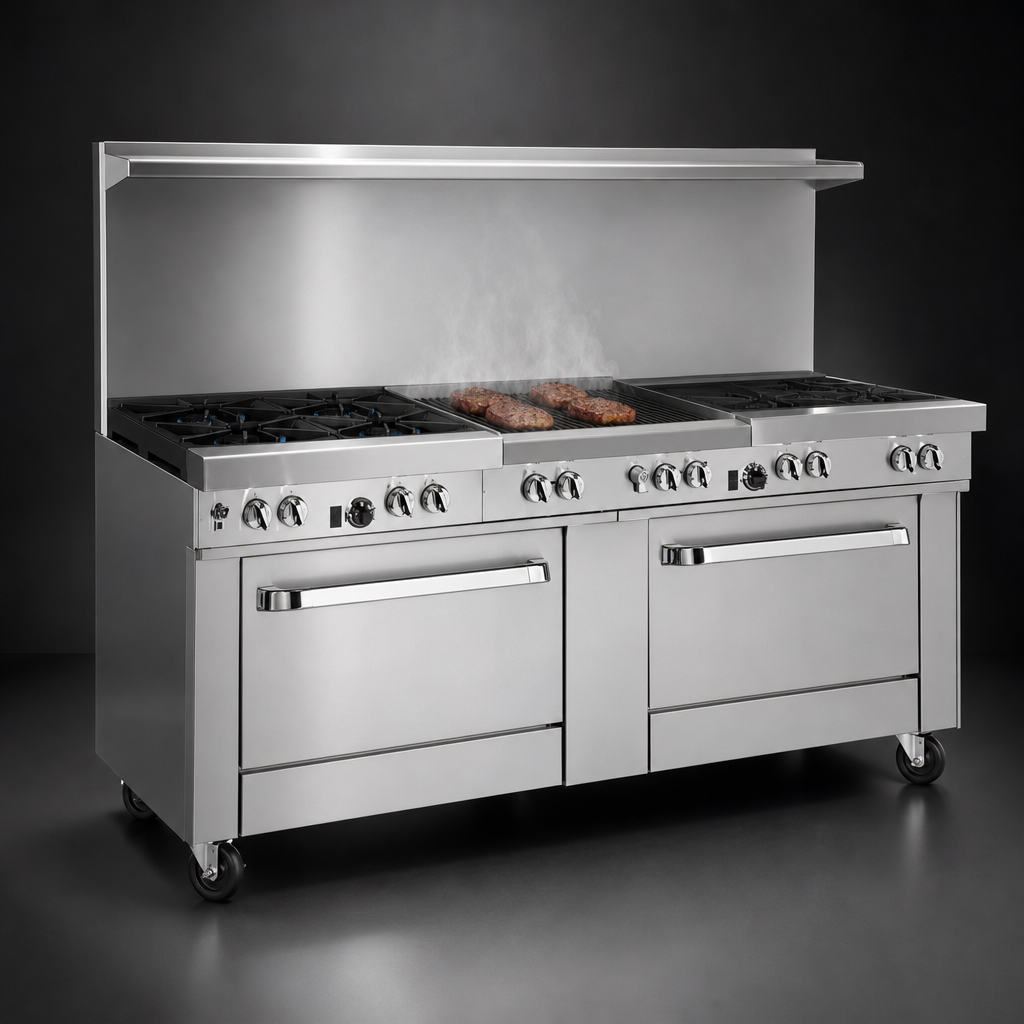

- 36" right-hand charbroiler (96,000 BTU) with removable cast-iron grates for classic grill marks and fast clean-up.
- Two 32,000 BTU convection ovens (battery spark ignition) – each includes 3 nickel-plated racks and five rack positions for even, high-speed baking or roasting.
- 22.5" flue riser with integrated heavy-duty shelf keeps cookware handy while venting combustion gases safely.
- 4" deep stainless front rail protects controls and doubles as a plating/work shelf.
- Six 6" stainless steel adjustable legs provide a rock-solid, level stance on any commercial floor.
- Factory-installed gas pressure regulator and front-mounted manual shut-off valves on each side of the range.
- CSA & NSF certified for commercial kitchens; backed by a 1-year parts & labor warranty.
Detailed Specifications
| Model / Configuration | 4721AA-3GR – 6 open burners + 36" right-side charbroiler, double convection ovens |
|---|---|
| Total Output | 358,000 BTU/hr (Natural Gas) |
| Cooktop Height | 37" |
| Overall Dimensions | 73" W × 42.1" D × 59.5" H (to top of flue riser shelf) |
| Oven Interior (each) | 26" W × 24" D × 14" H • Porcelain enamel • (3) racks included |
| Gas Connection | 3/4" NPT (female) • 7" W.C. Nat / 11" W.C. LP minimum inlet pressure |
| Electrical (ovens) | 115 V / 60 Hz / 1-ph • 5.9 A per oven (6' cord & 3-prong plug included) |
| Shipping Weight | ≈ 1,075 lb (crated) |
| Construction | Stainless front, sides & shelf • Cast-iron grates • Spring-assisted oven doors |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (see warranty statement for details) |
What’s in the Box
- (6) open-top burner grates & drip trays
- (3) oven racks per cavity
- Factory installed regulator & battery pack (spark system)
- Comprehensive owner’s / installation manual
Popular Accessories (sold separately)
- Swivel casters with front locks
- 3'–5' quick-disconnect gas hose kits
- Additional oven racks
- 10" or 5" flue risers (no shelf)
- Low-profile salamanders & cheesemelters
• Use cookware 12" Ø or larger on rear burners only to avoid excessive front-rail heat.
• Never cover charbroiler grates with a sheet pan while burners are lit – doing so causes severe damage and voids warranty.
Manufactured in Fuquay-Varina, NC. For commercial use under a properly vented hood system only.
