Southbend (Middleby) 4607DD-2GR Ultimate Gas Ranges
Description

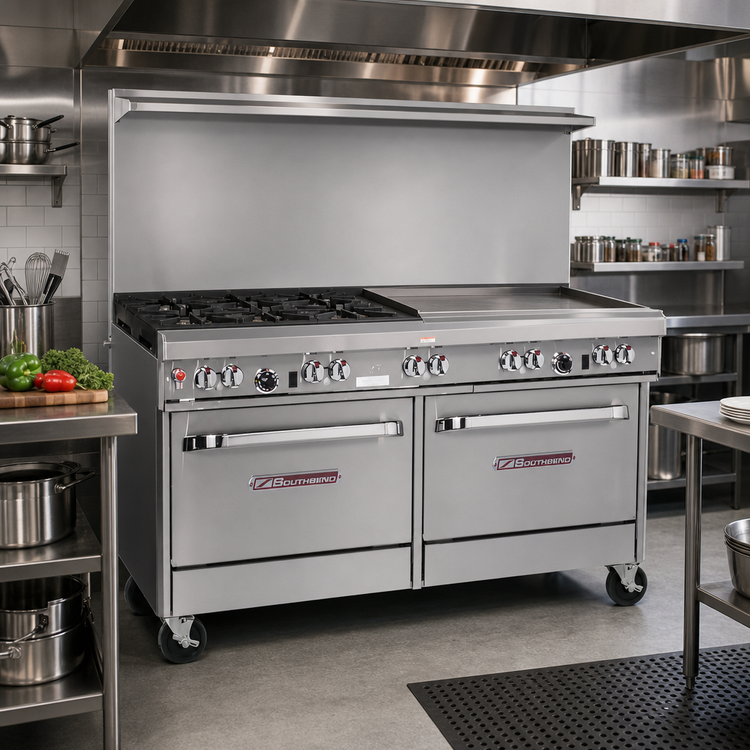

Southbend Ultimate 60" Gas Restaurant Range
4 Pyromax Burners • 24" Right-Side Griddle • Dual Standard OvensBuilt for high-volume kitchens that refuse to compromise, the Southbend Ultimate 60" range unleashes 298,000 BTU of cooking power in a single, rugged platform—perfect for diners, hotels, and production lines that need speed, consistency, and flexibility every shift.
Why You’ll Love It

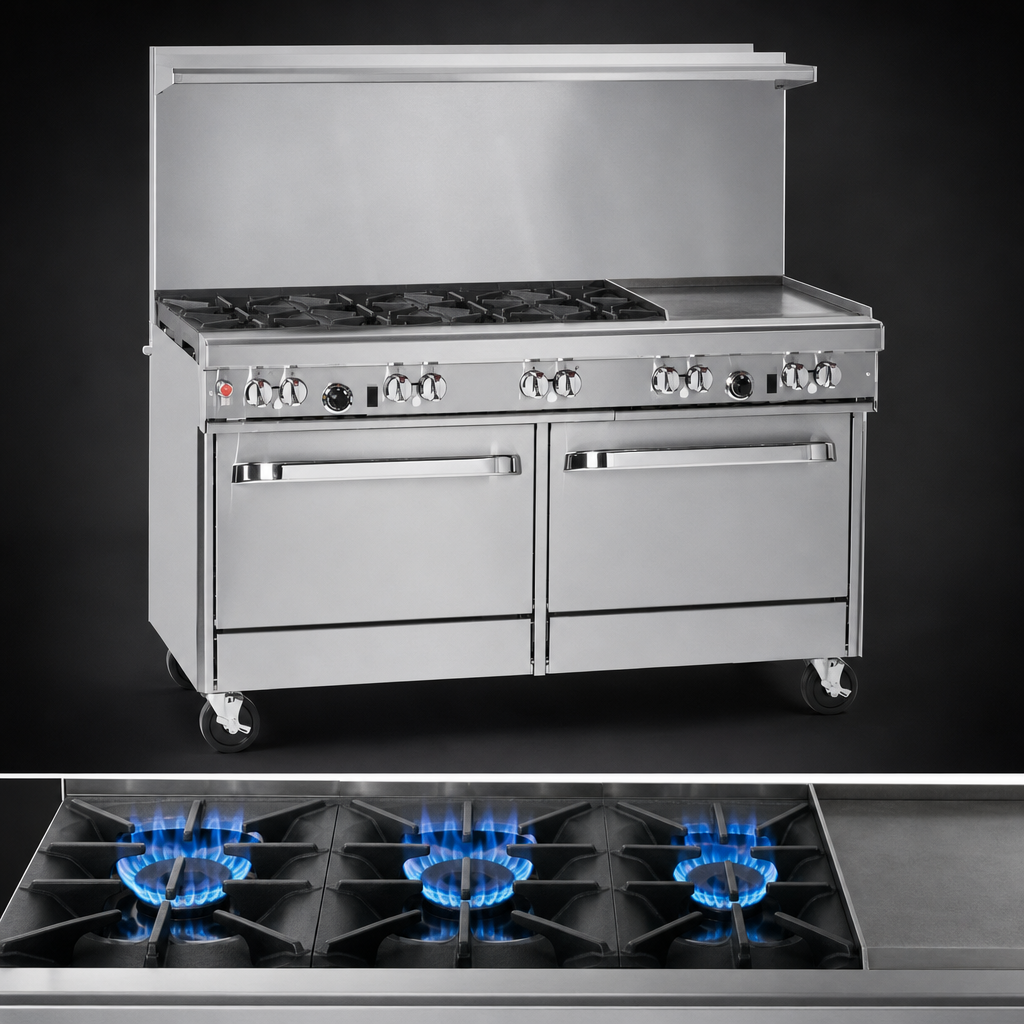

- Four 40,000 BTU Pyromax burners – patented, three-piece, lifetime non-clog design with built-in drip rings for effortless clean-up and maximum flame intensity.
- 24" smooth ½" polished-steel griddle (right side) delivers even heat for breakfast favorites, seared proteins, or sandwich toasting.
- Two standard ovens (45,000 BTU each) with battery-spark ignition; thermostats adjust from 175 °F – 550 °F and arrive with one rack per cavity.
- 22 ½" flue riser with heavy-duty plate shelf keeps sauté pans, spices, and plating tools within reach.
- Full stainless-steel front, sides, and 4" front rail stand up to daily abuse and wipe clean fast.
- Removable cast-iron grates accommodate stock pots up to 14" on rear positions.
- Front-mounted manual shut-off valve and factory-installed pressure regulator simplify installation and service.
- 6" stainless-steel adjustable legs level the unit on uneven floors (casters optional).
- Certified cCSAus, CSA Flame, CSA Star, and NSF for safety and sanitation peace-of-mind.
At-a-Glance Specifications
| Total Input | 298,000 BTU/hr (natural gas) |
|---|---|
| Open Burners | 4 × 40,000 BTU Pyromax high-output burners |
| Griddle | 24" right-hand, ½" smooth steel plate, manual controls |
| Ovens | 2 × standard ovens, 45,000 BTU each; 175 °F – 550 °F thermostat; 1 rack included per oven |
| Cooking Surface Height | 37" |
| Overall Dimensions (W × D × H) | 60.75" × 34" × 59.5" (to top of flue) |
| Oven Interior (each) | 26" W × 26.5" D × 14" H, porcelain-enamel |
| Gas Connection | ¾" NPT; 7" W.C. natural gas (11" W.C. LP) |
| Ignition | Standing pilots (burners & griddle) + battery spark ignition (ovens) |
| Construction | Stainless steel front, sides, rail & flue shelf; cast-iron grates; 6" SS legs |
| Limited Warranty | 1-year parts & labor |
Need casters, a taller flue riser, or salamander mounting? Contact our team for factory-installed options.
