Southbend (Middleby) 4607DD-2CR Ultimate Gas Ranges
$13,030.00
Unit price
/
Unavailable
Description

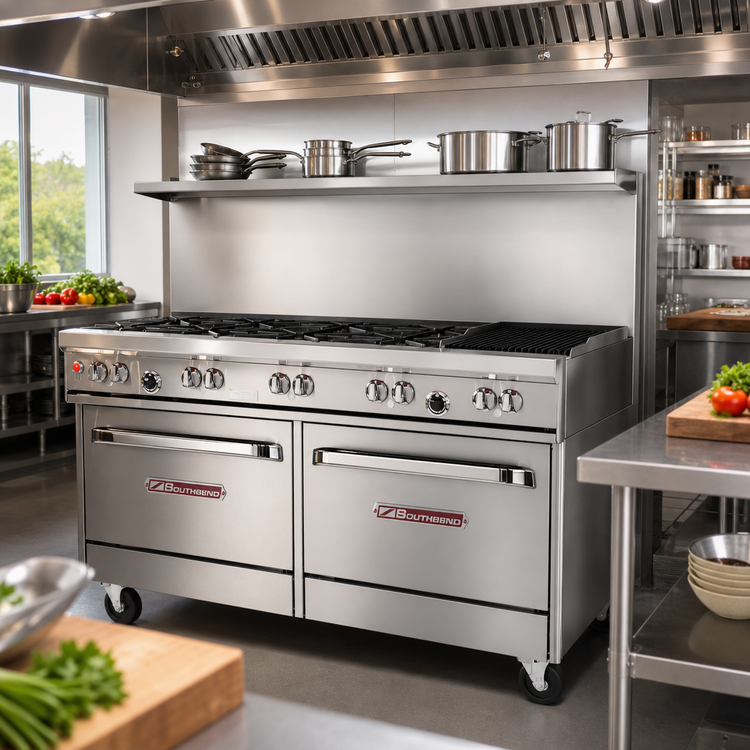

Southbend Ultimate 60" Gas Restaurant Range – 4 Pyromax Burners, 24" Charbroiler (Right) & Double Standard Ovens
Model 460-DD-PBR24 | 314,000 BTU | CSA & NSF CertifiedPurpose-built for high-volume kitchens, the Ultimate Series combines Southbend’s most powerful open burners with a built-in charbroiler and two full-size ovens—giving chefs unlimited menu flexibility in a single, rock-solid footprint.
Key Features

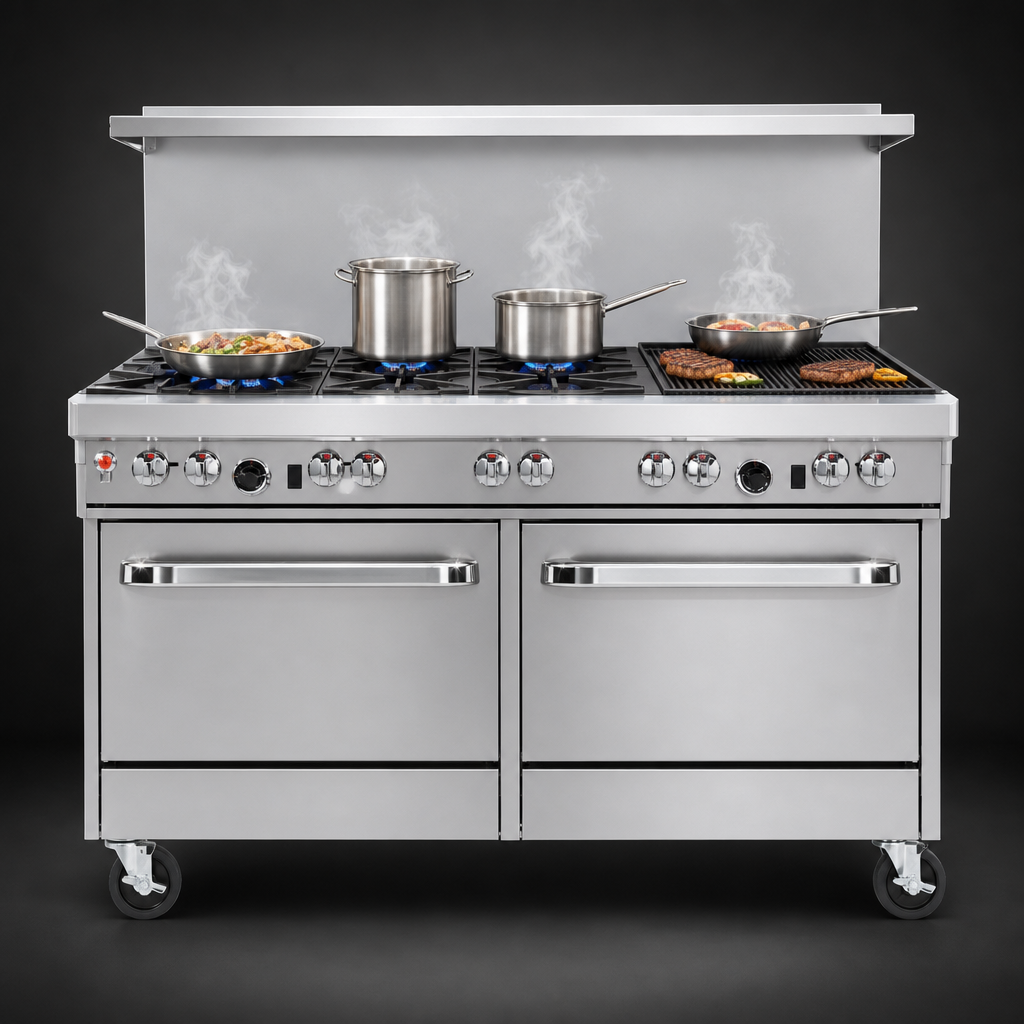

- Four 40,000 BTU Pyromax open burners (160,000 BTU total) – patented, clog-free design with built-in drip ring.
- 24" right-side charbroiler (64,000 BTU) with heavy cast-iron radiants for authentic grill marks.
- Two 45,000 BTU standard bake ovens with battery-spark ignition; porcelain interiors fit full-size sheet pans both directions.
- Includes one removable rack per oven; two rack positions for maximum versatility.
- 22-1/2" stainless flue riser with reinforced utensil shelf keeps essentials within arm’s reach.
- 4" deep stainless front rail & front-mounted manual gas shut-off for fast service access.
- Stainless steel front, sides, shelf & 6" adjustable legs for lasting durability and easy cleaning.
- Factory-installed 3/4" pressure regulator and standing pilots on open tops for out-of-box readiness.
- 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specifications
| Overall width | 60-3/4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cook surface height | 37" (940 mm) |
| Height w/ flue riser | 59-1/2" (1511 mm) |
| Total BTU input | 314,000 BTU/hr (Natural Gas) |
| Open burners | 4 × 40,000 BTU Pyromax |
| Charbroiler | 24" right-side, 64,000 BTU |
| Ovens | 2 × standard, 45,000 BTU each; 26" W × 26.5" D × 14" H cavity |
| Gas connection | 3/4" NPT (female) – 7" W.C. minimum inlet (Natural) |
| Electrical | None required – battery-spark ignition |
| Construction | Stainless front, sides & shelf; cast-iron grates; 6" stainless legs |
| Certifications | CSA Gas, NSF |
| Warranty | 1-year parts & labor |
What’s Included
- Southbend Ultimate 60" gas range (fully assembled)
- (4) removable cast-iron Pyromax grates
- (2) oven racks (1 per oven)
- 22-1/2" flue riser with shelf (installed)
- Factory-installed 3/4" gas pressure regulator
- Installation & operation manual
Important: Charbroiler sections must be installed beneath a properly sized vent hood and are approved for non-combustible locations only. Never cover charbroiler grates with sheet pans while burners are on.
Commercial use only – not intended for residential installation.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Base
(2) standard ovens
Top
(4) open burners, (1) 24" charbroiler
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Specifications
Ultimate Restaurant Range, gas, 60", (4) pyromax burners, (1) 24" charbroiler right, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 314,000 BTU, CSA, NSF
