Southbend (Middleby) 4607CC-2TR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Restaurant Range
4 Pyromax Burners • 24" Right-Side Griddle • Dual Stainless CabinetsBuilt for demanding, high-volume kitchens, the Southbend Ultimate 60" range combines blistering burner power, a full-size griddle and rugged stainless construction in one streamlined workstation.
Key Performance Features
- (4) Pyromax open burners at 40,000 BTU each – patented, clog-free design with built-in drip rings.

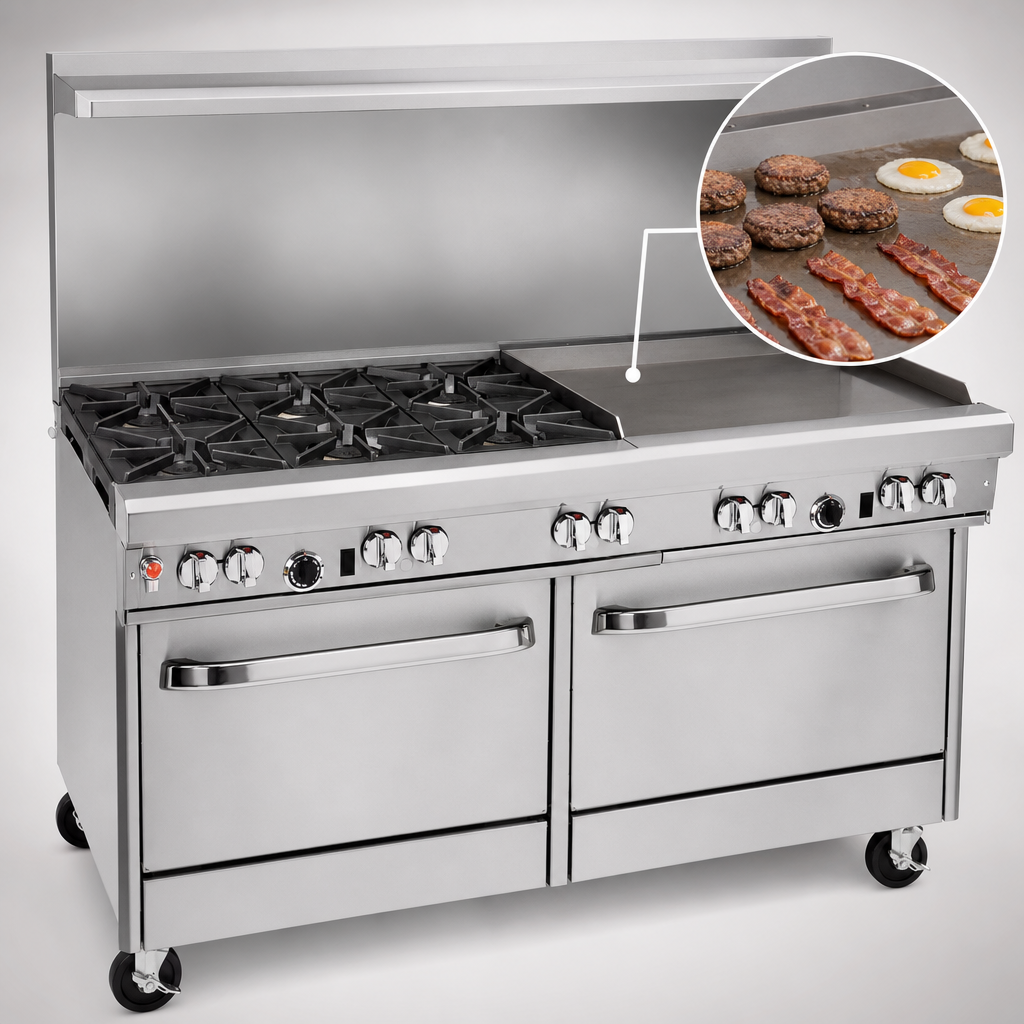

- 24" smooth ½" polished-steel griddle (right side) with raised splashes for clean, even searing.
- Total input: 208,000 BTU/h with factory-installed ¾" pressure regulator.
- Front-mounted gas shut-off valve controls the entire range instantly for added safety.
- 22½" stainless flue riser with heavy-duty overshelf keeps plates and seasonings within arm’s reach.
- Two full-width stainless cabinet bases for convenient, dry storage of pans, pots and smallwares.
- 4" stainless front rail protects controls and doubles as a plating ledge.
- Removable cast-iron grates (rear grate holds up to a 14" stock pot).
- 6" stainless adjustable legs simplify leveling on uneven floors.
- cCSAus, CSA Flame, CSA Star & NSF certified.
- Backed by Southbend’s 1-year limited parts & labor warranty.
Specification Highlights
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22 ½" (572 mm) with shelf |
| Open burners | 4 × Pyromax, 40,000 BTU each |
| Griddle zone | 24" W × 27" D polished steel, manual control |
| Base type | Dual stainless storage cabinets, center-opening doors |
| Total input | 208,000 BTU/h (Natural or LP – specify at order) |
| Gas connection | ¾" NPT, opposite side of griddle |
| Warranty | 1-year parts & labor (nationwide authorized service) |
Factory options such as casters, alternate flue-riser heights, quick-disconnect hoses and salamander mounts are available – ask your rep for details.
Why Chefs Love Pyromax Burners
- High-velocity flame for rapid boils and intense wok heat.
- Three-piece cast-iron assembly lifts out for quick cleaning.
- Lifetime non-clog ports minimize downtime and service calls.
Power, versatility and legendary Southbend reliability—all in a 60" footprint. Upgrade your cookline with the Ultimate Restaurant Range and keep every ticket on time.
