Southbend (Middleby) 4607CC-2GR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range

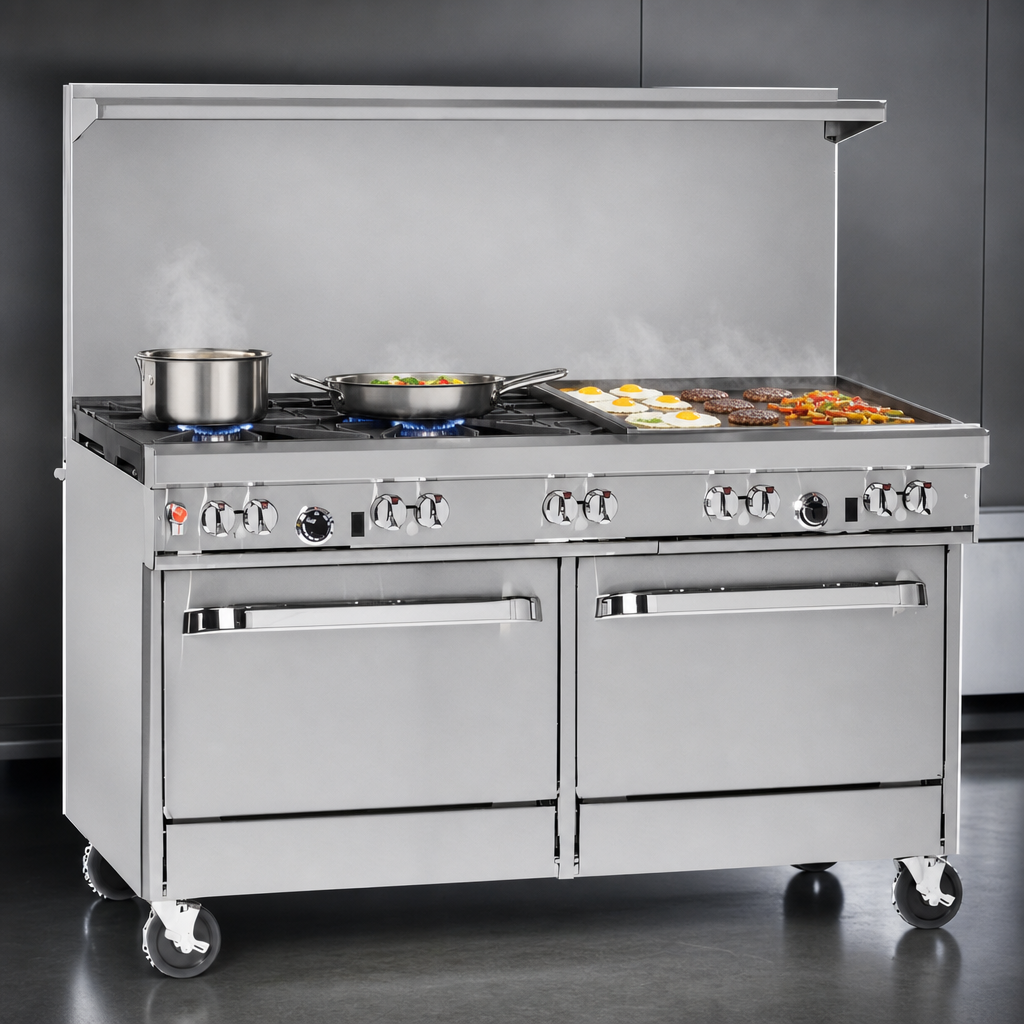

4 Pyromax Burners • 24" Right-Side Griddle • Dual Stainless Cabinet BaseEngineered for the busiest commercial kitchens, the Southbend Ultimate 60" range delivers blistering heat, rock-solid durability and the flexible cooking real-estate today’s chefs demand. Four high-output Pyromax burners sit next to a full 24" polished steel griddle, all beneath a sturdy 22 ½" flue riser with integrated shelving that keeps plating essentials right where you need them.
Why You’ll Love It
- 208,000 BTU total output – 40 K BTU Pyromax burners plus a 48 K BTU griddle power through peak service.
- Patented three-piece Pyromax design is lifetime clog-free and features a built-in port-protection drip ring for fast clean-ups.
- 1/2" thick, smooth steel griddle plate with raised sides handles everything from breakfast rush to late-night sears.
- Front-mounted manual gas shut-off and factory-installed ¾" regulator make installation straightforward.

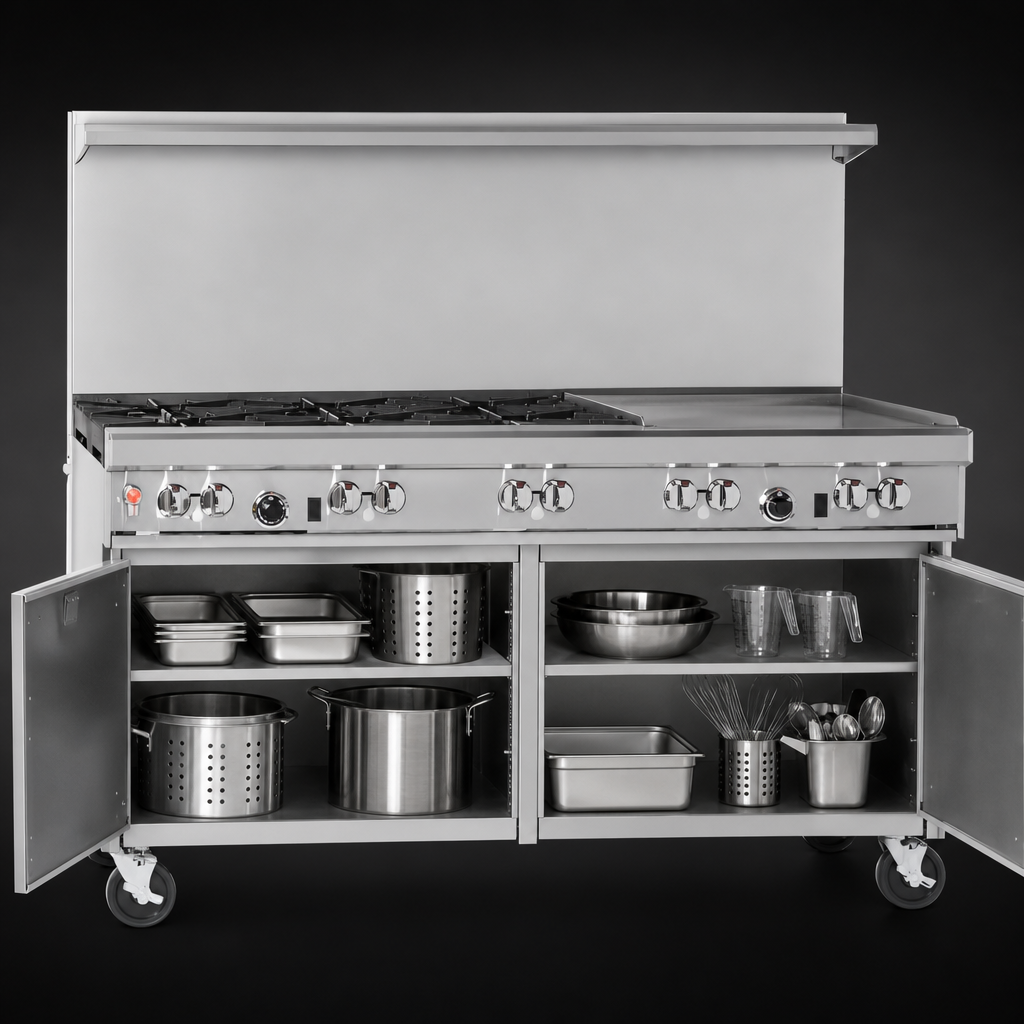

- Two spacious stainless steel cabinet bases keep sheet pans, smallwares or dry goods right under the cooking surface.
- Rugged stainless front, sides, shelf and 4" front rail stand up to daily abuse and simplify wipe-downs.
- 6" adjustable stainless legs ensure a level work surface and meet health-code clearance requirements.
- cCSAus, CSA Flame, CSA Star & NSF listed for peace-of-mind compliance.
- Backed by a full 1-year parts & labor warranty and Southbend’s national service network.
At-a-Glance Specs
| Model Series | Ultimate 460 – Cabinet Base (CC) |
|---|---|
| Overall Width | 60 ¾" (1543 mm) |
| Overall Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Flue Riser Height | 22 ½" (572 mm) with heavy-duty shelf |
| Burners | 4 × Pyromax, 40 K BTU each (Natural Gas) |
| Griddle | 24" right-side, ½" plate, manual control, 48 K BTU |
| Total Input | 208,000 BTU/hr |
| Gas Connection | ¾" NPT (rear) |
| Required Inlet Pressure | 7" W.C. Natural • 11" W.C. LP |
| Base Configuration | Two stainless cabinets (doors optional at no charge) |
| Warranty | 1-year parts & labor, factory installed regulator included |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Factory-Included
- Front-located manual shut-off valve for entire range
- Two removable full-width drip trays
- Standing pilots for open burners
- Battery spark ignition wiring pre-run for future oven bases
Popular Add-Ons (Sold Separately)
- Door kits for cabinet bases
- Swivel locking casters
- 10" flue riser or ¾" quick-disconnect gas hose
- Salamander & cheesemelter mounting brackets
Add-ons ship loose unless otherwise specified.
