Southbend (Middleby) 4607CC-2CR Ultimate Gas Ranges
Description

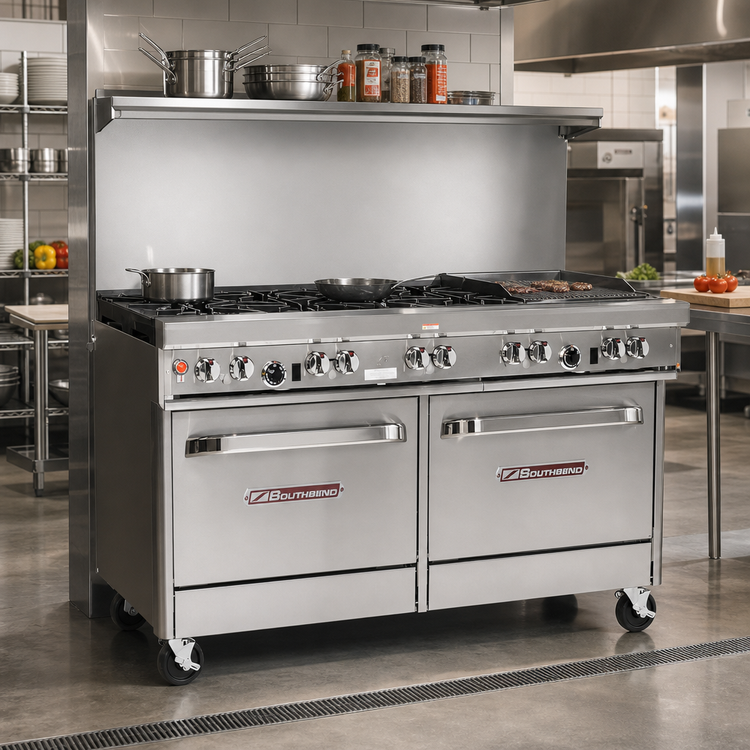

Southbend Ultimate 60" Gas Restaurant Range – 4 Pyromax Burners + 24" Right-Side Charbroiler
224,000 BTU | Cabinet Base | CSA & NSF ListedGive your line cooks the firepower they need and the durability you expect. The Southbend Ultimate 60" Series packs four patented 40,000 BTU Pyromax burners and a full 24" charbroiler into one rugged, stainless-steel workstation—ideal for high-volume restaurants, hotels, and catering kitchens that refuse to compromise.
Key Performance Features
- Massive 224,000 BTU total output keeps pace with the busiest service.

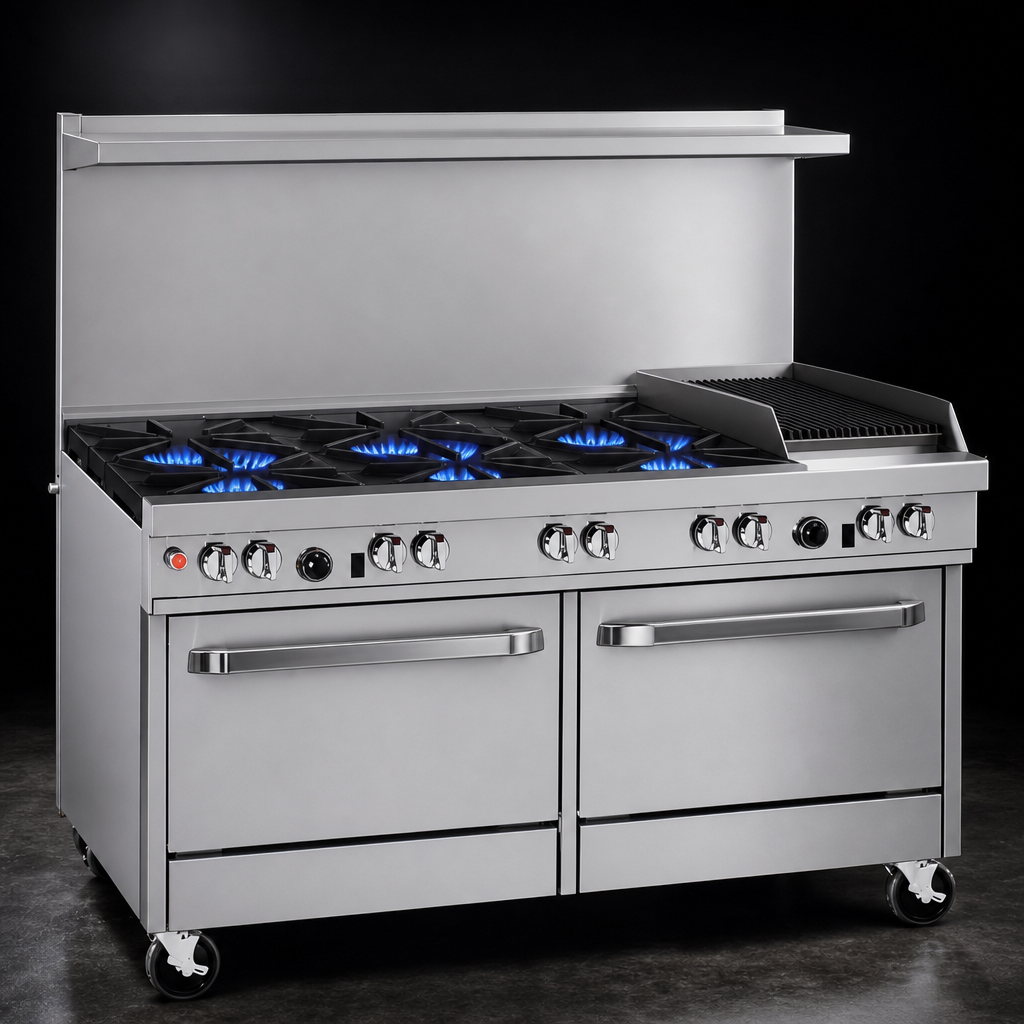

- (4) Pyromax open burners (40,000 BTU each) – high-output, three-piece, clog-free cast iron with built-in drip rings.
- 24" manual charbroiler (right) delivers authentic grill marks with heavy-duty cast grates (64,000 BTU).
- 4" stainless front rail and a 22.5" flue riser shelf for plating, seasonings, or small-ware storage.
- (2) spacious stainless cabinet bases keep sheet pans and stock pots close at hand; doors supplied at no charge.
- Front-mounted manual gas shut-off and factory-installed regulator for service convenience.
- Standing pilots on open burners for instant lighting; battery-spark ignition available for additional tops.
- All-stainless front, sides, and shelf resist corrosion and wipe down quickly.
- 6" adjustable stainless legs simplify under-range cleaning.
Built for Daily Demands
- 37" cook-surface height and 27" deep cooking surface accommodate full-size cookware.
- Removable, cast-iron top grates hold up to 14" stock pots on rear positions.
- Two one-piece drip trays catch grease for safer, faster clean-up.
- Double-sided porcelain-enamel cabinet interiors for lasting corrosion protection.
Technical Specifications
| Overall width | 60.75" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cook-surface height | 37" (940 mm) |
| Flue riser height | 22.5" (572 mm) with shelf |
| Total BTU (Natural Gas) | 224,000 BTU/hr (160,000 BTU Pyromax + 64,000 BTU charbroiler) |
| Gas connection | 3/4" NPT (rear; opposite charbroiler side) |
| Manifold pressure | Natural Gas – 7" W.C. minimum |
| Clearances | 10" sides & rear to combustibles (charbroiler); 0" to non-combustibles |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor, factory authorized service |
What’s Included
- Factory-set gas pressure regulator
- 22.5" flue riser & stainless storage shelf
- (2) stainless cabinet doors
- User/installation manual
Popular Upgrades (sold separately)
- All-swivel casters with front locks
- 3 ft, 4 ft, or 5 ft quick-disconnect gas hose
- Hot-top plates (replace 2 burners)
- Rear step-up burners or salamander/cheesemelter mounts
Warranty & Service
Southbend backs every Ultimate range with a 1-year limited parts & labor warranty and a nationwide network of authorized service agencies.
• Use oversized cookware (12"+ diameter) only on rear burners to protect the front rail.
• Never cover the charbroiler grates with a sheet pan while burners are lit; excessive heat can cause permanent damage.
Damage resulting from improper installation or misuse is not covered under warranty.
Commercial appliance—install under a properly vented hood and follow all local codes.
