Southbend (Middleby) 4607AD-2GR Ultimate Gas Ranges
Description
Ultimate 60" Gas Restaurant Range
4 Pyromax Burners • 24" Right-Side Griddle • Standard & Convection OvensBring unmatched cooking horsepower to the line with Southbend’s Ultimate Series 60-inch range. This single piece of equipment delivers 285,000 BTU of total output, combining high-intensity open burners, a precision griddle and two full-size ovens—all wrapped in a rugged stainless-steel chassis certified for the toughest commercial kitchens.
Why chefs choose the Ultimate
- Blazing power: Four patented 40,000 BTU Pyromax burners move product fast—even heavy stockpots.
- Multi-zone cooking: ½" thick, polished 24" griddle on the right side handles breakfast, sears and sauté with ease (48,000 BTU).

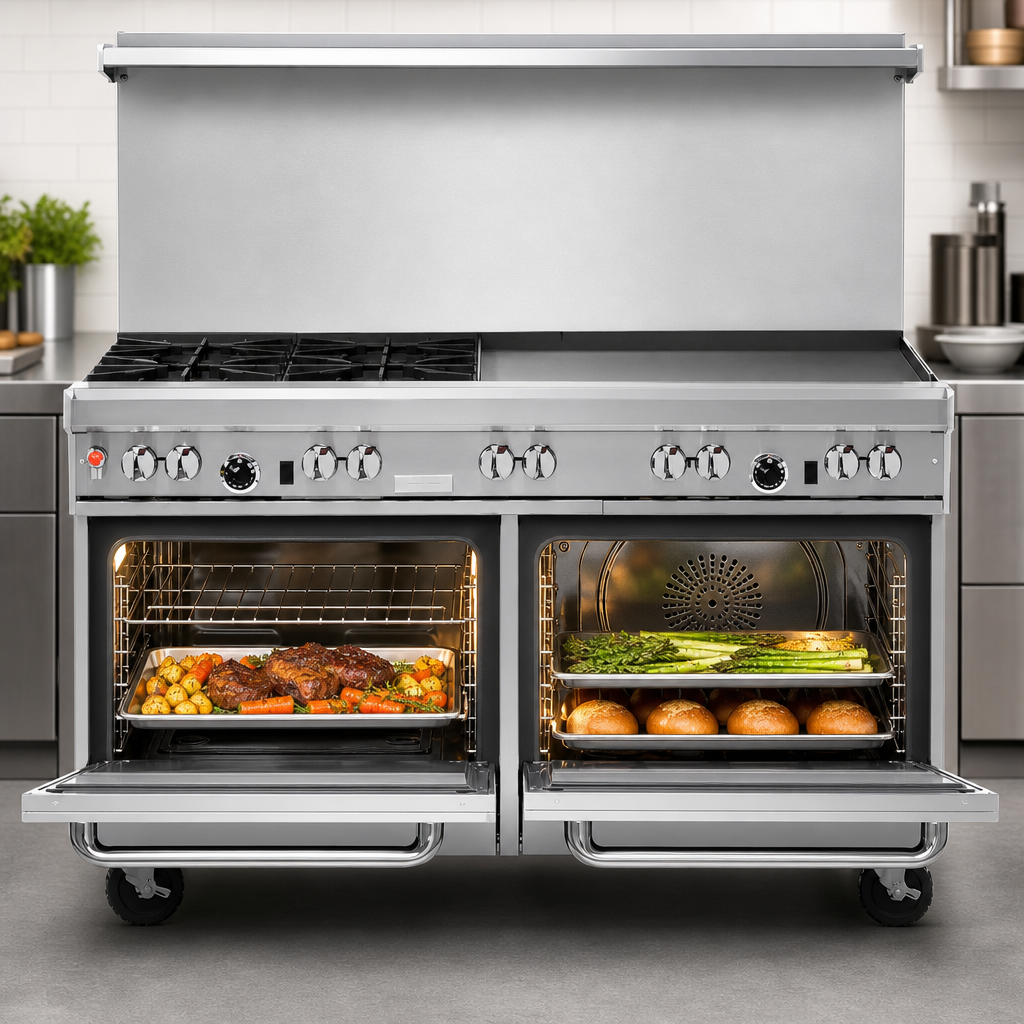

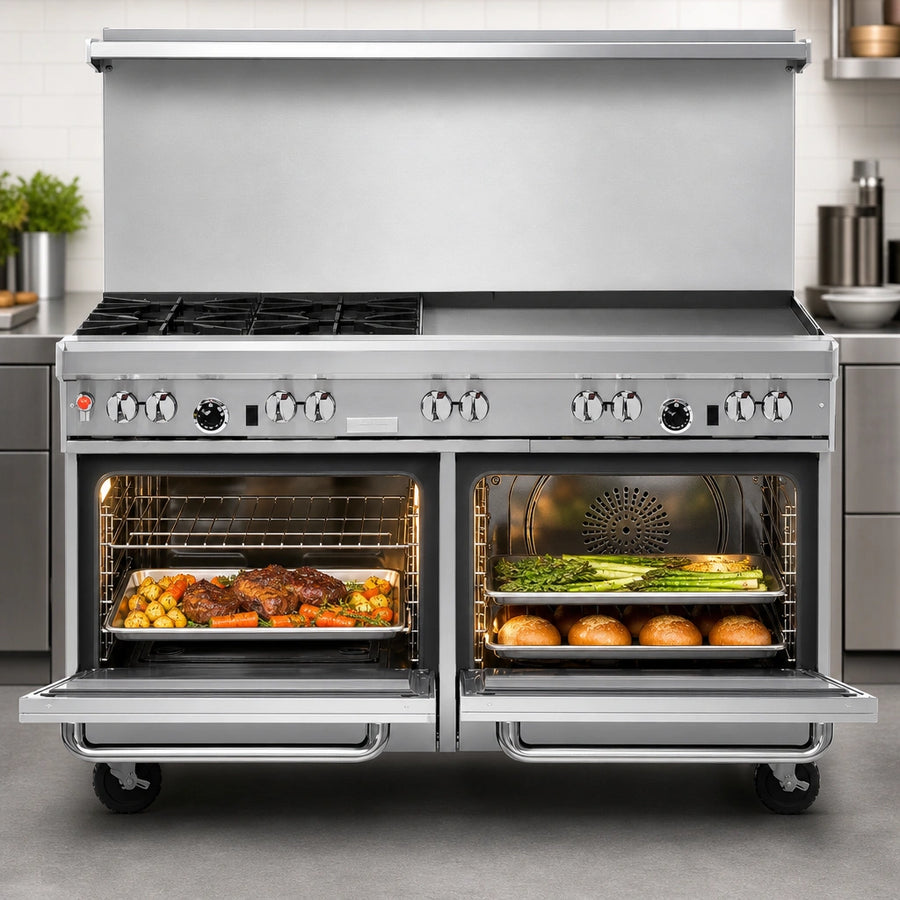

- Dual oven versatility: Left standard oven (45,000 BTU) plus right convection oven (32,000 BTU, ½ hp fan) both ignite via battery spark for reliable starts.
- Full-size capacity: Four oven racks supplied (1 standard, 3 convection) fit 18 × 26 sheet pans both directions.
- Service-friendly design: Front manual gas shut-off, factory-installed regulator and removable cast-iron top grates for quick clean-ups.
- Built for life on the line: All-stainless front, sides, 4" rail, 22½" flue riser with shelf, and 6" adjustable legs.
- Certified & warrantied: cCSAus, CSA Flame, CSA Star & NSF listed with a 1-year parts & labor warranty.
At-a-glance specifications
| Overall width | 60 3⁄4" |
|---|---|
| Overall depth | 42 1⁄8" (with convection base) |
| Cooking height | 37" to surface (plus 22 ½" flue riser) |
| Total BTU | 285,000 BTU (natural gas) |
| Open burners | 4 Pyromax × 40,000 BTU = 160,000 BTU |
| Griddle | 24" right-side, 48,000 BTU, ½" smooth steel |
| Standard oven | 45,000 BTU, 175 – 550 °F, 1 rack / 2 positions |
| Convection oven | 32,000 BTU, 175 – 550 °F, 3 racks / 5 positions, ½ hp fan (115 V, 5.9 A cord & plug) |
| Oven interiors | 26" W × 26.5" D × 14" H (standard) | 26" W × 24" D × 14" H (convection) |
| Gas connection | ¾" NPT rear (factory regulator included; 7" WC minimum inlet-pressure NAT) |
| Construction | Stainless front, sides, shelf & rail; cast-iron grates; spring-assist oven doors |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (full details at southbendnc.com/service-and-parts) |
What’s in the box
- Ultimate 60" gas range as described
- (4) total oven racks
- 6" stainless adjustable legs (pre-installed)
- Factory pressure regulator & owner’s manual
- Unit is for commercial use under a vented hood; zero side clearance to non-combustibles (10" to combustibles).
- If installing on flooring other than quarry tile, cement or natural stone, consult factory guidelines.
- Keep oversized (12"+) cookware toward the rear burners to prevent excess front-rail heat.
