Southbend (Middleby) 4607AD-2CR Ultimate Gas Ranges
Description

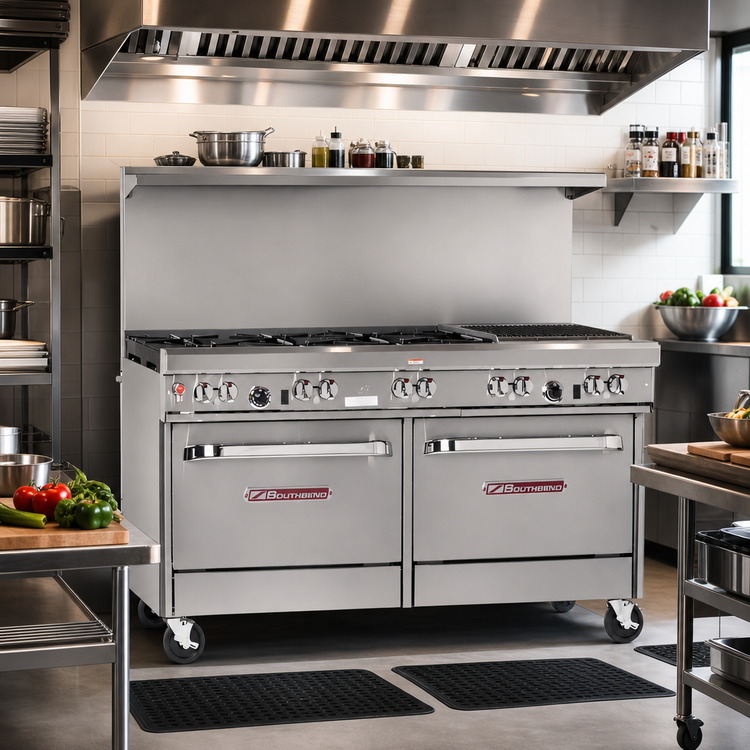

Southbend Ultimate 60" Gas Restaurant Range – Pyromax Top, 24" Charbroiler & Double Ovens
Model 460 | 301,000 BTU | Natural GasBuilt for chefs who demand uncompromising power and versatility, the Ultimate Series packs four high-output Pyromax burners, a full-size charbroiler, and both standard & convection ovens into a rugged 60-inch footprint. From searing steaks to baking pastries, this range handles every ticket that hits the rail.
Highlights

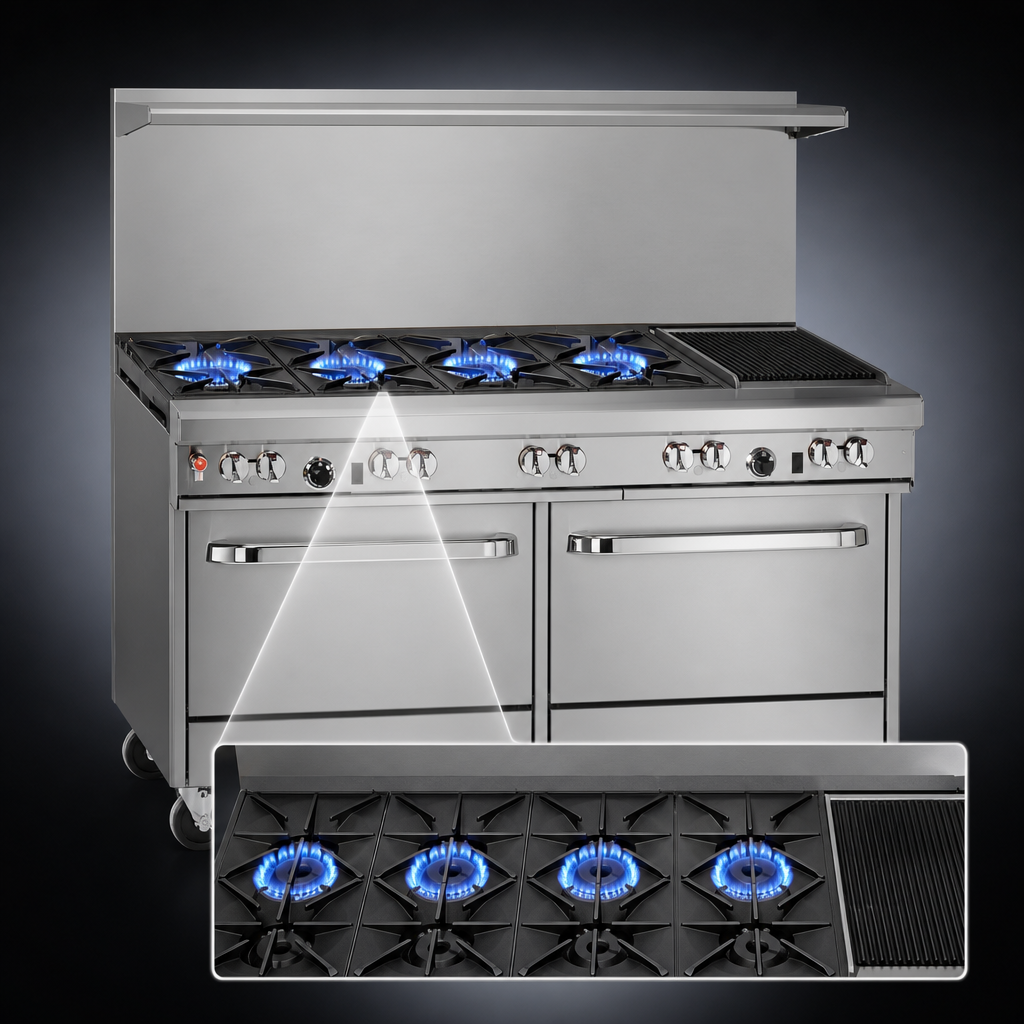

- Four 40,000 BTU Pyromax™ open burners – patented, lifetime clog-free design with built-in drip rings.

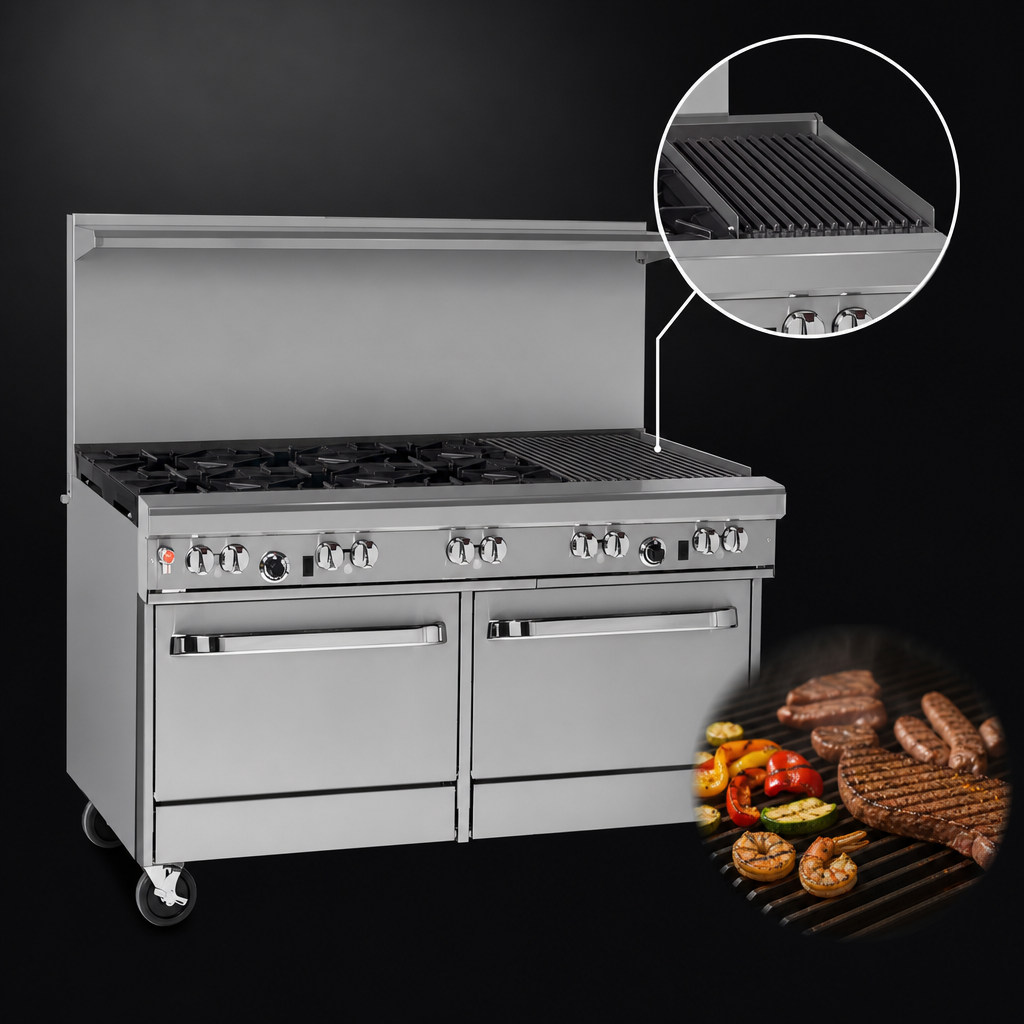

- Right-side 24" radiant charbroiler infuses food with authentic flame-broiled flavor (64 000 BTU).
- Double ovens:
- 45 000 BTU standard bake oven
- 32 000 BTU convection oven with ½ hp fan for even browning
- (4) heavy-duty racks included – two per oven with multiple positions.
- 37" high cooking surface with rugged cast-iron grates that hold up to 14" stock pots.
- 22 ½" flue riser with integrated utensil shelf keeps cookware and spices within reach.
- Front-mounted manual gas shut-off for quick service access.
- All-stainless front, sides, rail & 6" adjustable legs – easy to clean and built to last.
- Factory-installed ¾" pressure regulator; standing pilots on the cooktop for instant readiness.
Unmatched Through-Put
With a combined input of 301,000 BTU/hr, the Ultimate Range powers through peak periods without losing temperature. Pyromax burners recover instantly after sauté pans are swapped, while the convection oven’s high-efficiency fan eliminates hot spots for consistent bakes, roasts, and finishes.
Specifications
| Exterior width | 60 ¾" (1543 mm) |
|---|---|
| Exterior depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Open burners | (4) Pyromax – 40 000 BTU each |
| Charbroiler | 24" right-side radiant, 64 000 BTU |
| Oven bases | Standard (45 000 BTU) + Convection (32 000 BTU) |
| Total input | 301 000 BTU/hr |
| Gas connection | ¾" NPT (right side with charbroiler configuration) |
| Electrical (convection fan) | 115 V / 60 Hz / 5.9 A, 6' cord & plug |
| Ignition | Battery-spark (ovens) & standing pilot (top/charbroiler) |
| Construction | Stainless steel front, sides, shelf & legs |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
What’s in the Box
- (4) Oven racks
- 22 ½" flue riser with heavy-duty shelf
- Factory pressure regulator
- 6" stainless adjustable legs
- Owner’s manual & warranty packet
- This appliance is intended for commercial use only and must be installed under a vented hood.
- Limit oversized cookware (12" +) to the rear burners to avoid excessive rail heat.
- Do not block charbroiler grates with sheet pans while burners are on.
- If installed on non-quarry tile floors, contact the factory for approved mounting options.
