Southbend (Middleby) 4607AC-2TR Ultimate Gas Ranges

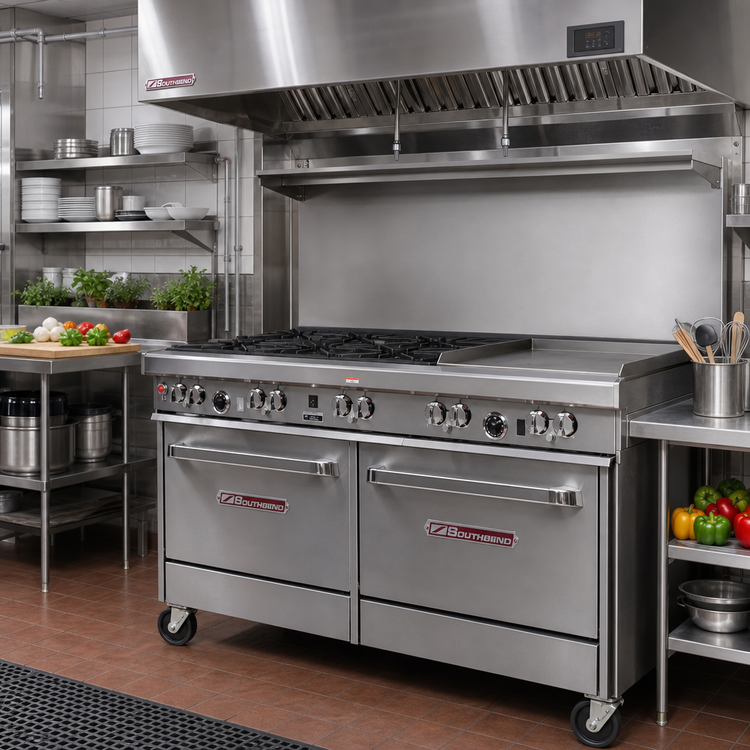

Southbend “Ultimate” 60" Gas Restaurant Range

Unleash 240,000 BTU of cooking power in a single, rock-solid platform built for demanding commercial kitchens. Southbend’s Ultimate Series combines patented Pyromax burners, a space-saving griddle, and a full-size convection oven to keep every ticket on schedule and every plate consistent.

Key Features

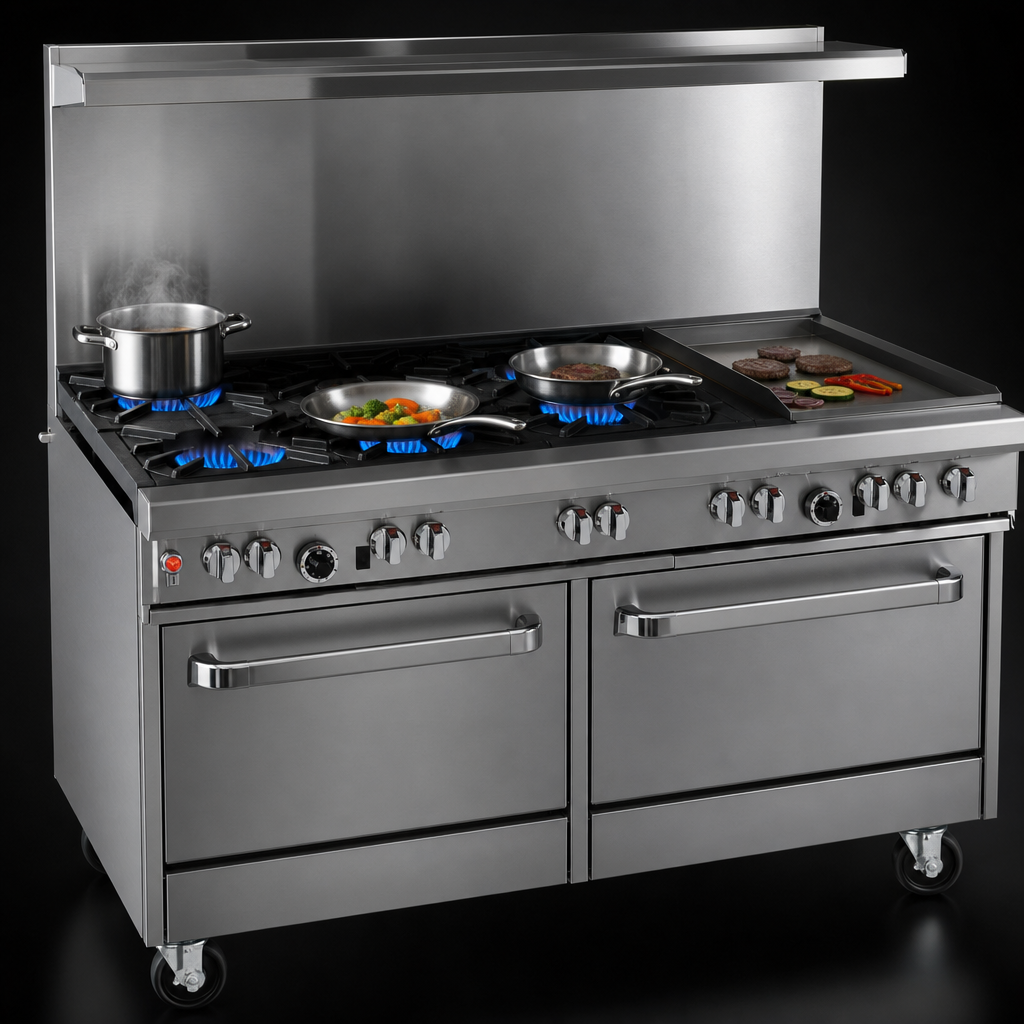

• Four 40,000 BTU Pyromax non-clog burners (160,000 BTU total) with built-in drip rings for port protection.
• 24" smooth steel griddle (½" thick) on the right—ideal for breakfast favorites, burgers, tacos and more.
• Left-side gas convection oven, 32,000 BTU, battery-spark ignition, 175 – 550 °F thermostat, porcelain cavity.
• Includes three nickel-plated racks with five position rails for maximum baking flexibility.
• Right-side stainless steel cabinet base adds dry storage and can be ordered with no-charge doors.
• 22 ½" flue riser with heavy-duty shelf keeps sauté pans, spices and smallwares within reach.
• 4" deep stainless front rail, removable cast-iron grates (rear holds up to 14" stock pots) & dual drip trays for easy cleanup.
• Front-mounted master gas shut-off and factory-installed regulator streamline installation & maintenance.
• 6" stainless steel adjustable legs; optional casters available.
• cCSAus, CSA Flame, CSA Star & NSF certified for safe, code-compliant operation.
• Backed by a 1-year parts & labor warranty and Southbend’s nationwide service network.

Performance Highlights

• Total input: 240,000 BTU/h—plenty of headroom for peak rushes.
• Convection oven fan: ½ hp, 1 710 rpm motor delivers even heat for flawless baking and roasting.
• Patented three-piece burner design lifts out fast for deep cleaning, cutting downtime and labor.

Specifications

Perfect For

• High-volume diners & breakfast joints
• Steakhouses needing rapid boil & sear capability
• Ghost kitchens & catering operations where every square inch counts

Ask about Middleby Equipment Financing for affordable, fixed monthly payments.
