Southbend (Middleby) 4607AC-2CR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
4 Pyromax Burners • 24" Right-Side Charbroiler • Convection Oven & Cabinet Base • 256,000 BTUPurpose-built for high-volume kitchens, the Southbend Ultimate Series combines extreme fire-power, versatile cooking zones, and legendary durability in one fully integrated station. From rapid boil to perfectly seared steaks and evenly-baked desserts, this 60" range does it all while saving precious line space.
Why You’ll Love It

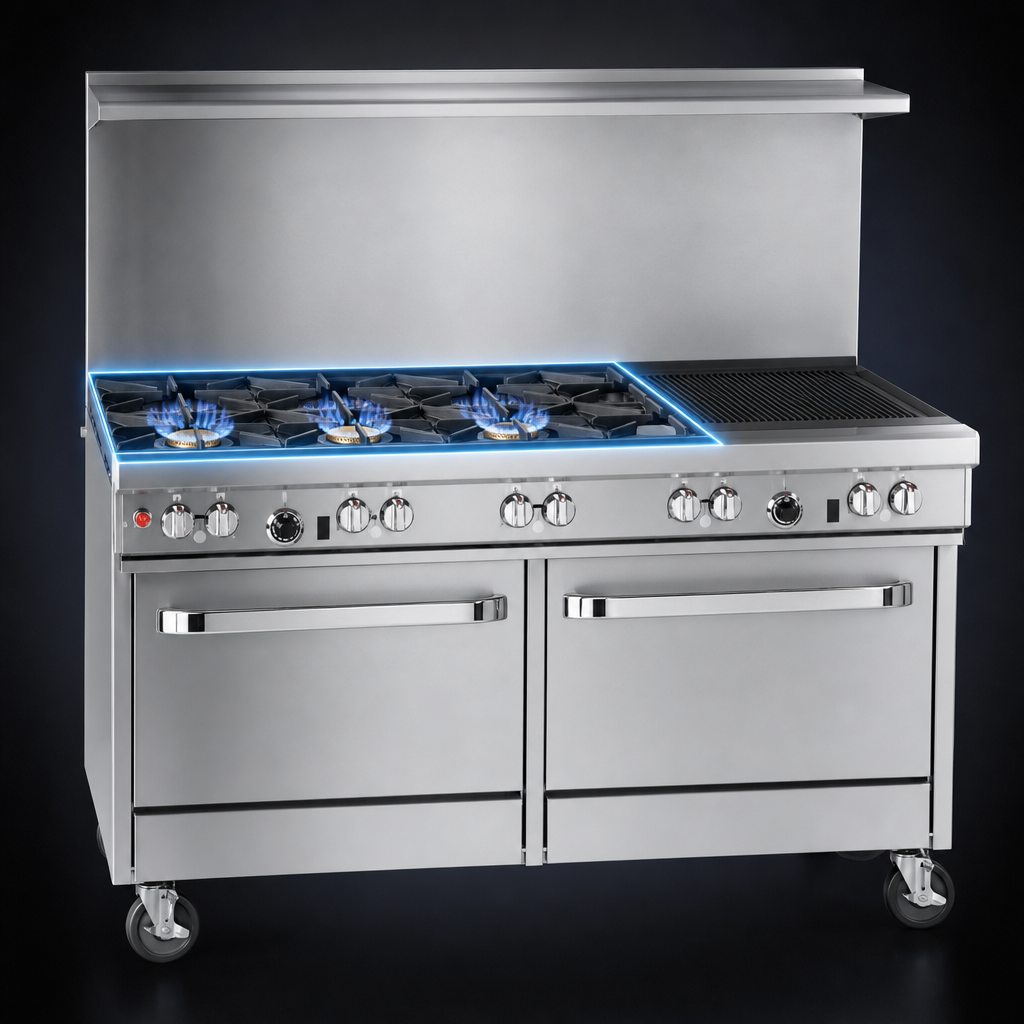

- 4 × 40,000 BTU Pyromax burners – patented, clog-free design with built-in drip ring delivers intense, consistent heat for woks, stockpots, and sauté pans.

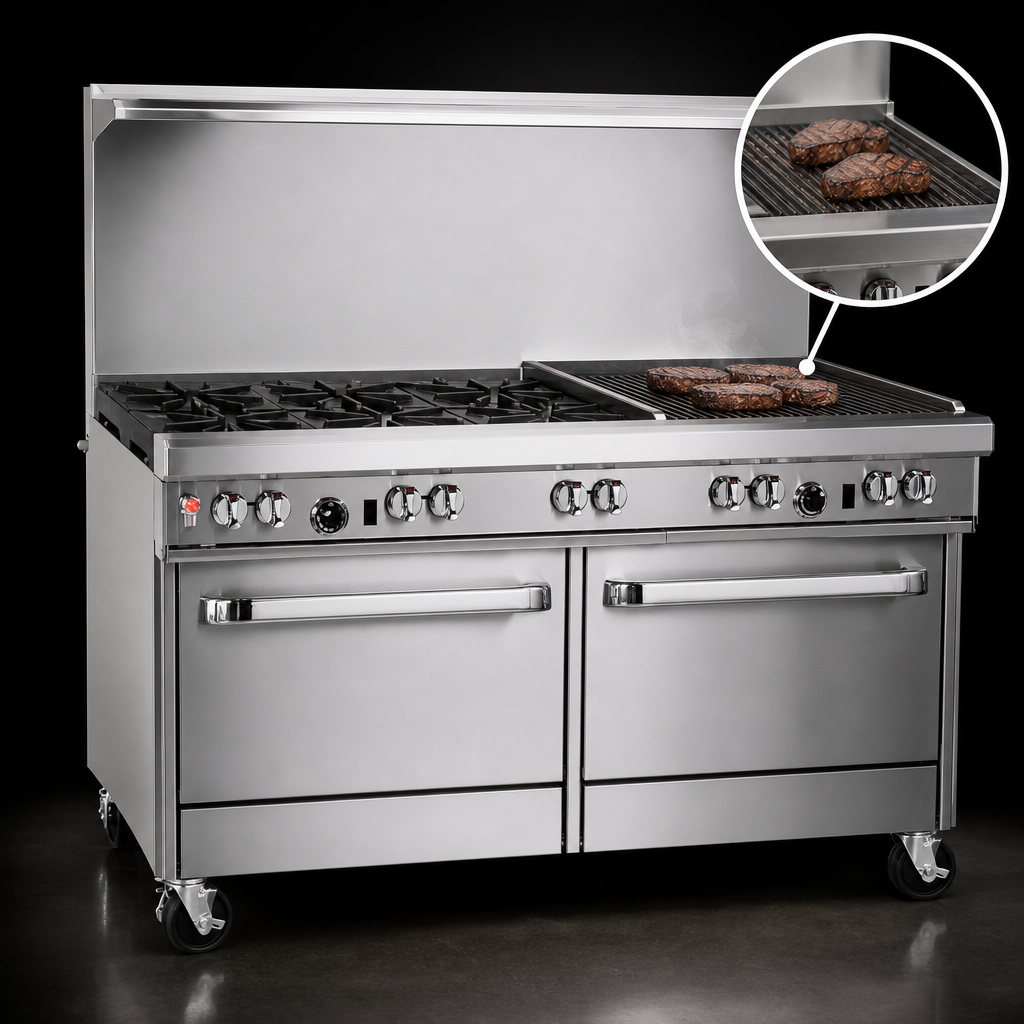

- 24" heavy-duty charbroiler (right) – 64,000 BTU cast-iron radiants & grates create steak-house sear marks and authentic flame flavor.
- 32,000 BTU convection oven (left) – porcelain-enameled cavity, 3 chrome racks, 5 positions, and battery spark ignition for reliable, match-free starts.
- Stainless steel cabinet base (right) – keeps sheet pans, utensils, or dry goods close at hand; optional doors available at no charge.
- 22-1/2" flue riser with storage shelf – perfect for seasonings, smallwares, or finishing plates.
- Front-mounted manual gas shut-off and factory-installed pressure regulator simplify installation & daily operation.
- 6" stainless steel adjustable legs (casters optional) allow easy leveling and cleaning under the unit.
- CSA & NSF listed for gas safety and sanitation.
- Backed by Southbend’s 1-year parts & labor warranty.
Performance Specifications
| Total Input | 256,000 BTU/hr (Natural Gas) |
|---|---|
| Open Top Burners | 4 Pyromax @ 40,000 BTU each (160,000 BTU) |
| Charbroiler | 24" width, 64,000 BTU |
| Convection Oven | 32,000 BTU • 175 °F – 550 °F thermostat • 14"H × 26"W × 24"D cavity |
| Cooking Surface | 27" deep, removable cast-iron grates (rear supports 14" stock pots) |
| Exterior Dimensions | 60 3⁄4"W × 42 1⁄8"D × 59 1⁄2"H (to top of flue shelf) |
| Work-Height | 37" |
| Gas Connection | 3⁄4" NPT, 7" W.C. minimum inlet pressure (Natural) |
| Electrical (oven fan) | 115 V / 60 Hz / 1-ph • 5.9 A • 6' cord & NEMA 5-15P plug |
| Shipping Weight | Approx. 1,075 lb |
Included in the Box
- (4) Removable cast-iron grate tops
- (3) Chrome oven racks
- Pressure regulator (factory installed)
- 22-1/2" flue riser with built-in shelf
- Installation & operation manual
Need easy monthly payments? Ask us about Middleby equipment financing and start cooking on your new range right away!
