Southbend (Middleby) 4607AA-2TR Ultimate Gas Ranges
Description

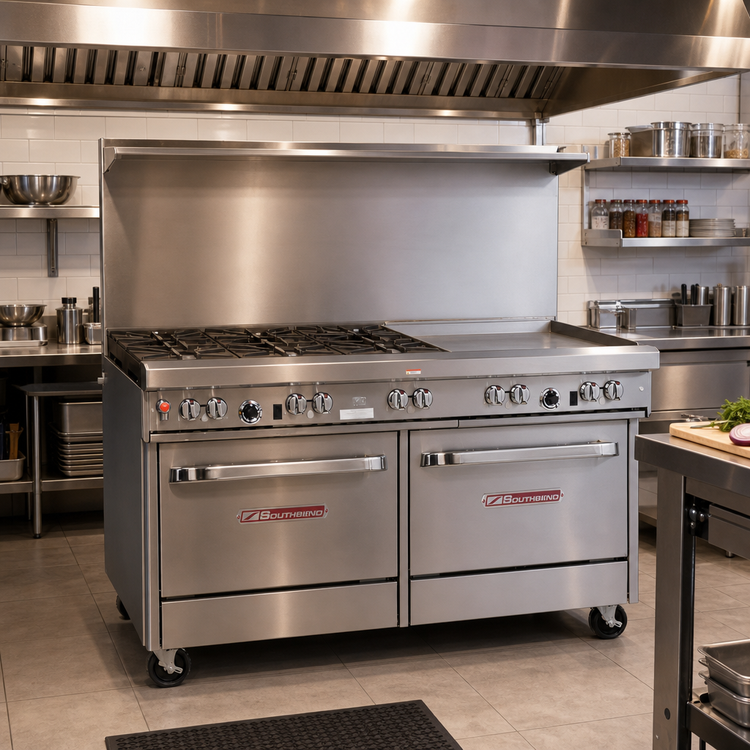

Southbend Ultimate 60" Restaurant Range
4 Pyromax Burners • 24" Right-Side Griddle • Double Convection OvensThe power you need for a high-volume kitchen—packed into one rugged, all-stainless platform. Southbend’s Ultimate series brings 272,000 BTU of precision heat, legendary durability, and chef-friendly ergonomics to the cookline.
Key Advantages

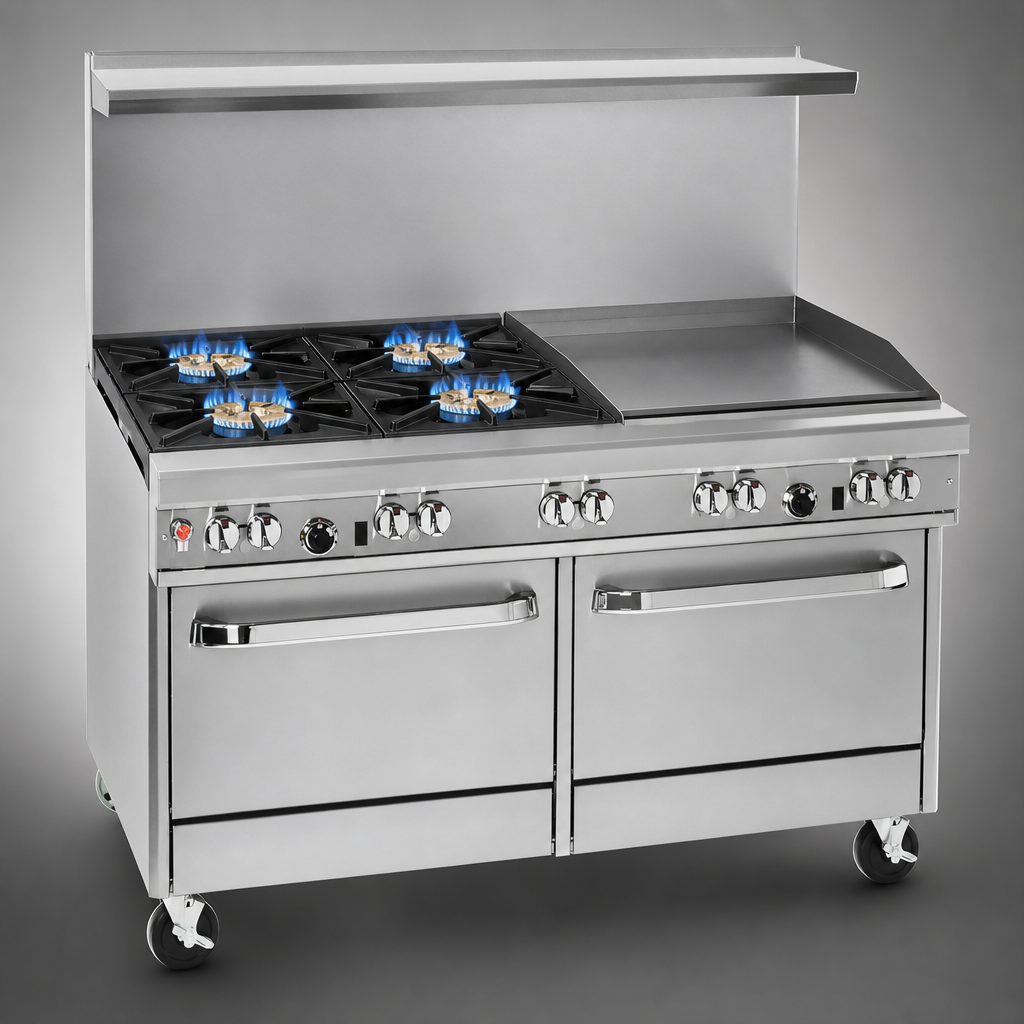

- Blistering output: Four patented Pyromax burners deliver 40,000 BTU each for rapid boils and high-heat sauté work.
- Versatile 24" griddle (right): ½" polished steel plate with raised sides—ideal for breakfast staples, smash burgers, or searing proteins.
- Twin convection ovens: 32,000 BTU NAT each, battery spark ignition, three chrome racks per cavity, five rack positions, and a 175-550 °F thermostat range.
- All-stainless exterior: Front, sides, 4" front rail, 22.5" flue riser shelf, and sturdy 6" adjustable legs stand up to daily abuse.
- Front-mounted gas shut-off + factory regulator simplify installation and service.
- One-piece, lifetime non-clog cast-iron grates—rear section accommodates 14" stockpots.
- Safety & compliance: cCSAus, CSA Flame, CSA Star & NSF listed for peace of mind and code approvals.
- 1-year parts & labor warranty backed by the Southbend national service network.
At-a-Glance Specifications
| Model | Ultimate 60" Range – Configuration 460 AA (Griddle Right) |
|---|---|
| Total BTU | 272,000 BTU/hr (Natural Gas) |
| Open Burners | 4 × Pyromax, 40,000 BTU each, standing pilot |
| Griddle | 24" right-side, ½" smooth steel plate, manual control |
| Ovens | 2 × Convection, 32,000 BTU each, battery spark ignition, 3 racks per cavity |
| Cooking Surface Height | 37" |
| Unit Dimensions (W × D × H) | 60.75" × 42.13" × 59.5" (to top of riser shelf) |
| Gas Connection | ¾" NPT female, minimum inlet pressure 7" W.C. (Natural) |
| Electrical (ovens) | 115 V, 60 Hz, 1-phase, 5.9 A, 6' cord & NEMA 5-15P plug |
| Construction | Stainless steel front, sides, shelf & riser; porcelain-enameled oven interiors |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see warranty statement) |
Built for the Rush—Designed for Uptime
From the patented drip-ring on each Pyromax burner to the coved porcelain oven corners that eliminate hot spots, every detail of the Ultimate range is engineered to keep service moving and maintenance to a minimum.
Need flexible financing? Ask about Middleby Equipment Financing for low monthly payments and potential Section 179 tax advantages.
