Southbend (Middleby) 4606DD-2RR Ultimate Gas Ranges
Description

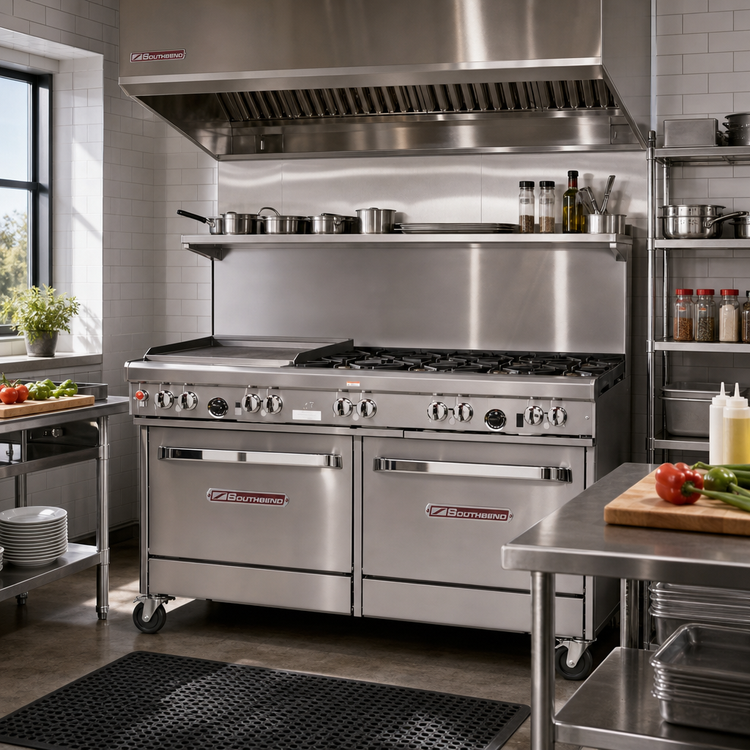

Southbend “Ultimate” 60" Gas Restaurant Range
3 Star/Sauté Burners • 2 Pyromax Burners • 24" Raised Griddle/Broiler • Dual Standard OvensBuilt for kitchens that demand maximum versatility and heavy-duty performance, the Southbend Ultimate 60" range puts 302,500 BTU of muscle at your command. From high-heat sautéing to overnight roasting, this field-proven workhorse combines award-winning burner technology, a space-saving raised griddle/broiler, and two full-size ovens—wrapped in an all-stainless cabinet that takes daily punishment in stride.
Why You’ll Love It
- Power where you need it – (3) 33,000 BTU star/sauté burners up front for lightning-fast pan work plus (2) 40,000 BTU Pyromax burners in the rear for oversized stock pots.

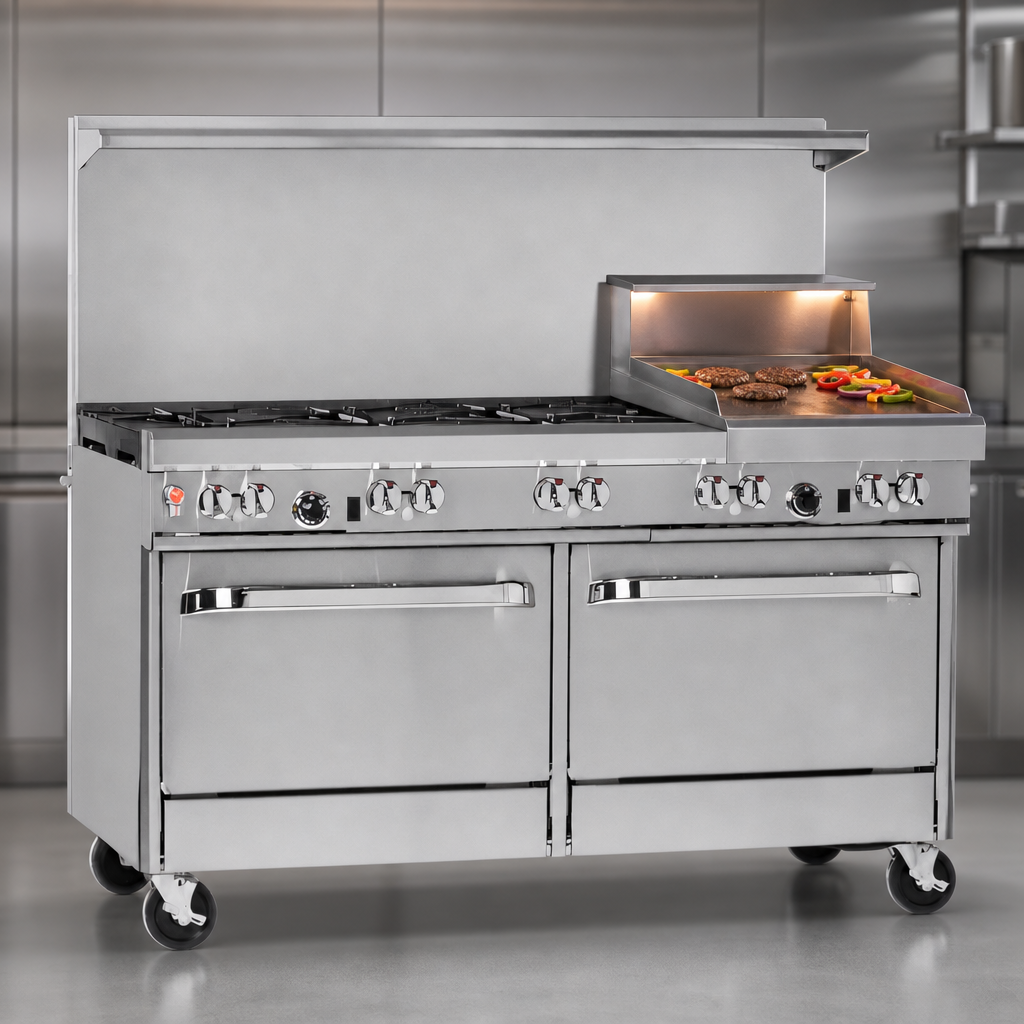

- 24" raised griddle with infrared broiler beneath—perfect for breakfast service or finishing steaks without sacrificing cook-top real estate.
- Two 45,000 BTU standard ovens with battery spark ignition; each fits full-size sheet pans both directions and ships with an adjustable rack.
- 27"-deep cooking surface with four removable cast-iron grate tops; rear grate holds pots up to 14" in diameter.
- 22½" flue riser & heavy-duty shelf keep pans, spices and utensils right where you need them.
- Front-mounted manual gas shut-off and factory-installed regulator simplify installation and daily operation.
- Durable stainless-steel front, sides, rail & shelf plus 6" adjustable legs for easy leveling on any kitchen floor.
- Certified for safety & sanitation: cCSAus, CSA Flame, CSA Star & NSF.
- Backed by Southbend’s One-Year Parts & Labor Warranty.
Performance at a Glance
| Total BTU Input | 302,500 BTU/hr (Natural or LP) |
|---|---|
| Open Burners | (3) Star/Sauté 33 k BTU each, front (2) Pyromax 40 k BTU each, rear |
| Raised Griddle / Broiler | 24" wide, 64 k BTU (manual control) |
| Ovens | (2) Standard ovens – 45 k BTU each, 175-550 °F thermostat, battery spark ignition |
| Cooking Surface Height | 37" (top of grates) |
| Overall Dimensions (WxDxH) | 60 ¾" × 34" × 59 ½" (to top of flue shelf) |
| Oven Cavity (each) | 26" W × 26 ½" D × 14" H – porcelain enamel |
| Gas Connection | ¾" NPT (rear), 7" WC NAT / 11" WC LP minimum |
| Construction | Stainless front, sides, 4" rail & shelf; 6" adjustable stainless legs |
| Warranty | 1-Year limited parts & labor |
What’s Included
- (1) Removable rack per oven
- Factory-installed pressure regulator
- Standing pilots on open burners; battery spark ignition on ovens
- User’s manual & warranty documentation
