Southbend (Middleby) 4606DC-2TR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
3 Star/Sauté + 2 Pyromax Burners • 24" Thermostatic Griddle • Standard Oven & Cabinet Base • 272,000 BTUSouthbend’s Ultimate Series is engineered for kitchens that refuse to slow down. This 60" range delivers extreme burner power, precise griddle control and a durable, easy-to-clean design that thrives on the busiest cook lines—all backed by Southbend’s legendary reliability.
Why You’ll Love It

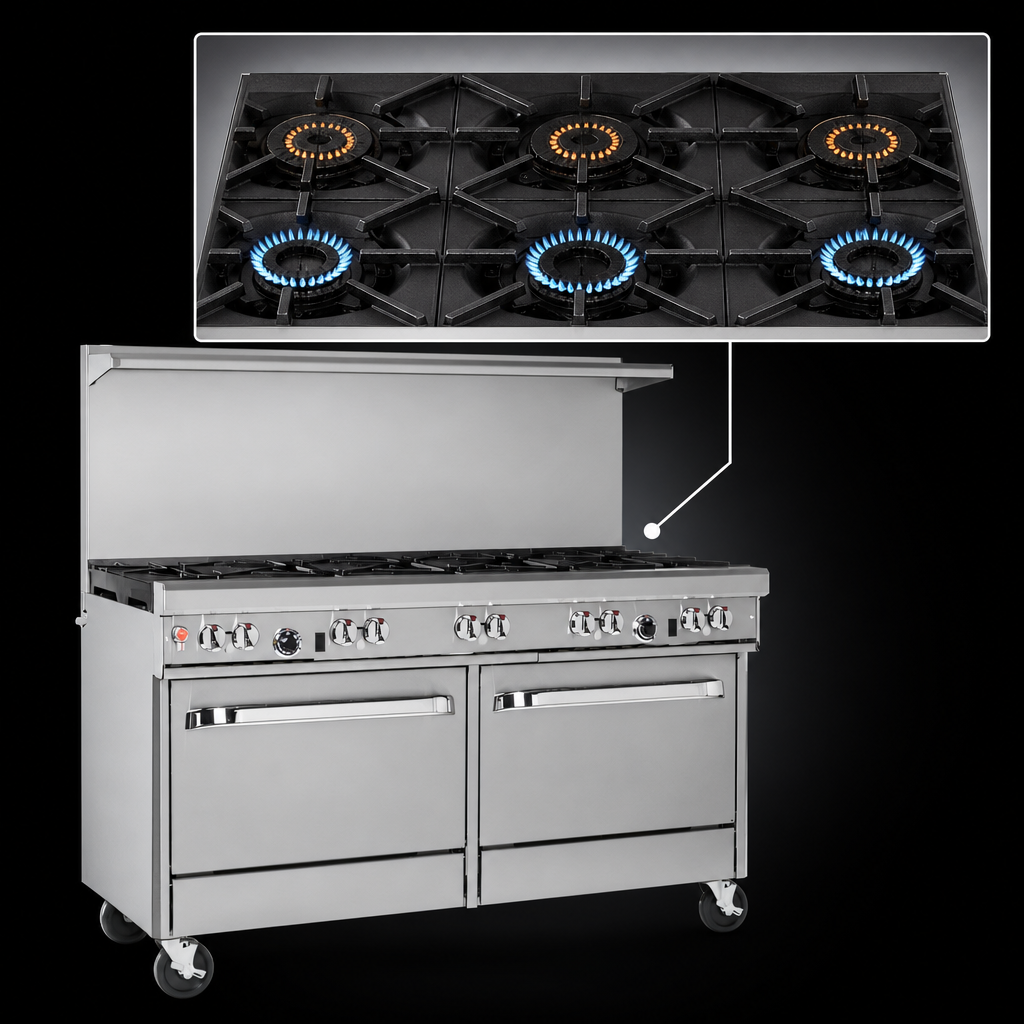

- Blistering Burner Output: (3) 33,000 BTU cast-iron star/sauté burners up front for fast, even heat & easy pan slide.
- Heavy-Hitting Pyromax Power: (2) 40,000 BTU rear Pyromax burners tackle woks, stock pots and rapid boils.

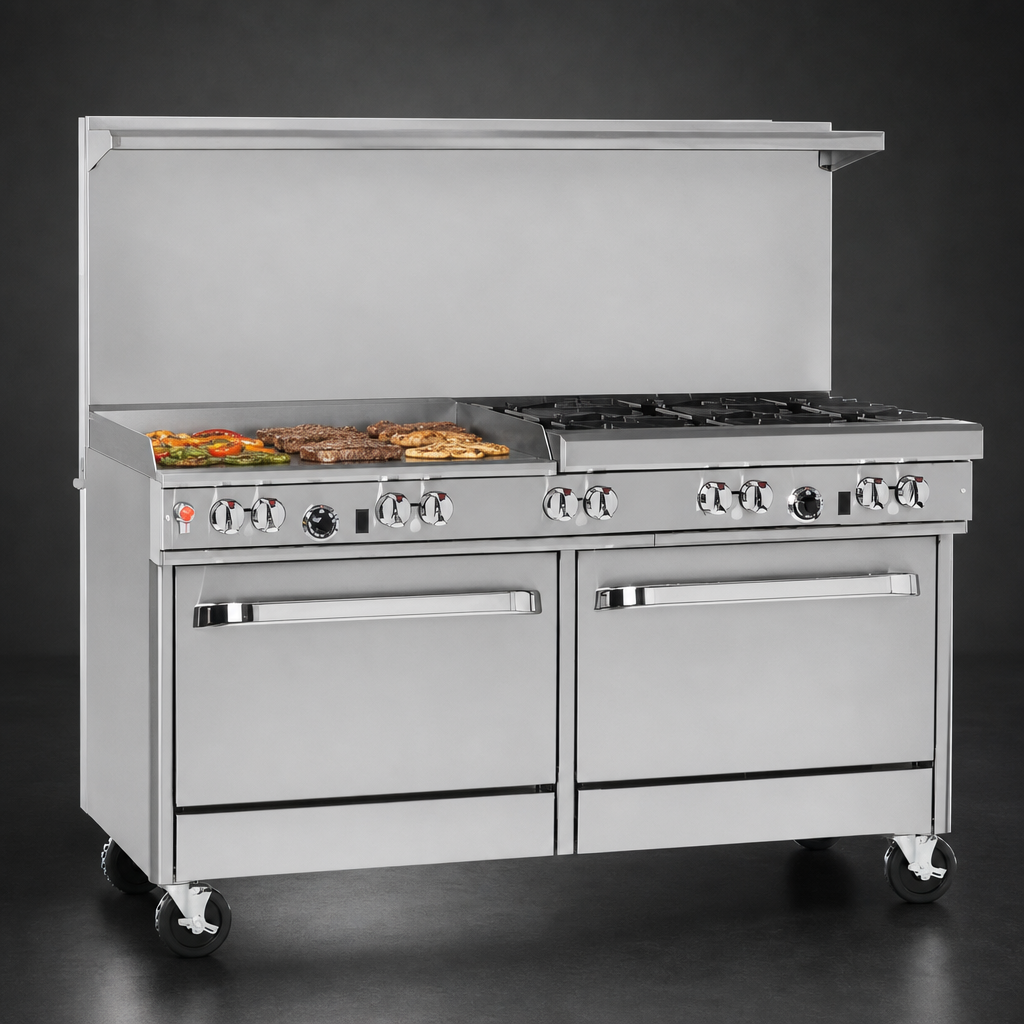

- 24" Right-Side Griddle: ½" polished steel plate with raised sides and thermostatic controls for anything from breakfast to searing proteins (48,000 BTU).
- Standard Oven (Left): 45,000 BTU with battery-spark ignition, 175 – 550 °F thermostat, porcelain interior and (1) rack.
- Roomy Cabinet Base (Right): Stainless compartment keeps sheet pans, hotel pans or smallwares within reach.
- Built to Last: Stainless steel front, sides & 4" rail, heavy-duty 22½" flue riser with shelf and 6" adjustable legs.
- Front-Mounted Gas Shut-Off and factory regulator simplify installation & service.
- Certified & Warranty-Backed: cCSAus, CSA Flame, CSA Star, NSF; 1-year parts & labor coverage.
Technical Specifications
| Exterior width | 60 ¾" (1543 mm) |
|---|---|
| Exterior depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Overall height (to flue top) | 59 ½" (1511 mm) |
| Total BTU input | 272,000 BTU/hr (Natural or LP) |
| Open burners | (3) 33k BTU star + (2) 40k BTU Pyromax |
| Griddle section | 24" right, 48k BTU, ½" polished steel, thermostatic |
| Oven cavity | 14"H × 26"W × 26.5"D • 45k BTU • 1 rack (2 positions) |
| Gas connection | ¾" NPT, rear (opposite griddle side) – 7" W.C. Nat / 11" W.C. LP |
| Ignition | Standing pilots (top) • Battery spark (oven) |
| Construction | Stainless steel front, sides, shelf & cabinet; cast-iron grates & burners |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
| Limited warranty | 1 year parts & labor |
What’s Included
- Factory-installed gas pressure regulator
- (1) Oven rack
- 22 ½" flue riser with heavy-duty storage shelf
- 6" stainless steel adjustable legs
- Operator’s manual & warranty documentation
Need additional oven racks, doors for the cabinet base, or caster sets? Southbend offers a wide range of accessories—ask your sales rep for details.
