Southbend (Middleby)  |  Ultimate  |  SKU: 4606DC-2RR

Southbend (Middleby) 4606DC-2RR Ultimate Gas Ranges

$11,326.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

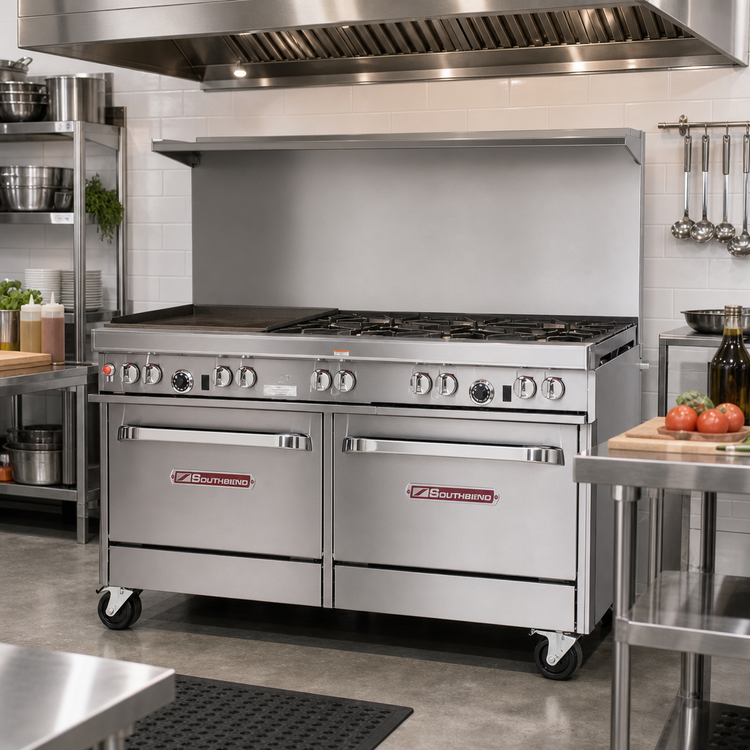

Southbend Ultimate 60" Restaurant Range

3 Star/Sauté + 2 Pyromax Burners • 24" Raised Griddle/Broiler • Standard Oven & Cabinet Base

Put every major cooking technique on a single, rock-solid platform. The Ultimate Series packs 257,500 BTU of raw output into a 60-inch footprint—ideal for high-volume kitchens that refuse to compromise on performance or durability.

Key Features

  • Three 33,000 BTU star/saute burners (front) for rapid, even heat distribution.
  • Two 40,000 BTU Pyromax burners (rear) with patented, clog-free design & built-in drip rings.

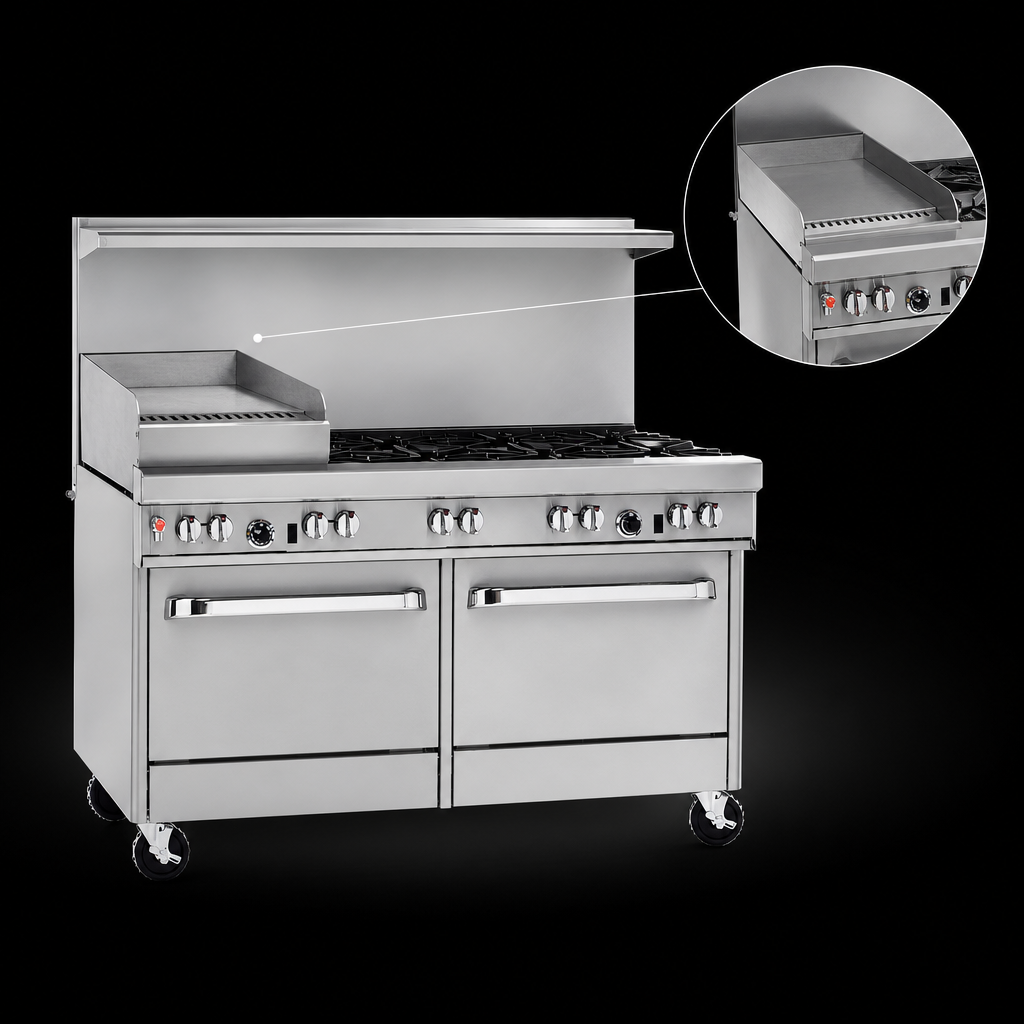

  • 24" raised griddle with under-broiler (33,500 BTU) – ½" polished steel plate, manual controls.
  • 45,000 BTU standard oven with battery-spark ignition & 175-550 °F thermostat; supplied with one rack.
  • Stainless steel cabinet base for convenient sheet-pan storage (door kit available at no charge).
  • 22½" flue riser with heavy-duty shelf keeps utensils and seasoning within arm’s reach.
  • Front-mounted main gas shut-off and factory-installed ¾" regulator for quick service access.
  • Standing pilots for open burners; no external electricity required for the top section.
  • Four removable cast-iron grate tops—rear grates accept 14" stock pots.
  • 6" stainless steel adjustable legs & 4" front rail protect controls and cookware.
  • cCSAus, CSA Flame, CSA Star & NSF listed.

Built to Last

  • All-stainless front, sides and shelf resist corrosion and simplify wipe-downs.
  • Porcelain-enameled, coved-corner oven cavity cleans fast and prevents hot spots.
  • Spring-assisted, counter-weighted oven door for smooth, one-hand operation.
  • Backed by a 1-year limited parts & labor warranty and Southbend’s nationwide service network.

Specifications

Model  Ultimate 60" Range – 3 Star / 2 Pyromax / Raised Griddle / Std Oven / Cabinet
Overall width 60 ¾" (1543 mm)
Overall depth 34" (864 mm)
Cooking height 37" (940 mm)
Total input 257,500 BTU/hr
Burner ratings Star/Sauté 33 kBTU ea • Pyromax 40 kBTU ea • Raised Griddle/Broiler 33.5 kBTU • Oven 45 kBTU
Oven cavity 14" H × 26" W × 26.5" D – fits full-size pans both directions
Gas connection ¾" NPT rear (opposite optional griddle location)
Minimum inlet pressure 7" W.C. (Nat) • 11" W.C. (LP)
Clearances Combustible: 10" side & rear • Non-combustible: 0" side, 0" rear
Certifications NSF • cCSAus • CSA Flame • CSA Star
Warranty 1-year limited parts & labor

What’s in the Box

  • Southbend Ultimate range (fully assembled, regulator installed)
  • One oven rack
  • Set of four 6" adjustable stainless legs
  • Installation & operation manual
  • Warranty documentation
Installation Note: This equipment must be installed under a vented hood. For floors other than quarry tile, cement or natural stone, contact Southbend for approved mounting options.

• Use cookware 12" or larger on rear burners to avoid excessive heat on the front rail.
• Do not place sheet pans over the broiler grates while burners are lit; damage caused by improper cleaning is not covered under warranty.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Base

(1) standard oven, (1) cabinet

Plate Thickness

.500" = 1/2"

Top

(5) open burners, (1) 24" griddle/broiler

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front, (2) pyromax burners rear, (1) raised griddle/broiler, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 257,500 BTU, cCSAus, CSA Flame, CSA Star, NSF
