Southbend (Middleby) 4606CC-2TR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range – Star/Pyromax/Griddle
3 star sauté burners • 2 Pyromax burners • 24" thermostatic griddle • 227,000 BTUBuilt for kitchens that run full throttle every service, the Southbend Ultimate Series brings rugged construction and serious fire power to a single, space-saving workstation. This 60-inch configuration combines high-output open burners, a precision-controlled griddle and generous cabinet storage to keep your line moving at top speed.
Key performance features
- Three 33,000 BTU cast-iron star/sauté burners (front row) for even, edge-to-edge pan coverage.
- Two 40,000 BTU Pyromax burners (rear) with patented clog-free design—ideal for stock pots & woks.

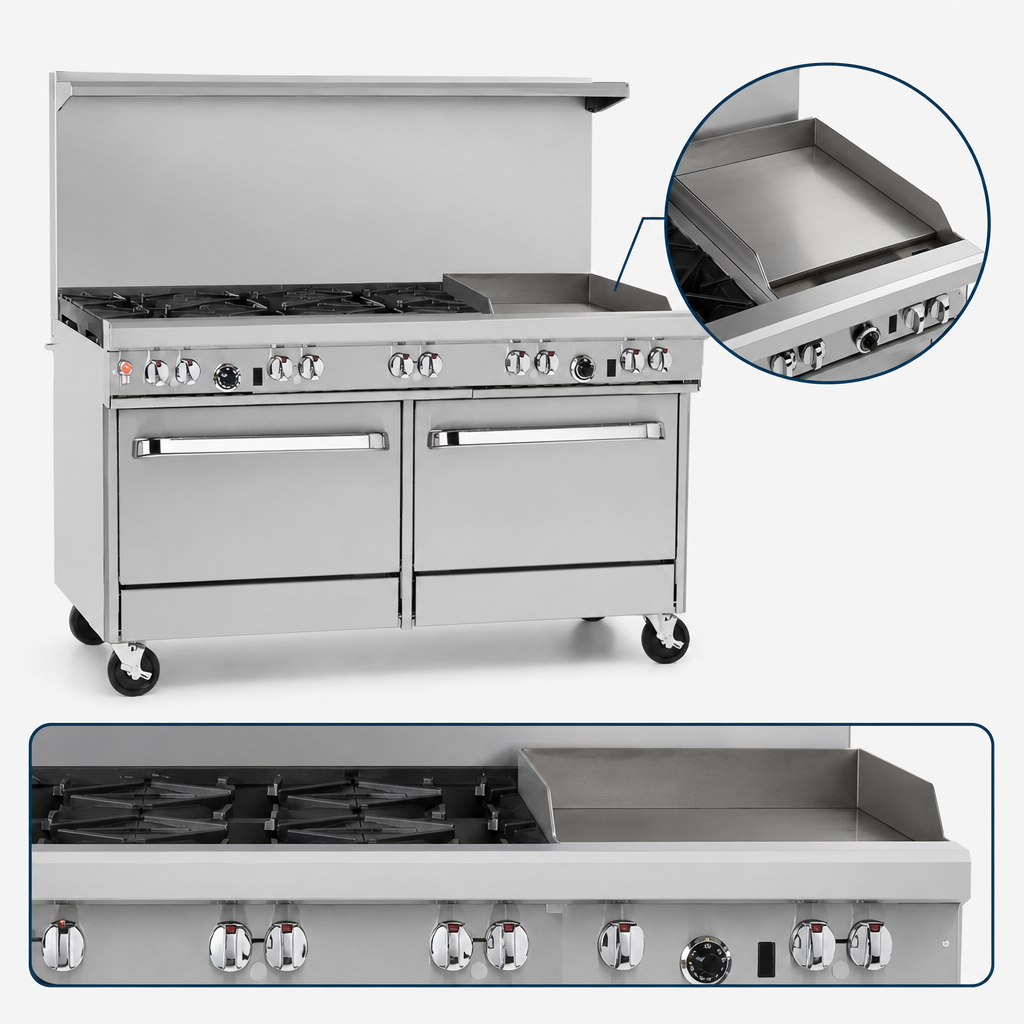

- Right-side 24" griddle, ½" polished steel plate with thermostatic controls, 48,000 BTU.
- Total input: 227,000 BTU/hr (natural gas) with factory-installed pressure regulator.
- 27" deep cooking surface; rear grates accept cookware up to 14" in diameter.
- Front-mounted manual gas shut-off plus standing pilots for burners; battery-spark ignition for griddle.*
- Stainless steel front, sides, 4" rail and 22½" flue riser with heavy-duty storage shelf.
- Two full-width stainless cabinet bases keep hotel pans and smallwares within reach.
- Removable cast-iron grates and full-width drip trays for fast clean-up.
- 6" adjustable stainless steel legs for stable installation on any commercial floor.
Spec snapshot
| Overall width | 60.75" (1543 mm) |
|---|---|
| Overall depth | 34.00" (864 mm) |
| Cook-top height | 37.00" (940 mm) |
| Gas connection | 3/4" rear; min. 7" W.C. (natural) |
| Total input | 227,000 BTU/hr |
| Burner line-up | 3 × 33k BTU star • 2 × 40k BTU Pyromax • 24" griddle 48k BTU |
| Base type | Dual stainless cabinet bases (doors optional) |
| Construction | Stainless steel exterior, removable cast-iron grates, full-width drip trays |
| Crated weight | ≈ 1,075 lb (488 kg) |
| Certifications | cCSAus • CSA Star • CSA Flame • NSF |
| Warranty | 1-year parts & labor (factory authorized service) |
Built for the rush
From its thick-gauge chassis to its spring-assisted door hinges and lifetime clog-free burners, every component is engineered for year-after-year reliability in the most demanding food-service environments.
Certifications & approvals
- cCSAus listed for gas safety
- CSA Star & Flame for sanitation and performance
- NSF certified for food-contact safety
Oversized cookware: Pots 12" or larger should be used on the rear burners to avoid excessive heat on the front rail.
Flooring: 6" legs (standard) or casters are required when installing on combustible floors other than quarry tile, cement or natural stone.
*Battery spark ignition supplied for griddle; optional for open burners. Contact your Southbend dealer for factory-installed options such as cabinet doors, casters, salamander mounts and quick-disconnect gas hoses.
