Southbend (Middleby) 4606CC-2GR Ultimate Gas Ranges
Description

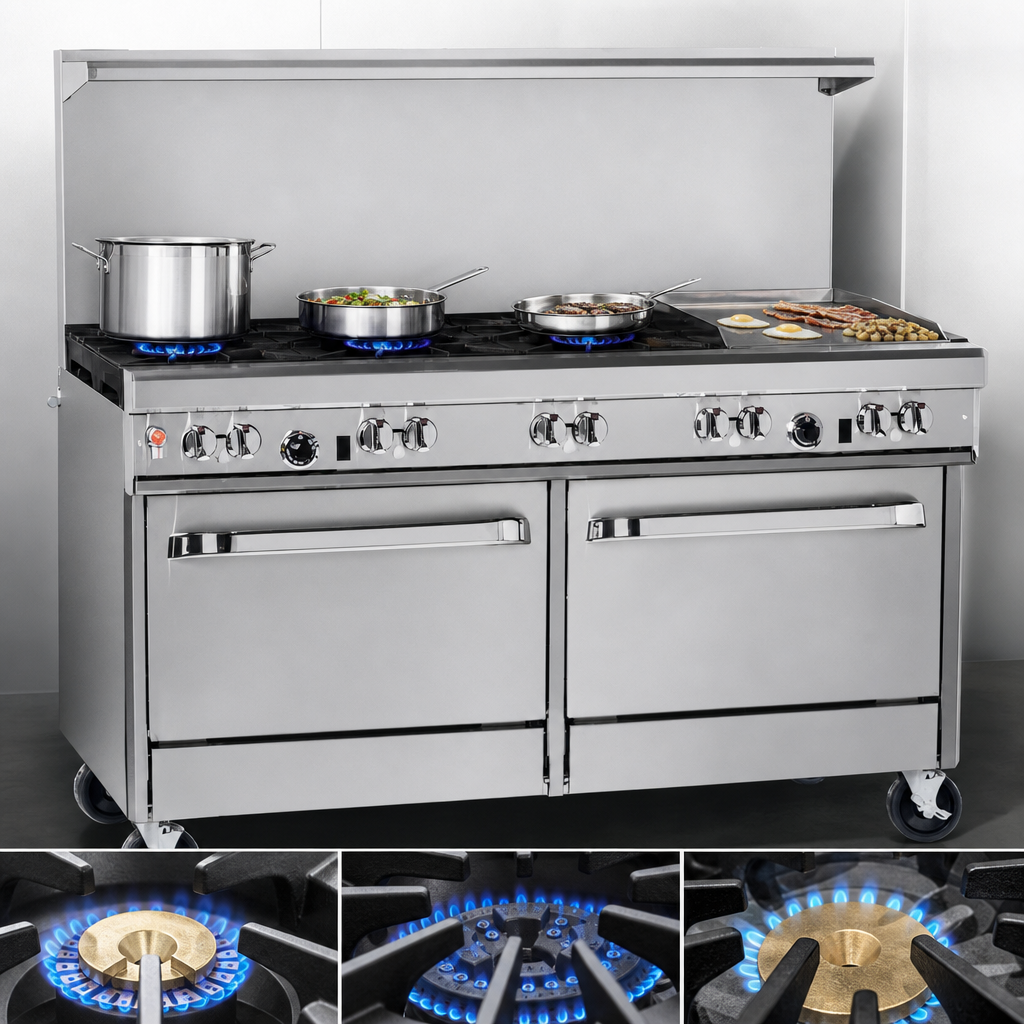

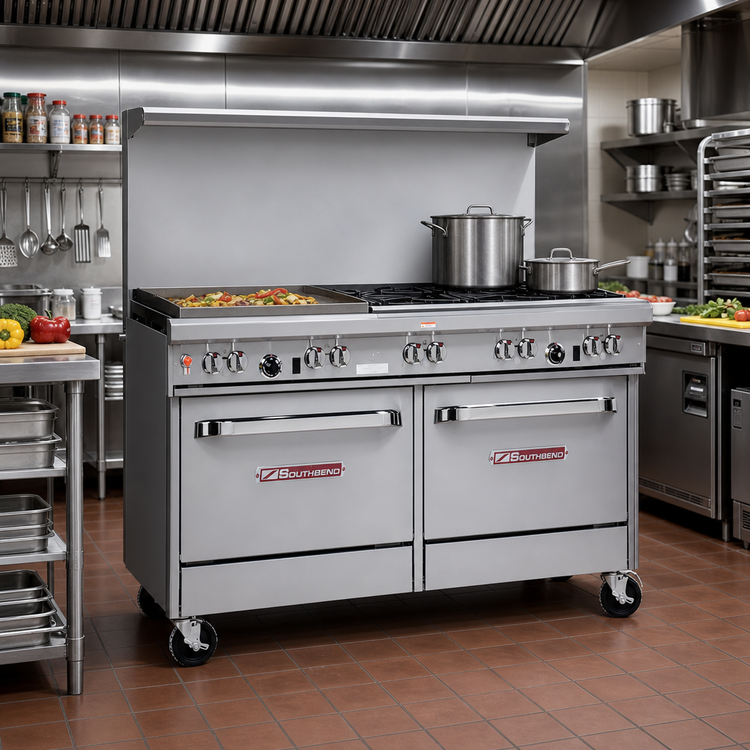

Southbend Ultimate 60" Gas Restaurant Range – Star & Pyromax Burners with 24" Griddle
Model 460 | 227,000 BTU | Cabinet Base | cCSAus & NSF ListedBuilt for chefs who demand serious heat and unrivaled durability, the Southbend Ultimate Series delivers a powerful, mix-and-match cooking surface in a single 60" footprint. Three high-efficiency star burners, two patented Pyromax™ power burners and a right-hand 24" steel griddle give you the versatility to sauté, boil, simmer, sear and grill without slowing down your line.
Top Features
- 3 × Star/Sauté Burners (Front) – 33,000 BTU each; cast-iron design spreads flame evenly across pans.
- 2 × Pyromax™ Burners (Rear) – 40,000 BTU each for rapid boils and wok-level heat.
- 24" Right-Side Griddle – ½" smooth, polished steel plate (48,000 BTU) with raised sides for all-day pancakes, burgers & more.
- Stainless Cabinet Base – Two full-width storage compartments keep sheet pans, stock pots and utensils close at hand.
- 22½" Flue Riser with Heavy-Duty Shelf – Ideal for holding plates, smallwares or garnishes.
- Front-Mounted Gas Shut-Off & factory-installed ¾" regulator for fast, code-compliant hook-ups.
- 6" adjustable stainless steel legs accommodate uneven floors and make cleaning underneath a breeze.
- One-piece pull-out drip trays simplify daily grease removal.
Why Choose Southbend Ultimate?
- Unmatched Output – 227,000 total BTU handles the highest-volume rushes with ease.
- Clog-Free Reliability – Patented non-clog burner ports keep flames consistent service after service.
- All Stainless Exterior – Front, sides and shelf resist corrosion and wipe clean quickly.
- Simple Serviceability – Standing pilots and removable cast-iron tops make maintenance fast.
- Peace-of-Mind Warranty – 1-year limited parts & labor coverage backed by Southbend’s nationwide service network.
Specifications
| Overall width | 60.75" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Gas type | Natural or LP (field convertible) |
| Total input | 227,000 BTU/hr |
| Gas connection | ¾" NPT female (rear, right-hand side) |
| Burners | 3 × 33 kBTU star | 2 × 40 kBTU Pyromax |
| Griddle | 24" W × 27" D, ½" plate, 48 kBTU (manual control) |
| Base | Dual stainless steel storage cabinets |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Warranty & Support
Includes Southbend’s 1-year limited parts & labor warranty. Service is provided nationwide through authorized agencies. See southbendnc.com/service-and-parts for full terms.
Intended for commercial use only. Installation must conform to local codes and be performed by a qualified technician.
