Southbend (Middleby) 4606CC-2CR Ultimate Gas Ranges
Southbend (Middleby) 4606CC-2CR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Southbend “Ultimate” 60″ Gas Restaurant Range
3 Star/Sauté Burners • 2 Pyromax Burners • 24″ Right-Side Charbroiler • Dual Stainless CabinetsBuilt for chefs who demand maximum versatility and power from a single footprint, the Southbend Ultimate 60" Range (Burner Option 6) delivers a searing 243,000 BTU of cooking muscle, rock-solid construction and the configuration flexibility that made the Ultimate Series a staple in busy kitchens worldwide.
Key performance features
- Split top configuration – (3) 33,000 BTU star/saute burners in front for fast, even sauté work • (2) 40,000 BTU Pyromax burners in the rear for high-output stock pots or woks.

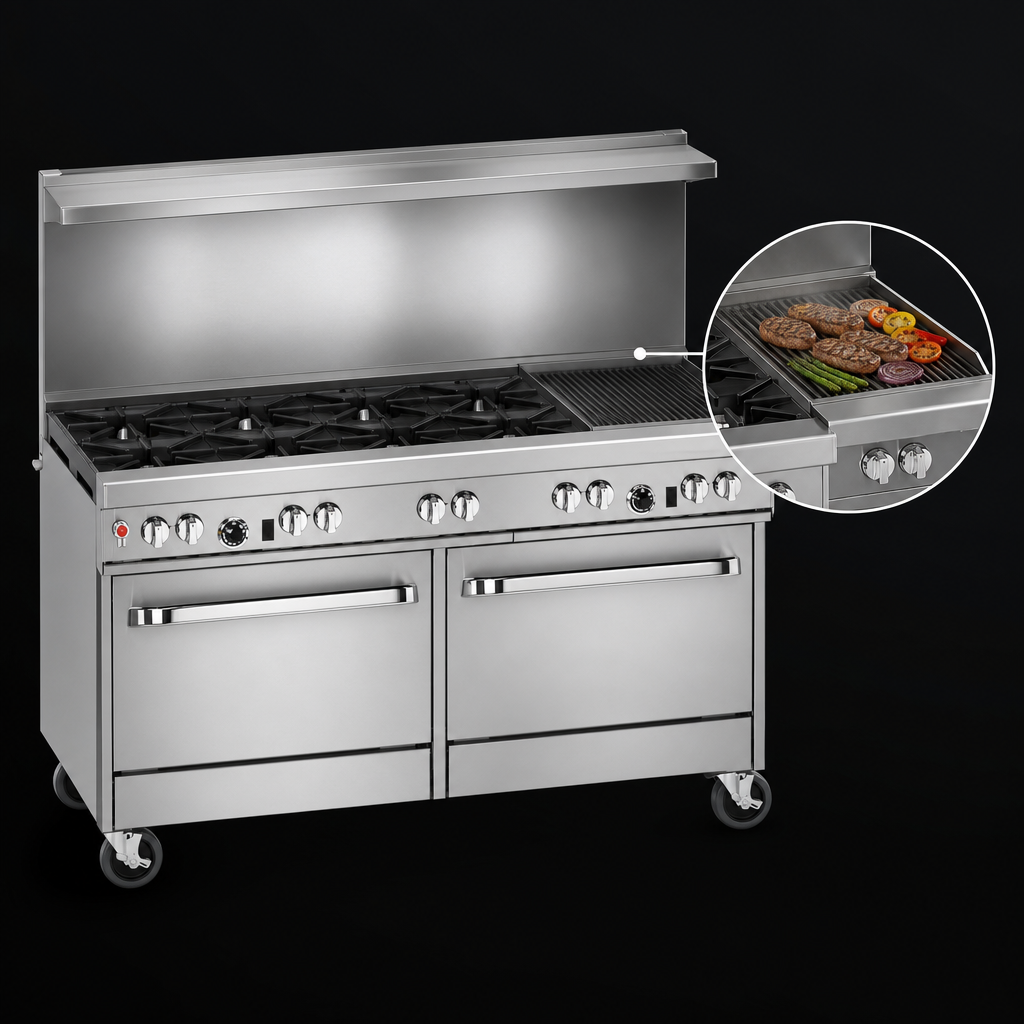

- Integrated 24″ charbroiler (right-side) – 64,000 BTU of flame-kissed grilling power, ideal for steaks, burgers and seafood.
- Chef-friendly layout – 27″ deep cooking surface with four removable cast-iron grate tops; rear grates hold up to a 14″ stock pot.
- 22½″ flue riser with heavy-duty shelf provides easy plating and pan storage without sacrificing ventilation.
- Front mounted gas shut-off for quick, one-touch control of the entire range line.
- Stainless steel everywhere – front, sides, cabinet faces, 4″ front rail and shelf stand up to daily commercial abuse and wipe clean fast.
- 6″ adjustable stainless legs for stable installation and simple floor cleaning.
- Factory-installed pressure regulator and standing pilots for reliable, match-free ignition.
- Certified to CSA and NSF standards; ships with a one-year parts & labor warranty.
At-a-glance specifications
Overall width | 60 3⁄4″ (1543 mm) |
---|---|
Overall depth | 34″ (864 mm) |
Cooking height | 37″ (940 mm) to cooktop |
Overall height (w/ riser) | 59 1⁄2″ (1511 mm) |
Top configuration | 3 × Star/Sauté (front) | 2 × Pyromax (rear) | 24″ charbroiler (right) |
Total BTU input | 243,000 BTU /hr (Natural Gas) |
Gas connection | 3⁄4″ NPT (rear – opposite charbroiler side) |
Minimum inlet pressure | Natural 7″ W.C. | LP 11″ W.C. |
Base | (2) Stainless steel cabinets with optional no-charge doors |
Shipping weight | Approx. 1,075 lb / 488 kg |
Warranty | 1-year parts & labor (see warranty statement) |
Ideal for
- Independent restaurants that need sauté, stock-pot and charbroil capability in one station
- Steakhouses and sports bars looking for high-heat grilling without a separate broiler
- Hotel or resort banquet kitchens where flexibility and output are critical
• Charbroiler sections must be installed under a properly sized, vented hood and in a non-combustible location.
• Oversized cookware (12″ Ø +) should be limited to the rear burners to prevent excessive rail heat.
• Do not cover charbroiler grates with sheet pans during cleaning – reflected heat will damage components and void warranty.
• This appliance is intended for commercial use only.
