Southbend (Middleby) 4606AC-2RR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Restaurant Range
3 Star/Sauté + 2 Pyromax Burners | 24" Raised Griddle/Broiler | Convection Oven | 244,500 BTUBuilt for kitchens that never slow down, the Southbend Ultimate Series packs multiple cooking stations, a high-volume oven and rugged stainless construction into one 60-inch powerhouse. From rapid sauté work to high-output stock production, precision grilling and baking, this single footprint covers it all while saving valuable line space.
Top-Line Advantages
- 5 open burners, 2 BTU profiles – (3) 33,000 BTU star/sauté burners up front for fast, even heat; (2) 40,000 BTU Pyromax burners in back for stock pots & woks.

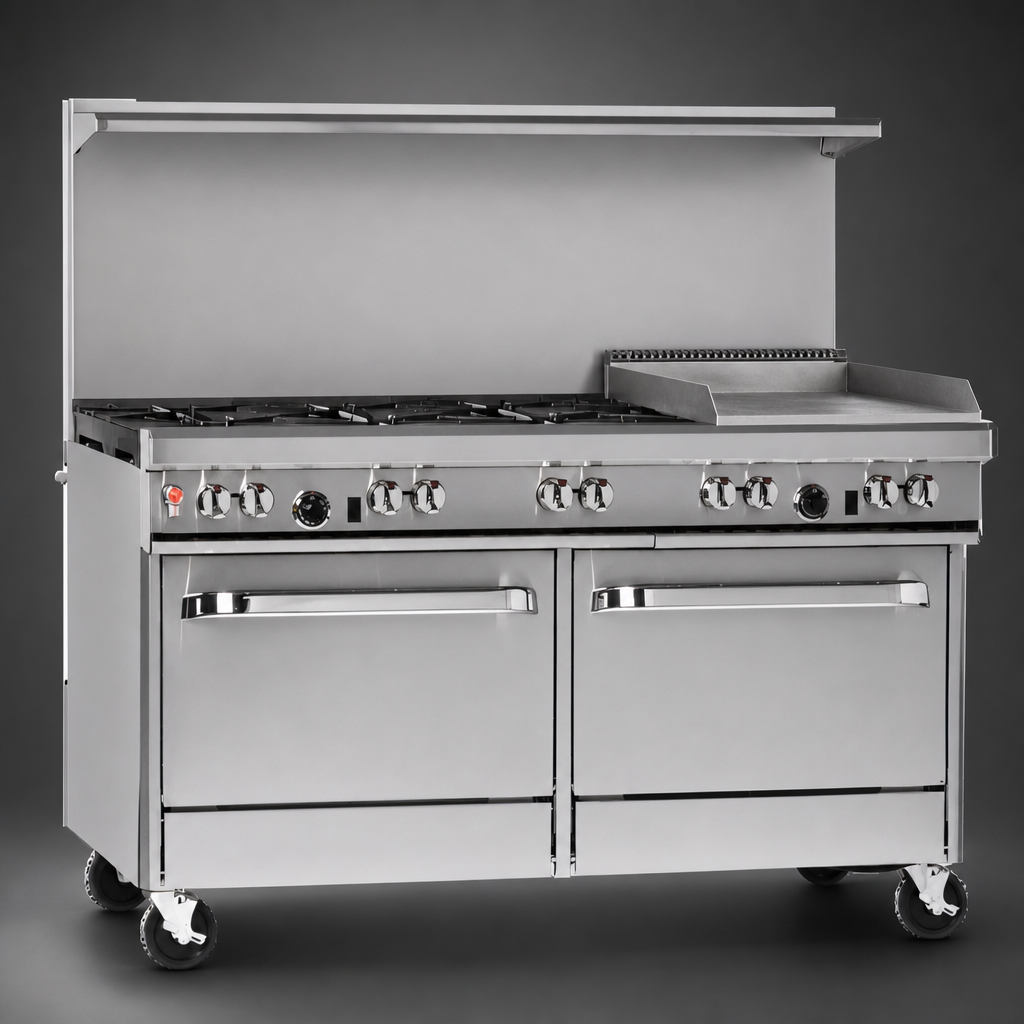

- 24" raised griddle with broiler – ½" polished steel plate (manual control) plus under-broiler for finishing steaks, melts and gratins.
- 32,000 BTU convection oven – battery-spark ignition, porcelain interior and three chrome racks on five positions.
- Stainless cabinet base – dry storage right where you need it; add doors at no extra cost if desired.
- 22½" flue riser & shelf – keep plates, spices or smallwares within easy reach.
- Rugged all-stainless exterior – front, sides, shelf & 4" rail resist daily abuse and wipe clean fast.
- Front-mounted gas shut-off & factory regulator simplify installation and service.
- Standing pilots on open burners; battery spark on oven for match-free starts.
- cCSAus, CSA Flame, CSA Star & NSF certified for full code compliance.
Specifications
| Model | Ultimate 60" Range – 3 Star / 2 Pyromax / Raised Griddle / Conv. Oven / Cabinet |
|---|---|
| Total Input | 244,500 BTU/hr (Natural Gas) |
| Burner Layout | (3) × 33,000 BTU star/sauté (front) | (2) × 40,000 BTU Pyromax (rear) |
| Griddle/Broiler | 24" raised, ½" plate, manual control, 64 k BTU |
| Oven | Convection, 32,000 BTU, 26" W × 24" D × 14" H cavity Includes 3 racks / 5 positions |
| Exterior Dimensions | 60 ¾" W × 42 ⅛" D × 37" cook-top height (flue riser adds 22 ½") |
| Gas Connection | ¾" NPT, 7" W.C. minimum inlet (Natural) |
| Electrical | 115 V / 60 Hz / 1-ph, 5.9 A (convection fan) |
| Construction | Stainless steel front, sides, shelf & 6" adjustable legs |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
What’s in the Crate
- Factory-installed pressure regulator
- (4) heavy-duty cast-iron top grates
- (3) chrome oven racks
- Battery pack for spark ignition
- Quick-start & operation manual
