Southbend (Middleby)  |  Ultimate  |  SKU: 4606AC-2GR

Southbend (Middleby) 4606AC-2GR Ultimate Gas Ranges

$16,440.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Ultimate 60" Restaurant Range – Star/Sauté + Pyromax Burners & 24" Griddle

Model 460 Series | Gas | 259,000 BTU | Southbend (A Middleby Brand)

Power, flexibility and rugged construction come together in one compact footprint. This Ultimate configuration lets you sear, sauté, boil, griddle-cook and bake simultaneously—making it the ideal production workhorse for high-volume kitchens that refuse to compromise.

Cooktop Highlights

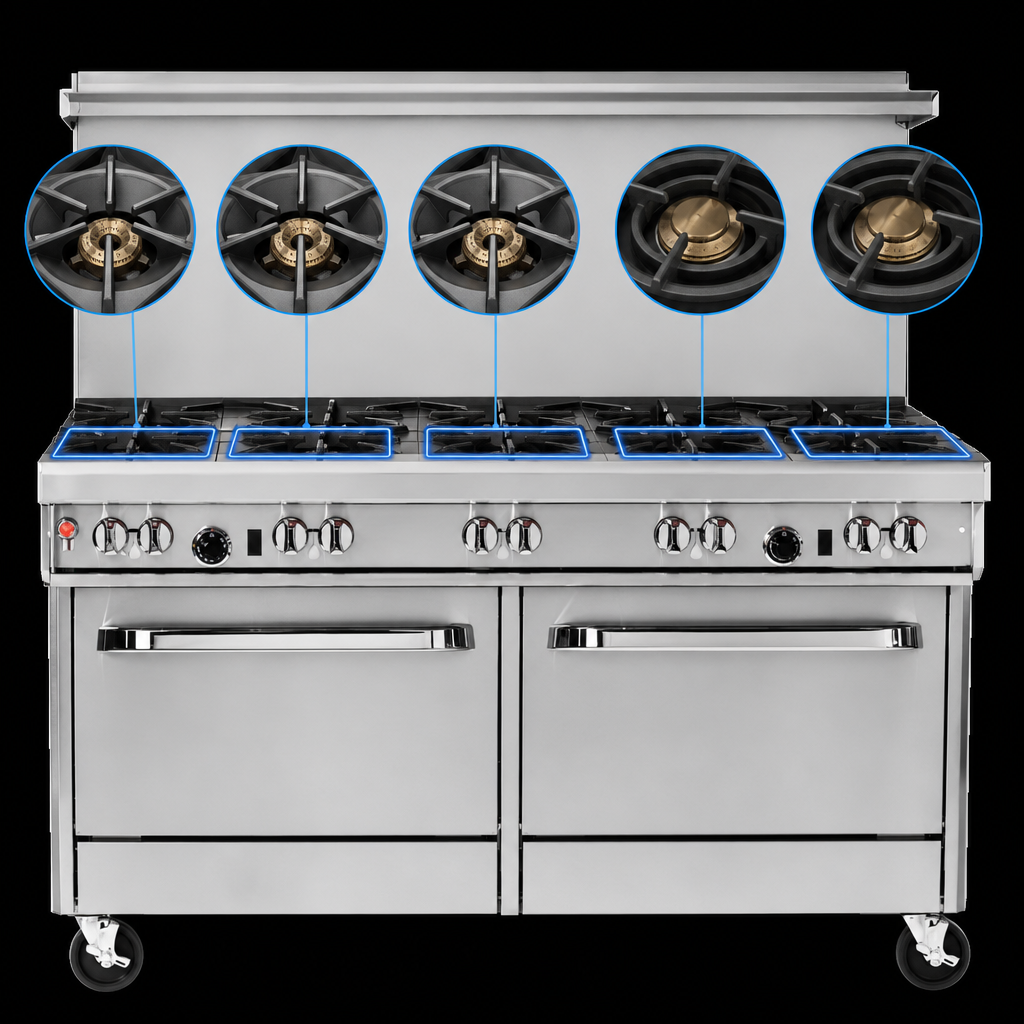

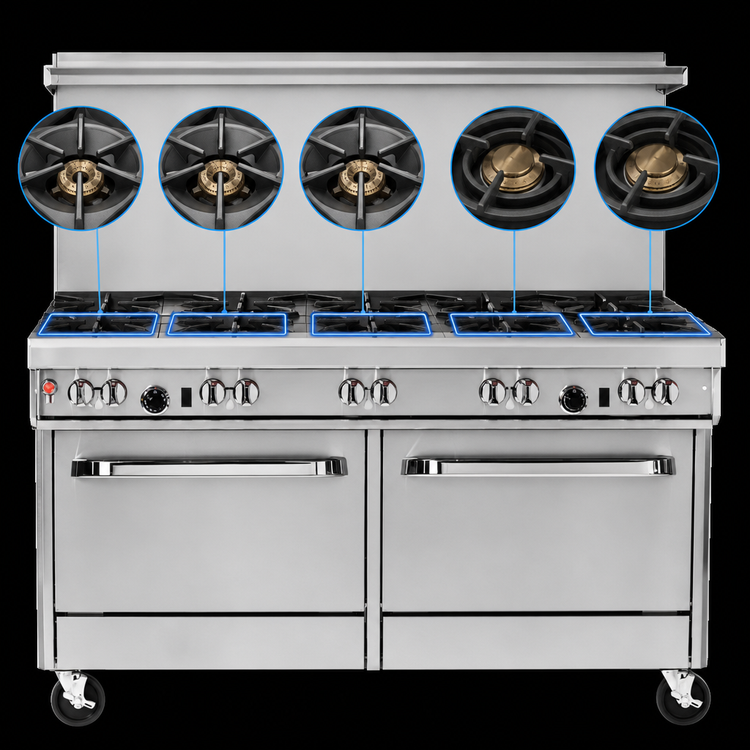

  • 3 × 33,000 BTU Star/Sauté burners (front) for fast, even heat under sauté pans and rondeaus.
  • 2 × 40,000 BTU Pyromax burners (rear) deliver extreme output for woks, stock pots or rapid recovery.

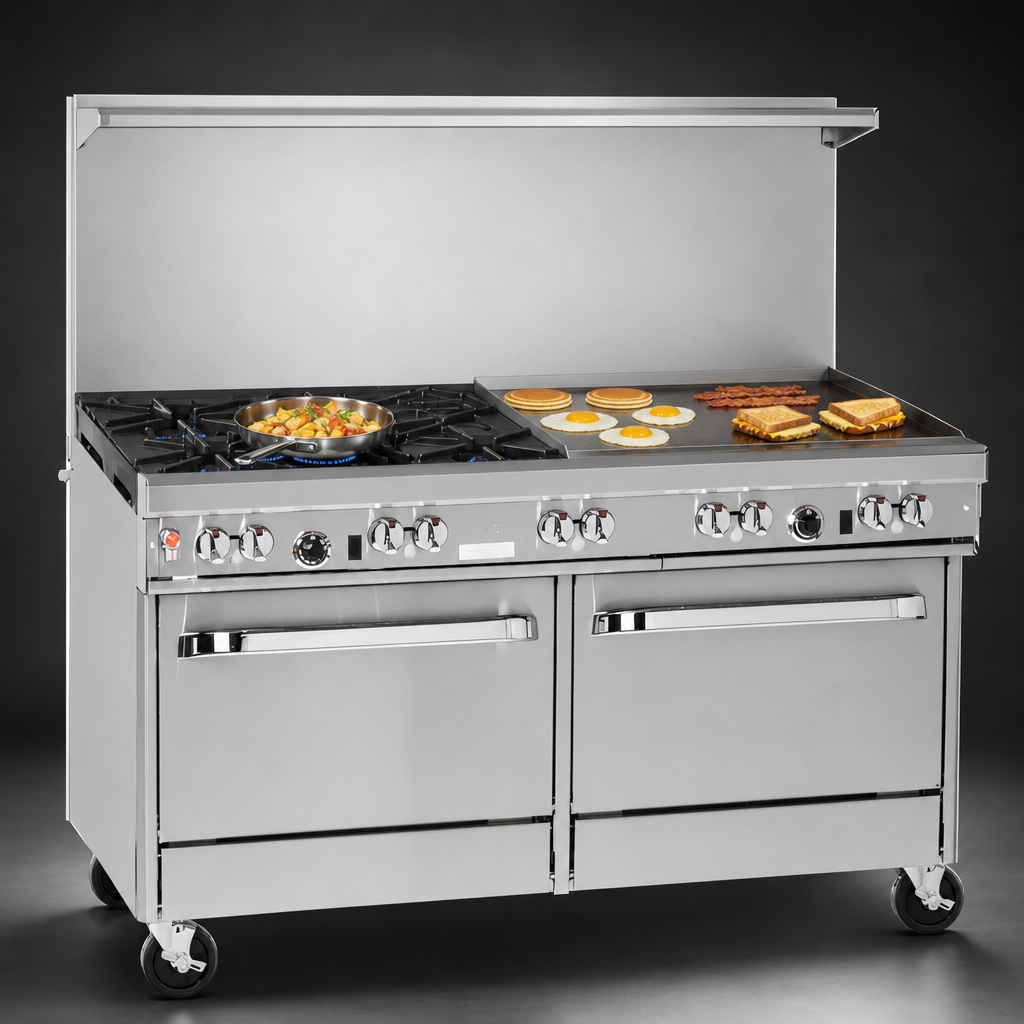

  • 24" right-side griddle – 1/2" polished steel plate, manual controls, 48,000 BTU for breakfast, burgers or finishing.
  • Heavy-duty, easy-clean cast-iron grates hold up to a 14" stock pot in the rear.
  • Standing pilots on the cooktop and a front-located master gas shut-off for quick service access.
Base Configuration
  • Convection oven (right) – 32,000 BTU, 175–550 °F thermostat, battery-spark ignition, porcelain interior, three racks with five positions.
  • Stainless cabinet base (left) – full-width storage with optional no-charge doors.
  • Spring-assisted oven door and 22-1/2" flue riser with heavy-duty overshelf included.
Built for the Long Haul
  • All-stainless front, sides, shelf and 4" front rail resist corrosion and simplify clean-up.
  • 6" adjustable stainless legs (casters optional).
  • Factory-installed regulator and 3/4" rear gas connection.
  • One-year parts & labor warranty backed by Southbend’s nationwide service network.
  • Certified: NSF, cCSAus, CSA Flame & CSA Star.
Key Specifications
Total input 259,000 BTU/hr (Natural or LP)
Open burners 3 × 33 K Star/Sauté (front)  |  2 × 40 K Pyromax (rear)
Griddle 24" W × 27" D, 48 K BTU, 1/2" smooth steel plate, manual
Oven 32 K BTU convection, 115 V / 5.9 A, NEMA 5-15P cord & plug
Cooking height 37"
Overall (W × D × H) 60 3/4" × 42 1/8" × 59 1/2" (with flue riser)
Gas connection 3/4" NPT, rear
Warranty 1 year parts & labor
Popular Options & Accessories
  • Swivel casters with front locks
  • Quick-disconnect gas hose (3 ft, 4 ft or 5 ft)
  • Stainless cabinet doors (no charge)
  • Shelf mounts for salamander or cheesemelter
  • Extra oven racks
Important: For best performance, use oversized cookware (12" +) on the rear burners only. Never allow pans to extend over the 4" front rail, and always install under a properly ventilated hood.

Need financing? Middleby Equipment Financing can turn your purchase into easy monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

43.6in

Shipping Weight

1075.0lbs

Base

(1) convection oven, (1) cabinet

Top

(5) open burners, (1) 24" griddle

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Plate Thickness

.500" = 1/2"

Specifications

Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front, (2) pyromax burners rear, (1) 24" griddle right, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 259,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
