Southbend (Middleby)  |  Ultimate  |  SKU: 4606AC-2CR

Southbend (Middleby) 4606AC-2CR Ultimate Gas Ranges

$16,805.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

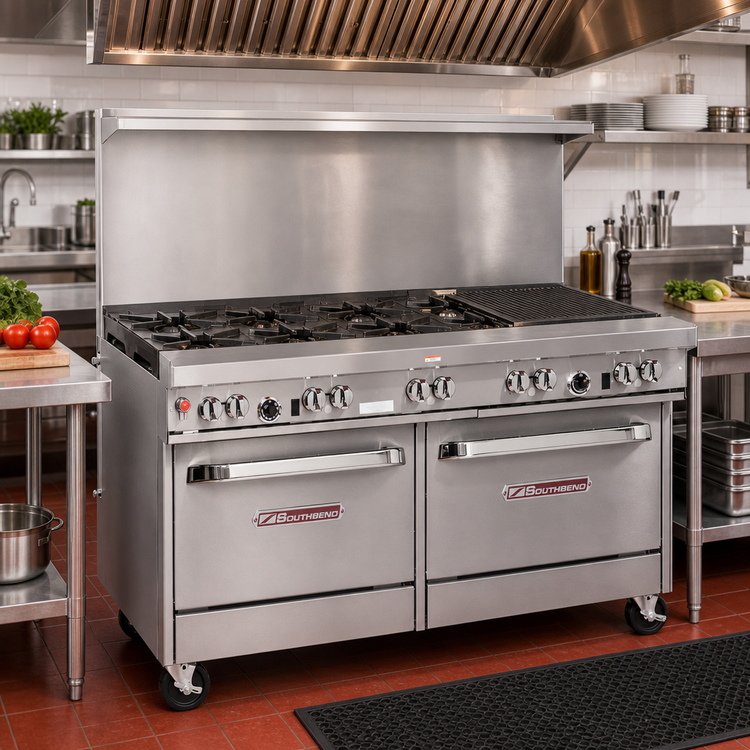

Southbend Ultimate 60" Restaurant Range

3 Star/Sauté  •  2 Pyromax Burners  •  24" Charbroiler  •  Convection Oven/Cabinet Base

One powerhouse, endless possibilities. Southbend’s Ultimate Series merges high-output open burners, a steak-house quality charbroiler and a full-size convection oven in a rugged, 60-inch footprint—perfect for kitchens that need to sauté, sear, grill and bake without adding extra lineal feet.

Highlights

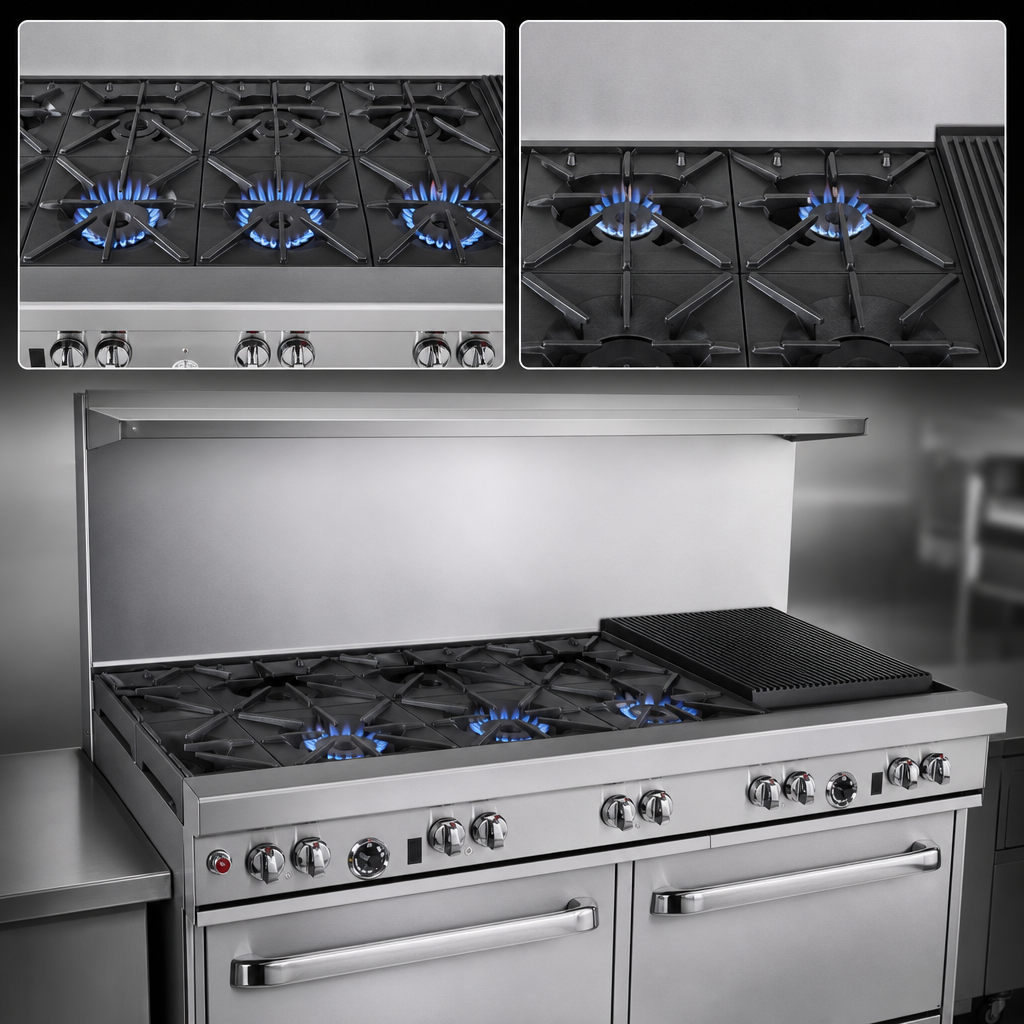

  • 3 × 33,000 BTU star/sauté burners (front) for lightning-fast heat and even flame spread.
  • 2 × 40,000 BTU Pyromax burners (rear) built for stock pots, woks and high-volume boiling.

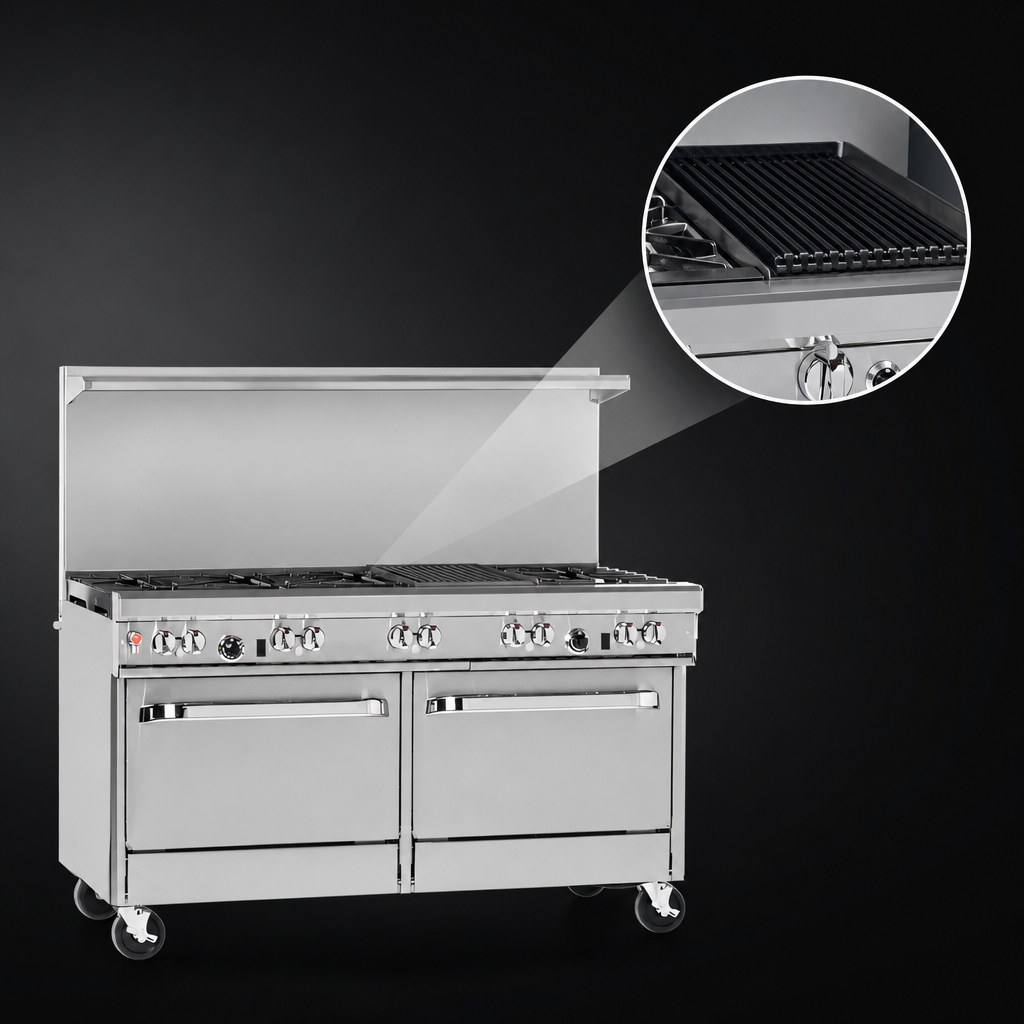

  • Right-side 24" cast-iron charbroiler (64,000 BTU) delivers authentic grill marks and smoky flavor.
  • 32,000 BTU convection oven with battery-spark ignition; porcelain-enameled cavity for easy clean-up.
  • Three heavy-duty racks, five rack positions—full-size sheet pans fit both directions.
  • Stainless cabinet base (left) keeps pans and utensils organized; optional doors available at no charge.
  • 22-1/2" flue riser with integrated utensil/pan shelf.
  • 4" stainless front rail with front-mounted gas shut-off and factory-installed regulator.
  • Total input: 275,000 BTU/hr on a single ¾" gas connection.
  • 6" adjustable stainless legs; caster set optional.
  • CSA & NSF listed. Made in the USA.
  • Backed by Southbend’s 1-year parts & labor warranty.

Specifications

Overall width 60 3/4" (1543 mm)
Overall depth 34" (864 mm)
Cook-top height 37" (940 mm)
Height w/ flue 59 1/2" (1511 mm)
Open burners (3) Star/Sauté 33,000 BTU ea. (front)  |  (2) Pyromax 40,000 BTU ea. (rear)
Charbroiler 24" right-side, 64,000 BTU, cast-iron grates
Oven type Gas convection, 32,000 BTU, battery-spark ignition
Oven cavity (H × W × D) 14" × 26" × 24" (356 × 660 × 610 mm)
Racks included 3 (5 positions)
Total input 275,000 BTU/hr
Gas connection ¾" NPT •  NAT 7" W.C. / LP 11" W.C.
Electrical (oven blower) 115 V / 1-Phase / 5.9 A  (6' cord & plug supplied)
Construction Stainless steel front, sides, shelf & 6" adjustable legs
Certifications CSA, NSF
Warranty 1-year parts & labor (see Southbend limited warranty)
Important: This appliance is intended for commercial use only. Install under a properly sized, vented hood. For longest service life, limit oversized cookware (12"+ diameter) to rear burners and never block charbroiler grates with sheet pans while burners are lit.

Need flexible payment options? Ask your representative about Middleby Equipment Financing for quick credit decisions and low monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

43.6in

Shipping Weight

1075.0lbs

Exterior Finish

stainless steel front & sides

Top

(5) open burners, (1) 24" charbroiler

Base

(1) convection oven, (1) cabinet

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front, (2) pyromax burners rear, (1) 24" charbroiler right, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 275,000 BTU, CSA, NSF
