Southbend (Middleby) 4606AA-2TR Ultimate Gas Ranges

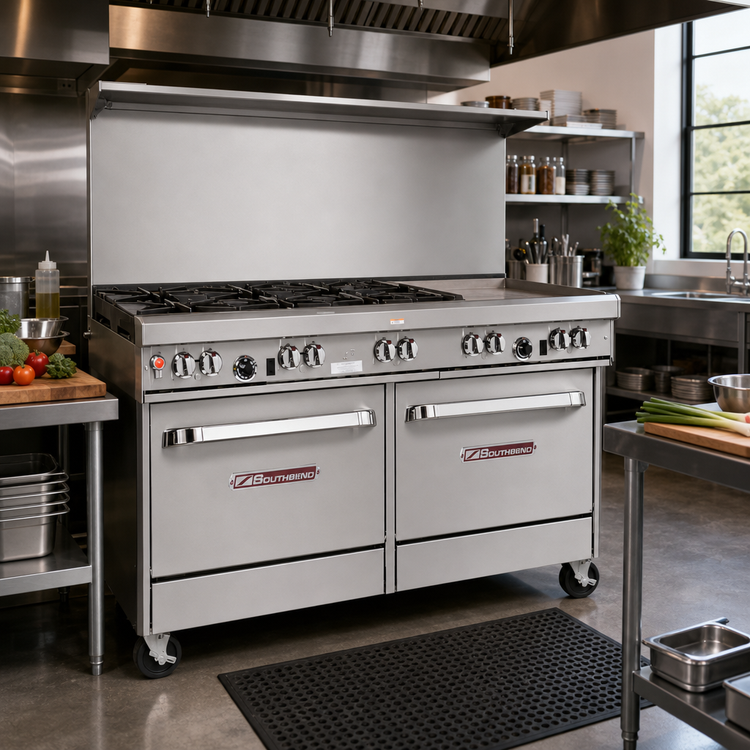

Southbend Ultimate 60" Gas Restaurant Range

Built for kitchens that refuse to compromise, the Southbend Ultimate Series delivers power, precision and rugged durability in one all-inclusive workstation. This 60-inch model combines rapid-response open burners, a high-output griddle and two full-size convection ovens—giving chefs the versatility to sear, sauté, grill, bake and roast at once.

Why You’ll Love It

• 291,000 total BTU of gas-fired performance to keep up with peak-hour demand.
• Split burner layout: (3) 33,000 BTU star/​sauté burners up front for even pan heat; (2) 40,000 BTU Pyromax burners in back for stockpots & rapid boils.

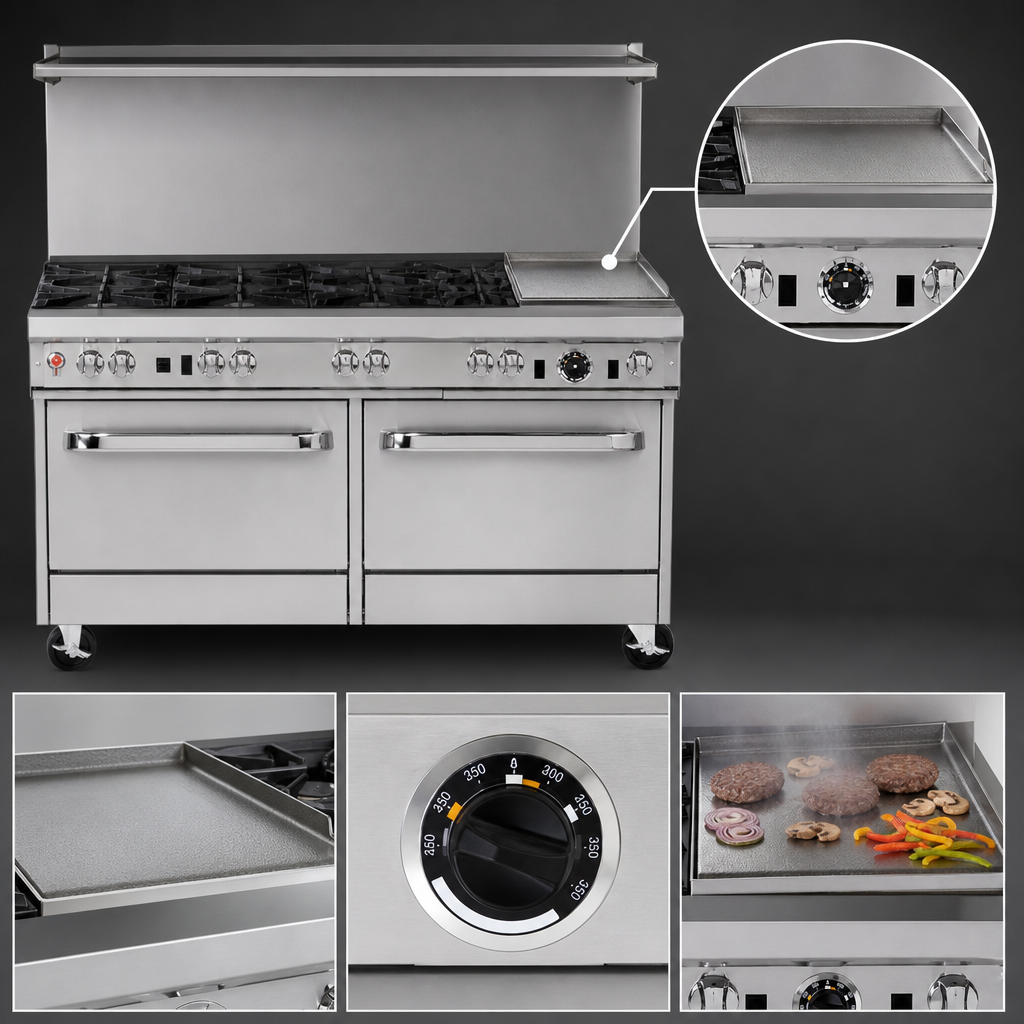

• 24" right-side griddle with thermostatic controls (200-550 °F) for consistent pancakes, burgers or tortillas.
• Dual convection ovens (32,000 BTU each) circulate heat for faster, more even baking—each ships with three adjustable racks.
• All-stainless exterior (front, sides, shelf & flue) plus 6" adjustable legs for easy cleaning and rock-solid stability.
• Front-mounted gas shut-off simplifies service & daily safety checks.
• Standing pilots on the cooktop; battery spark ignition on the ovens—no electrical supply needed for the burners.
• Certified cCSAus, CSA Flame, CSA Star & NSF for worry-free code compliance.

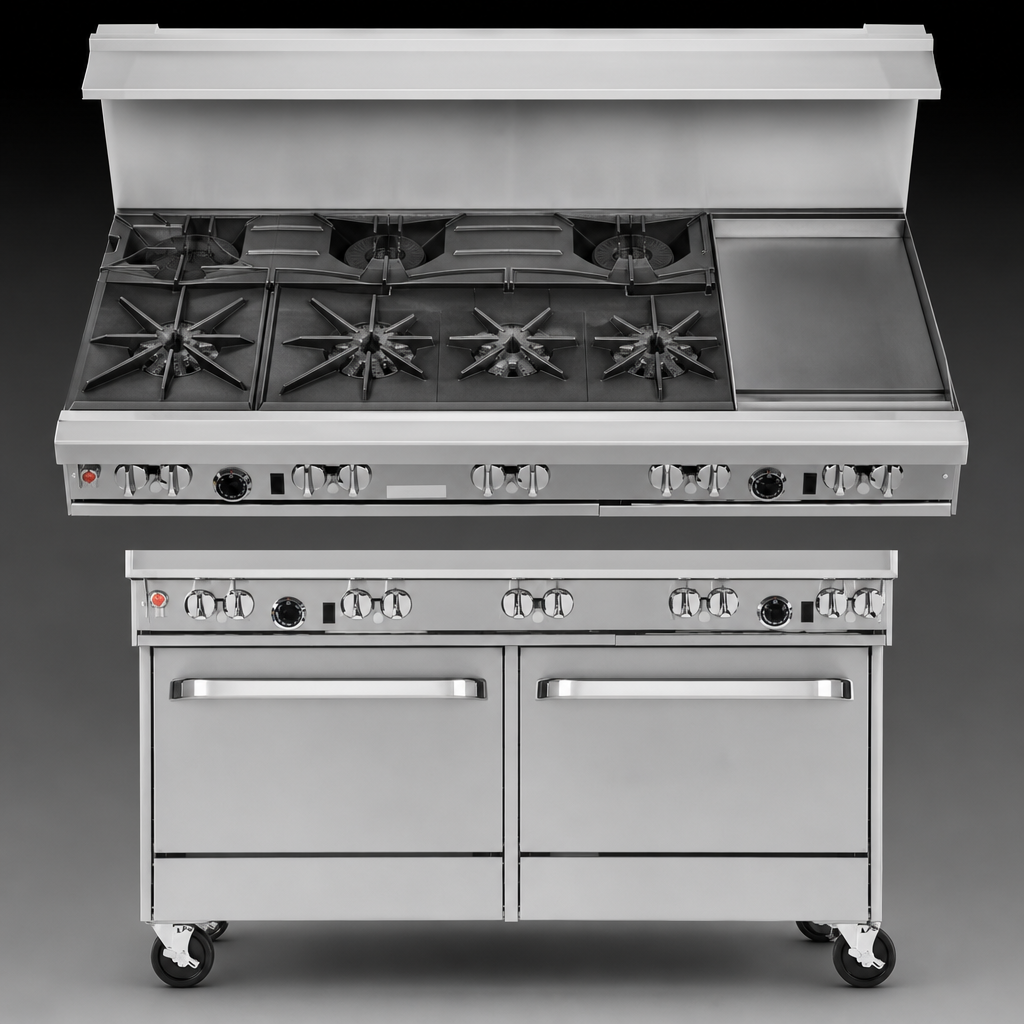

Top-Side Fire Power

• Star/Sauté Burners (x3) – Unique spoke pattern spreads flame evenly across pan bottoms; ideal for high-speed sautéing.
• Pyromax Burners (x2) – Patented, clog-free 40 K BTU heads with built-in drip rings; perfect for woks & heavy stockpots.
• Removable cast-iron grates accept up to a 14" pot on the rear section.
• Griddle Plate – 1/2" polished steel, raised sides & 4-inch grease trough streamline cleanup.

Convection Ovens That Keep Pace

• Thermostat range: 175-550 °F.
• 14" H × 26" W × 24" D porcelain-enameled cavities fit full-size sheet pans left-to-right or front-to-back.
• High-efficiency 1/2 HP fan motors with on/off switch allow use as a standard oven when convection isn’t needed.
• Spring-assisted doors stay cool to the touch and close smoothly, shift after shift.

Built to Survive the Line

• 4" deep stainless front rail doubles as a plating surface.
• 22-1/2" flue riser with heavy-duty shelf for pans, spices or finishing plates.
• Two full-length drip trays under the rangetop capture grease before it hits the floor.
• Factory-installed 3/4" pressure regulator & 6' 115 V cord set included.

At-a-Glance Specifications
