Southbend (Middleby) 4606AA-2RR Ultimate Gas Ranges

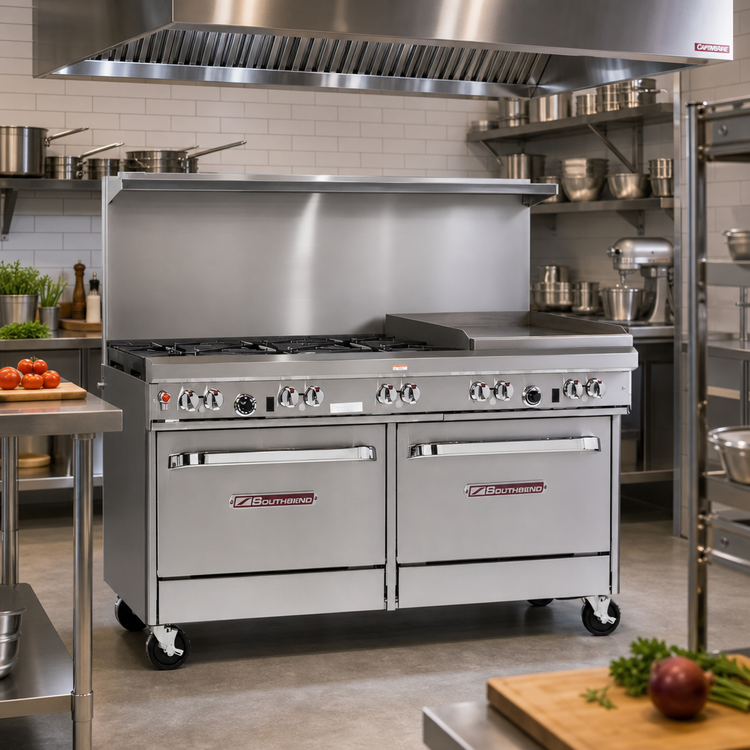

Southbend “Ultimate” 60" Gas Restaurant Range

Engineered for high-volume kitchens that refuse to compromise, the Southbend Ultimate 60" Range delivers unmatched versatility in a single, heavy-duty footprint. Sear, sauté, simmer, grill, broil and bake simultaneously thanks to a powerful split-top burner layout, a space-saving raised griddle-broiler, and two full-size convection ovens.

Why You’ll Love It

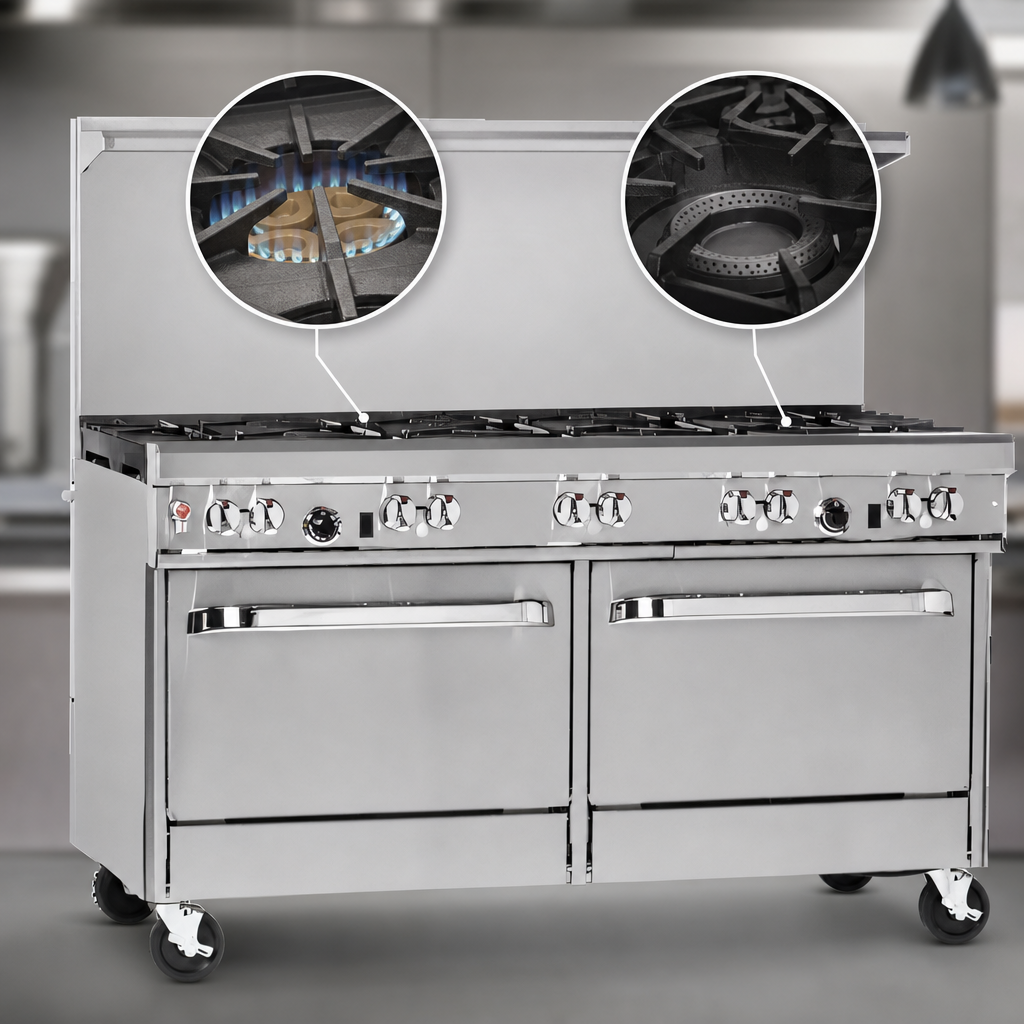

• Power where you need it – (3) 33,000 BTU star/sauté burners up front for rapid, even heat; (2) 40,000 BTU Pyromax burners in the rear for stockpots & high-output boiling.

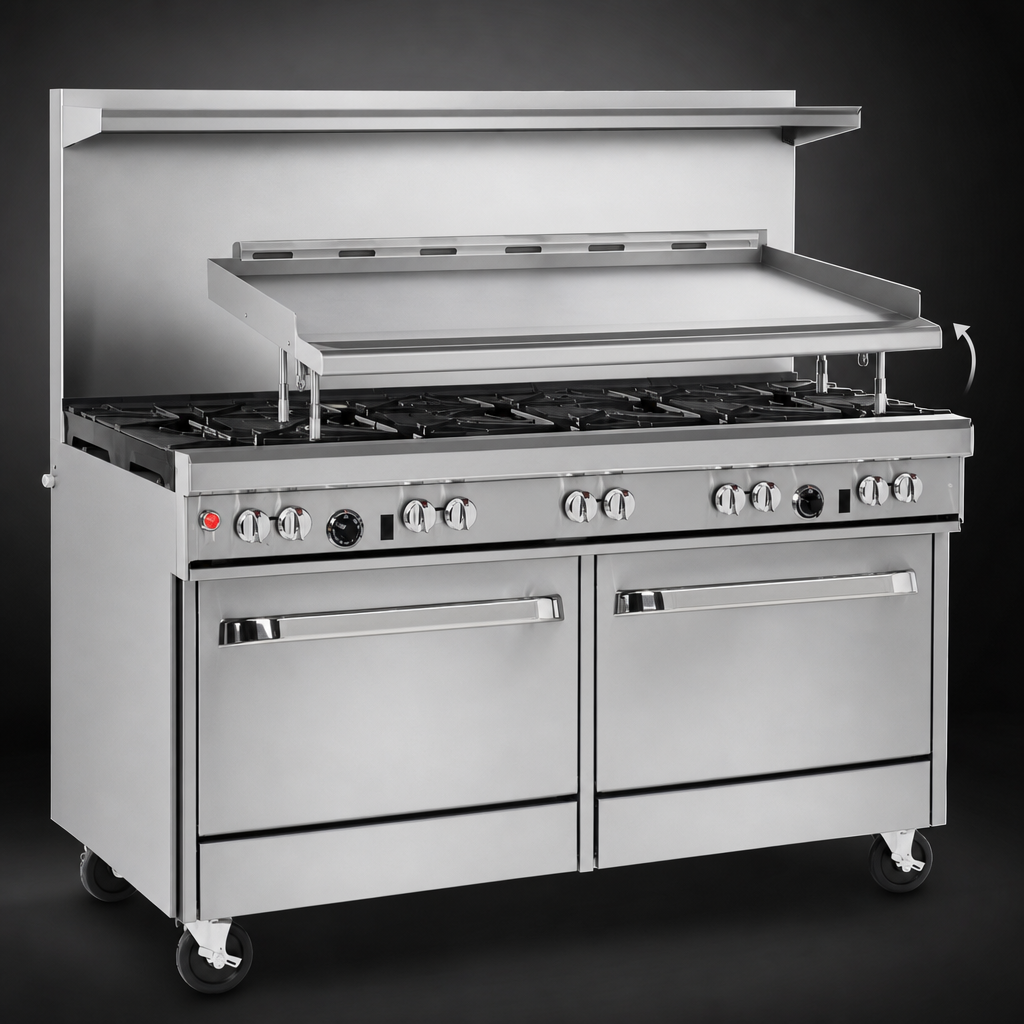

• 24" raised griddle-broiler combo with ½" polished steel plate and under-broiler for burgers, steaks or finishing melts.
• Twin 32,000 BTU convection ovens (battery-spark ignition) circulate heat for faster, more consistent baking; each includes 3 chrome racks on 5 positions.
• All-stainless exterior (front, sides, shelf & 4" front rail) plus a 22½" flue riser with solid shelf for pans & smallwares.
• Front-mounted gas shut-off and factory-installed regulator streamline installation and daily operation.
• Standing pilots on open burners for quick lighting; battery spark ignition eliminates electrical dependence for the ovens.
• 6" adjustable stainless legs or optional casters for easy leveling and cleaning underneath.
• Certified cCSAus, CSA Flame, CSA Star & NSF for worry-free code compliance.

Built for the Rush

• One-piece removable cast-iron grates handle pans up to 14" in the rear.
• Porcelain-enameled, coved-corner oven cavities (14"H × 26"W) fit full-size sheet pans either direction.
• Spring-assisted oven doors stay cool and open smoothly, even when fully loaded.
• Full throttling thermostats 175 °F – 550 °F keep your recipes right on spec.

Technical Specifications

What’s in the Box

• Range with flue riser & storage shelf
• (6) Chrome oven racks (3 per oven)
• Factory-installed gas pressure regulator
• 6" adjustable stainless legs (casters optional)
• Owner’s manual & warranty documentation

Approvals & Warranty

Southbend backs each Ultimate range with a full 1-year parts & labor warranty when installed by an authorized service agency. See full warranty terms for exclusions and recommended maintenance.
