Southbend (Middleby) 4606AA-2GR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Restaurant Range
3 Star/Sauté Burners • 2 Pyromax Burners • 24" RH Griddle • Dual Convection OvensBring unbeatable versatility and fire-power to your cookline with the Ultimate Series from Southbend. This 60" gas range marries high-output open burners, a full-size griddle, and two heavy-duty convection ovens into one stainless-steel workhorse—perfect for busy restaurants that need to sear, sauté, griddle, and bake at once.
Why You’ll Love It
- 3 front 33,000 BTU cast-iron Star/Sauté burners for quick, even heat.
- 2 rear 40,000 BTU Pyromax burners—patented clog-free design built for large stock pots.
- Right-hand 24" × ½" polished-steel griddle with raised sides for burgers, breakfast & more.

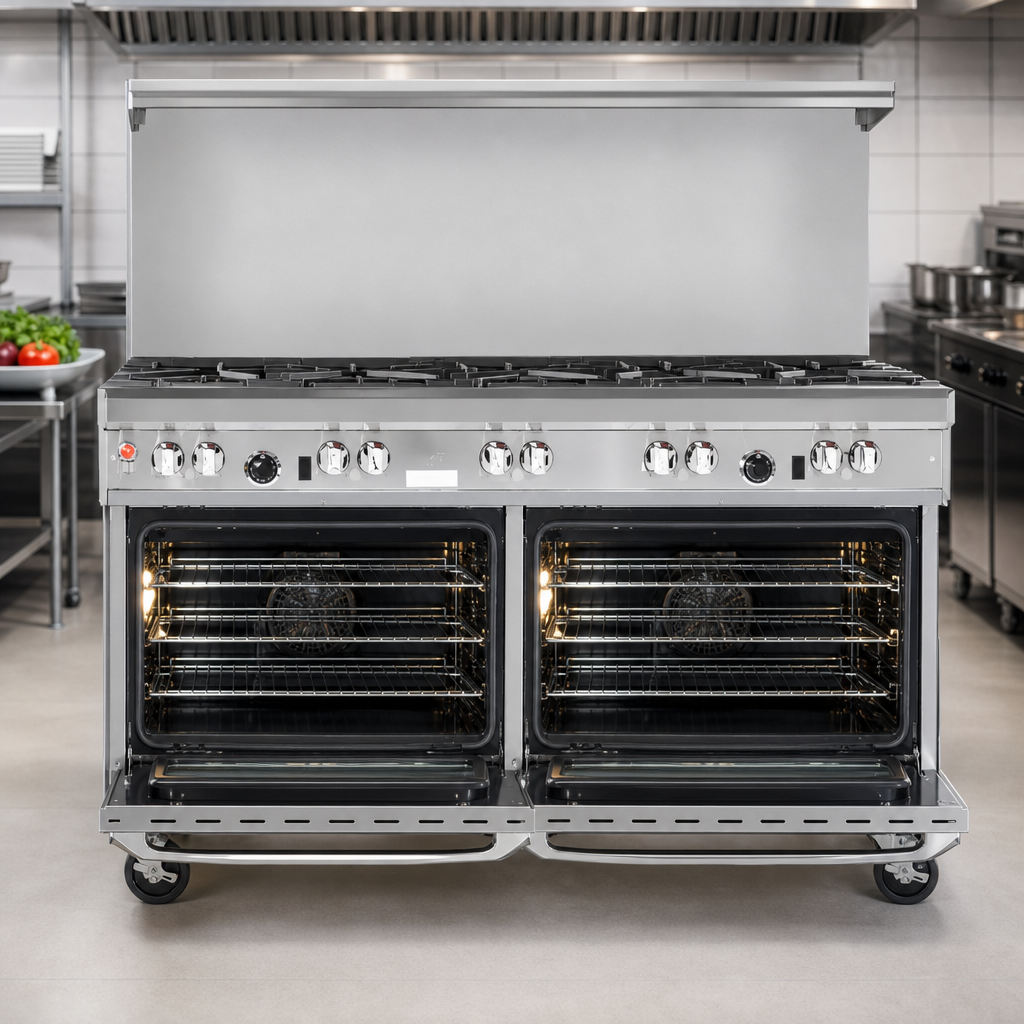

- Twin 32,000 BTU convection ovens (left & right) with battery spark ignition and 3 racks each; five-position rails accept full-size sheet pans front-to-back or side-to-side.
- 22 ½" flue riser with sturdy overshelf keeps plating oils, spices, and pans within arm’s reach.
- Stainless-steel front, sides, shelf, and 6" adjustable legs for long-term durability and simple cleaning.
- Front-mounted manual gas shut-off and factory-installed regulator streamline installation.
- Certified cCSAus, CSA Flame, CSA Star & NSF for worry-free code compliance.
Serious Heat, Precise Control
With a combined 291,000 BTU under the hood, the Ultimate Series tackles everything from delicate pan sauces to rapid stock reduction. The convection ovens’ 175 °F–550 °F (79 °C–288 °C) thermostat range delivers consistent bakes and roasts shift after shift.
At-a-Glance Specs
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 42 ⅛" (1070 mm) |
| Cooking height | 37" to cook surface |
| Top configuration | 3 × Star/Sauté burners (front) + 2 × Pyromax burners (rear) + 24" griddle (right) |
| Top BTU | 227,000 BTU (99,000 + 80,000 + 48,000) |
| Oven BTU | 64,000 BTU (2 × 32,000) |
| Total BTU | 291,000 BTU |
| Oven interior (each) | 26" W × 24" D × 14" H, porcelain enamel |
| Included racks | 3 per oven (5-position rails) |
| Gas connection | ¾" NPT (rear), min. 7" W.C. Natural |
| Electrical | 115 V, 1 ph, 5.9 A (convection motors, 6' cord & plug) |
| Shipping weight | ≈ 1,075 lb (488 kg) |
| Warranty | 1-year parts & labor (factory service network) |
Perfect For
- Full-service & high-volume restaurants
- Hotels, resorts & casinos
- Catering commissaries
- College & healthcare foodservice
Looking for LP gas, casters, or matching salamander? Ask about factory options and quick-turn financing.
