Southbend (Middleby) 4605DD-2TR Ultimate Gas Ranges
Description

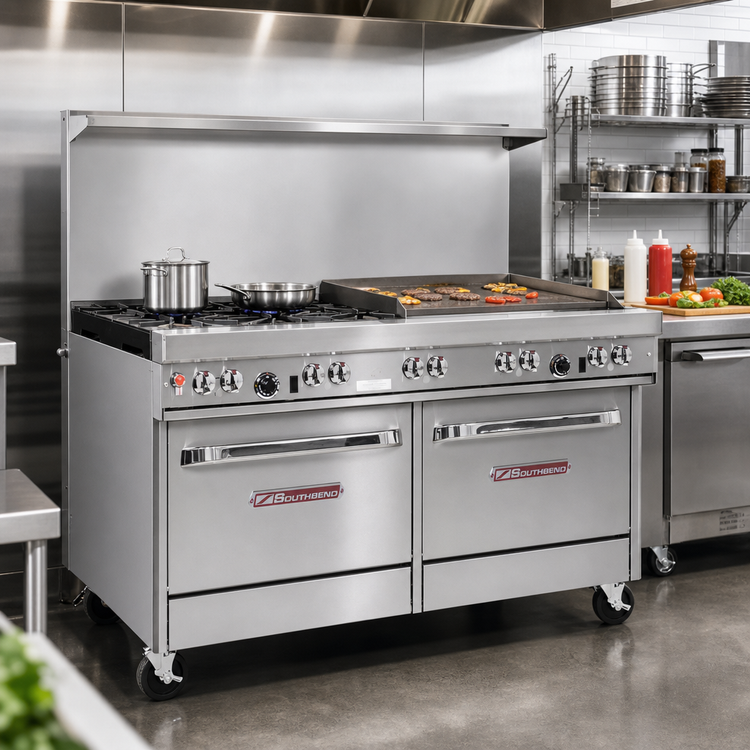

Southbend Ultimate 60" Restaurant Range
3 Non-Clog Burners • 2 Pyromax Burners • 24" Right-Side Thermostatic Griddle • Double Standard OvensWhen service is nonstop and every ticket counts, the Southbend Ultimate Series delivers the fire-power, flexibility and durability chefs demand. Built on a rock-solid stainless frame with a 37" cooking height, this 60" model packs 317,000 BTU into a single footprint—perfect for high-volume lines, hotels, and institutions that can’t compromise on performance.
Key Performance Features
- Unmatched Output – 317,000 BTU/hr to power through the busiest rush.
- Front (3) 33,000 BTU non-clog burners with lifetime clog-free cast-iron heads.
- Rear (2) 40,000 BTU Pyromax™ burners for high-capacity stock pots and rapid recovery.

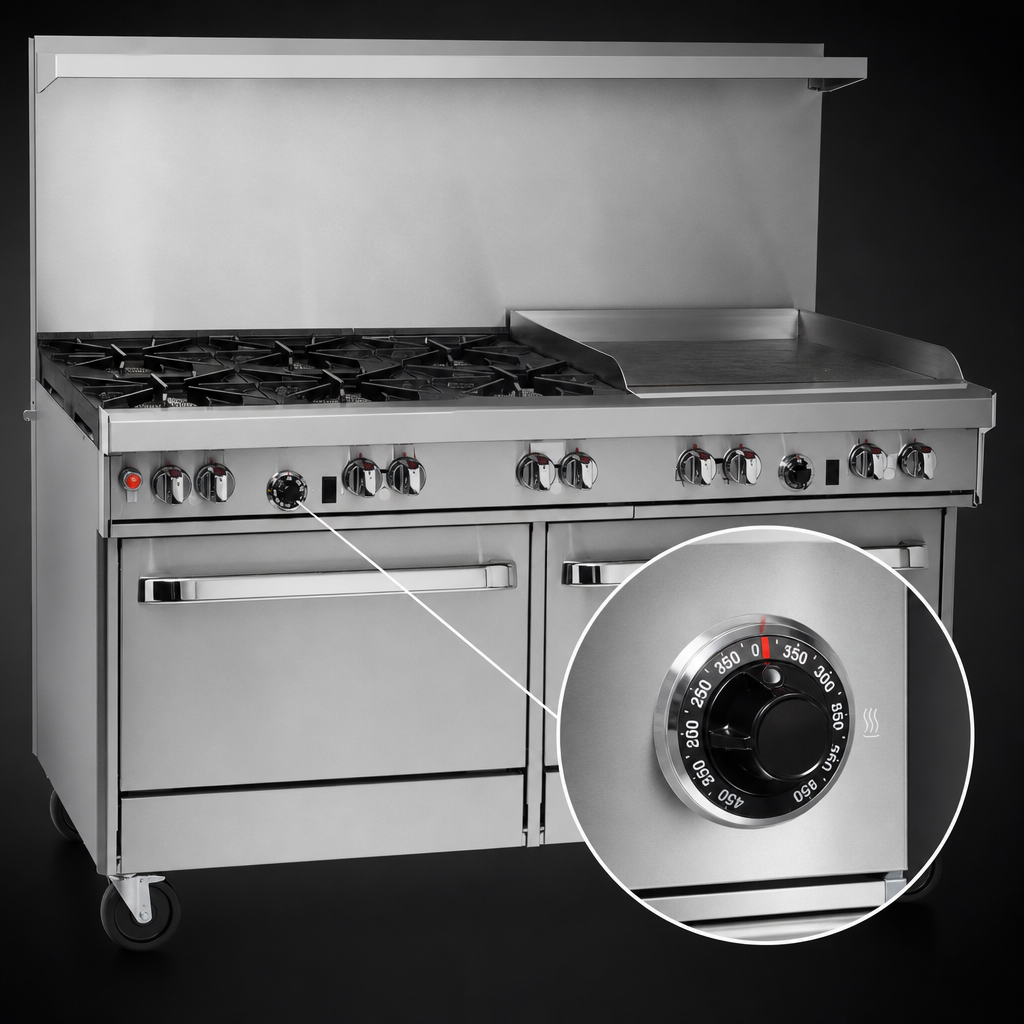

- 24" right-hand griddle with ½" polished steel plate and precise thermostatic control (175–550 °F).
- (2) 45,000 BTU standard ovens – battery spark ignition, 175–550 °F thermostat, porcelain interior, one rack each.
- 22½" flue riser with heavy-duty shelf keeps plates & pans warm and close at hand.
- Standing pilots on open burners plus a front-mounted manual shut-off for the entire range.
- Factory-installed ¾" gas pressure regulator and 6" stainless adjustable legs for easy leveling.
- All-stainless front, sides & 4" rail for quick clean-ups and years of corrosion-free service.
- Independently certified NSF, cCSAus, CSA Flame & CSA Star for sanitation and gas-safety compliance.
At-a-Glance Specifications
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22 ½" (572 mm) with shelf |
| Total BTU | 317,000 BTU/hr (natural gas) |
| Open burners | 3 × 33,000 BTU non-clog (front) | 2 × 40,000 BTU Pyromax (rear) |
| Griddle | 24" right, ½" plate, thermostatic, 64,000 BTU |
| Ovens | 2 standard ovens, 45,000 BTU each; 14"H × 26"W × 26.5"D cavity; 1 rack, 2 positions per oven |
| Gas connection | ¾" NPT female (side opposite griddle) |
| Inlet pressure | Natural 7" W.C. | LP 11" W.C. |
| Construction | Stainless front, sides & shelf; removable cast-iron grates; porcelain oven cavities |
| Legs | 6" stainless, adjustable |
| Warranty | 1-year parts & labor limited warranty |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
Looking for a different burner or base combination? The Ultimate Series is fully modular—ask about custom layouts, salamander mounts, extra oven racks and more.
