Southbend (Middleby) 4605DD-2GR Ultimate Gas Ranges
Description

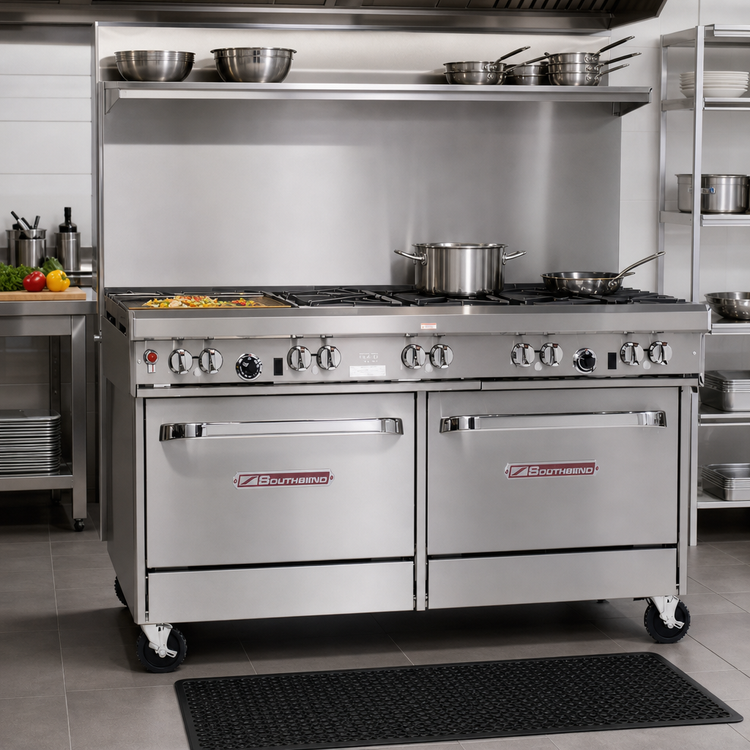

Southbend “Ultimate” 60″ Gas Restaurant Range
3 × Non-Clog Burners | 2 × Pyromax Burners | 24″ Right-Side Griddle | Dual Standard OvensBuilt for high-volume kitchens that refuse to compromise, the Southbend Ultimate 60″ range (model 460DD with custom burner / griddle layout) delivers 317,000 BTU of dependable, even heat in a heavy-duty, all-stainless package. From rapid boiling on patented Pyromax burners to breakfast-all-day on a polished 24″ griddle, every inch is engineered to help your line move faster, cleaner, and safer.
Why You’ll Love It
- 60-3⁄4″ wide cooking suite with a generous 27″-deep work surface.
- Three (3) lifetime non-clog cast-iron burners up front (high-output, easy-clean).
- Two (2) 40,000 BTU Pyromax burners in the rear—perfect for stock pots & woks.
- Right-hand 24″ × 1⁄2″ smooth steel griddle with raised sides for mess-free flipping.
- Dual 45,000 BTU standard ovens (battery-spark ignition) – each ships with one rack.
- 22-1⁄2″ flue riser with heavy-duty storage shelf keeps pans warm & tools close.
- Stainless steel front, sides, shelf & 6″ adjustable legs stand up to the rush and wipe clean.
- Front-mounted master gas shut-off and factory-installed regulator for fast installs.
- Certified cCSAus, CSA Flame, CSA Star & NSF for worry-free code compliance.
- Backed by Southbend’s 1-year parts & labor warranty and nationwide service network.
At-a-Glance Specs
| Total Input | 317,000 BTU/hr (Natural Gas) |
|---|---|
| Open Top Burners | 3 × Non-Clog (front), 2 × Pyromax (rear) – standing pilots |
| Griddle Plate | 24″ W × 24″ D, ½″ polished steel, right side, manual control |
| Ovens (Qty 2) | Standard, 45,000 BTU each, 175 °F – 550 °F thermostat, battery-spark |
| Cooking Surface Height | 37″ |
| Exterior Dimensions (WxDxH) | 60.75″ × 34.00″ × 59.50″ (to shelf) |
| Gas Connection | ¾″ NPT, min. 7″ W.C. (NG) supply pressure |
| Electrical | Not required (battery ignition only) |
| Shipping Weight | Approx. 1,075 lb |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see details below) |
Warranty & Care
- One-year limited parts & labor coverage when installed by an authorized technician.
- Use on quarry-tile, concrete, or natural-stone floors—or contact the factory for other surfaces.
- Limit oversized (12″+) cookware to rear burners to protect front components.
Looking for hassle-free financing? Ask us about Middleby Equipment Financing and get this powerhouse on your line with low fixed monthly payments.
