Southbend (Middleby) 4605DD-2CR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Restaurant Range
3-Burner / 2-Pyromax / 24" Charbroiler • Dual Standard Ovens • 333,000 BTUBuilt for the busiest kitchens, the Southbend Ultimate Series combines unmatched power, rugged construction, and the flexibility chefs demand every day. Three high-performance non-clog burners, two patented Pyromax™ burners, and a full-size 24" charbroiler share a spacious 60-3/4" cooktop, while two porcelain-lined standard ovens handle everything from sheet-pan roasting to high-heat finishing.
Top-Line Advantages
- 333,000 BTU total input for fast recovery & superior searing
- (3) 33 K BTU cast-iron non-clog burners – lifetime clog-free design
- (2) 40 K BTU Pyromax™ burners in the rear – perfect for large stock pots & woks
- 24" right-side charbroiler (64 K BTU) with heavy-duty cast grates

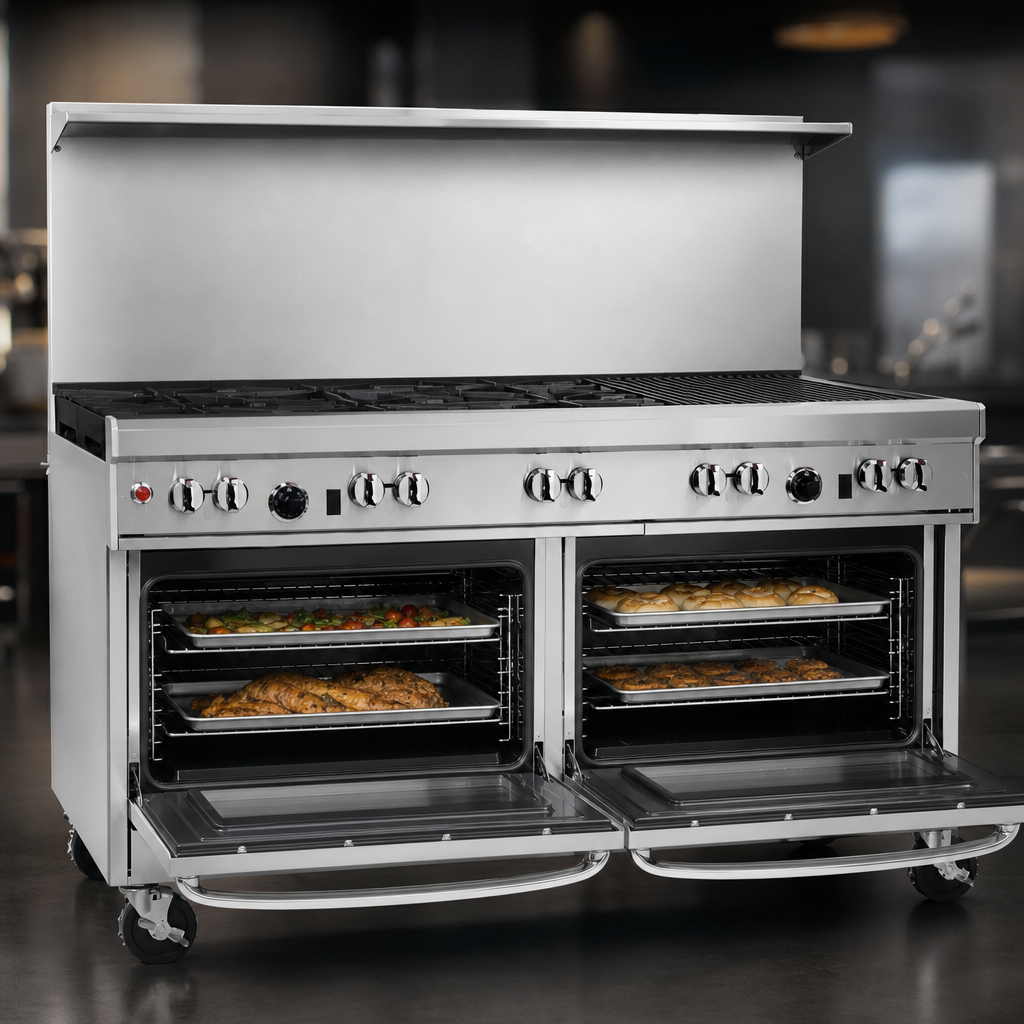

- Dual 45 K BTU standard ovens with battery-spark ignition & 175-550 °F thermostats
- Includes (2) oven racks (1 per cavity) – fits full-size pans either direction
- 22-1/2" stainless flue riser with integrated shelf for easy plating & pan storage
- 4" stainless front rail & factory-installed gas shut-off valve at the control panel
- All-stainless front, sides, & shelf plus adjustable 6" legs for simple leveling
- CSA & NSF listed, 1-year parts-and-labor warranty backed by Southbend
Detailed Specifications
| Model | Ultimate 460 Series (60") – Custom burner/charbroiler configuration |
|---|---|
| Cooking Surface | 60 3⁄4" W × 27" D (37" working height) |

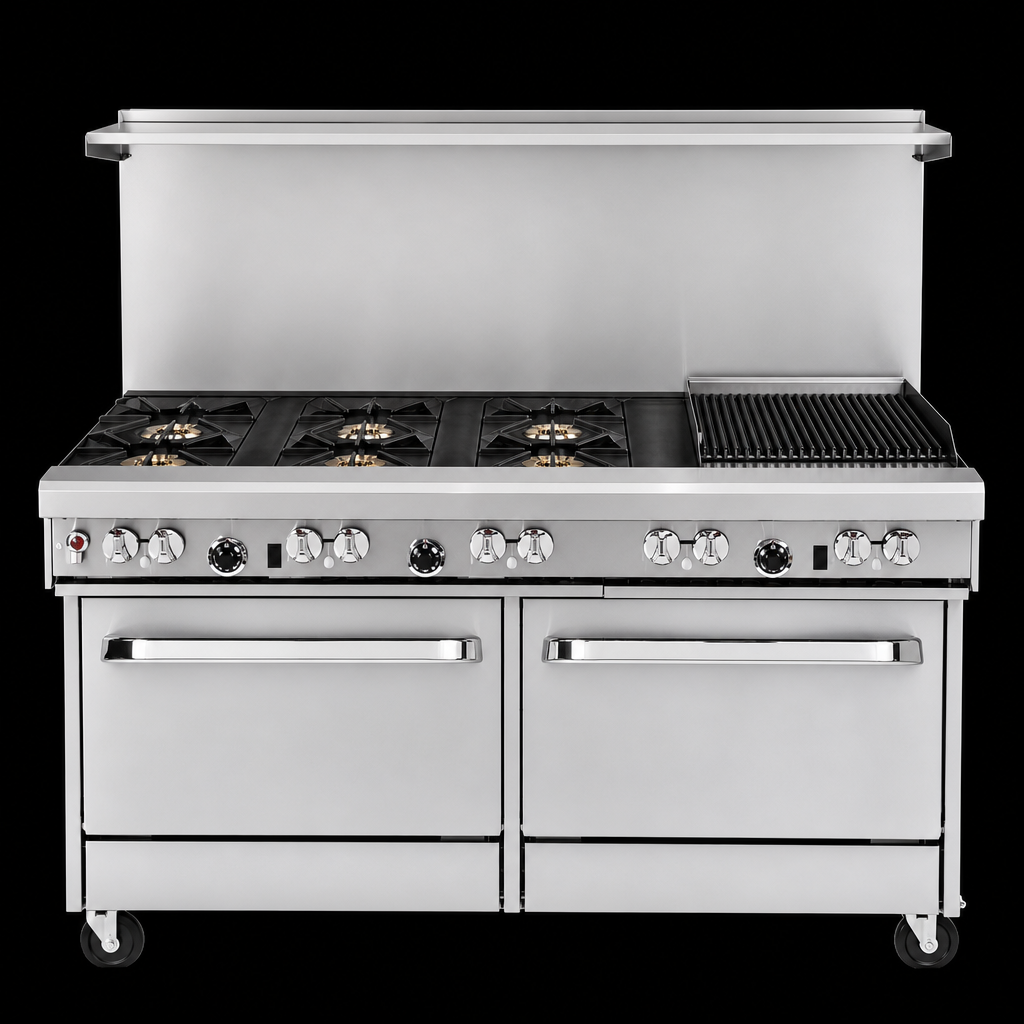

| Top Configuration | (3) Non-clog open burners (front) (2) Pyromax™ burners (rear) 24" charbroiler (right) |
| Total Input | 333,000 BTU/hr (Natural Gas) |
| Ovens (Qty 2) | Standard – 45 K BTU each, battery-spark ignition, 175-550 °F |
| Oven Interior | 26" W × 26 1⁄2" D × 14" H, porcelain-enameled, coved corners |
| Gas Connection | 3⁄4" NPT, minimum inlet pressure 7" W.C. (Natural) |
| Overall Dimensions | 60 3⁄4" W × 34" D × 59 1⁄2" H (to top of flue) |
| Crated Weight | Approx. 1,075 lb |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty for details) |
Popular Options & Accessories
- Swivel casters (front locking)
- Extra oven racks
- 10" or 5" flue risers
- Quick-disconnect gas hose kits (3–5 ft)
- Salamander or cheesemelter mounting brackets
- Limit oversized (12"+) cookware to the rear burners to prevent heat damage to the front rail.
- Never place a solid sheet pan over the charbroiler grates while burners are on—this traps heat and may cause equipment damage.
- Install under a properly sized ventilating hood and follow all local codes.
