Southbend (Middleby) 4605DC-2GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60 in. Restaurant Range

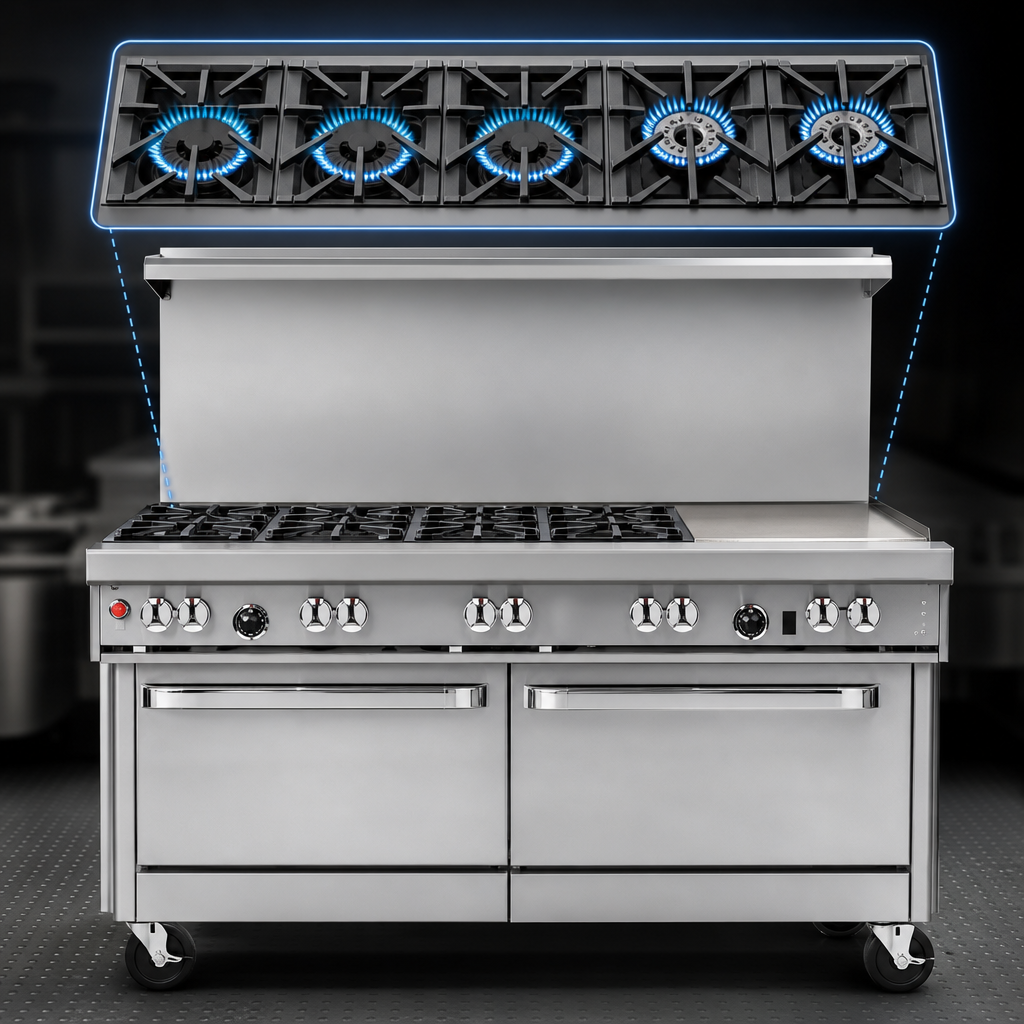

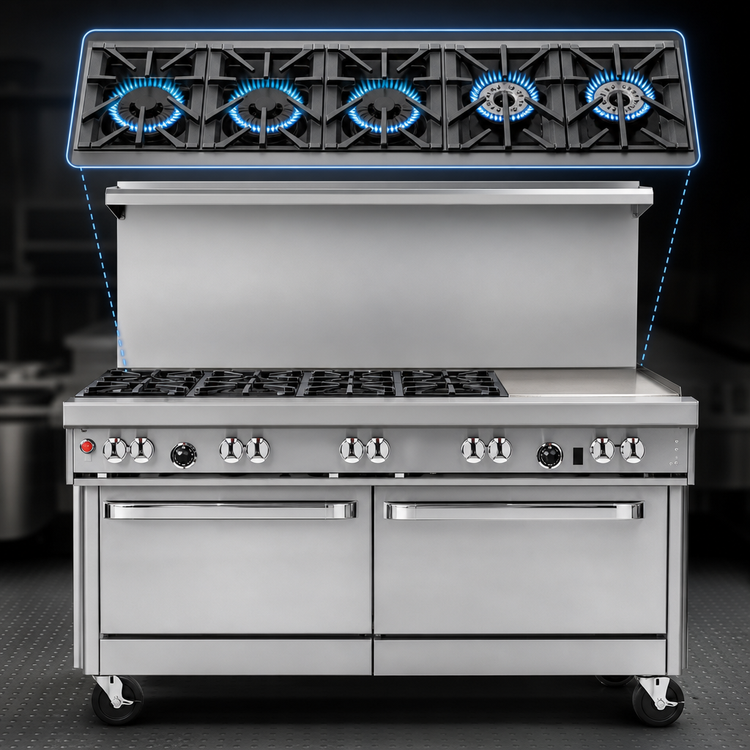

3 Open Burners • 2 Pyromax Burners • 24 in. Right-Side Griddle • Standard Oven & Cabinet BasePurpose-built for high-volume kitchens, the Southbend Ultimate Series packs heavy-duty power and day-to-day convenience into one 60 inch footprint. Three lifetime-clog-free burners, two patent-pending Pyromax power burners and a 24 inch steel griddle give you the flexibility to sauté, sear, simmer and grill side-by-side—while a full-size oven and stainless cabinet keep production and storage within arm’s reach.
Performance & Construction
- Total output: 272,000 BTU/hr
- (3) 33 k BTU non-clog cast-iron burners (front row)
- (2) 40 k BTU Pyromax burners (rear) with built-in drip ring
- 24 in. x 27 in. ½ in. polished steel griddle (right-side)
- 4-piece removable cast-iron grate system—rear holds up to a 14 in. stock pot
- (1) 45 k BTU standard oven with battery-spark ignition, porcelain cavity & 1 rack included
- (1) Stainless cabinet base (left-side doors available at no charge—ask your rep)
- 22 ½ in. flue riser with heavy-duty utensil shelf
- 4 in. stainless front rail with front-mounted master gas shut-off
- All-stainless front, sides, shelf & adjustable 6 in. legs (casters optional)
- Factory-installed ¾ in. regulator & standing pilots for open burners
- Certified cCSAus, CSA Flame, CSA Star & NSF
Technical Specifications
| Overall width | 60 3⁄4 in. (1543 mm) |
|---|---|
| Overall depth (including front rail) | 34 in. (864 mm) |
| Cooking surface height | 37 in. (940 mm) |
| Griddle size / plate | 24 in. W × 27 in. D • ½ in. smooth steel |
| Oven interior (WxDxH) | 26 in. × 26 ½ in. × 14 in. (fits full-size sheet pans both ways) |
| Total BTU | 272,000 BTU/hr (Natural gas) |
| Gas connection | ¾ in. NPT (right-rear; 7 in. WC minimum inlet pressure NG) |
| Ignition | Standing pilots (top) • Battery-spark (oven) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor |
What’s in the Box
- Southbend Ultimate 60 in. Range (factory-tested & crated)
- (1) Chrome oven rack
- Adjustable 6 in. stainless legs (pre-installed)
- Factory pressure regulator & battery pack
- Owner’s manual & warranty registration
Doors for the cabinet base are available at no additional charge—simply request at the time of order. Casters, quick-disconnect hose sets and other options ship separately.
