Southbend (Middleby) 4605CC-2RR Ultimate Gas Ranges
Description

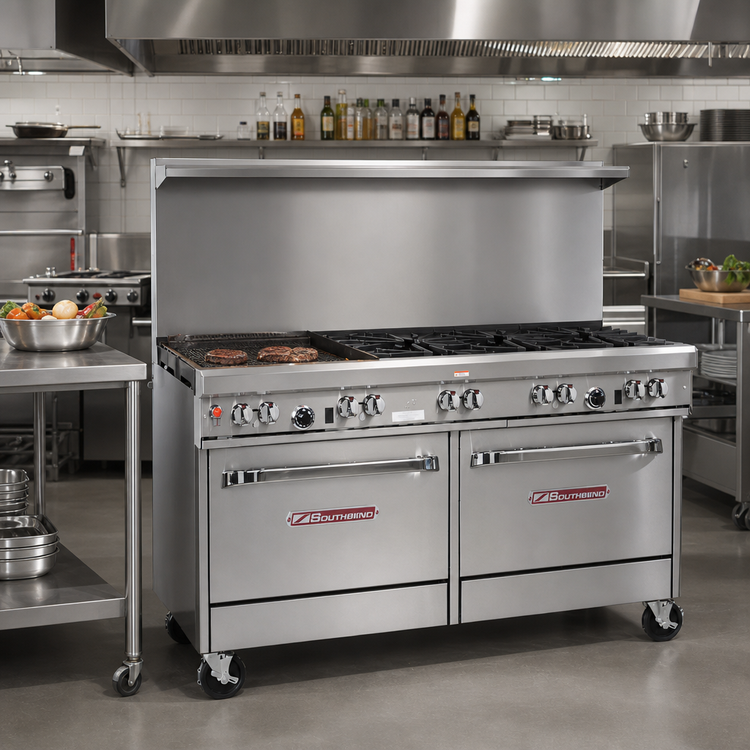

Southbend Ultimate 60" Restaurant Range – 3 Open Burners, 2 Pyromax Burners & 24" Raised Griddle-Broiler
Custom Option 5 Configuration • Model 460 SeriesHarness 212,500 BTU of cooking muscle in one rugged 60-inch platform. Southbend’s Ultimate range combines lifelong non-clog burners, patented Pyromax power and a space-saving raised griddle-broiler—perfect for kitchens that jump from breakfast to dinner service without skipping a beat.
Key Advantages
- Three 33,000 BTU lifetime non-clog cast-iron burners up front for fast, even sautéing.
- Two 40,000 BTU Pyromax burners in the rear—ideal for woks, stock pots and rapid boil.

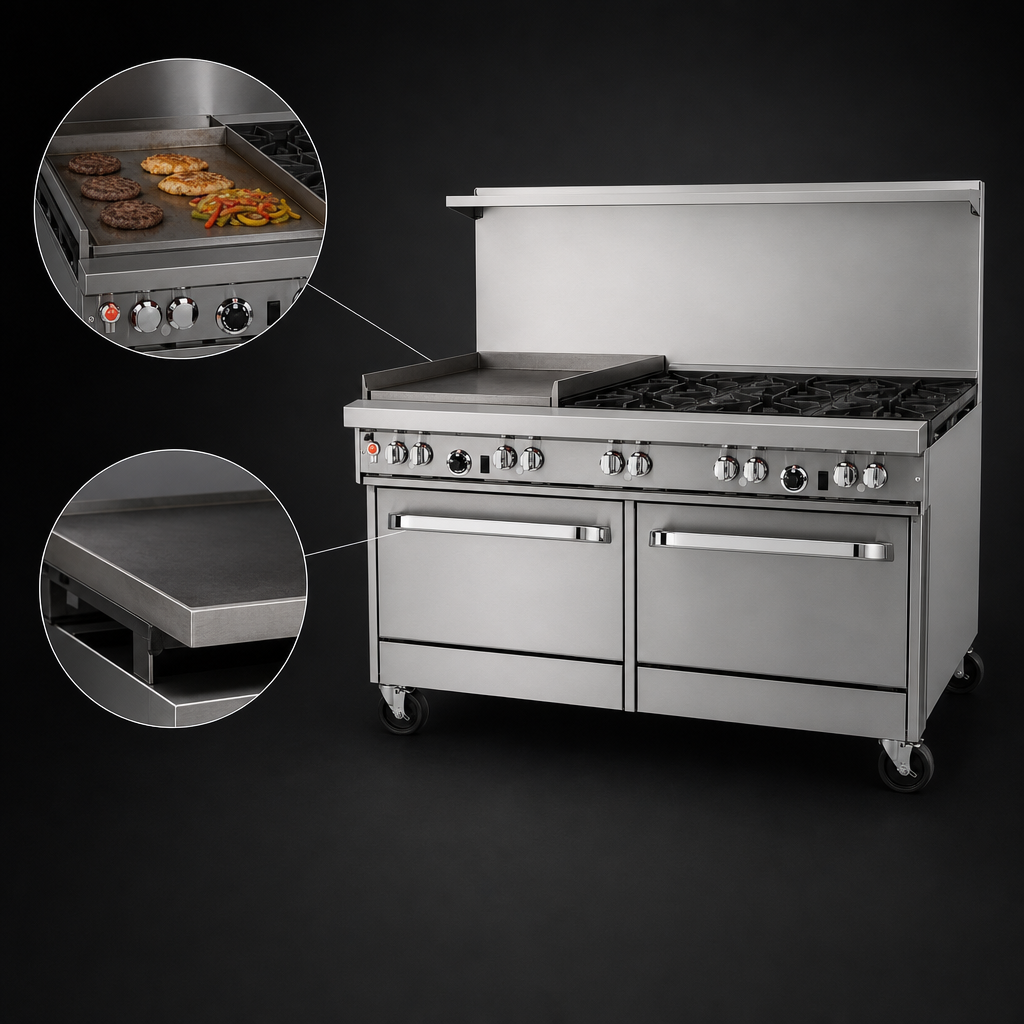

- 24" raised griddle with broiler (½" polished steel, 64,000 BTU) flips from pancakes to perfectly-seared steaks.
- Dual stainless-steel cabinet bases keep pans, spices or cleaning tools within arm’s reach.
- 22½" flue riser & heavy-duty shelf add convenient plating and utensil storage.
- Full stainless front, sides & 4" rail plus 6" adjustable legs for rock-solid stability.
- Front-mounted gas shut-off & factory regulator for simple, code-compliant install.
- Certified NSF, cCSAus, CSA Flame & Star for worry-free operation nationwide.
- Backed by Southbend’s 1-year parts & labor warranty + national service network.
Performance at a Glance
| Width | 60 3/4" (1543 mm) |
|---|---|
| Depth | 34" (864 mm) |
| Height to Cooktop | 37" (940 mm) |
| Height w/ Flue Riser | 59 1/2" (1511 mm) |
| Open Burners | 3 × 33,000 BTU non-clog |
| Rear Pyromax Burners | 2 × 40,000 BTU |
| Raised Griddle Plate | 24" W × 27" D, ½" smooth steel, manual |
| Broiler Output | 64,000 BTU (under griddle) |
| Total Input | 212,500 BTU/hr (Natural Gas) |
| Gas Connection | ¾" NPT, 7" W.C. NG • (11" W.C. LP w/ kit) |
| Base | Two-door stainless storage cabinets |
| Legs | 6" adjustable stainless |
| Warranty | 1 year parts & labor |
Built for Heavy-Duty Service
- 27" deep cook surface accommodates stock pots up to 14" on rear grates.
- Removable cast-iron grates & two-piece drip trays speed nightly cleanup.
- Porcelain-enameled flue interior resists corrosion and wipes clean.
- Standing pilots on open burners; Pyromax burners feature built-in drip-ring port protection.
Avoid cookware larger than 12" over front burners to prevent excess rail heat. See the Southbend owner’s manual for full operating, cleaning and warranty details.
