Southbend (Middleby) 4605AA-2RR Ultimate Gas Ranges

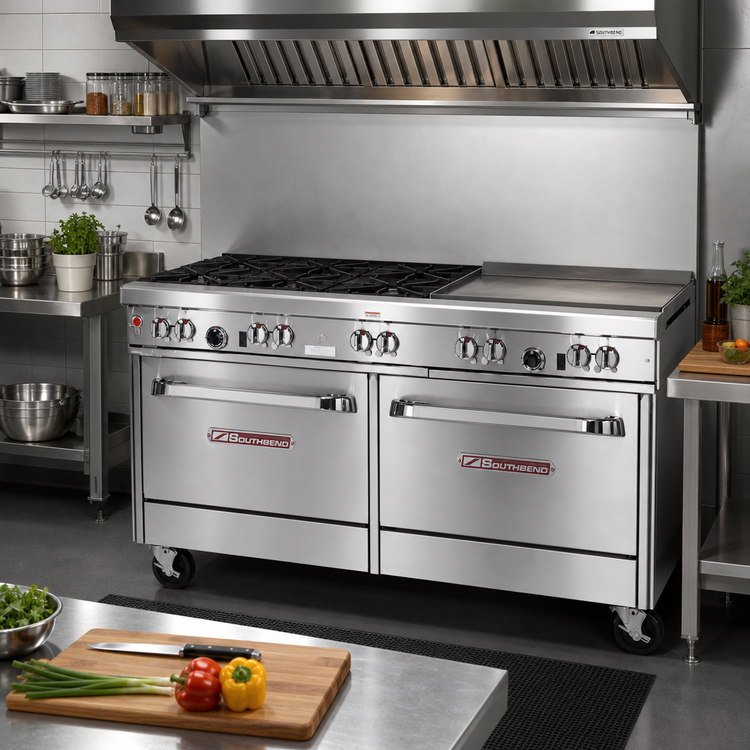

Southbend “Ultimate” 60" Gas Restaurant Range

Give your cookline the power, capacity and flexibility it deserves. Built on Southbend’s heavy-duty Ultimate platform, this 60" range delivers 276,500 BTU of multi-tasking performance in a single, stainless-steel chassis that is cCSAus, CSA Flame, CSA Star and NSF certified for commercial kitchens.

All-in-one Cooking Power

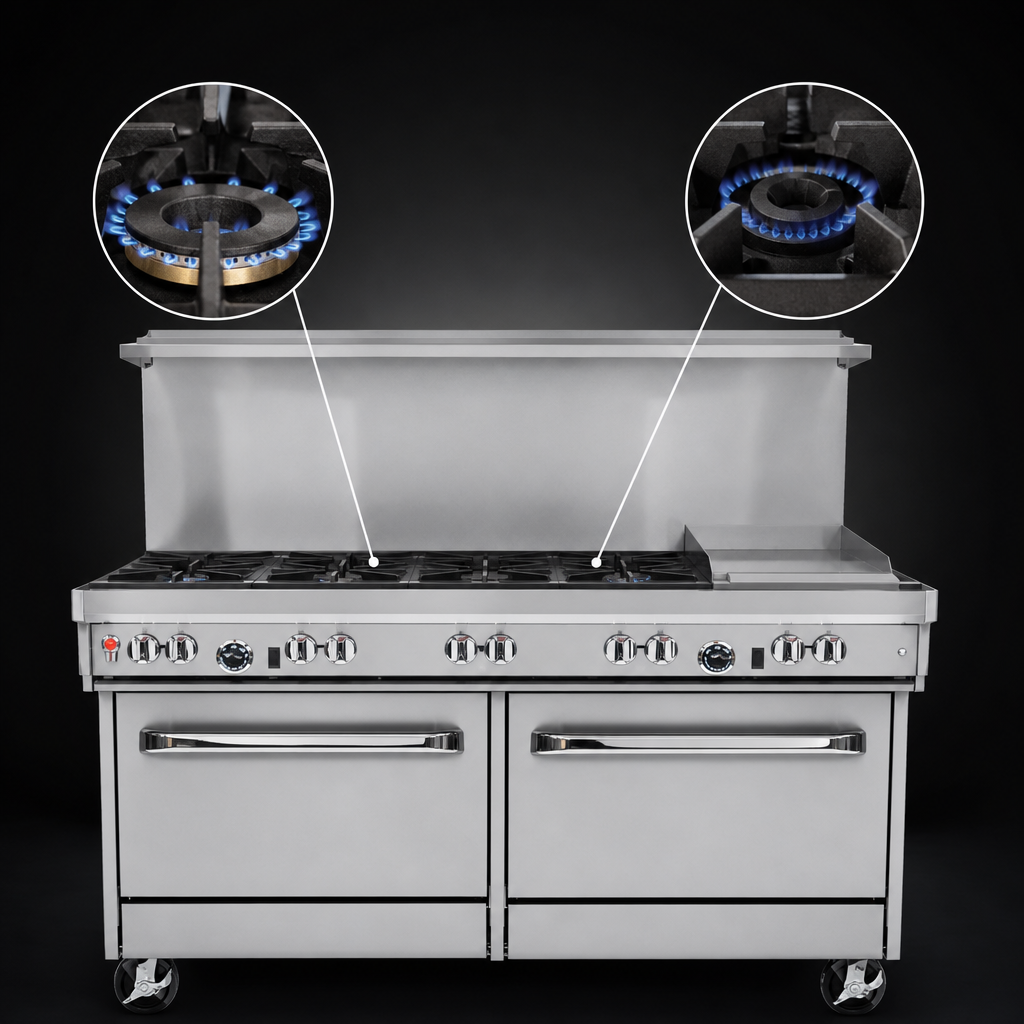

• (3) lifetime-clog-free cast-iron burners up front—perfect for sauté & sauce work.
• (2) 40,000 BTU Pyromax burners in the rear for rapid boil or stock-pot duty.

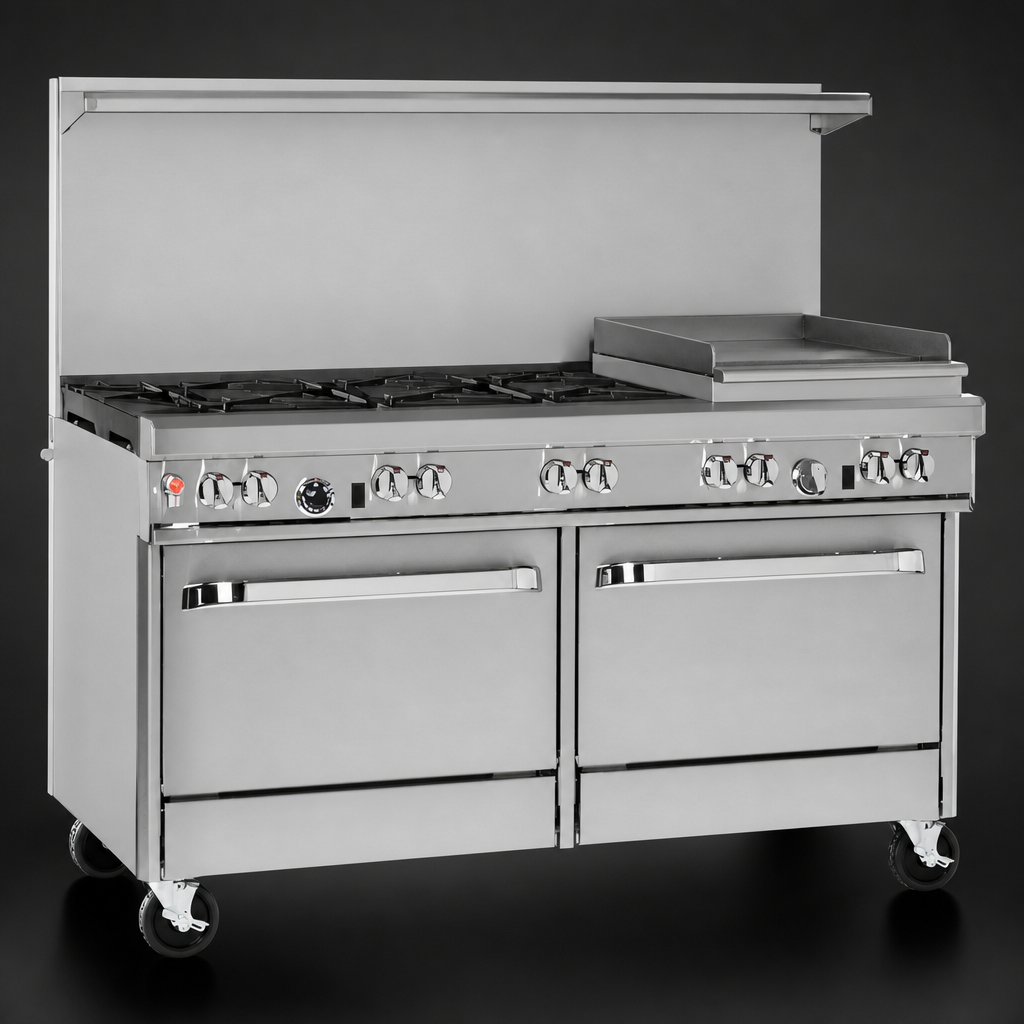

• 24" raised griddle with broiler beneath—ideal for burgers, steaks, melts & more.
• Twin 32,000 BTU convection ovens with battery spark ignition and 3 chrome racks each.
• Standing pilots on the open burners for instant, reliable lighting.
• Manual gas shut-off valve mounted on the front rail for quick access.

Built to Survive the Rush

• Full stainless front, sides, shelf and 22-1/2" flue riser with integrated storage shelf.
• One-piece, 27"-deep removable cast-iron grates (rear accommodates 14" stock pots).
• Spring-assisted oven doors and porcelain-enamel cavities for easy cleanup.
• 6" stainless adjustable legs keep the range level on any quarry-tile or concrete floor.
• Factory-installed 3/4" pressure regulator and rear 3/4" NPT gas connection.
• 1-year parts & labor warranty backed by Southbend’s national service network.

Technical Specifications

Intended for commercial use only. Install under a properly sized vent hood and supply with ¾" gas line & 115 V receptacle.
