Southbend (Middleby) 4604DD-6R Ultimate Gas Ranges
$10,351.00
Unit price
/
Unavailable
Description
Southbend “Ultimate” 60" Gas Restaurant Range
401,000 BTU | Star/Sauté, Pyromax & Non-Clog Burners | Double Standard OvensUnleash maximum cooking power, flexibility, and durability with Southbend’s Ultimate 60-inch restaurant range. A split configuration of high-performance open burners pairs with two full-size ovens, giving busy kitchens the speed and consistency they demand service after service.
Why You’ll Love It
- 9 open burners, 3 technologies. Five 33 kBTU Star/Sauté burners up front for lightning-fast sauté work, two 40 kBTU Pyromax burners in the rear for stockpots & woks, plus two 33 kBTU non-clog burners for everyday tasks.

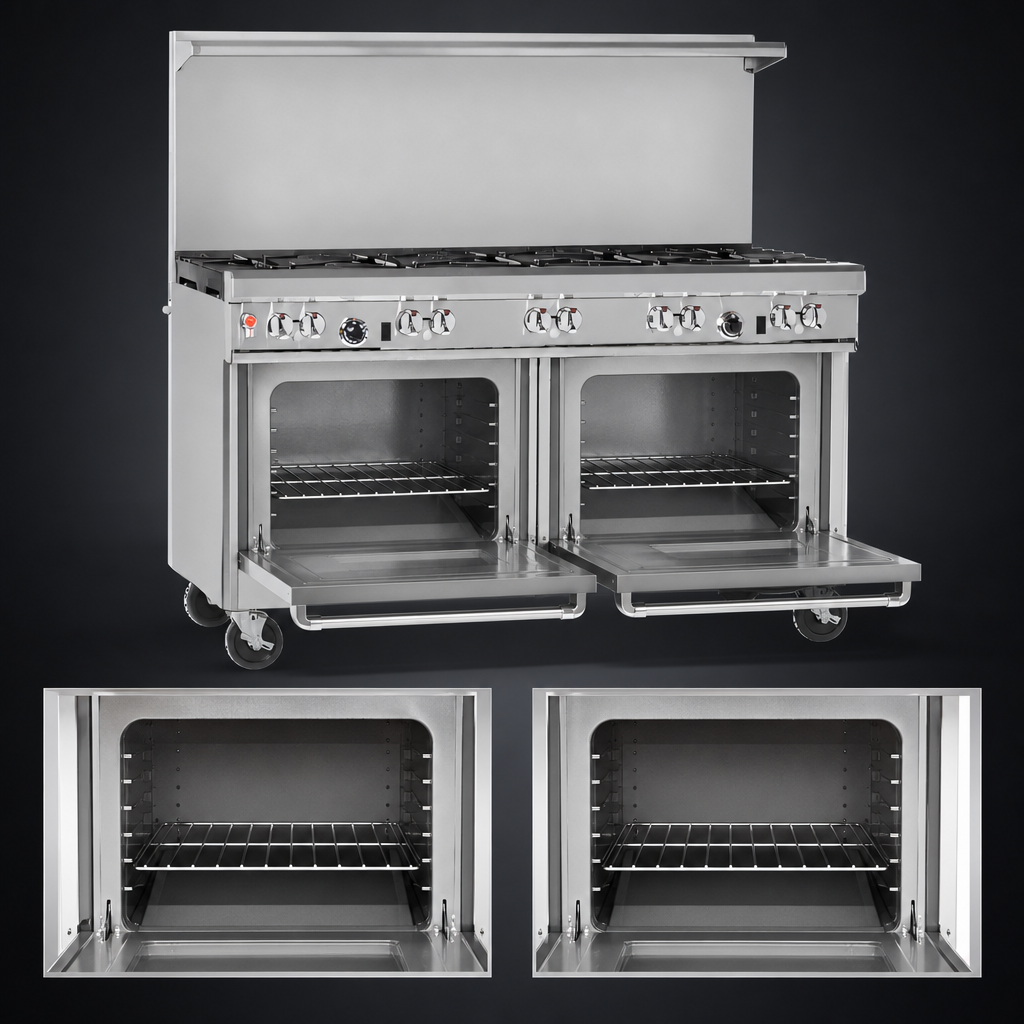

- Double standard ovens. Each 45 kBTU oven fits full-size sheet pans (both directions) and arrives with a rack that adjusts on two positions.
- All-stainless build. Front, sides, 22 ½" flue riser/shelf and 4" front rail resist corrosion and wipe clean fast.
- Front-mounted gas shutoff and factory regulator for safer, simpler installations.
- Battery-spark oven ignition plus standing pilots on the cooktop keep you cooking even during power outages.
- CSA & NSF listed for worry-free code compliance.
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
Performance At-A-Glance
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth / cook-top depth | 34" overall • 27" cooking surface |
| Work height | 37" |
| Open burners | 5 × 33 kBTU Star/Sauté (front) 2 × 40 kBTU Pyromax (rear right) 2 × 33 kBTU Non-Clog (rear left) |
| Ovens | 2 × 45 kBTU standard ovens, battery-spark ignition |
| Total input | 401,000 BTU/hr (natural or LP – ¾" female connection, regulator included) |
| Oven interior (each) | 14" H × 26" W × 26 ½" D, porcelain enamel |
| Included accessories | (2) oven racks (1 per oven) • 6" adjustable stainless legs |
| Certifications | CSA • NSF |
Installation & Operating Notes
- Minimum gas inlet pressure: 7" W.C. natural, 11" W.C. LP.
- Allow 10" clearance to combustible surfaces at rear & sides; install under a vented hood.
- For optimum burner life, limit oversized (12"+) cookware to the rear positions.
- Intended for commercial kitchens only – not for household use.
Warranty: 1-year parts & labor. See full terms at southbendnc.com/service-and-parts.
Cleaning caution: Never cover burners with sheet pans during operation—excess heat can cause
irreversible damage and is not covered under warranty.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Top
(9) open burners
Base
(2) standard ovens
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Specifications
Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front right, (2) pyromax burners rear right, (2) star/sauté burners front left, (2) non-clog burners rear left, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 401,000 BTU, CSA, NSF
