Southbend (Middleby) 4604DD-5R Ultimate Gas Ranges
Description

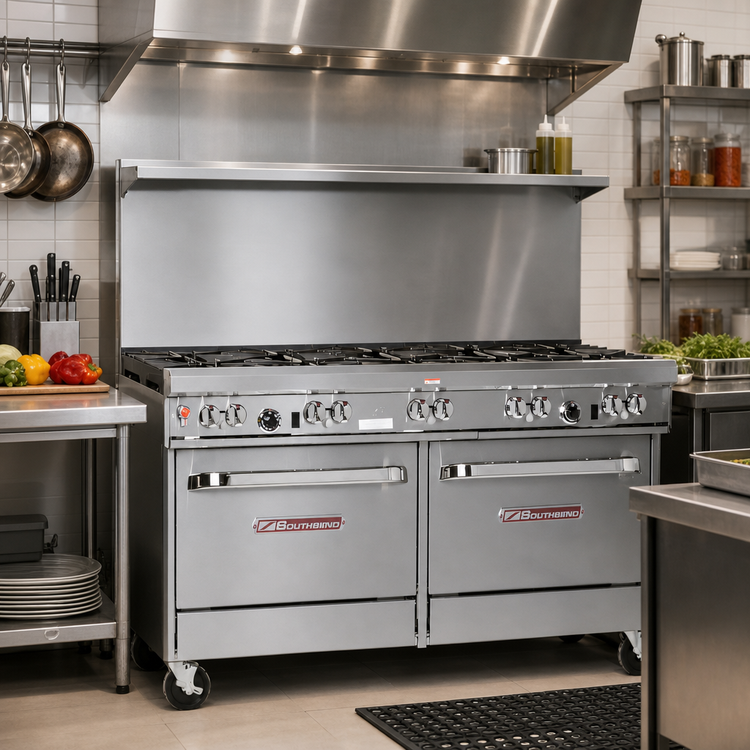

Southbend Ultimate 60" Gas Restaurant Range – 9-Burner / Double-Oven
Model 7706 | 401,000 BTU | CSA & NSF ListedBuilt for high-volume kitchens that refuse to compromise on power or flexibility, the Southbend Ultimate 60" Restaurant Range pairs a custom 9-burner cooktop with two full-size standard ovens. Heavy-gauge stainless construction, cast-iron grates and industry-leading burner technology deliver years of dependable, even heat—shift after shift, plate after plate.
Key Features
- 60" wide range with a spacious 37" high cooking surface.
- 9 open burners arranged for ultimate versatility (see below).
- (2) 45,000 BTU standard ovens with battery-spark ignition & 175-550 °F thermostats.
- 22.5" flue riser with heavy-duty storage shelf—perfect for smallwares.
- 4" deep stainless front rail plus front-mounted manual gas shut-off for the entire range.
- Four removable cast-iron grate tops; rear section accepts 14" stock pots.
- 6" stainless steel adjustable legs for easy leveling on uneven floors.
- Factory-installed regulator and standing pilots for open burners.
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network.

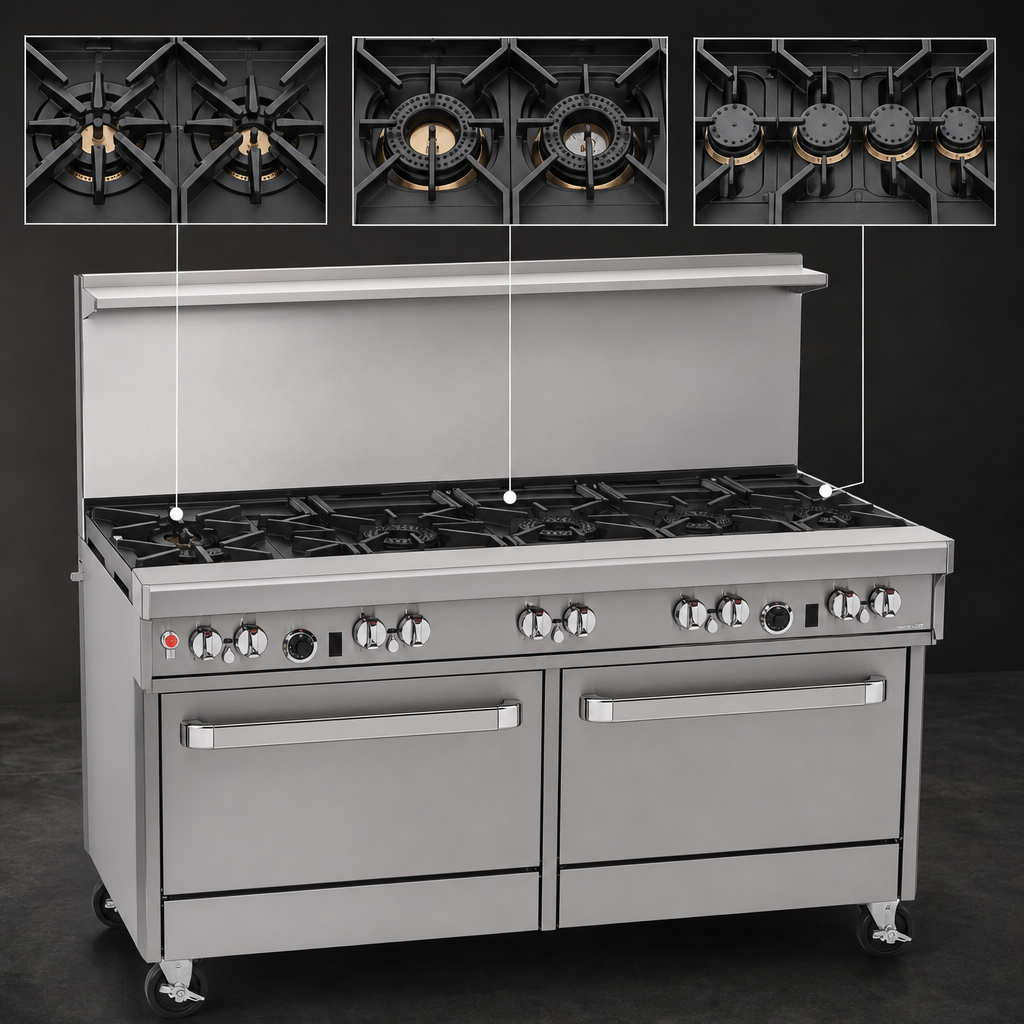

Precision Burner Configuration
- Front Right: (3) 33,000 BTU lifetime non-clog burners
- Rear Right: (2) 40,000 BTU Pyromax™ high-output burners
- Front Left: (2) 33,000 BTU Star/Sauté burners for fast, even pan heat
- Rear Left: (2) 33,000 BTU lifetime non-clog burners
- Total open-top input: 311,000 BTU

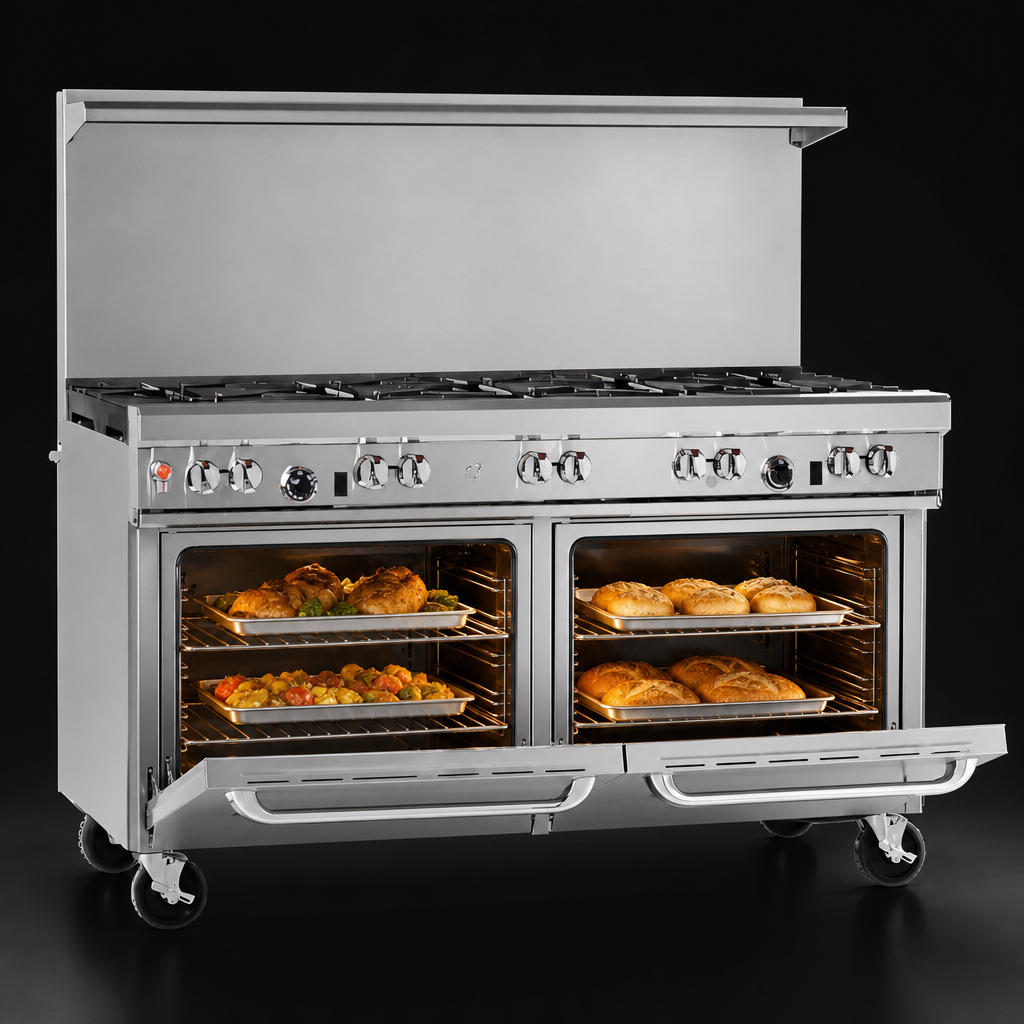

Oven Performance
- (2) Standard ovens, each 45,000 BTU with standing pilot
- Battery-spark ignition—no external power required
- Interior: 14"H × 26"W × 26.5"D porcelain cavity for superior clean-up & corrosion resistance
- (1) heavy-duty rack per oven; two rack positions
Technical Specifications
| Overall Width | 60 3⁄4" (1543 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Flue Riser Height | 22 1⁄2" (572 mm) |
| Total BTU Input | 401,000 BTU/hr (Natural Gas) |
| Gas Connection | 3⁄4" NPT (rear, left side) |
| Minimum Inlet Pressure | 7" W.C. (Natural) |
| Open Burners | 9 (see configuration above) |
| Ovens | (2) Standard, 45,000 BTU each |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor |
Need more detail? View Southbend’s full warranty terms on their Service & Parts page.
