Southbend (Middleby) 4604DD-5L Ultimate Gas Ranges
Description

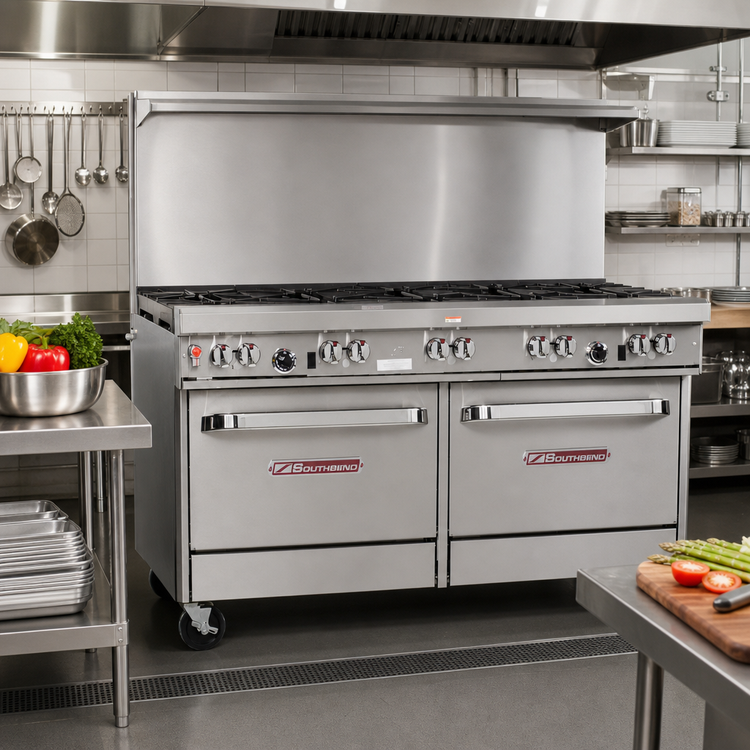

Southbend “Ultimate” 60" Gas Restaurant Range
Model 460DD | 401,000 BTU | CSA & NSF ListedEngineered for high-volume kitchens that refuse to compromise, the Southbend Ultimate Series delivers fortress-grade construction, versatile burner options, and chef-friendly ergonomics in one rugged 60" platform. This factory-configured unit blends blistering Pyromax power with precision sauté performance and clog-free reliability—plus two full-size ovens—to keep every station moving during the rush.
Why You’ll Love It
- Custom 9-burner layout for maximum flexibility:
- (3) 33 K BTU non-clog burners – front left
- (2) 40 K BTU Pyromax burners – rear left
- (2) 33 K BTU star/sauté burners – front right
- (2) 33 K BTU non-clog burners – rear right

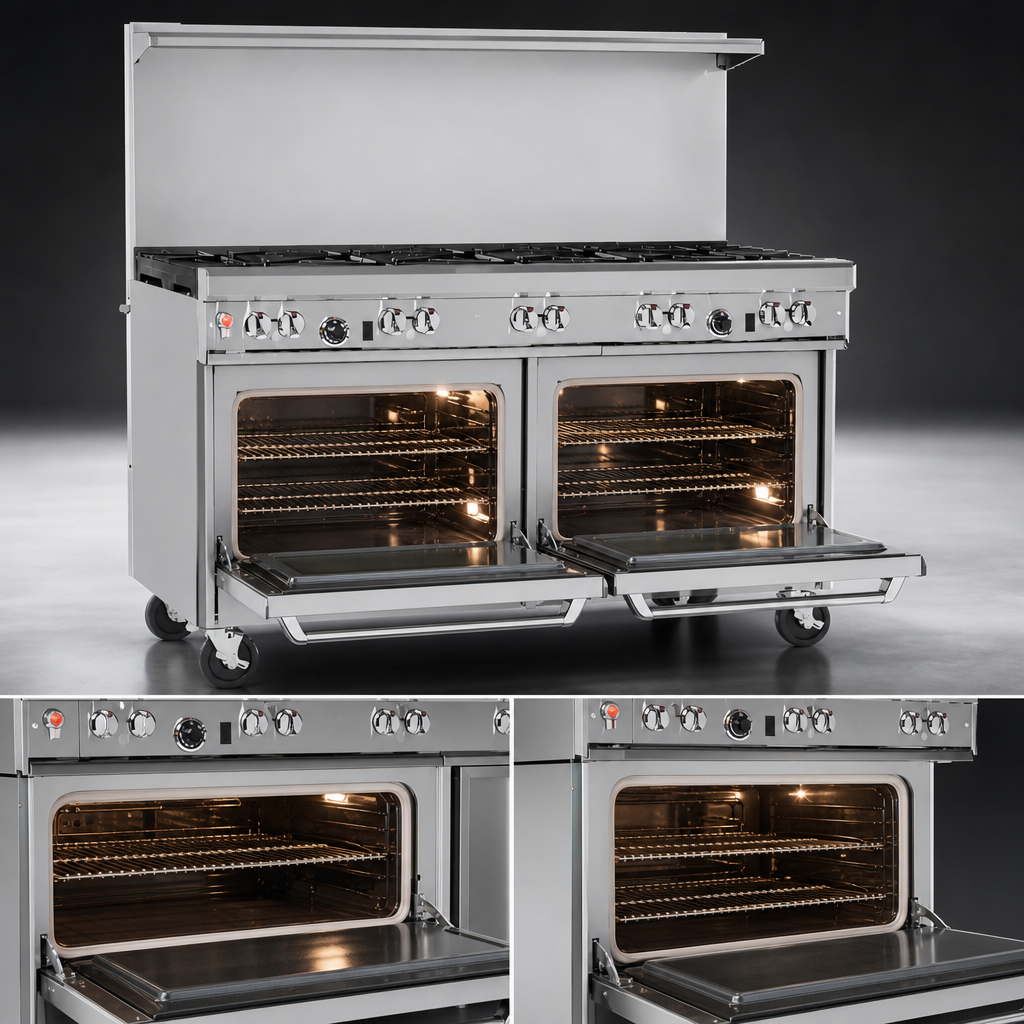

- Two standard ovens with battery spark ignition—no electrical hookup required
- Full-length 22-½" flue riser with heavy-duty utility shelf—keep plates & smallwares warm and within reach
- 4" deep stainless front rail protects controls and doubles as staging space
- Removable cast-iron grates (rear positions accept up to a 14" stock pot)
- Standing pilots for instant burner light-up; front-mounted master gas shut-off for safety
- All-stainless front, sides, shelf & 6" adjustable legs—built to survive the toughest line
- Factory-installed regulator and 3/4" rear gas connection simplify installation
- One-year parts & labor warranty backed by the Southbend nationwide service network
At-a-Glance Specifications
| Range width | 60 3/4" (1543 mm) |
|---|---|
| Depth (to front rail) | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Overall height w/ riser | 59 1/2" (1511 mm) |
| Cooking surface depth | 27" |
| Total open-top BTU | 311,000 BTU/hr |
| Oven type / BTU (ea.) | Standard, snap-action thermostat 175 °F–550 °F / 45,000 BTU |
| Oven interior (WxDxH) | 26" × 26 ½" × 14" – fits full-size pans both directions |
| Total appliance BTU | 401,000 BTU/hr |
| Gas connection | 3/4" NPT (female) |
| Required inlet pressure | Natural gas 7" W.C. (minimum) |
| Electrical | None (battery spark ignition) |
| Certifications | CSA NSF |
Built for the Long Haul
- Double-sided porcelain enamel oven cavities with coved corners—easy wipe-down, no hot spots
- Spring-assisted oven doors stay open at any angle and close softly
- One-piece drip trays under each burner bank speed nightly clean-up
- 6" stainless legs adjust for uneven floors or optional casters (sold separately)
What’s in the Crate
- Complete range (as specified above)
- (1) Nickel-plated rack per oven
- Factory pressure regulator & battery pack
- User, installation & warranty documentation
Peace-of-Mind Warranty
- 1-year parts & labor coverage when serviced by an authorized Southbend agency
- Lifetime clog-free guarantee on non-clog open burners
- Mount on 6" legs or casters when installed on combustible floors.
- Use over-size cookware (12"+ diameter) only on rear burners to avoid damage to front rail components.
- A vented hood is required; verify local code compliance before purchase.
Need a different burner mix, convection ovens, or factory-mounted accessories? Chat with our equipment specialists—every Ultimate Series range is built-to-order.
