Southbend (Middleby) 4604DD-3TR Ultimate Gas Ranges
Description

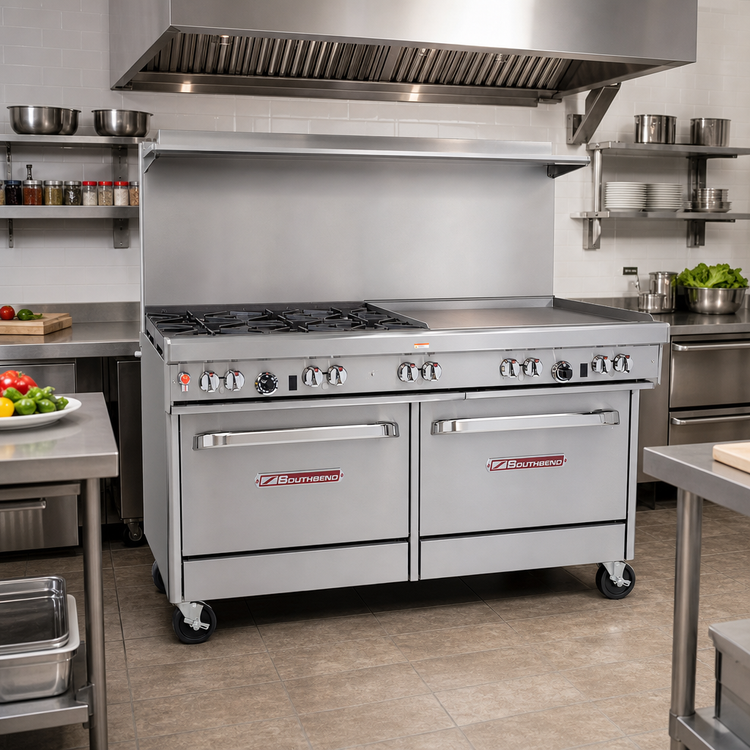

Southbend Ultimate 60" Gas Restaurant Range
2 Star/Sauté + 2 Non-Clog Burners • 36" Thermostatic Griddle • Double Standard OvensBuilt for chefs who refuse to compromise, the Southbend Ultimate Series packs heavy-duty performance, precise temperature control, and the legendary durability operators trust. This 60" configuration combines the power of open-top burners with a spacious right-side griddle and two full-size ovens—all in one stainless-steel workhorse.
Why You’ll Love It
- 286,000 BTU total output for high-volume production.
- (2) 33,000 BTU star/sauté burners in front for fast, even heat & quick pan movement.
- (2) 33,000 BTU lifetime non-clog burners in rear—perfect for stock pots up to 14".

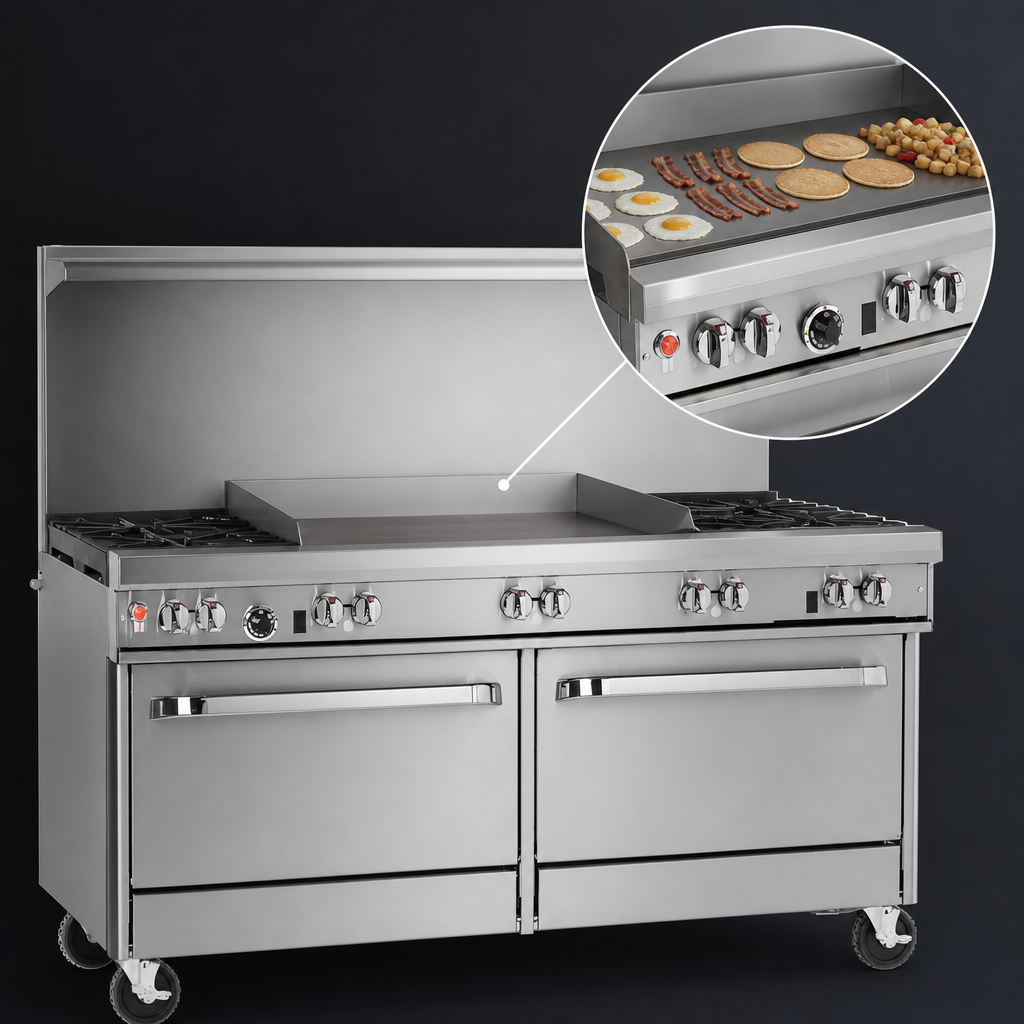

- 36" right-hand griddle with ½" polished steel plate & thermostatic controls for consistent searing zones from breakfast to dinner.
- Dual 45,000 BTU standard ovens with battery spark ignition & porcelain interiors; each ships with a rack and hosts full-size sheet pans both directions.
- One-piece cast-iron grates lift off for quick cleaning; two full-width drip trays catch grease beneath the burners.
- 22-½" flue riser with heavy-duty shelf keeps plates warm and cookware close at hand.
- Front-located manual gas shut-off and factory-installed regulator streamline installation & safety checks.
- All-stainless front, sides, shelf & 6" adjustable legs withstand the punishment of busy kitchens.
- Certified cCSAus, CSA Flame, CSA Star & NSF for worry-free code compliance.
Technical Specifications
| Overall width | 60 3/4" |
|---|---|
| Depth (to front rail) | 34" |
| Cooking-surface height | 37" |
| Overall height w/ riser | ≈59 1/2" |
| Open burners | (2) 33 k BTU star/sauté (front) + (2) 33 k BTU non-clog (rear) |
| Griddle | 36" W × 27" D, ½" plate, thermostatic |
| Ovens | (2) standard, 45 k BTU each, 175 °F – 550 °F |
| Oven cavity (each) | 14" H × 26" W × 26 ½" D | 1 rack (2 positions) |
| Total input | 286 k BTU/hr (natural gas) |
| Gas connection | ¾" NPT (rear; side depends on griddle location) |
| Ignition | Standing pilot (burners) • Battery spark (ovens) |
| Construction | Stainless steel front, sides, shelf & 6" adjustable legs |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see note) |
One-year limited parts & labor warranty. Intended for commercial use only. Oversized cookware should be kept to the rear burners to prevent excess rail heat.
