Southbend (Middleby) 4604DD-3CR Ultimate Gas Ranges
Description

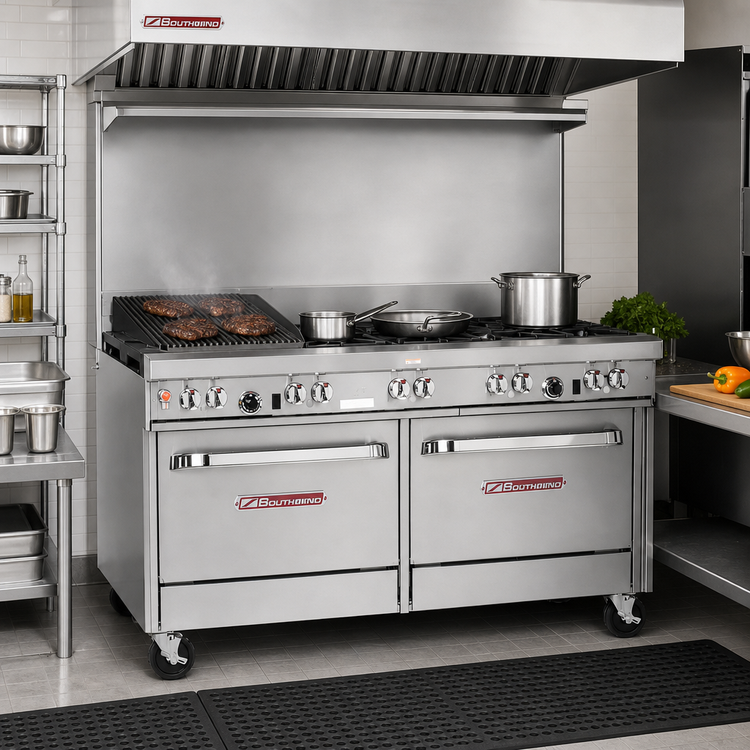

Southbend Ultimate 60" Gas Restaurant Range w/ 36" Charbroiler & Dual Standard Ovens
Model 460-DD • 318,000 BTU • CSA & NSF ListedBring powerhouse versatility to your cookline. The Southbend Ultimate Series combines rapid-response open burners, a steakhouse-quality charbroiler and two full-size ovens in one rugged, 60-inch footprint—ideal for high-volume restaurants, hotels and catering commissaries.
Top Reasons You’ll Love It

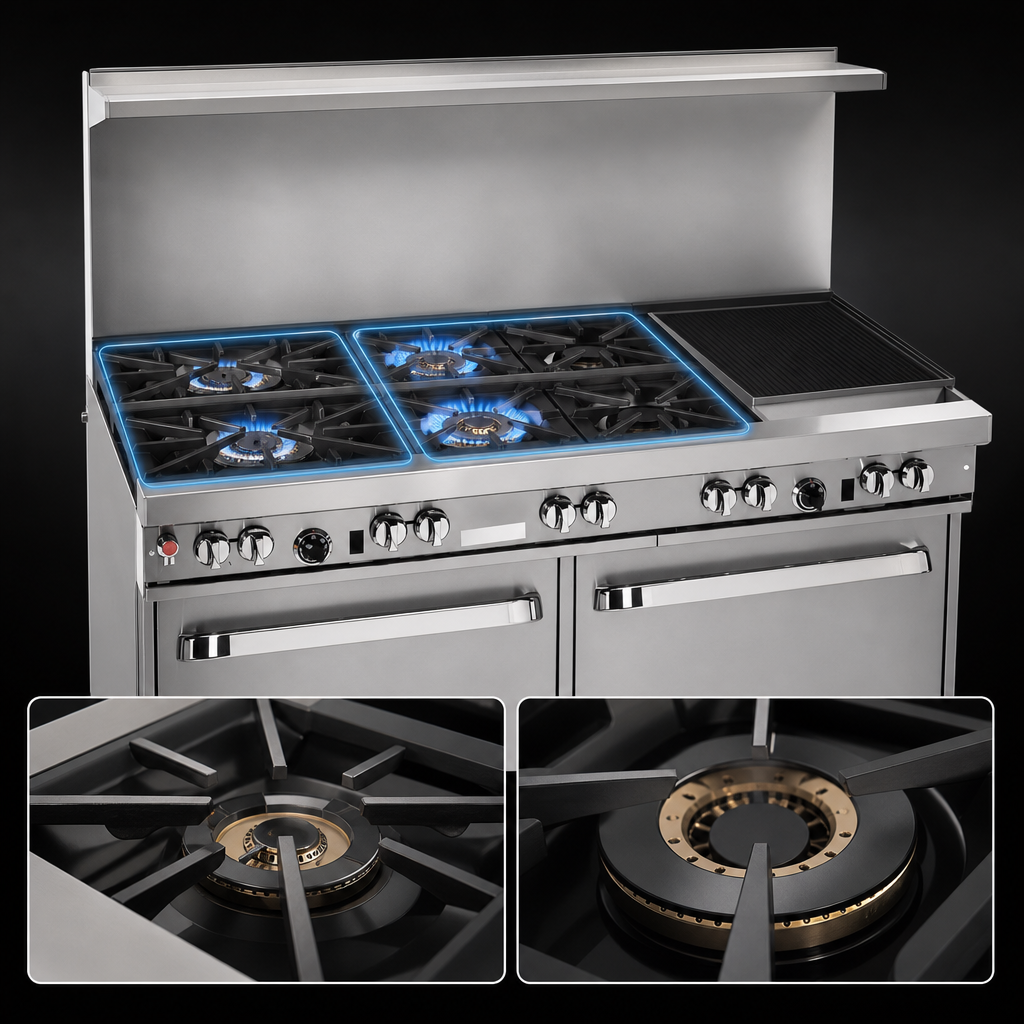

- Split burner layout: (2) 33,000 BTU star/saute burners up front + (2) 33,000 BTU lifetime non-clog burners in back

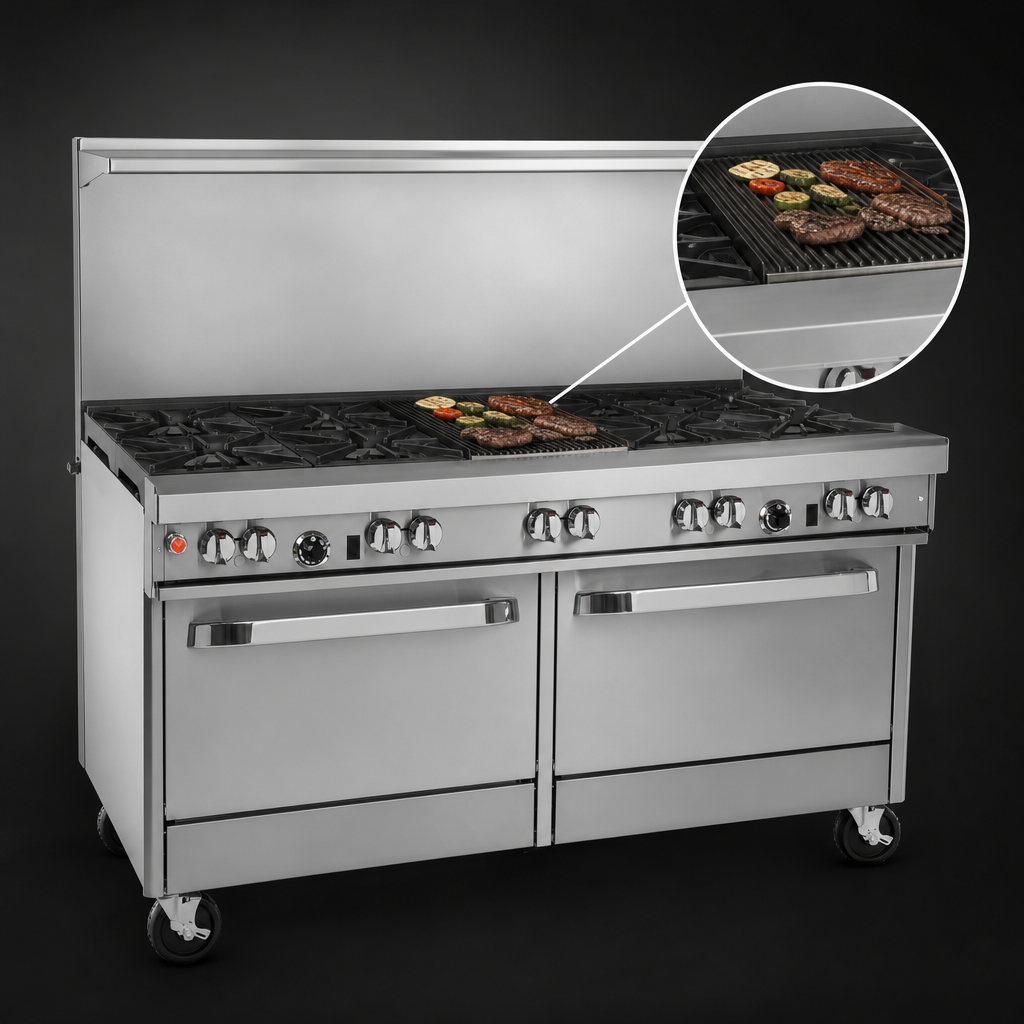

- Right-side 36″ charbroiler delivers 96,000 BTU for perfect grill marks and smoky flavor
- Two 45,000 BTU standard ovens (battery spark ignition) each ship with a rack and hold full-size sheet pans both ways
- 27″-deep cooking surface with four removable cast-iron grate sections — rear positions handle 14″ stock pots
- 22 ½″ flue riser with heavy-duty storage shelf keeps plates, spices & smallwares close at hand
- Stainless steel front, sides, shelf & 4″ front rail; 6″ adjustable stainless legs for easy leveling
- Front-mounted manual gas shut-off and factory-installed ¾″ pressure regulator
- Standing pilots on open burners for instant lighting — no electrical hook-up required
- Backed by a one-year parts & labor warranty from Southbend’s nationwide service network
Technical Specifications
| Overall width | 60 ¾″ (1543 mm) |
|---|---|
| Overall depth | 34″ (864 mm) |
| Cook surface depth | 27″ |
| Cooktop height | 37″ |
| Flue riser height | 22 ½″ with shelf |
| Total BTU input | 318,000 BTU/hr (Natural Gas) |
| Open burners | (2) Star 33,000 BTU + (2) Non-clog 33,000 BTU |
| Charbroiler | 36″, 96,000 BTU, right-side location |
| Ovens | (2) Standard ovens, 45,000 BTU each, 175 °F–550 °F thermostat |
| Oven interior (each) | 26″ W × 26.5″ D × 14″ H, porcelain enamel |
| Gas connection | Single ¾″ NPT (rear) |
| Utility type | Natural gas (field-convertible to LP with kit) |
| Electrical | None required — battery spark ignition |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Built for Demanding Kitchens
- Lifetime clog-free burner design minimizes downtime and service calls
- Heavy-gauge stainless chassis resists dents, corrosion and daily cleaning chemicals
- Battery spark ignition keeps ovens operating during power outages—great for food trucks & catering trailers
- Modular platform accepts optional casters, salamanders, cheesemelters and more
Using cookware larger than 12″? Keep oversized pots on the rear burners and off the front rail to avoid heat damage to control components.
