Southbend (Middleby) 4604DD-2RR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
3 Star/Sauté + 3 Non-Clog Burners • 24" Raised Griddle/Broiler • Dual Standard OvensBuilt for kitchens that run hard every service, the Southbend Ultimate Range delivers massive fire power, rock–solid construction and the layout chefs ask for most—high-output open burners up front, stock-pot capacity in back, a raised griddle/broiler for all-day versatility and two full-size ovens below.
Key Performance Features
- 60 ⅞" wide cook top with 3 Star/Sauté burners (front) + 3 Lifetime Non-Clog burners (rear) – 33,000 BTU each.

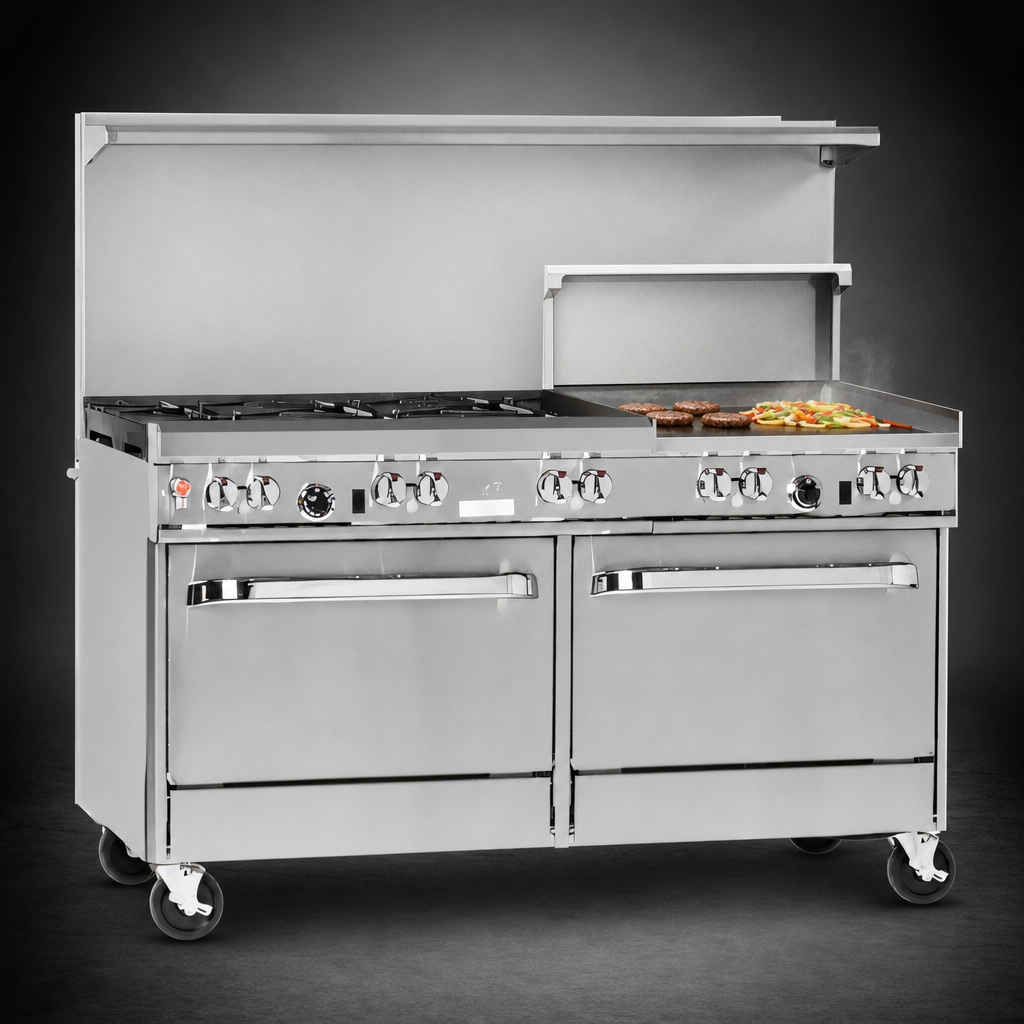

- 24" raised griddle / broiler (½" polished steel plate) lets you flip from breakfast to finishing steaks without losing burner space.
- (2) 45,000 BTU standard ovens with battery-spark ignition; 14" H × 26" W × 26.5" D porcelain cavities fit full-size sheet pans both ways.
- One removable heavy-duty cast-iron grate section handles stock pots up to 14".
- Front-mounted manual gas shut-off plus factory pressure regulator for safe, simple hookup.
- Stainless steel front, sides, shelf and 6" adjustable legs stand up to years of commercial use.
- High-efficiency standing pilots on the cook top speed start-ups during busy shifts.
- cCSAus, CSA Flame, CSA Star & NSF listed for gas safety, sanitation and ventilation code compliance.
At-a-Glance Specs
| Model | Ultimate 60" Split-Burner Range w/ Raised Griddle/Broiler |
|---|---|
| Overall width | 60 ⅞ in (1543 mm) |
| Overall depth | 34 in (864 mm) |
| Cook-top height | 37 in (940 mm) to surface |
| Total input | 321,500 BTU/hr (Natural or LP – specify) |
| Open burners | (3) Star/Sauté + (3) Non-Clog, 33,000 BTU each |
| Griddle / broiler | 24" raised, manual control, 64,000 BTU |
| Ovens | (2) Standard, 45,000 BTU each, 175-550 °F thermostat, 1 rack ea. |
| Gas connection | Single ¾" NPT rear; factory regulator included |
| Electrical (ovens) | None required – battery spark ignition |
| Construction | Stainless front & sides, 4" front rail, 22 ½" flue riser w/ shelf |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see full Southbend warranty) |
What’s In the Box
- Range pre-assembled with 6" adjustable stainless legs
- (4) Removable cast-iron grate tops
- (2) Oven racks (one per oven)
- Pressure regulator & ¾" NPT fitting
- Operator & installation manual
Need casters, additional oven racks or flame-failure safety? Ask our team for factory-approved accessories before checkout.
