Southbend (Middleby) 4604DD-2GR Ultimate Gas Ranges
Southbend (Middleby) 4604DD-2GR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4604DD-2GR Ultimate Gas Ranges
Description

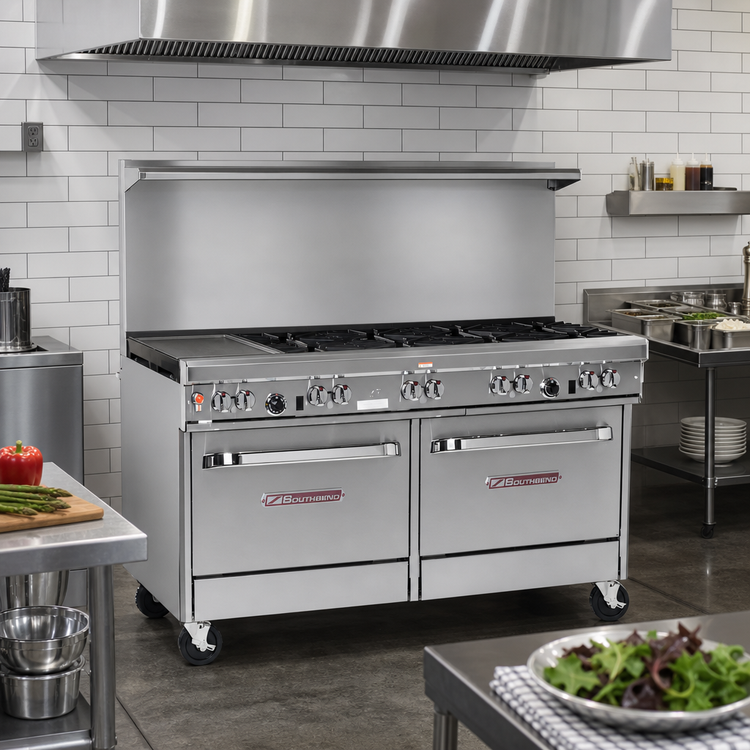

Southbend Ultimate 60″ Gas Restaurant Range
3 Star/Sauté + 3 Non-Clog Burners • 24″ Right-Side Griddle • Dual Standard OvensBuilt for chefs who demand power, flexibility and rock-solid reliability, the Southbend Ultimate 60″ range packs 336,000 BTU/h of cooking muscle into a rugged, all-stainless chassis that stands up to the busiest commercial kitchens.
Why You’ll Love It

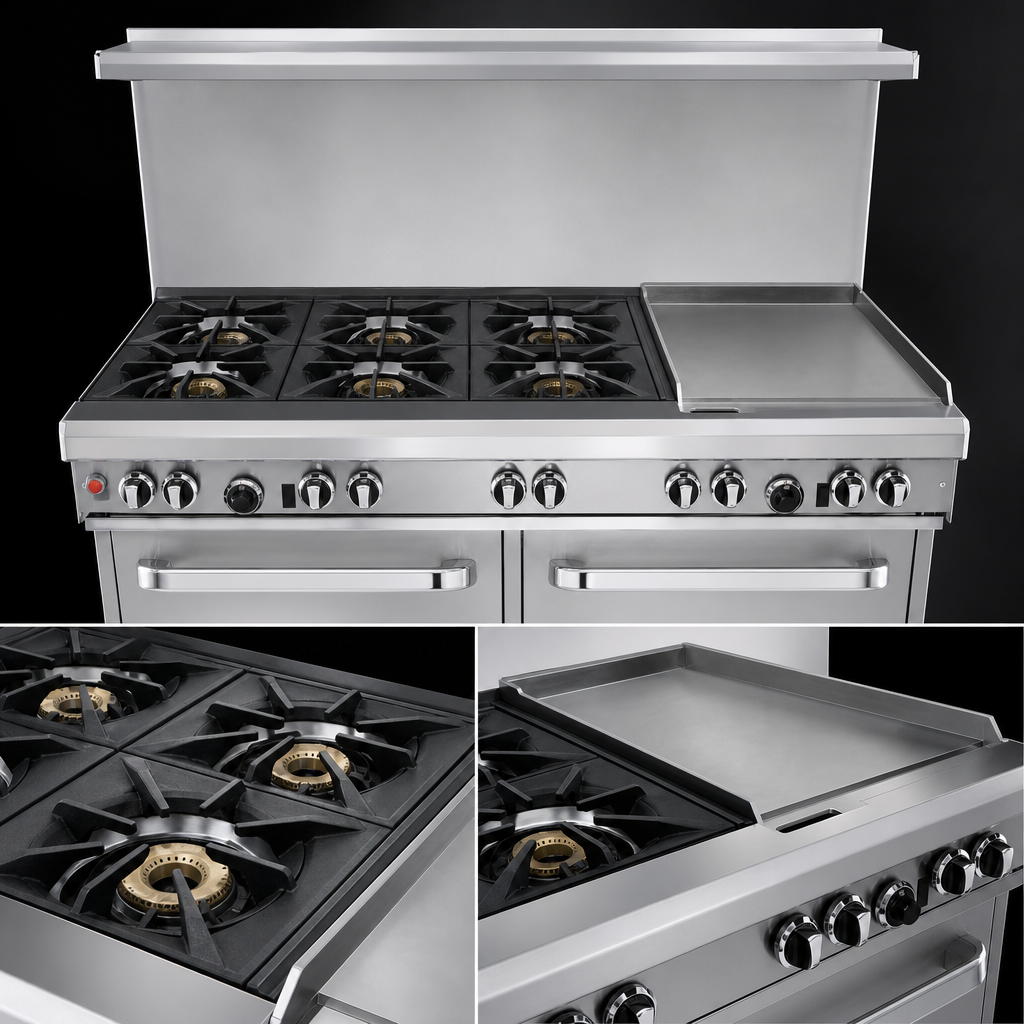

- Split Top Versatility – Three 33K BTU star/sauté burners up front for rapid flash-heat, plus three 33K BTU lifetime non-clog burners in back for stockpots & sauce work.
- 24″ Polished Steel Griddle (Right) – 48K BTU plate ideal for breakfast, searing proteins or finishing menu items.

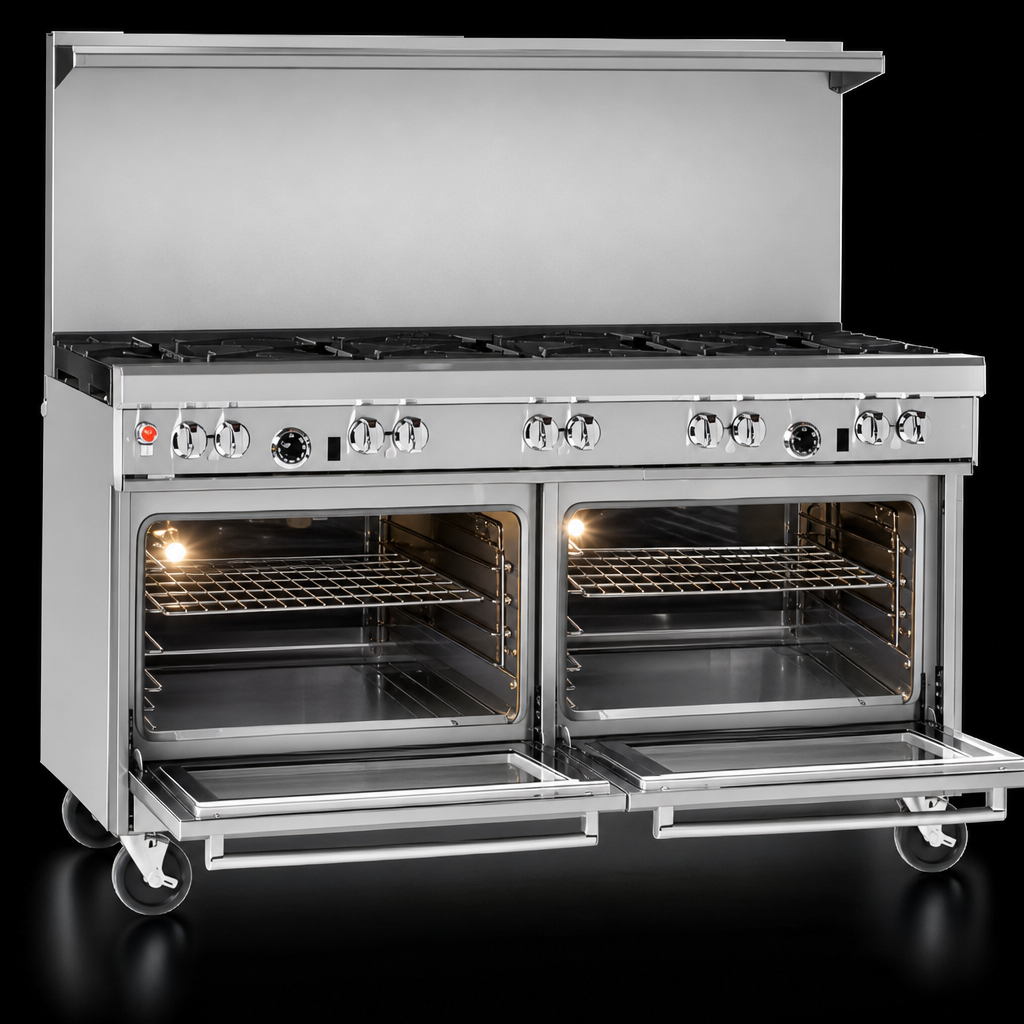

- Two Full-Size Standard Ovens – 45K BTU each, 175–550 °F thermostat, porcelain interiors, spring-assisted doors and one rack included per cavity.
- All-Stainless Exterior – Front, sides, 4″ front rail, 22½″ flue riser & shelf plus 6″ adjustable legs for easy cleaning and long life.
- No Electric Hook-Up Required – Standing pilots for open tops and battery-spark ignition for the ovens simplify installation.
- Factory-Installed ¾″ Regulator & front-mounted master gas shut-off.
- Certified NSF, cCSAus, CSA Flame & Star – ready for code-compliant installation.
Built for All-Day, Every-Day Production
Heavy, one-piece cast-iron grates support up to a 14″ stockpot on the rear burners, while the star burner’s unique port pattern delivers even heat under smaller pans up front. A ½″ thick, finely polished griddle plate maintains temperature recovery during peak rushes, and double porcelain-lined ovens accept full-size sheet pans in either direction.
Key Specifications
| Overall width | 60 ¾″ (1543 mm) |
|---|---|
| Depth (front - back) | 34″ (864 mm) |
| Cooking surface height | 37″ (940 mm) |
| Open top burners | 3 × 33K BTU star + 3 × 33K BTU non-clog (198K BTU) |
| Griddle | 24″ polished steel, 48K BTU (right-hand) |
| Ovens | 2 × 45K BTU standard, 175 – 550 °F thermostat |
| Total input | 336,000 BTU/h (natural gas) |
| Gas connection | ¾″ NPT female, 7″ W.C. (NG) / 11″ W.C. (LP) |
| Oven interior | 26″ W × 26.5″ D × 14″ H – fits full-size pans both ways |
| Shipping weight | 1,075 lb (488 kg) crated |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor (see note below) |
Included With Your Range
- One chrome oven rack per cavity (2 total)
- 22½″ flue riser with heavy-duty integrated shelf
- 6″ stainless steel adjustable legs
- Factory regulator & front master gas shut-off
- User manual & quick-start guide
Popular Add-Ons (Sold Separately)
- Swivel locking casters
- Extra oven racks
- 10″ or 5″ low-profile flue riser
- Shelving, salamander or cheesemelter mounts
One-year limited parts & labor warranty when installed by a Southbend Authorized Service Agency. Intended for commercial use only.
Need flexible payment options? Ask us about fast Middleby Equipment Financing.
