Southbend (Middleby) 4604DD-2CR Ultimate Gas Ranges
Description

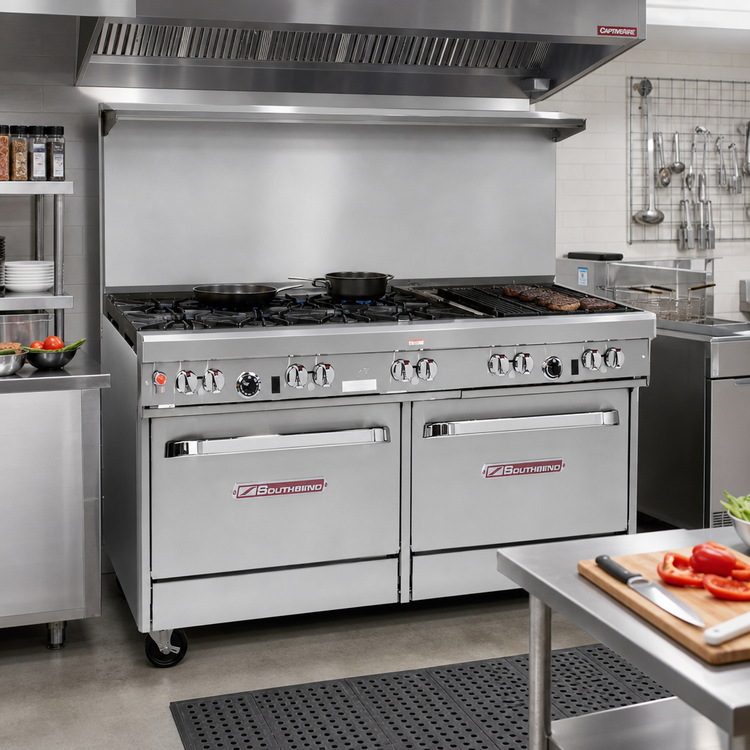

Southbend “Ultimate” 60" Gas Restaurant Range
3 Star/Sauté + 3 Non-Clog Burners • 24" Right-Side Charbroiler • Double Standard OvensBuilt for the busiest kitchens, the Southbend Ultimate Range combines high-powered open burners, a true steak-house quality charbroiler, and two full-size ovens in one 60-inch footprint. Heavy-duty stainless steel construction, front-mounted gas shut-off, and removable cast-iron grates make day-to-day operation fast, safe, and reliable.
Key Cooking Components

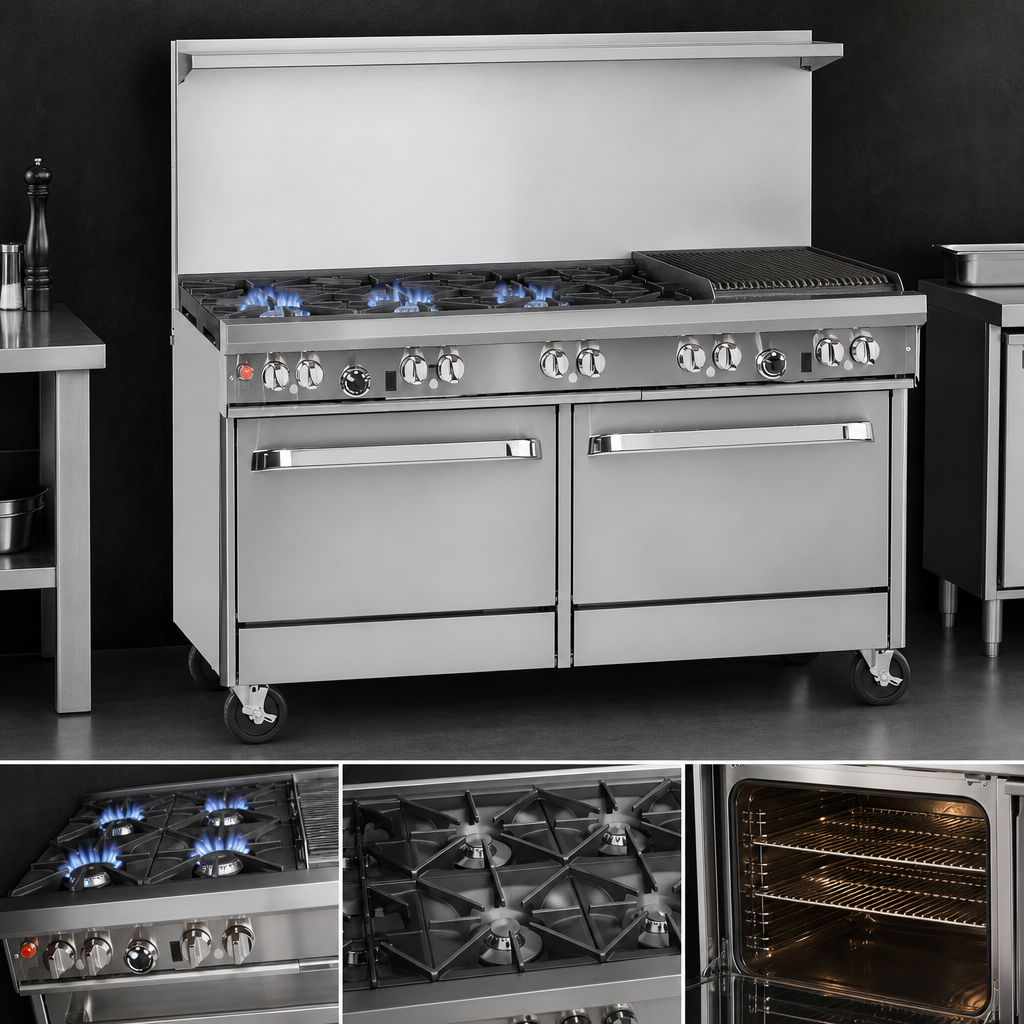

- Six open burners – split configuration:
- (3) 33,000 BTU cast-iron Star/Sauté burners (front row) for rapid heat and even flame spread
- (3) 33,000 BTU lifetime clog-free burners (rear row) sized for stock pots up to 14"
- 24" right-mounted charbroiler (64,000 BTU) with cast-iron radiants and grates for authentic grill marks
- (2) Standard ovens, 45,000 BTU each, battery–spark ignition, 175 °F – 550 °F thermostats
Performance Highlights
- Total input: 352,000 BTU/hr
- Standing pilots for instant burner lighting; manual gas shut-off controls the entire range at once
- 22-1⁄2" flue riser with heavy-duty shelf – perfect for keeping plates and smallwares warm
- Four removable one-piece crumb trays speed clean-up and protect internal components
- 4" deep stainless front rail creates a safe landing zone for pans
What’s Included
- (1) Nickel-plated oven rack per oven (2 total) – two-position side rails
- Factory-installed ¾" gas pressure regulator
- 6" stainless steel adjustable legs
- One-year limited parts & labor warranty
Technical Specifications
| Overall width | 60 3⁄4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22 1⁄2" (572 mm) with stainless shelf |
| Oven interior (each) | 26" W × 26 1⁄2" D × 14" H – fits full-size sheet pans either direction |
| Gas type / connection | Natural Gas, ¾" NPT rear connection (left-side when charbroiler is right-mounted) |
| Total input | 352,000 BTU/hr |
| Clearances (combustible) | 10" sides & rear (charbroiler); 0" sides / 10" rear (other tops & ovens) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty for details) |
Certifications & Warranty
This range is certified to the latest CSA safety & sanitation standards and carries full NSF approval for commercial foodservice. Southbend backs every Ultimate Series range with a one-year, on-site parts & labor warranty performed by an authorized service agency.
Important Use & Care Notes
Charbroiler Cleaning: Never cover the charbroiler grates with a sheet pan while burners are on – heat reflection can cause permanent damage.
