Southbend “Ultimate” 60" Gas Restaurant Range

Engineered for high-volume, high-heat cooking, the Southbend Ultimate 60" range (460 Series, split-top configuration) delivers consistent flame performance, generous oven capacity and rugged stainless-steel construction that thrives on the busiest cooklines.

Key Features

• Ten open burners – (5) 33,000 BTU star/​sauté burners up front for fast, even pan work and (5) 33,000 BTU lifetime non-clog rear burners for stockpots.
• Four removable heavy-duty cast-iron grate tops; rear grates accommodate stock pots up to 14" Ø.
• 27"-deep cooking surface with a 4" stainless front rail and built-in, front-located manual gas shut-off.
• Standing pilots on the top section; battery-spark ignition on the oven for match-free starts.

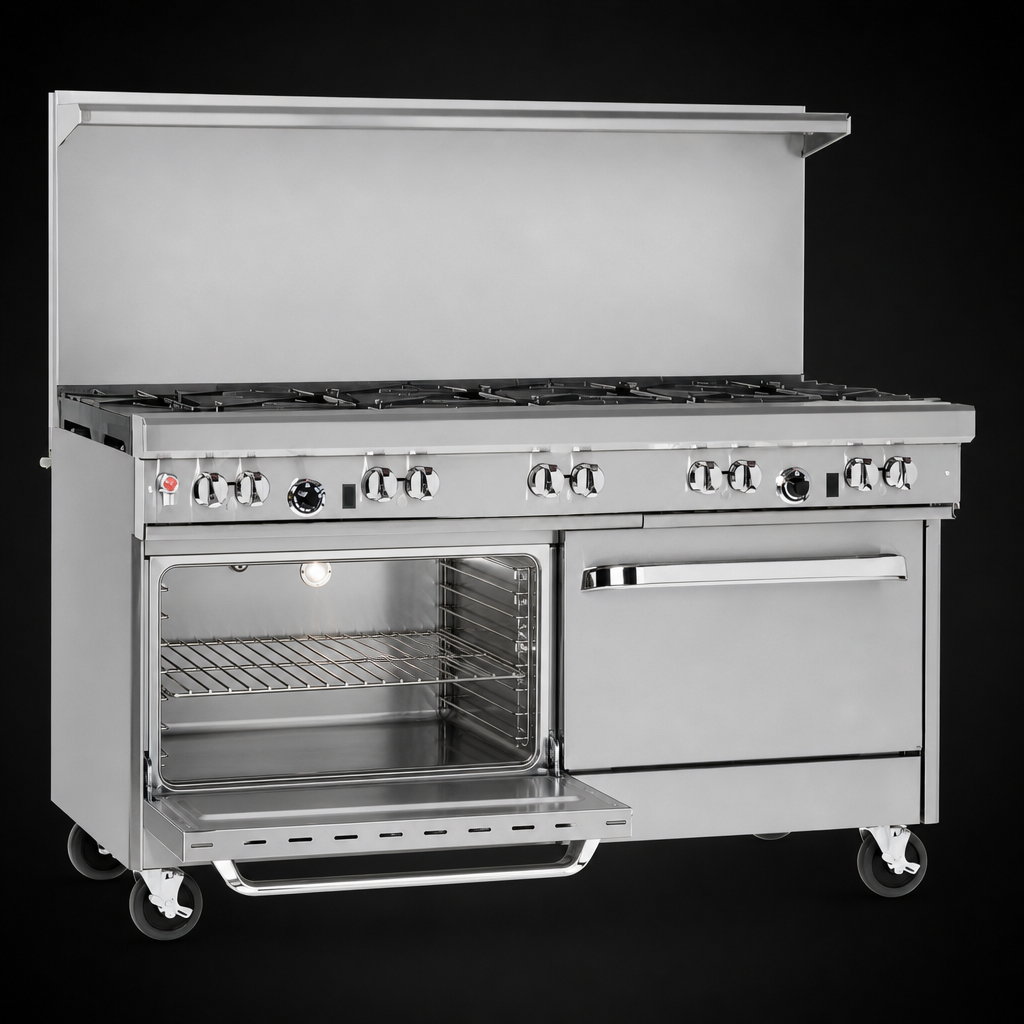

• 45,000 BTU standard oven with 175 °F – 550 °F thermostat, porcelain-enameled interior (14"H × 26"W × 26 ½"D) and one rack with two rack positions.
• Right-hand stainless cabinet base adds dry storage within arm’s reach (doors available at no charge — ask when ordering).
• 22 ½" flue riser with heavy-duty integrated shelf keeps cookware, spices or plating essentials off the line but close at hand.
• All-stainless front, sides, riser shelf and 6" adjustable legs for easy cleaning and code compliance.
• Factory-installed ¾" regulator; CSA & NSF listed for commercial kitchens.
• One-year parts & labor warranty backed by Southbend’s nationwide service network.

At-a-Glance Specifications

Why Choose Southbend Ultimate?

• Performance: 375 k BTU of instant, controllable heat lets you sear, sauté, simmer and roast on one footprint.
• Durability: Lifetime non-clog burners, stainless body panels and porcelain oven liner stand up to daily abuse.
• Flexibility: Mixed burner styles, a storage cabinet and a sturdy riser shelf maximize productivity in limited space.
• Serviceability: Front-accessible components and nationwide authorized service keep downtime to a minimum.
