Southbend (Middleby) 4604DC-6R Ultimate Gas Ranges
Description

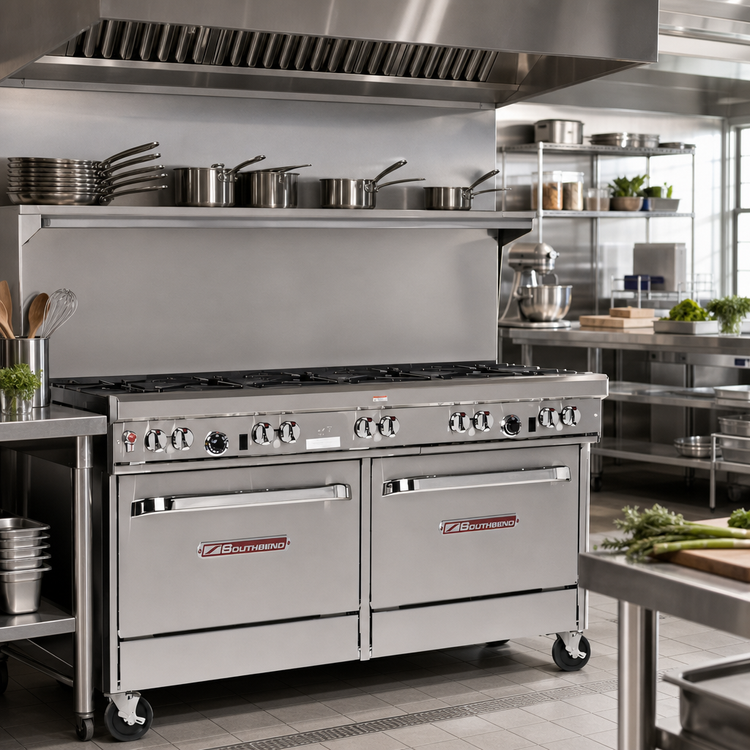

Southbend “Ultimate” 60" Restaurant Range
9-Burner Gas Top • Standard Oven • Cabinet Base • 356,000 BTUBuilt for packed service lines and round-the-clock reliability, the Southbend Ultimate 60" Range delivers a massive 356,000 BTU of controllable heat across a versatile open-top layout, a full-size oven and convenient under-counter storage—all in a single, stainless-steel workhorse.
At a Glance

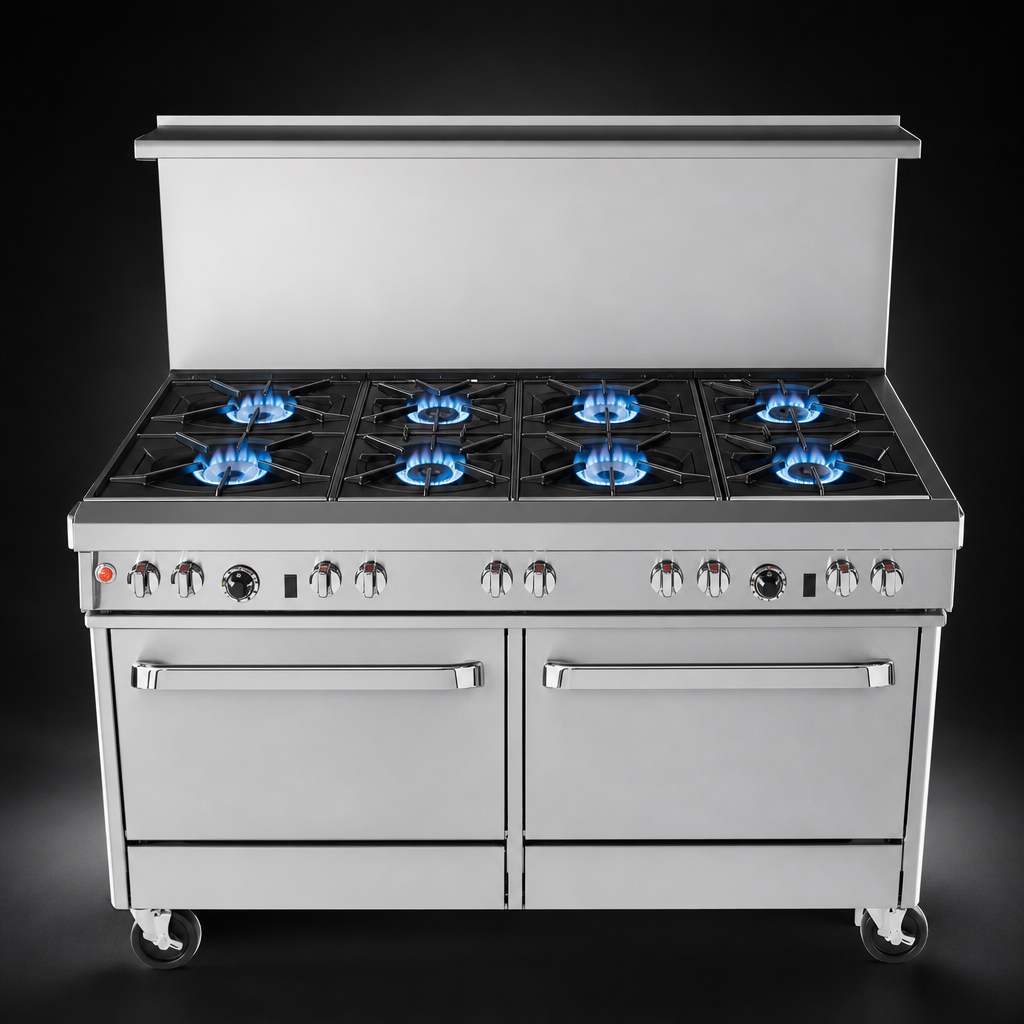

- Custom burner mix for maximum flexibility:
- 5 × 33,000 BTU Star/Sauté burners (front row) for fast, even sautéing.
- 2 × 40,000 BTU Pyromax™ high-output burners (rear right) built for rapid boil & stock work.
- 2 × 33,000 BTU lifetime non-clog burners (rear left) that shrug off spills.

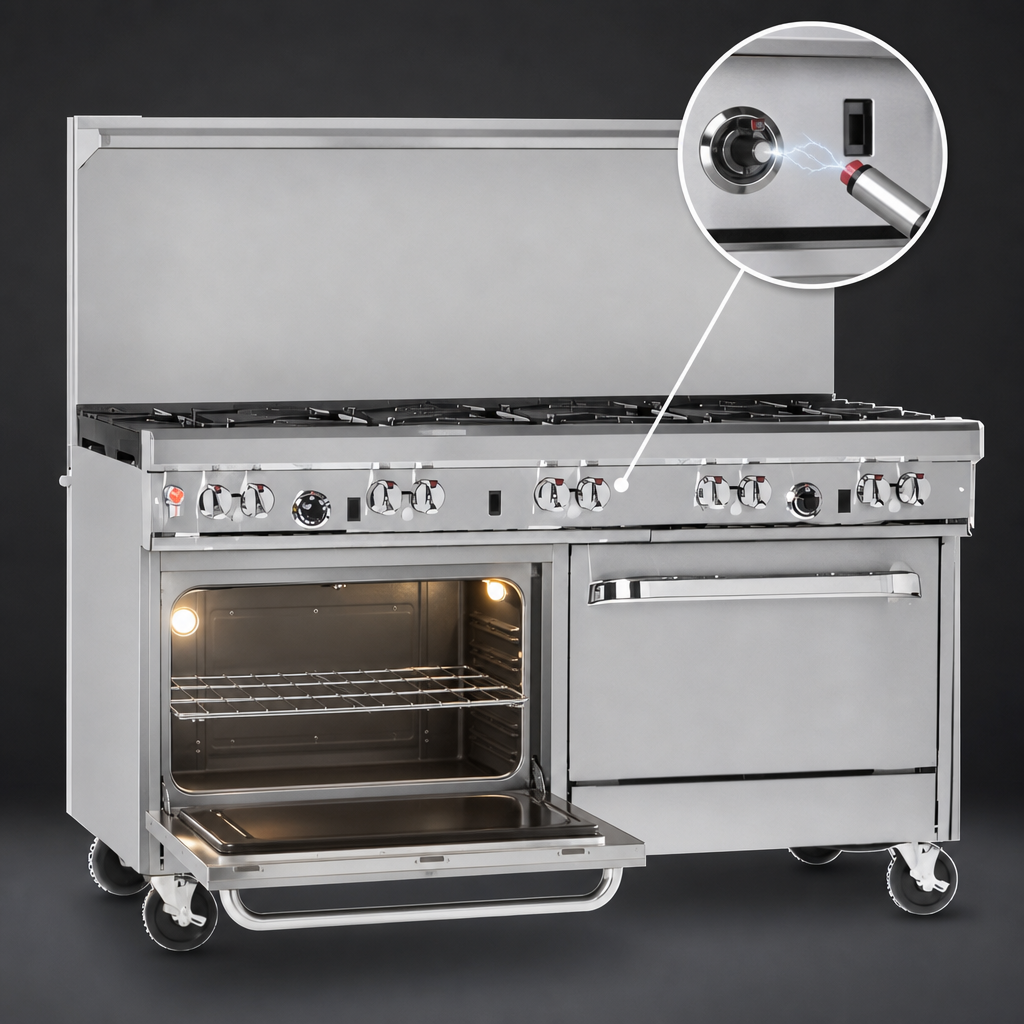

- 45,000 BTU standard oven with battery spark ignition—no wasted pilot gas.
- Stainless storage cabinet keeps pans, lids or spices within reach (doors available at no charge).
- 27"-deep cooking surface with four removable cast-iron grates; accepts up to 14" stock pots.
- Front-mounted master gas shut-off for quick, single-handle safety control.
- 22-½" flue riser with heavy-duty shelf adds plating or small-wares space.
- 6" adjustable stainless legs (casters optional) meet all commercial code requirements.
- CSA & NSF listed; factory regulator and standing pilots on open burners included.
Technical Specifications
| Exterior width | 60 ¾" (1543 mm) |
|---|---|
| Exterior depth | 34" (864 mm) |
| Cooking height | 37" (940 mm) to cooktop |
| Flue riser height | 22 ½" with integrated shelf |
| Total BTU (natural gas) | 356,000 BTU/hr |
| Open-top layout |
5 × Star/Sauté @ 33k BTU 2 × Pyromax @ 40k BTU 2 × Non-clog @ 33k BTU |
| Oven type | Standard (45k BTU) | 175 – 550 °F thermostat | 1 rack included |
| Base (LH) | Stainless steel cabinet, field-upgradeable with doors |
| Gas connection | ¾" NPT, 7" W.C. minimum (Natural Gas) |
| Construction | Stainless front, sides, 4" rail & shelf; porcelain-enameled oven interior |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (see warranty statement) |
Warranty & Service
- 1-year limited parts & labor coverage backed by Southbend’s nationwide service network.
- Factory-installed pressure regulator and standing pilots simplify installation.
• Keep cookware larger than 12" to the rear burners to avoid excess heat on the front rail.
• Never place sheet pans over active burners during cleaning—heat reflection can cause damage.
Looking for a different burner mix, convection oven or griddle top? The Ultimate Series is fully modular—contact us for a custom quote.
