Southbend (Middleby) 4604DC-6L Ultimate Gas Ranges
Description

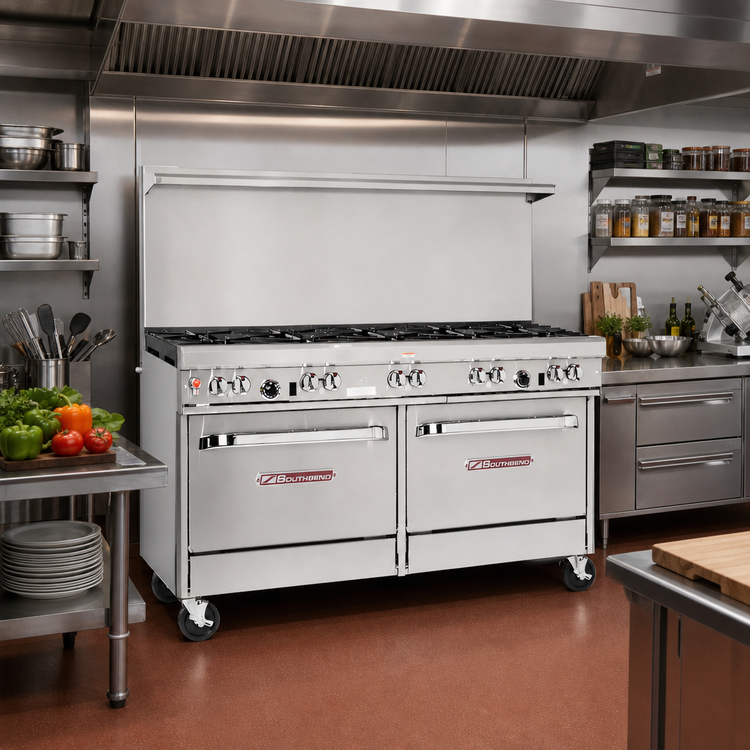

Southbend “Ultimate” 60″ Gas Restaurant Range
Mixed-Burner Top • Standard Oven • Cabinet BaseBuilt for high-volume, high-heat kitchens, the Southbend Ultimate 60″ Restaurant Range delivers powerhouse performance with a unique mix of burners, a rugged standard oven, and durable stainless-steel construction that stands up to everyday punishment.
Key performance advantages

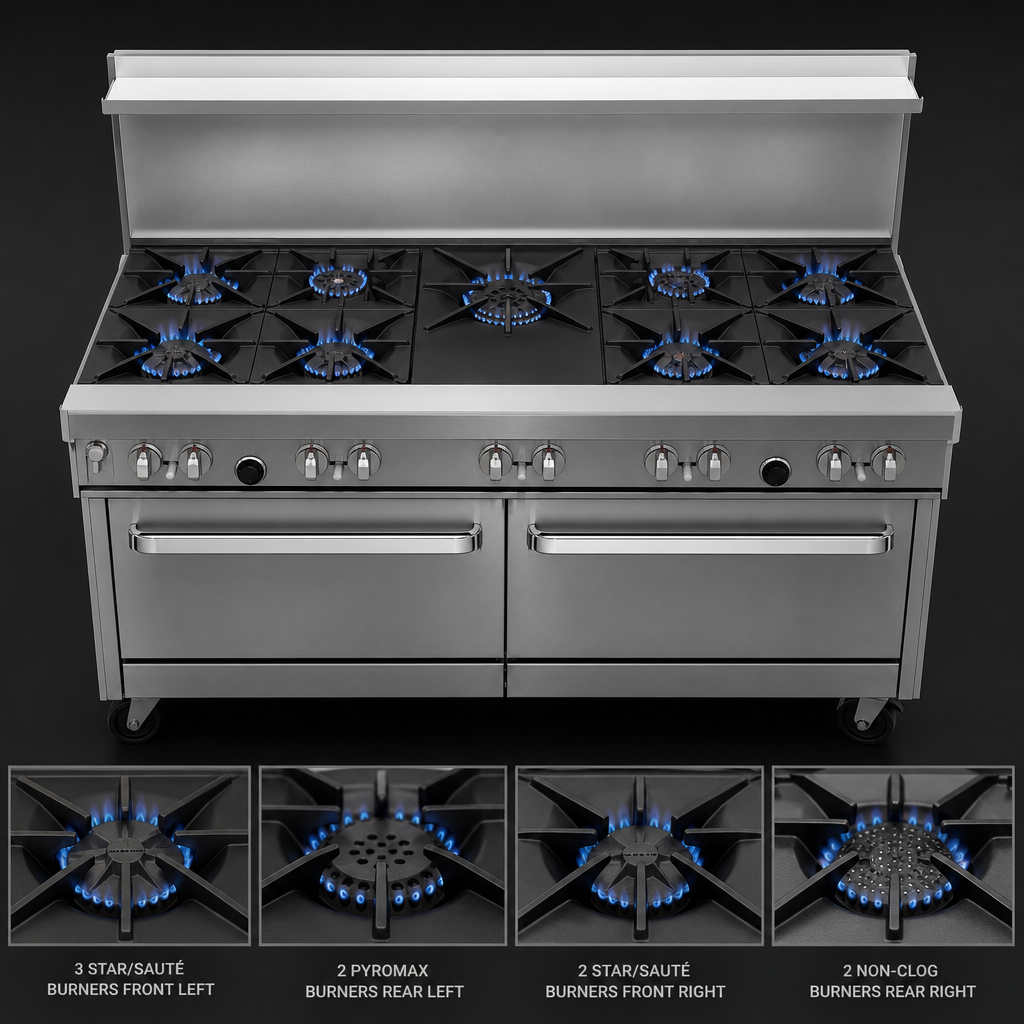

- Nine open burners: 5 × 33,000 BTU star/sauté, 2 × 40,000 BTU Pyromax, 2 × 33,000 BTU non-clog
- 311,000 BTU cooktop output for rapid boil, sear, and sauté

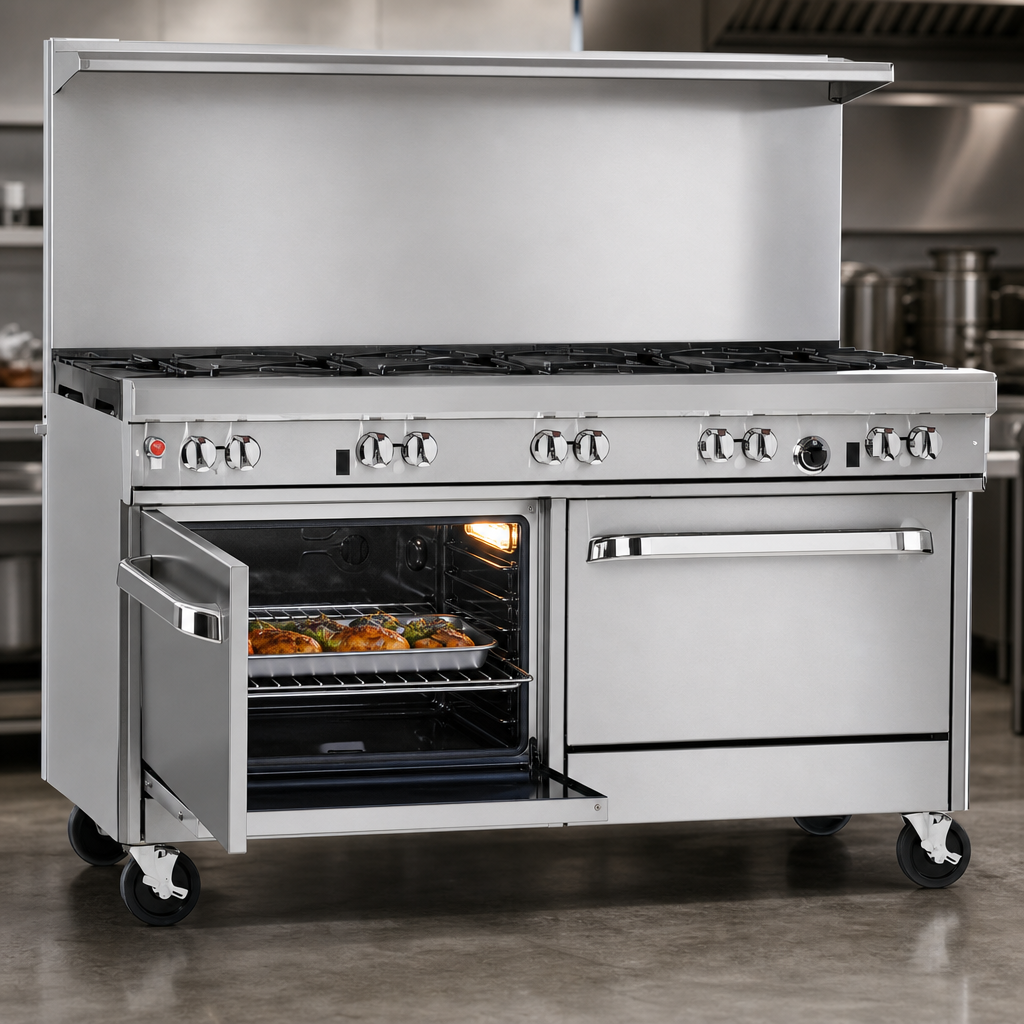

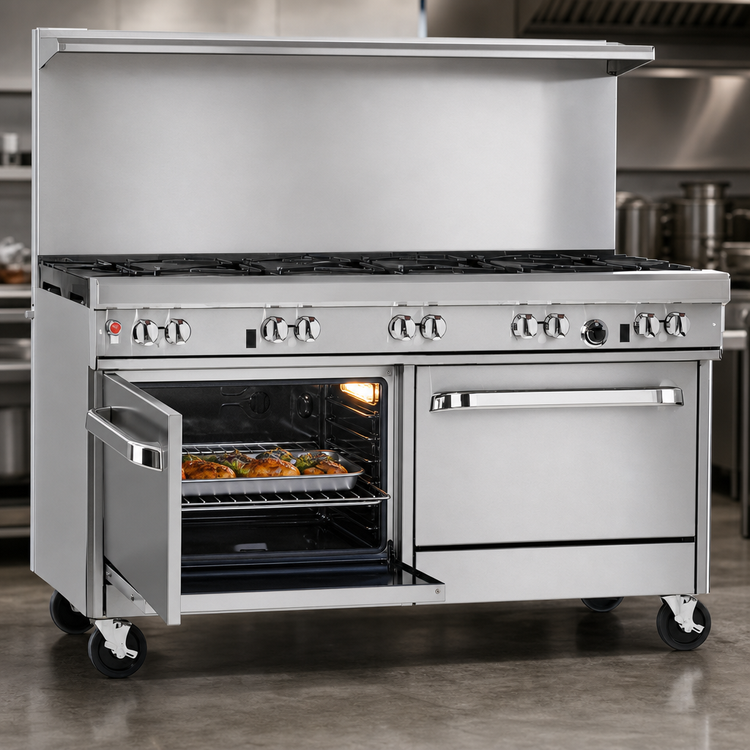

- 45,000 BTU standard oven with battery-spark ignition and 175–550 °F thermostat
- Total 356,000 BTU/hr (natural gas) with factory-installed regulator & front master shut-off
- 22 ½″ stainless flue riser with heavy-duty utility shelf keeps essentials close at hand
- Four removable cast-iron grate tops—rear sections accept up to a 14″ stock pot
- One oven rack included; two rack positions fit full-size sheet pans either direction
- 4″ stainless front rail, stainless front & sides, plus 6″ adjustable legs for perfect leveling
- Standing pilots on all open burners for instant lighting
- CSA & NSF certified; backed by a 1-year parts & labor warranty
At-a-glance specifications
| Model | Ultimate 60″ Mixed-Burner Range |
|---|---|
| Overall width | 60 ¾″ (1543 mm) |
| Overall depth | 34″ (864 mm) |
| Height to cook surface | 37″ (940 mm) |
| Burner configuration | Front L: 3 Star/Sauté • Rear L: 2 Pyromax • Front R: 2 Star/Sauté • Rear R: 2 Non-Clog |
| Total cooktop BTU | 311,000 BTU/hr |
| Oven type | Standard (static) gas oven |
| Oven BTU | 45,000 BTU/hr |
| Oven cavity (W × D × H) | 26″ × 26.5″ × 14″ (660 × 673 × 356 mm) |
| Total BTU | 356,000 BTU/hr |
| Gas connection | ¾″ NPT (rear) |
| Clearances (combustible) | 10″ sides & rear |
| Flue riser | 22 ½″ with stainless storage shelf |
| Certifications | CSA, NSF |
| Warranty | 1 year limited parts & labor |
Need a different burner mix, convection oven, or griddle option? Contact us for custom Southbend Ultimate configurations.
