Southbend (Middleby) 4604DC-5R Ultimate Gas Ranges
Description

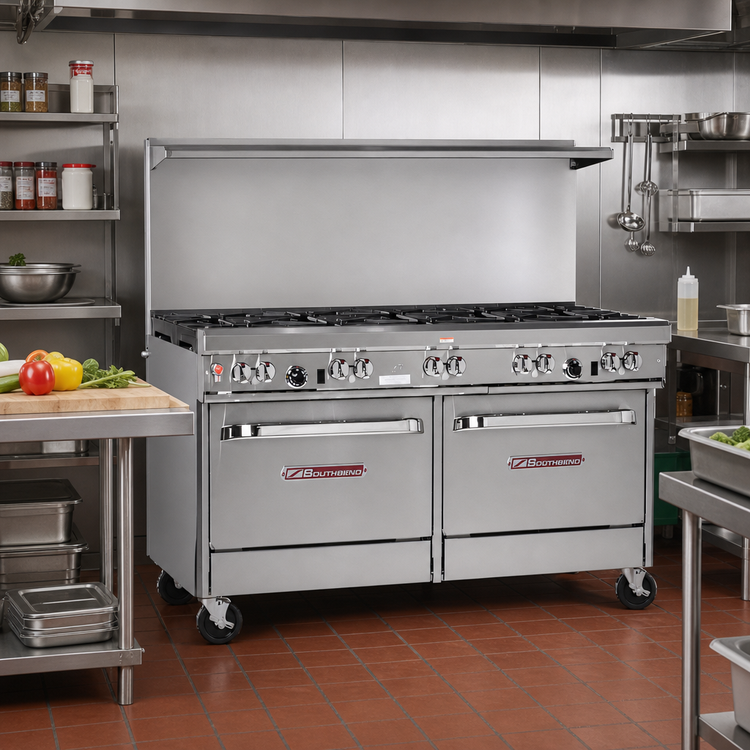

Southbend “Ultimate” 60" Gas Restaurant Range
Custom 9-Burner Top • Standard Oven & Cabinet Base • 356,000 BTUEngineered for the busiest professional kitchens, the Southbend Ultimate Range delivers uncompromising power, flexibility and durability in a single 60" footprint. A unique nine-burner layout, heavy-duty construction and a high-performance oven let your team tackle sauté, stock, sear and simmer stations all at once—without slowing down.
Key Performance Features
- 60-3/4" wide commercial range with a 37" high, 27" deep cooking surface.

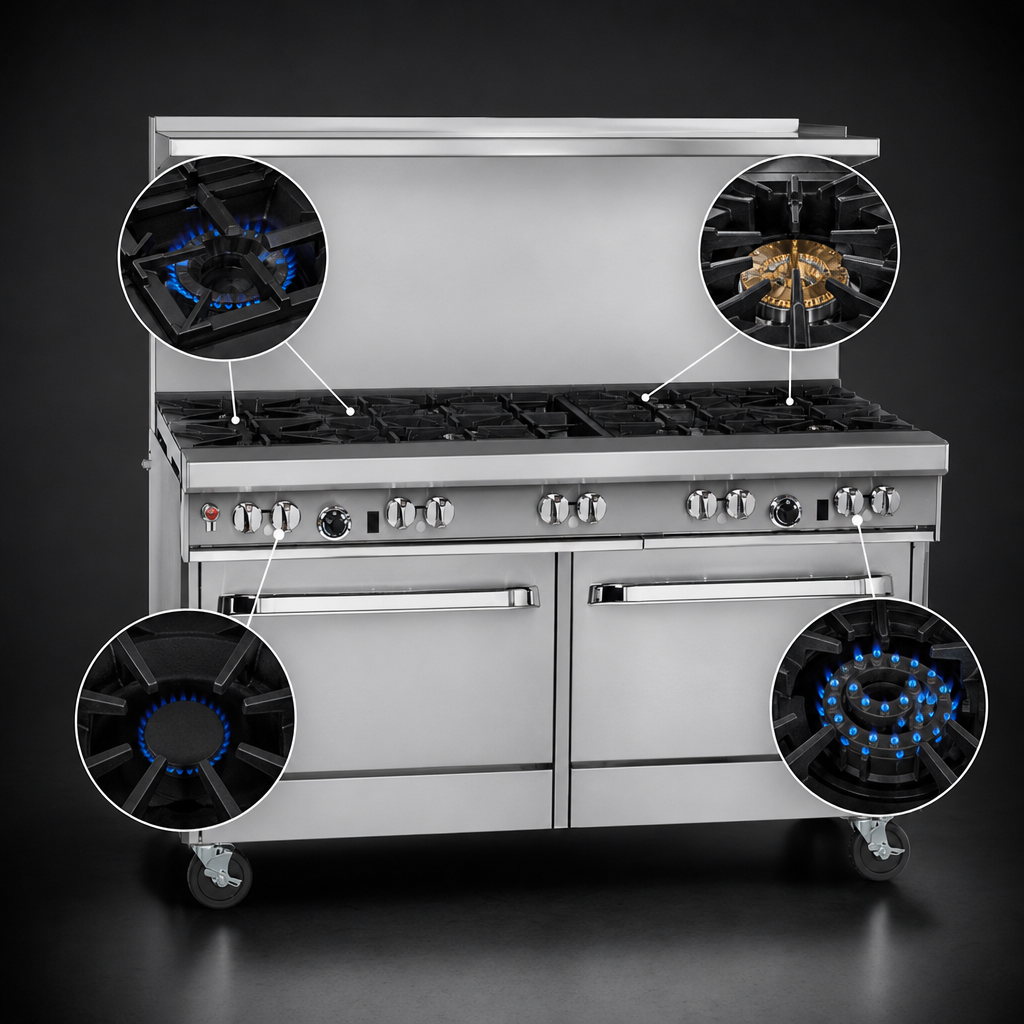

- Premium burner configuration for maximum versatility:
• Front Right – 3 × 33,000 BTU non-clog burners
• Rear Right – 2 × 40,000 BTU Pyromax™ high-output burners
• Front Left – 2 × 33,000 BTU star/sauté burners
• Rear Left – 2 × 33,000 BTU non-clog burners

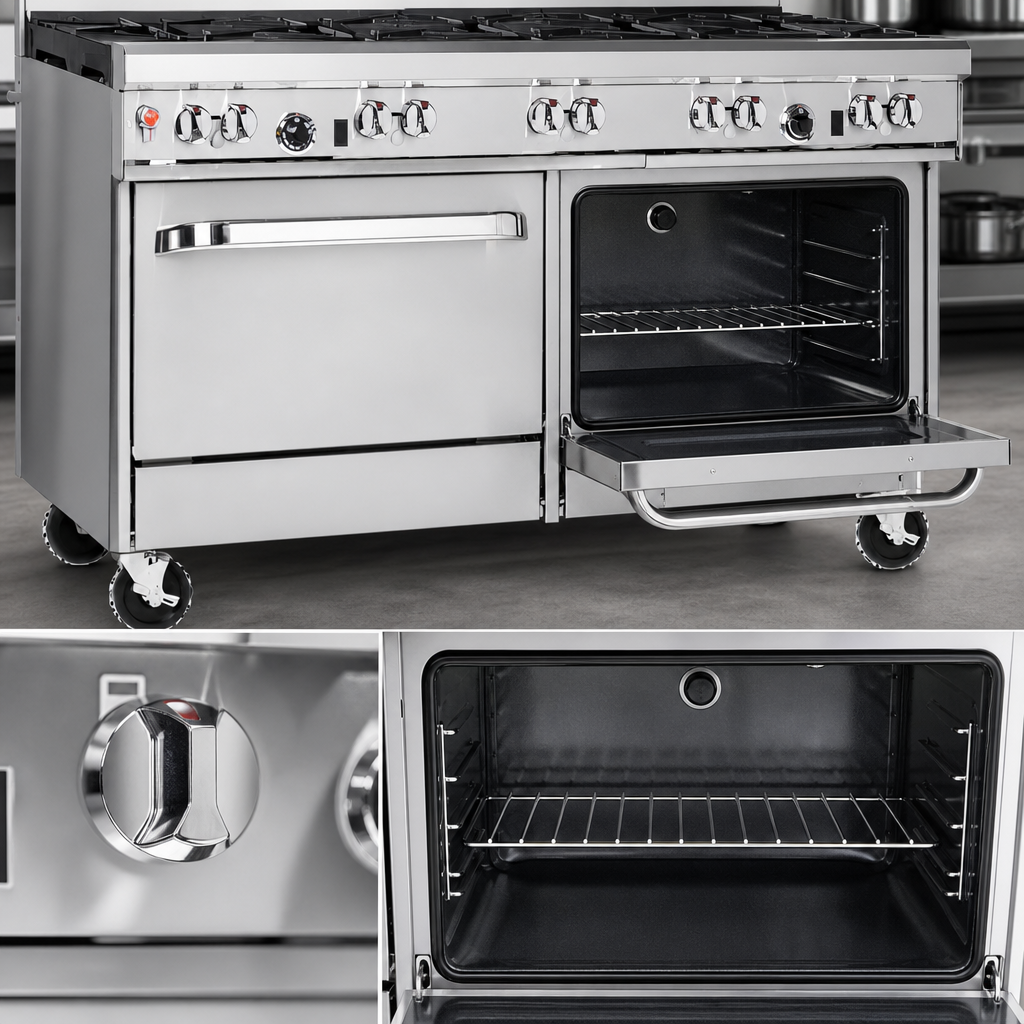

Total open-top power: 311,000 BTU - 45,000 BTU standard oven with battery spark ignition, 175 – 550 °F thermostat and fully-porcelain interior (26" W × 26.5" D × 14" H). One rack included, two positions.
- Stainless steel front, sides, 4" front rail and 22-1/2" flue riser with heavy-duty storage shelf.
- Four removable cast-iron grate sections accept stock pots up to 14".
- Front-mounted manual gas shut-off and factory-installed ¾" regulator.
- 6" stainless steel adjustable legs (casters & cabinet doors available).
- CSA & NSF certified. One-year limited parts & labor warranty.
At-a-Glance Specs
| Overall width | 60.75" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Cooking surface depth | 27" (686 mm) |
| Total input | 356,000 BTU/hr |
| Gas type | Natural gas (field-convertible to LP) |
| Gas connection | ¾" NPT (rear, right-hand side) |
| Oven interior | 26" W × 26.5" D × 14" H |
| Rack positions | 2 (1 rack included) |
| Crated weight | ≈ 1,075 lb (488 kg) |
| Certifications | CSA, NSF |
Operational Notes
Oversized cookware: Pots 12" and larger should be used on rear burners to prevent heat damage to front components.
Ventilation: Install under a properly sized, vented hood with adequate make-up air.
