Southbend (Middleby) 4604DC-5L Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
9-Burner Power Top | Standard Oven & Cabinet BaseBuilt for the busiest professional kitchens, the Ultimate Series combines Southbend’s legendary durability with a unique burner mix that lets you simmer delicate sauces, sear steaks, or boil stockpots simultaneously—all on one 60" platform. Stainless-steel construction, a total output of 356,000 BTU, and a one-year parts & labor warranty make this range a rock-solid investment that will keep pace with your culinary creativity.
Why You’ll Love It
- Custom 9-burner layout (see below) delivers the ideal combination of high-heat and everyday burners.
- Standard oven (45,000 BTU) with battery-spark ignition—no external power required.
- Integrated cabinet base keeps sheet pans, smallwares or stock pots right where you need them.
- 22 ½" flue riser with heavy-duty shelf doubles as a convenient plate-up or utensil station.
- Front-mounted manual gas shut-off and factory-installed regulator for fast, code-compliant hook-up.
- All-stainless exterior (front, sides, riser & 4" rail) plus 6" adjustable stainless legs for easy cleaning beneath the unit.
- Certified to the latest CSA & NSF commercial standards.

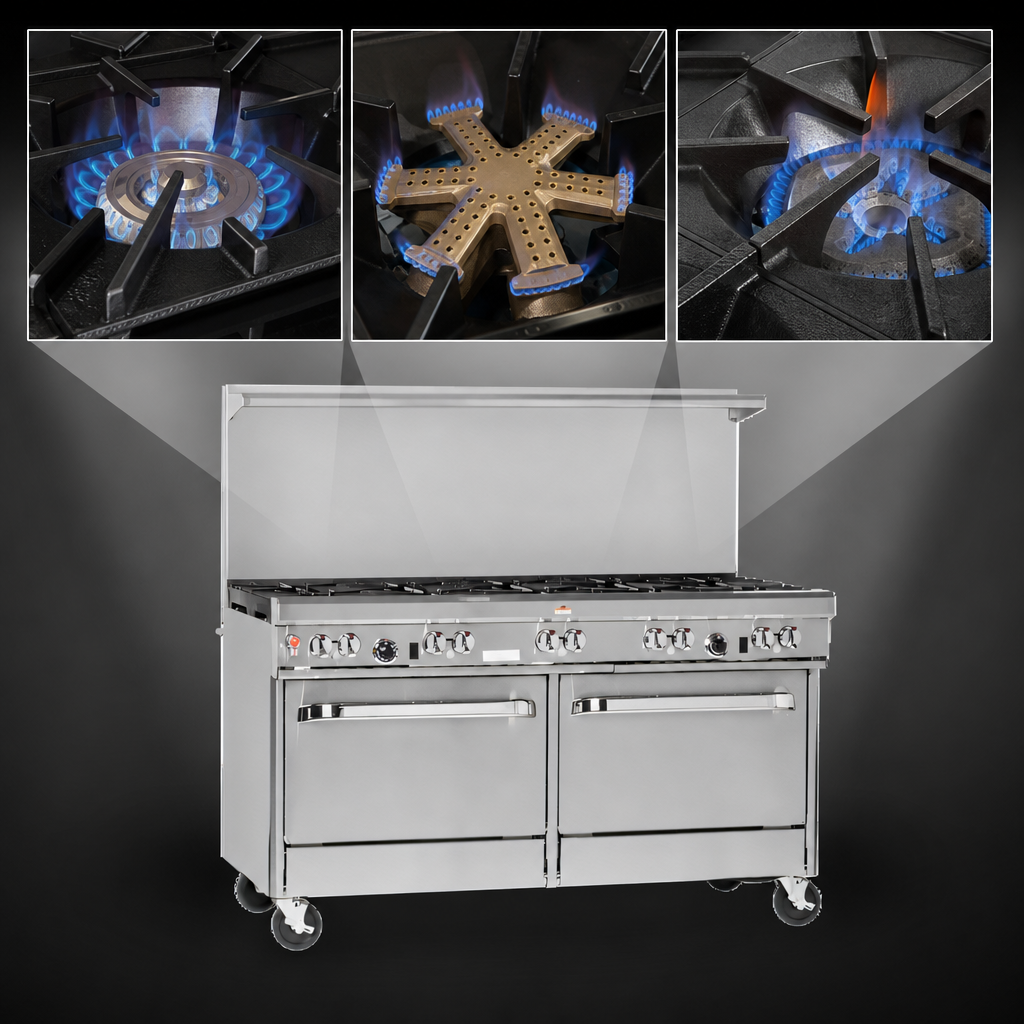

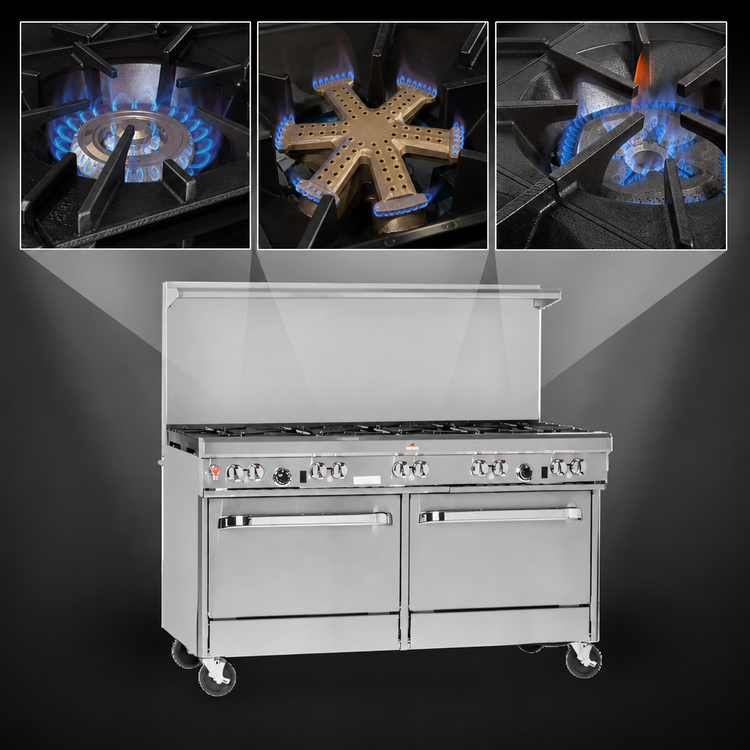

Power Where You Need It
| Front Left | 3 × 33,000 BTU non-clog cast-iron burners |
|---|---|
| Rear Left | 2 × 40,000 BTU Pyromax™ high-output burners |
| Front Right | 2 × 33,000 BTU star / sauté burners |
| Rear Right | 2 × 33,000 BTU non-clog burners |
| Total Open-Top BTU | 311,000 BTU |
Base Configuration
- Standard bakery-depth oven fits full-size sheet pans side-to-side or front-to-back; includes 1 heavy-duty rack with two positions.
- Spring-assisted door and porcelain-enameled cavity for superior heat retention and easy wipe-down.
- Right-side cabinet base (stainless interior & exterior) provides ventilated, enclosed storage; optional doors available.
Technical Specifications
| Overall width | 60 ¾ in (1543 mm) |
|---|---|
| Overall depth | 34 in (864 mm) |
| Cooking surface height | 37 in (940 mm) |
| Total BTU input | 356,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT (female), rear |
| Manifold pressure | 7" W.C. Natural | 11" W.C. LP |

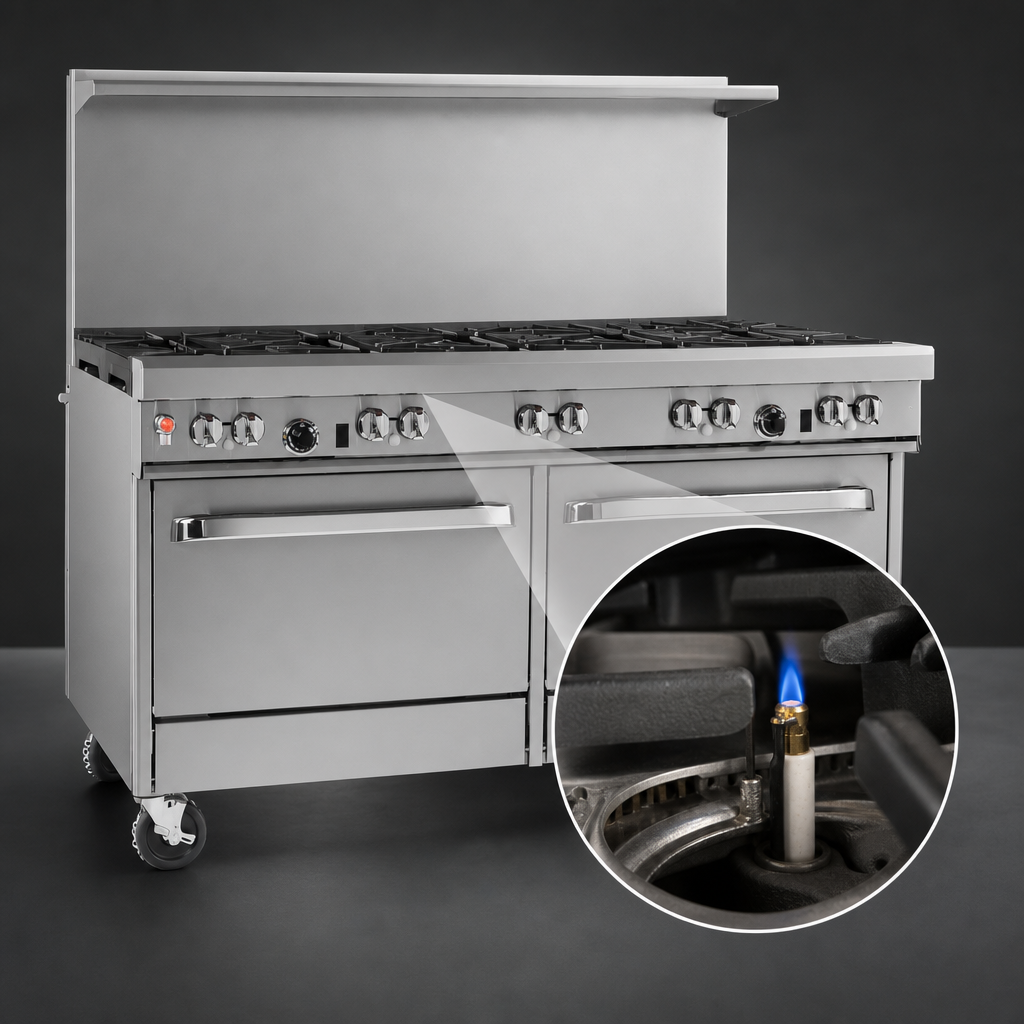

| Ignition | Standing pilot (top) & battery spark (oven) |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
| Certifications | CSA, NSF |
What’s in the Box
- Southbend Ultimate 60" range (configured as listed above)
- 1 oven rack
- Factory-installed 22 ½" flue riser & shelf
- Pressure regulator & 6" stainless steel legs
- Operator’s manual & warranty documentation
Need casters, cabinet doors, or salamander mounts? Contact us for factory options and lead-times.
Follow local codes for gas installation and always position oversized cookware toward the rear burners to prevent excessive heat on the front rail.
