Southbend (Middleby) 4604DC-4TR Ultimate Gas Ranges
Description

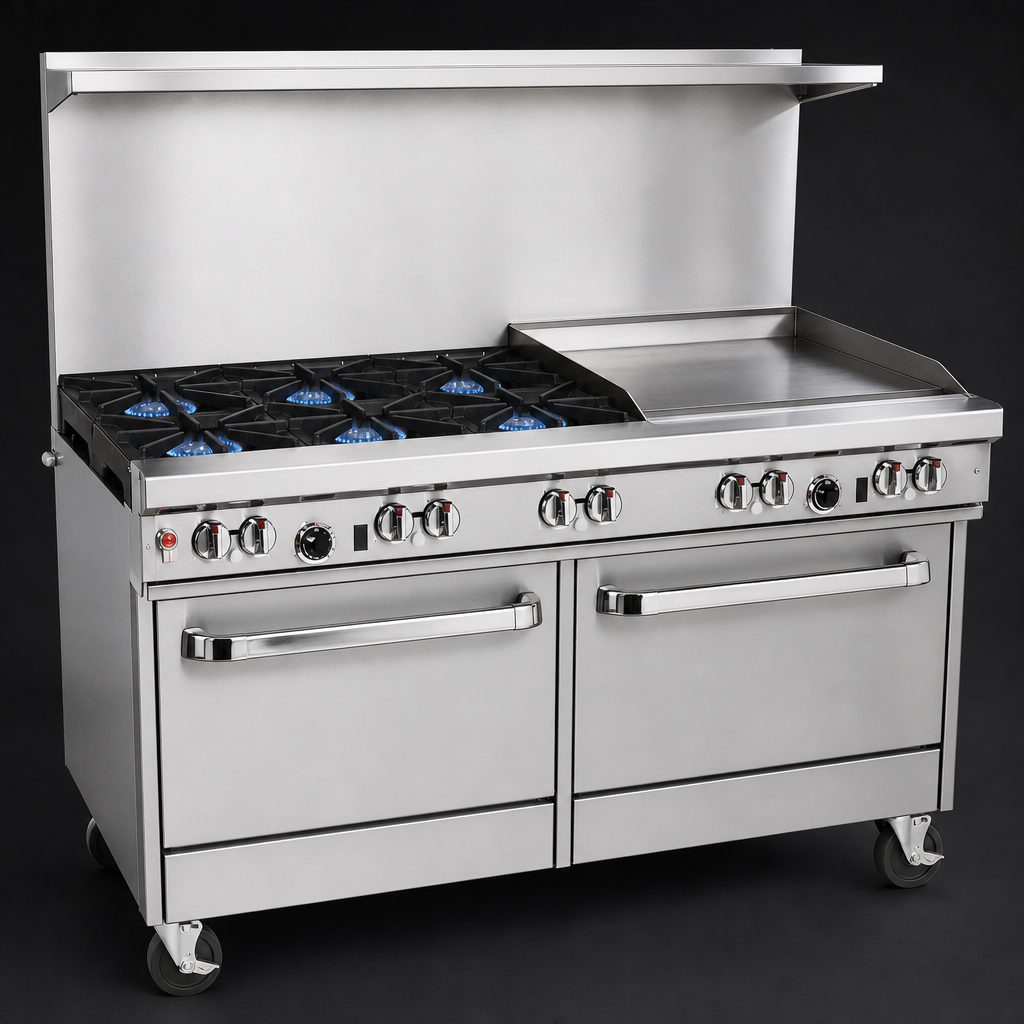

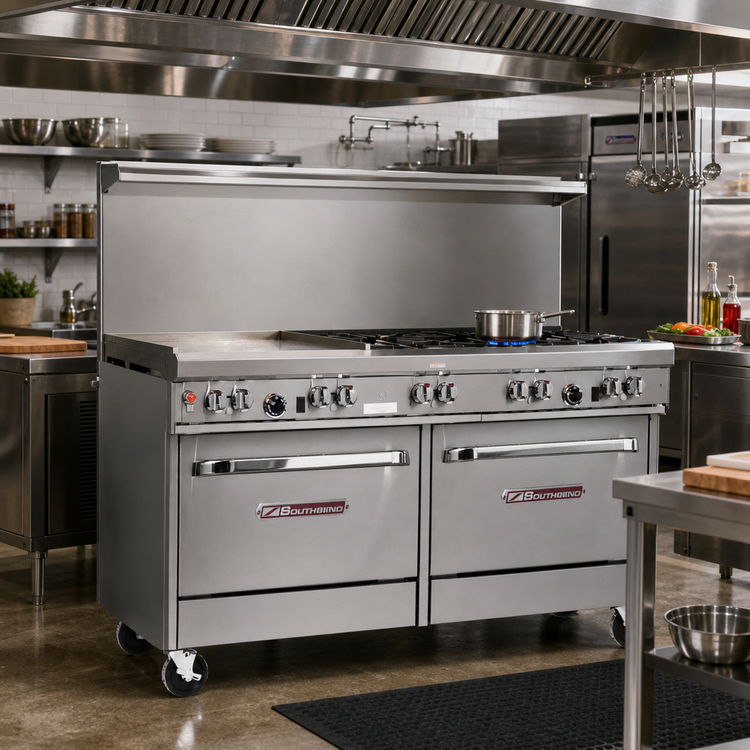

Ultimate 60" Gas Restaurant Range w/ 48" Thermostatic Griddle
Southbend | Model 7706 | 191,000 BTU Total InputBuilt for kitchens that refuse to compromise, the Southbend Ultimate Series 60" range delivers the raw power of open burners, the precision of a thermostatic griddle and the durability of an all-stainless chassis—everything you need on one heavy-duty platform.
Key Performance Features
- Split-top versatility:
- (1) 33,000 BTU cast-iron star/saute burner (front)
- (1) 33,000 BTU non-clog burner (rear) handles stock pots up to 14"
- 48" x 24" thermostatic griddle, 1" polished steel plate, 80,000 BTU
- Standard oven, 45,000 BTU, battery-spark ignition, 175–550 °F thermostat (includes 1 rack)
- Left-side stainless cabinet base keeps sheet pans and smallwares at arm’s reach
- 22-1/2" flue riser with integrated heavy-duty shelf for resting or warming plates
- Front-mounted manual gas shut-off and factory-installed regulator simplify service
- 6" stainless adjustable legs; 4" stainless front rail protects knobs and adds plating space
- cCSAus, CSA Flame, CSA Star & NSF listed for commercial compliance
- Backed by a 1-year parts & labor warranty
Technical Specifications
| Overall width | 60-3/4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Total BTU input | 191,000 BTU/hr (Natural Gas) |
| Open burners | (1) Star/saute 33 K | (1) Non-clog 33 K |
| Griddle plate | 48" W × 24" D, 1" polished steel, thermostatic, 80 K BTU |
| Oven | Standard, 45 K BTU, porcelain interior 14"H × 26"W × 26-1/2"D |
| Base (left) | Open stainless cabinet (doors optional at no charge) |
| Flue riser | 22-1/2" with heavy-duty plate shelf |
| Gas connection | 3/4" NPT, left rear (moves to opposite side when griddle ordered left) |
| Min. inlet pressure | 7" W.C. Natural | 11" W.C. LP |
| Shipping weight | ≈ 1,075 lb (crate) |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor (see limited warranty) |
Built to Out-perform & Out-last
- One-piece cast-iron burners are lifetime clog-free and deliver even flame spread
- Double-sided porcelain oven liner with coved corners wipes clean in seconds
- Front-serviceable pilots, valves and regulator cut maintenance time in half
- Modular design accepts salamander or cheesemelter mounts without drilling
Installation & Safety Notes
- Install under a vent hood; clearance to combustibles: 10" sides & rear
- Unit ships on 6" legs—casters available; 3/4" flex hose must include restraining device
- For best component life, place cookware 12"+ in diameter on the rear burner
Intended for commercial use only—residential installation voids warranty.
