Southbend (Middleby) 4604DC-3GR Ultimate Gas Ranges
$12,297.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4604DC-3GR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4604DC-3GR Ultimate Gas Ranges
$12,297.00
Unit price
/
Unavailable
Description
Southbend Ultimate 60" Gas Restaurant Range – 2 Star/Sauté Burners, 2 Non-Clog Burners, 36" Right-Side Griddle, Standard Oven & Cabinet Base
Model 460-DC | Total Input : 241,000 BTU/hr | Natural or Propane GasBuilt for kitchens that never slow down, the Southbend Ultimate Series range combines high-intensity burners, a full-size griddle and a durable stainless-steel frame to keep every station cooking at peak efficiency.
Why You’ll Love It

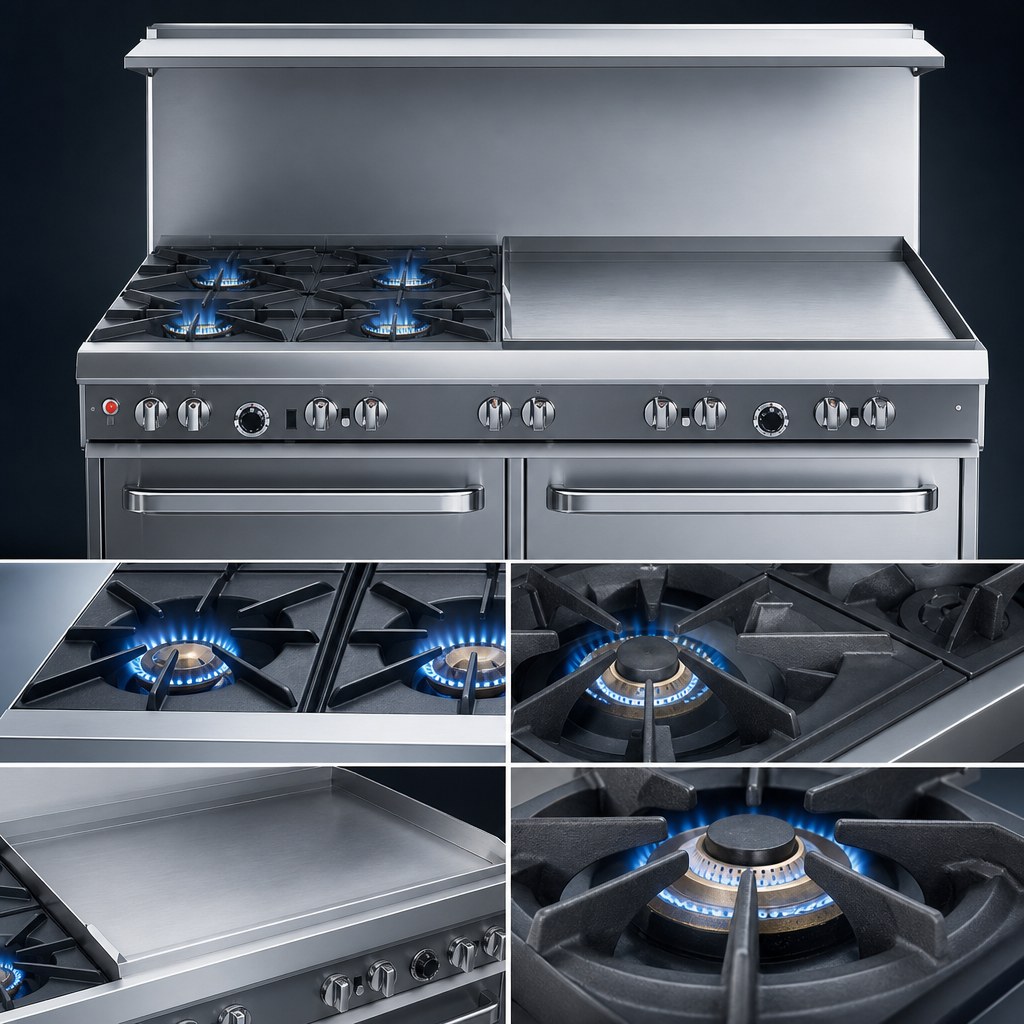

- Split open-top layout: (2) 33,000 BTU cast-iron star/sauté burners up front for rapid pan work, plus (2) 33,000 BTU non-clog burners in back for stockpots and sauces.
- 36" right-hand griddle with smooth polished steel plate (1" thick) delivers 96,000 BTU of even heat for breakfast, burgers, tortillas and more.

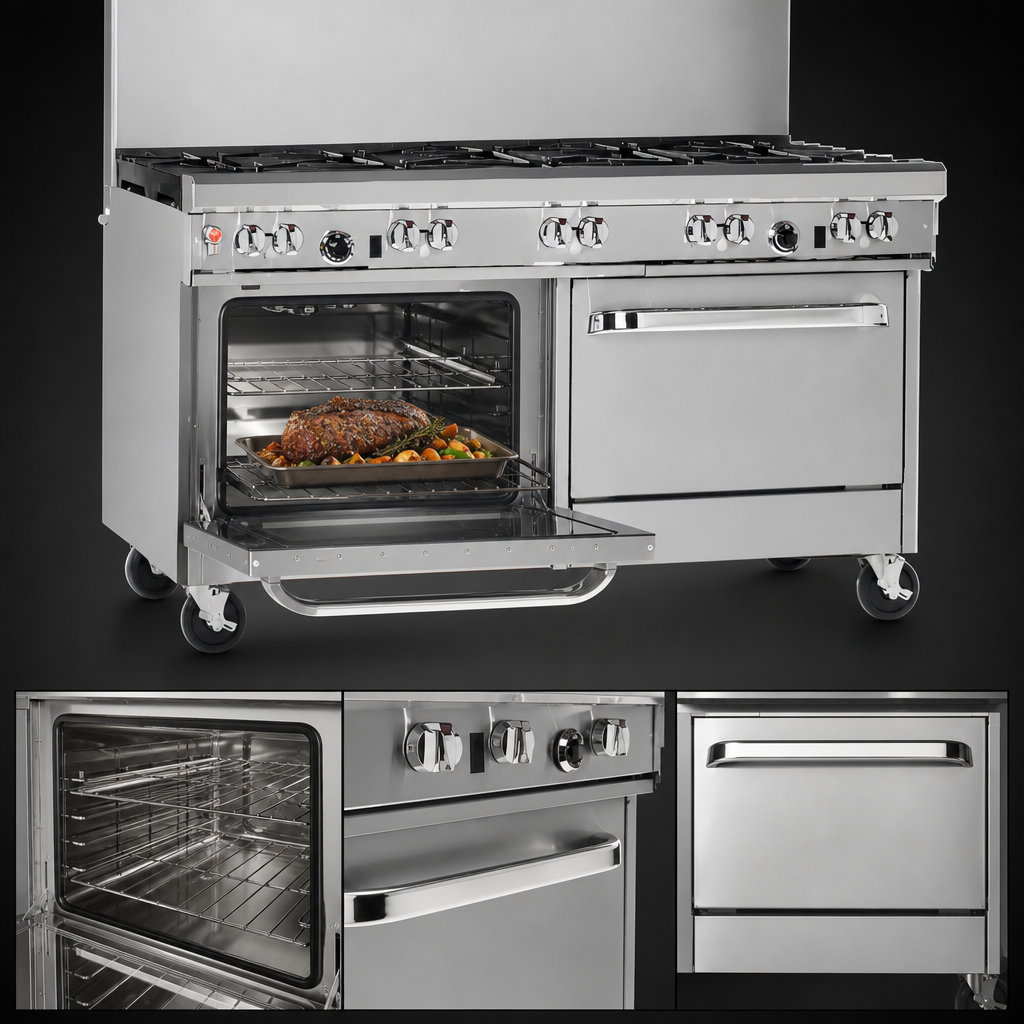

- Spacious standard oven (26" W × 26.5" D × 14" H) fits full-size sheet pans both ways, 45,000 BTU burner, 175–550 °F thermostat and quick battery-spark ignition — 1 rack included.
- Cabinet base provides dry, ventilated storage for pans, lids and cleaning supplies.
- 22 ½" flue riser with heavy-duty shelf keeps plates warm or holds seasoning tins within arm’s reach.
- Front-mounted manual gas shut-off and factory regulator simplify installation and service.
- All-stainless front, sides, shelf and 6" adjustable legs stand up to daily wear and make wipe-downs fast.
- Standing pilots on open burners for instant flame; removable cast-iron grates lift out for deep cleaning.
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety, sanitation and performance.
Specification Snapshot
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Open burners | (2) 33,000 BTU star/sauté (front) + (2) 33,000 BTU non-clog (rear) |
| Griddle | 36" right-side, 1" polished steel plate, 96,000 BTU, manual controls |
| Oven | Standard type, 45,000 BTU, 175–550 °F, battery spark ignition |
| Total gas input | 241,000 BTU/hr |
| Gas connection | ¾" NPT (rear); min. inlet 7" W.C. NAT / 11" W.C. LP |
| Construction | Stainless front, sides, shelf; 6" stainless adjustable legs |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor |
Looking for additional burner, convection or charbroiler configurations? Browse the full Southbend Ultimate Series for a solution tailored to your line.
For commercial use only. To prevent heat damage, oversized cookware (≥ 12" Ø) should be used on the rear burners. Always install under a properly vented hood and follow local codes.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Vent
backriser with hi-shelf
Top
(4) open burners, (1) 36" griddle
Base
(1) standard oven, (1) cabinet
Plate Thickness
.500" = 1/2"
Exterior Finish
stainless steel front & sides
Specifications
Ultimate Restaurant Range, gas, 60", (2) star/sauté burners front, (2) non-clog burners rear, standard grates, (1) 36" griddle right, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 241,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
