Southbend (Middleby)  |  Ultimate  |  SKU: 4604DC-2RR

Southbend (Middleby) 4604DC-2RR Ultimate Gas Ranges

$11,326.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 60" Gas Restaurant Range – Split Top w/ 24" Raised Griddle + Broiler

Model 460-AA | 276,500 BTU | Natural Gas

Power, flexibility and durability meet in one heavy-duty package. The Southbend Ultimate 60" Range combines six high-performance open burners, a space-saving raised griddle/broiler and a full-size oven to keep even the busiest kitchens moving.

Key Features

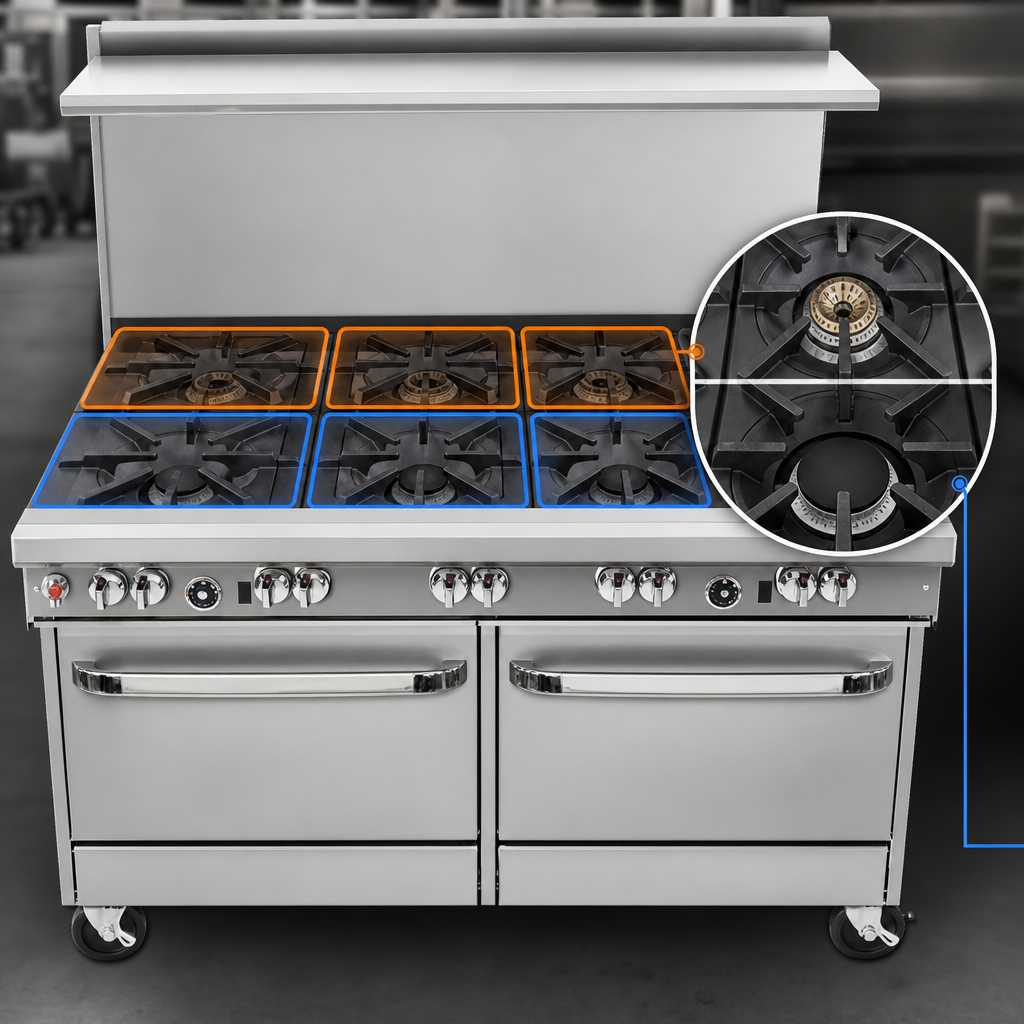

  • Split burner layout: (3) 33,000 BTU star/sauté burners in front for pans & sautés, plus (3) 33,000 BTU lifetime non-clog burners in back for stocks & sauces.

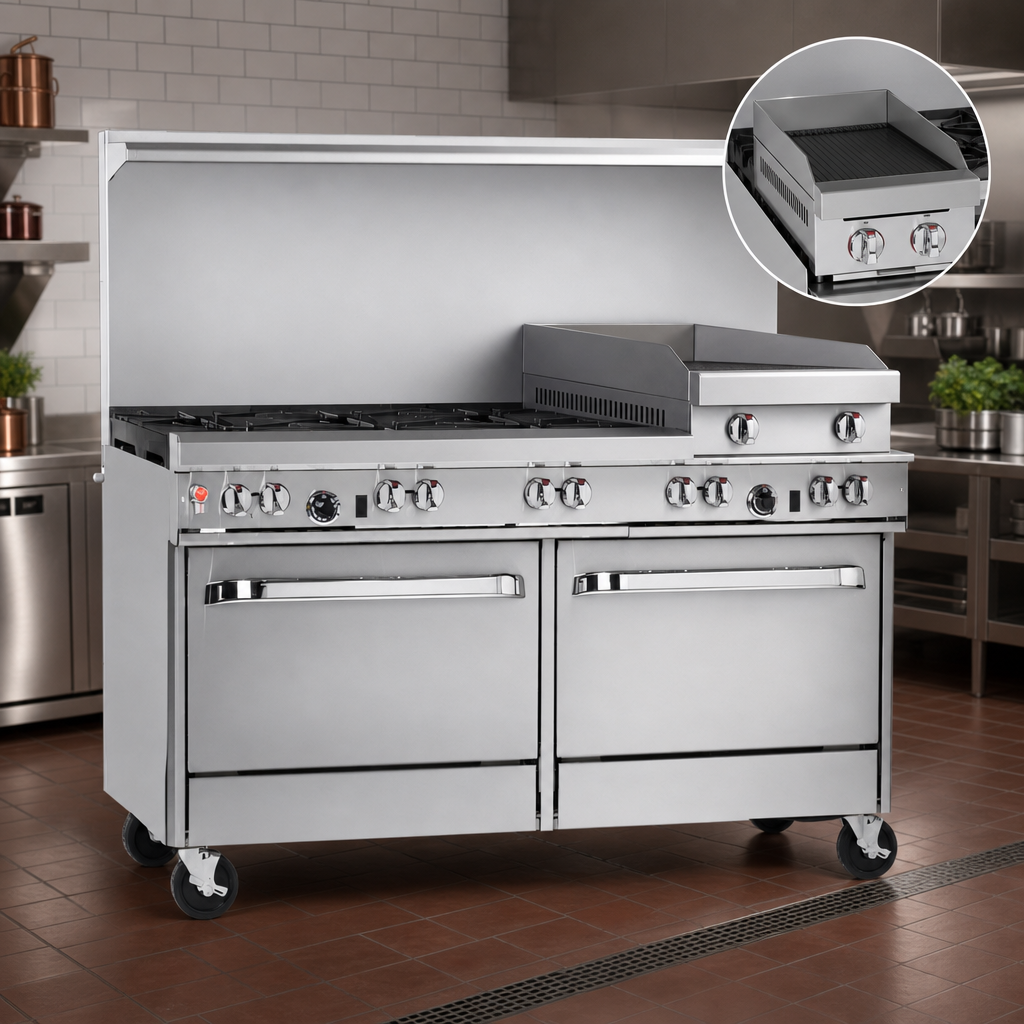

  • 24" raised griddle with broiler underneath—ideal for breakfast items, searing and finishing without losing open-top real estate.
  • 45,000 BTU standard oven fits 18" × 26" sheet pans front-to-back or side-to-side; battery spark ignition means no electrical hook-up.
  • Heavy-gauge cast-iron grates handle up to 14" stock pots; two removable drip trays speed daily cleaning.
  • Stainless steel front, sides, 4" front rail and 22-1/2" flue-riser shelf stand up to years of service.
  • Front-mounted gas shut-off valve and factory regulator streamline installation.
  • 6" stainless adjustable legs for easy leveling and under-range sanitation.
  • cCSAus, CSA Flame, CSA Star and NSF listed for commercial kitchens.
Specifications
Overall width 60 3/4"
Cooking surface depth 27"
Open burners 6 total – (3) star/sauté + (3) non-clog @ 33 k BTU each
Raised griddle/broiler 24" smooth plate, manual control, 80 k BTU
Oven Standard, 45 k BTU, 175 – 550 °F thermostat; interior 26" W × 26.5" D × 14" H
Secondary base Stainless steel cabinet (doors optional at no charge)
Total input 276,500 BTU/hr
Gas connection 3/4" NPT (right rear standard)
Electrical Not required – battery spark ignition
Warranty 1-year parts & labor (see Southbend limited warranty)
What’s Included
  • (1) Oven rack with two rack positions
  • Factory-installed pressure regulator
  • Installation & operation manual
Important: For commercial use only. Install under a properly sized vent hood and follow all local codes. To prevent heat damage, use cookware 12" + in diameter on rear grates only. Warranty excludes damage from improper installation, cleaning or misuse.

Need easy monthly payments? Ask about Middleby Equipment Financing during checkout.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Base

(1) standard oven, (1) cabinet

Top

(6) open burners, (1) 24" griddle/broiler

Specifications

Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front, (3) non-clog burners rear, standard grates, raised griddle/broiler, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 276,500 BTU, cCSAus, CSA Flame, CSA Star, NSF
