Southbend (Middleby) 4604CC Ultimate Gas Ranges
Description
Southbend Ultimate 60" Restaurant Range – Split Top (5 Star + 5 Non-Clog Burners)
Model 460 Series | 330,000 BTU | Natural GasBuilt for kitchens that never slow down, the Southbend Ultimate 60" range delivers unbeatable power, durability and flexibility. Ten high-performance open burners – five rapid-response star/sauté burners up front and five lifelong clog-free burners at the rear – let you fly through every ticket while two spacious stainless steel storage cabinets keep sheet pans, sauté pans and utensils right where you need them.
Why chefs choose the Ultimate Series
- Ten open burners @ 33,000 BTU each for a combined 330,000 BTU of searing power
- Split configuration:
- (5) Patented star/sauté burners in front for even flame distribution under small pans
- (5) Lifetime non-clog cast-iron burners in rear – perfect for stock pots up to 14"
- Heavy-duty, four-piece cast-iron grate system removes easily for cleaning
- 22 ½" flue riser with built-in plate shelf adds convenient plating/storage real estate
- Front-mounted manual gas shut-off and factory-installed ¾" regulator simplify installation
- Stainless steel front, sides, rail & shelf plus 6" adjustable legs for rock-solid support on any floor

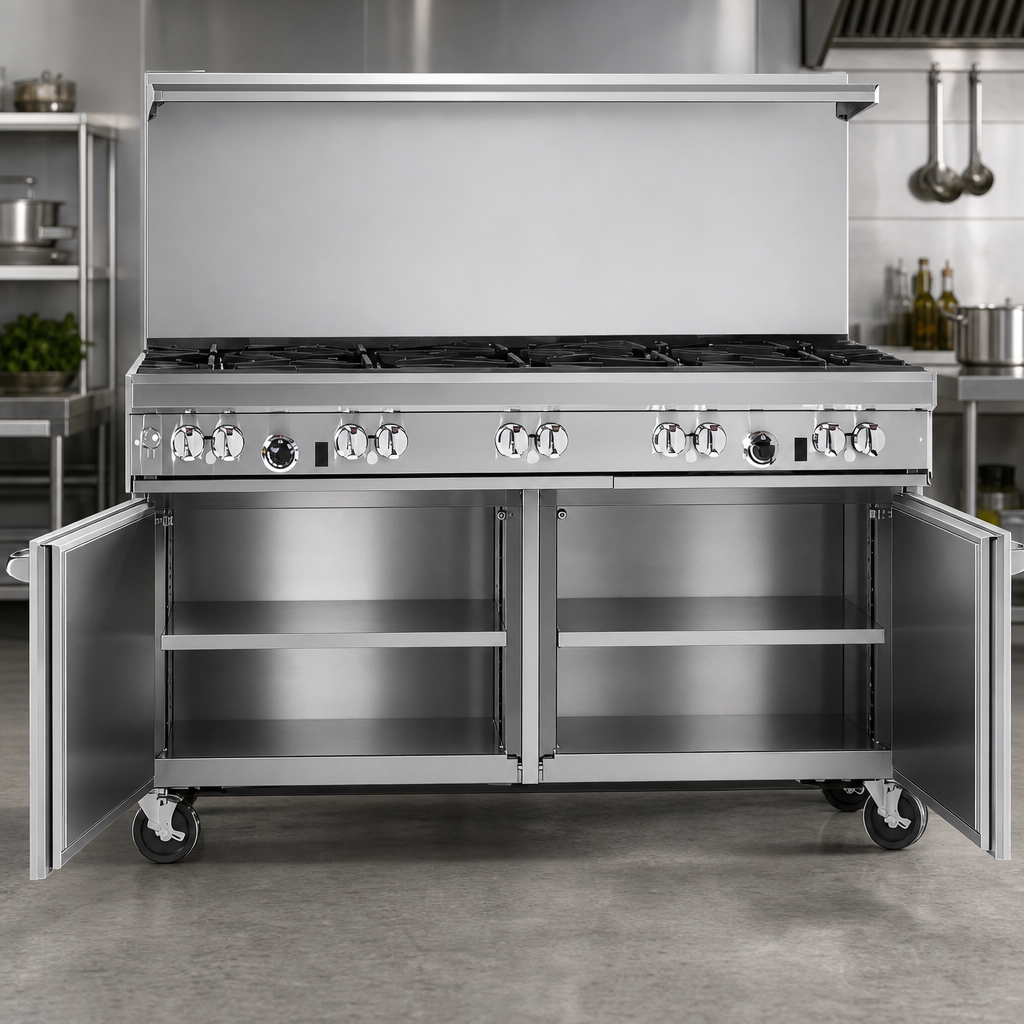

- (2) Full-width stainless cabinet bases (optional swing doors available at no charge)
- Standing pilots for instant burner ignition
- Certified CSA & NSF for safe, sanitary operation
- Backed by Southbend’s 1-year parts & labor warranty
At-a-Glance Specifications
| Cooktop width | 60 ¾" (1543 mm) |
|---|---|
| Cooktop depth | 34" (864 mm) |
| Height to cooking surface | 37" (940 mm) |
| Overall height (with riser) | ≈59 ½" |
| Total BTU | 330,000 BTU/hr (Natural Gas) |
| Gas inlet | ¾" NPT female, 7" W.C. min. inlet pressure |
| Top configuration | (5) 33 K BTU star burners + (5) 33 K BTU non-clog burners |
| Base type | Dual stainless steel cabinets |
| Grate style | 4 removable cast-iron sections |
| Construction | Stainless steel front, sides, 4" rail, riser & shelf |
| Adjustable legs | 6" stainless, threaded |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see warranty statement) |
Popular Options & Accessories
- Stainless cabinet doors (no-charge)
- All-swivel locking casters
- Rear step-up burner set
- 5" or 10" low-profile flue riser
- Quick-disconnect gas hose (3', 4' or 5')
- Mounting kits for salamanders & cheesemelters
Need help with budgeting? Competitive equipment financing is available – ask your rep for details.
