Southbend (Middleby) 4604CC-7R Ultimate Gas Ranges
Description

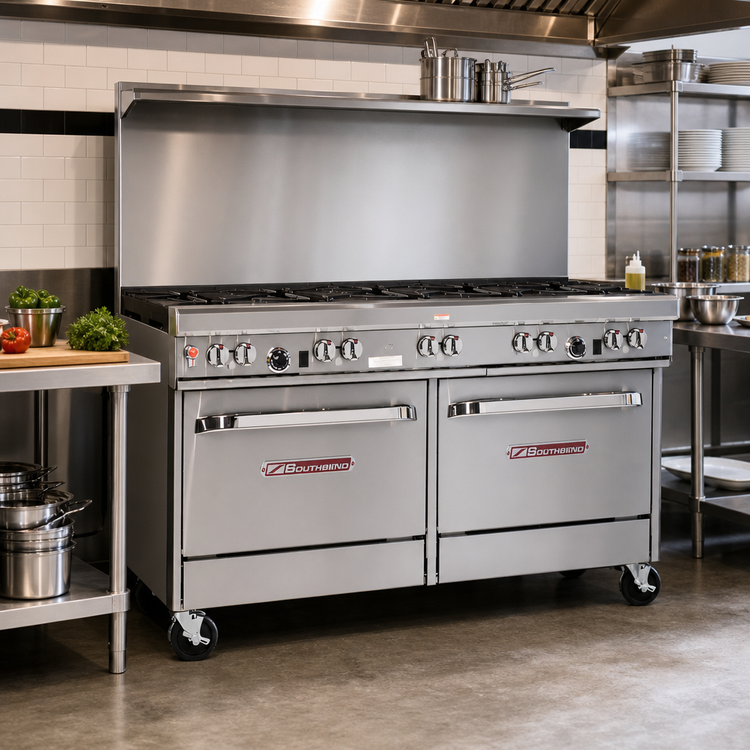

Southbend Ultimate 60" Gas Restaurant Range
(2) 33 K BTU star/saute burners • (2) 33 K BTU non-clog burners • (4) 40 K BTU Pyromax burners • Double stainless cabinet baseBuilt for the volume, speed and durability today’s kitchens demand, the Southbend Ultimate 60" Range delivers a massive 292,000 BTU of cooking power in a single, fully-featured platform. From delicate sautés to high-heat stockpots, every position is engineered for maximum output, even heat distribution and lifetime, clog-free performance.
Why chefs choose the Ultimate Series

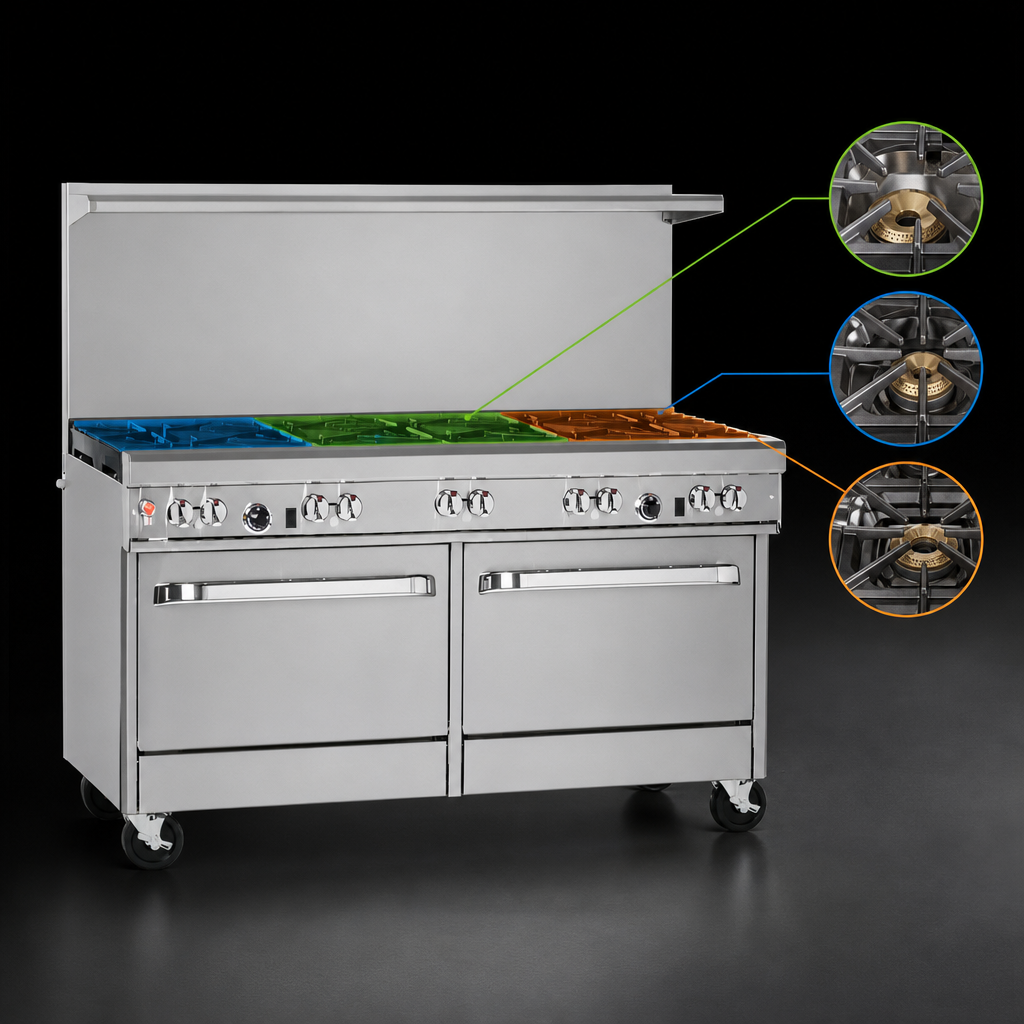

- Four separate burner styles on one top – instantly match heat to the task at hand.
- Pyromax high-output section (40 K BTU each) excels at rapid boil & wok work.
- Star/saute front burners provide wide, even flame spread for pans & skillets.
- Lifetime cast-iron non-clog rear burners stay clean & efficient, even with heavy stock-pot use.
- Front-accessible manual gas shut-off instantly kills gas to the entire range for safety or service.
- Four removable cast-iron grates—rear pair accepts up to 14" stock pots.
- 22 ½" flue riser with heavy-duty shelf keeps plates & smallwares warm and close at hand.

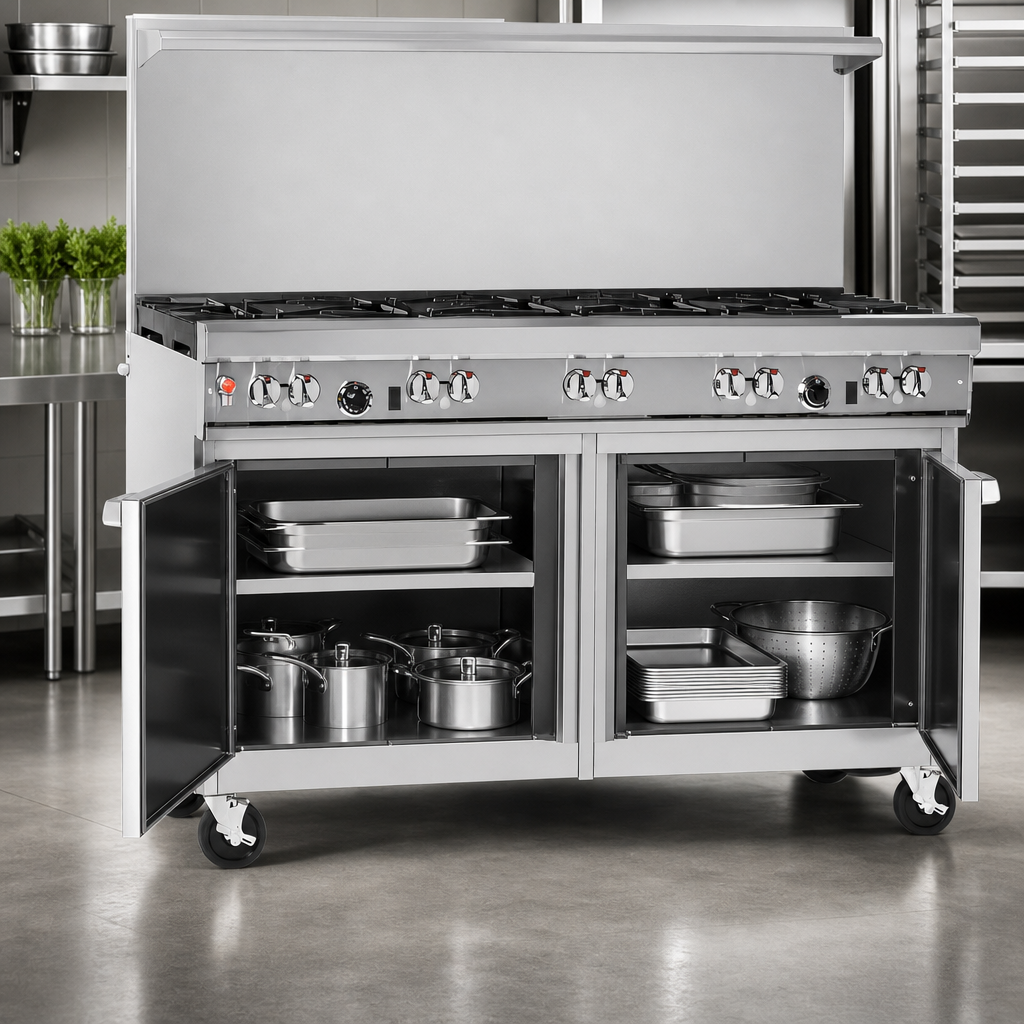

- Double stainless steel cabinet bases keep sheet pans and cookware organized (doors available at no charge).
- All-stainless front, sides, rail & shelf paired with 6" adjustable legs for a lifetime of corrosion-resistant service.
- Factory-installed regulator, ¾" NPT rear gas connection & standing pilots for simple install & start-up.
At-a-glance specifications
| Cooking width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) | 27" deep cooking surface |
| Work height | 37" (940 mm) to cooking surface |
| Height w/ flue riser | 59 ½" (1511 mm) |
| Total input | 292,000 BTU/hr (Natural gas) Field convertible LP kit available |
| Burner layout |
• 2 × Star/Saute – 33 K BTU each (front left) • 2 × Non-clog – 33 K BTU each (rear left) • 4 × Pyromax – 40 K BTU each (right section) |
| Base configuration | (2) Stainless cabinet compartments | sheet-pan depth |
| Gas connection | ¾" NPT (rear), factory pressure regulator included Min. inlet: 7" W.C. NAT • 11" W.C. LP |
| Ignition | Standing pilots (open burners) • Battery spark ignition option |
| Construction | Stainless steel front, sides, 4" front rail & high-load shelf |
| Legs / mobility | 6" stainless adjustable legs (all-swivel locking casters optional) |
| Certifications | CSA • NSF |
| Warranty | 1-year limited parts & labor (see warranty statement) |
Included with every Ultimate Range
- (4) one-piece pull-out drip trays for fast clean-up
- Factory regulator & 6' power cord (if convection base added later)
- Operators, installation & warranty manuals
Popular no-charge / low-cost add-ons
- Cabinet doors (swing-open from center)
- 10" or 5" flue risers when shelf not required
- All-swivel casters with front locks
- Battery spark ignition for open tops & Pyromax section
Oversized cookware (12" +) should be placed on rear grates to prevent excess heat on the front rail.
Southbend’s NON-quarry tile policy and cleaning guidelines apply—see full warranty for details.
