Southbend (Middleby) 4604CC-7L Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
(4) Pyromax • (2) Star/Sauté • (2) Non-Clog Burners | Dual Cabinet Base | 292,000 BTUGive your kitchen a true workhorse. Southbend’s Ultimate Series packs heavy-duty components, rock-solid stainless construction, and unmatched burner flexibility into one 60" platform—perfect for high-volume restaurants that demand power and versatility every shift.
Key Performance Features
- Multi-technology cooktop – three burner styles let you simmer sauces, sear steaks, or fast-boil stock without swapping equipment.
- Pyromax power zone – four patented 40,000 BTU burners on the left deliver blistering heat for woks, stock pots, and sauté pans.
- Precision star/sauté burners – two 33,000 BTU front burners with a wide flame pattern for even pan coverage.
- Reliable non-clog burners – two 33,000 BTU rear burners with lifetime-clog-free cast-iron heads.
- Stainless steel everywhere – front, sides, shelf, cabinet facings, and 6" adjustable legs stand up to daily cleaning and abuse.
- 22½" flue riser & utensil shelf keep pans and seasoning within easy reach while directing heat safely to the hood.
- Front-mounted gas shut-off for fast, single-point control of the entire range.
- CSA & NSF certified to meet health, safety, and sanitation codes in North America.

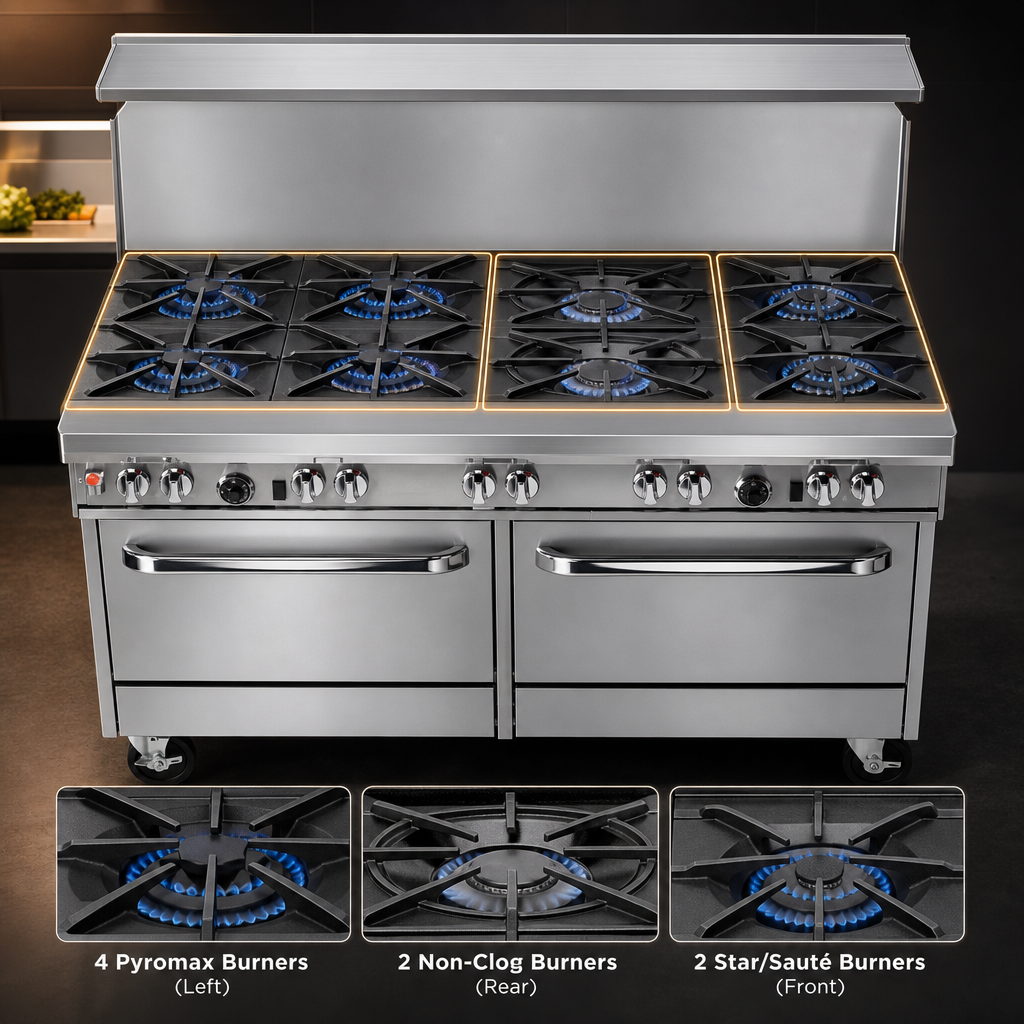

Burner Breakdown
| Burner Type | Quantity | BTU / hr Each | Total BTU / hr |
|---|---|---|---|
| Pyromax (left section) | 4 | 40,000 | 160,000 |
| Star / Sauté (front right) | 2 | 33,000 | 66,000 |
| Non-Clog (rear right) | 2 | 33,000 | 66,000 |
| TOTAL INPUT | 292,000 BTU / hr | ||
At-a-Glance Specifications
| Model Series | Ultimate 460 Series (60") |
|---|---|
| Overall Width | 60.75" (1543 mm) |
| Overall Depth | 34" (864 mm) to front rail |
| Cooking Surface Height | 37" (940 mm) |
| Flue Riser Height | 22.5" shelf-style riser (removable) |

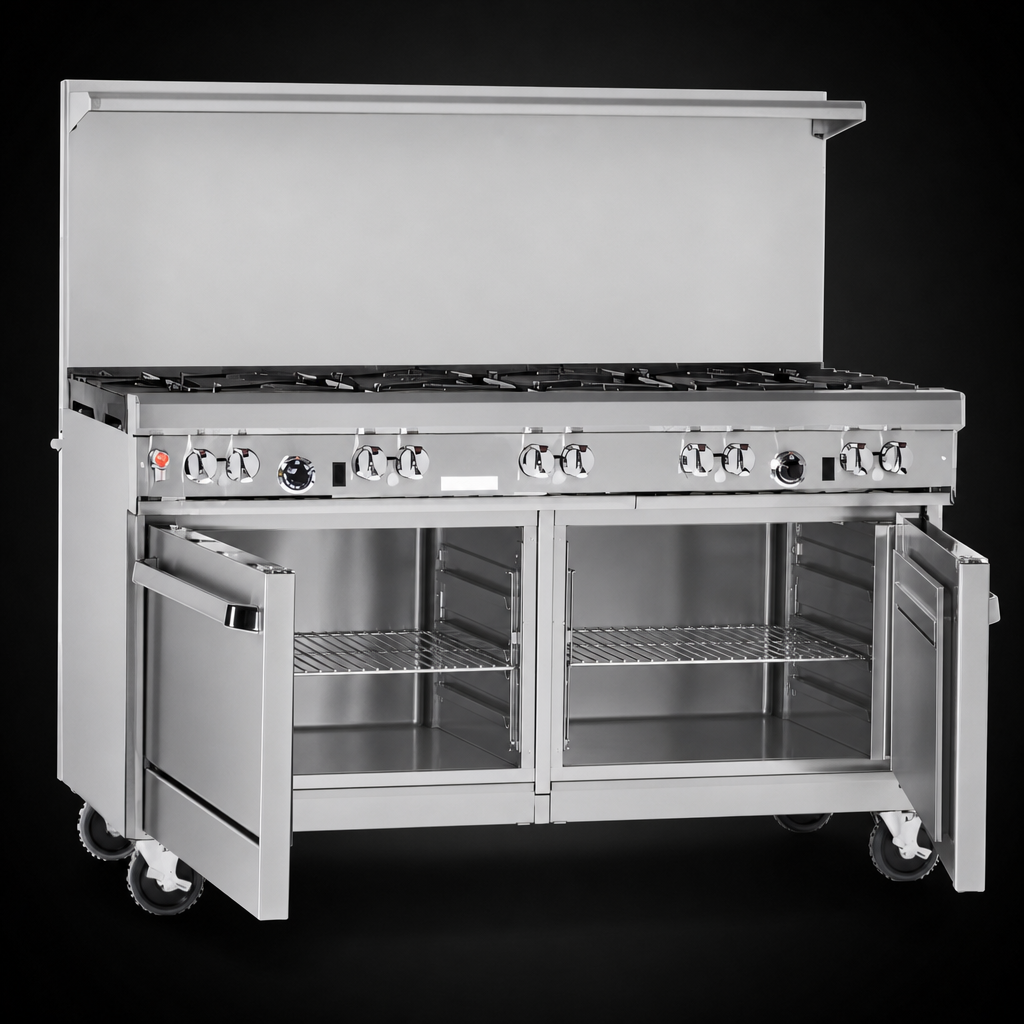

| Base | (2) Stainless steel storage cabinets (doors optional, no charge) |
| Cooktop Grates | 4 removable cast-iron sections—rear holds up to 14" stock pots |
| Gas Type / Connection | Natural gas, ¾" NPT female (factory regulator included) |
| Minimum Inlet Pressure | 7" W.C. Natural |
| Ship Weight (crated) | Approx. 1,075 lb / 488 kg |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend policy for details) |
What’s in the Box
- Fully assembled range with burner set listed above
- 22½" stainless flue riser with integrated shelf
- Six 6" adjustable stainless steel legs
- Factory-installed ¾" gas pressure regulator
- Owner’s manual & warranty registration card
Intended for commercial use only. For best performance, install under a properly sized vent hood and connect to the specified gas supply.
To prevent damage, avoid letting oversized cookware hang over the 4" front rail.
