Southbend (Middleby) 4604CC-6R Ultimate Gas Ranges
Description

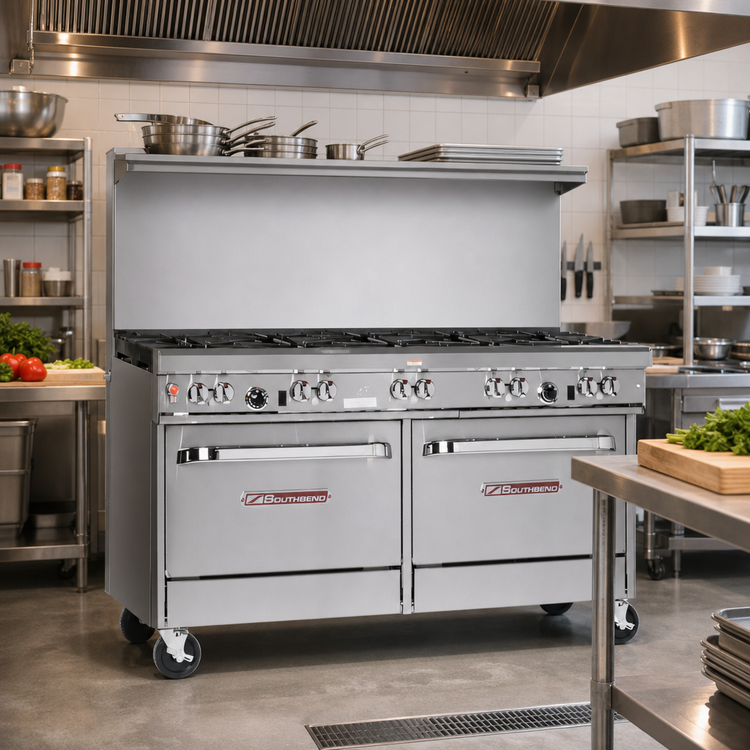

Southbend Ultimate 60" Restaurant Range – 311,000 BTU Gas
Split Pyromax / Star / Non-Clog Burner Configuration • Dual Stainless CabinetsBuilt for chefs who refuse to compromise, the Southbend Ultimate 60" range supplies extreme heat, rock-solid durability, and smart storage in a single footprint. Nine open burners—including blistering 40 k BTU Pyromax heads and precision 33 k BTU star & non-clog burners—let you sear, sauté, and simmer at once, while two full-size stainless cabinets keep your line clutter-free.
Why You’ll Love It

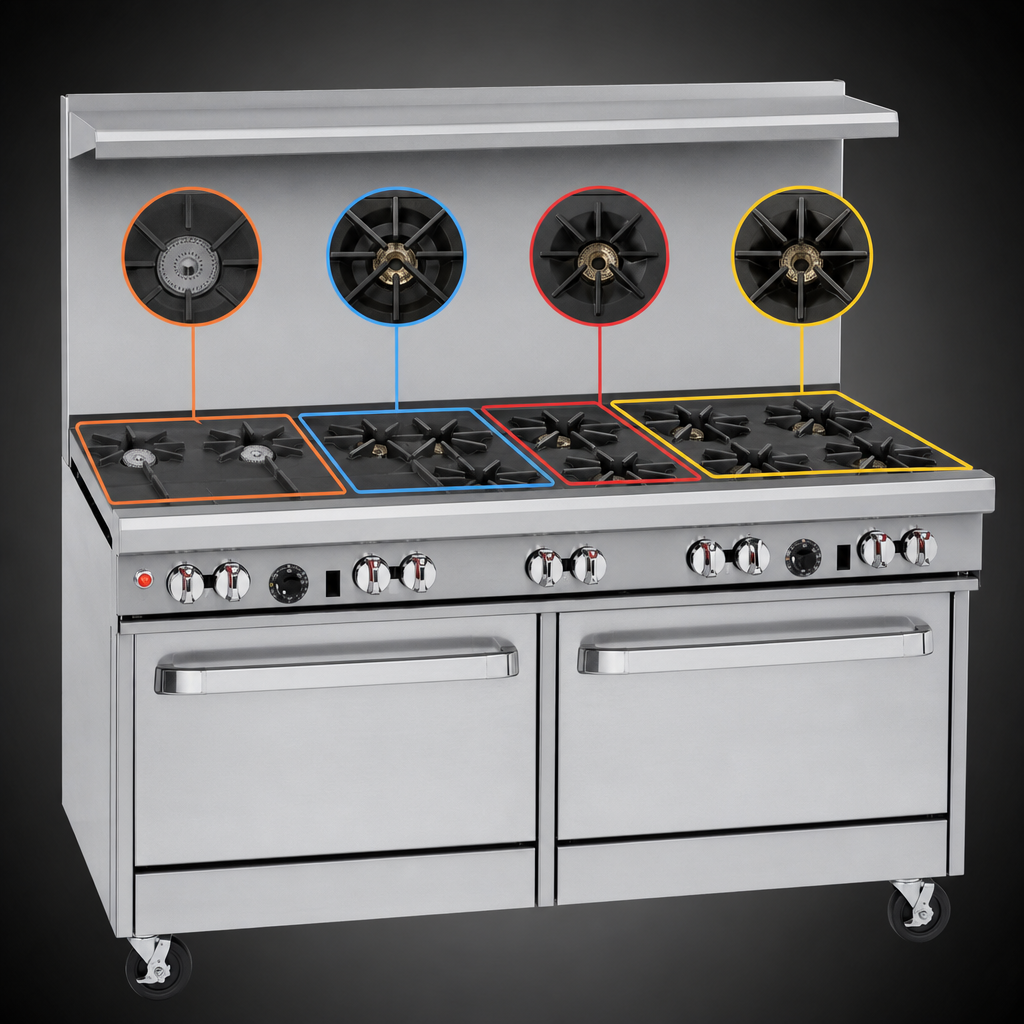

- Custom burner mix: 3 star/sauté burners (front-right), 2 Pyromax high-output burners (rear-right), 2 star/sauté burners (front-left) & 2 non-clog burners (rear-left).
- Massive 311,000 BTU total input handles the heaviest tickets without slowdown.
- 27"-deep, four-section cast-iron grate top supports pans up to 14" and lifts off for fast cleaning.
- 22 ½" flue riser with heavy-duty shelf keeps plates and smallware warm and within reach.
- Full stainless front, sides, shelf & 6" adjustable legs resist kitchen abuse and speed wipe-downs.
- Front-mounted manual gas shut-off for immediate, line-side safety control.

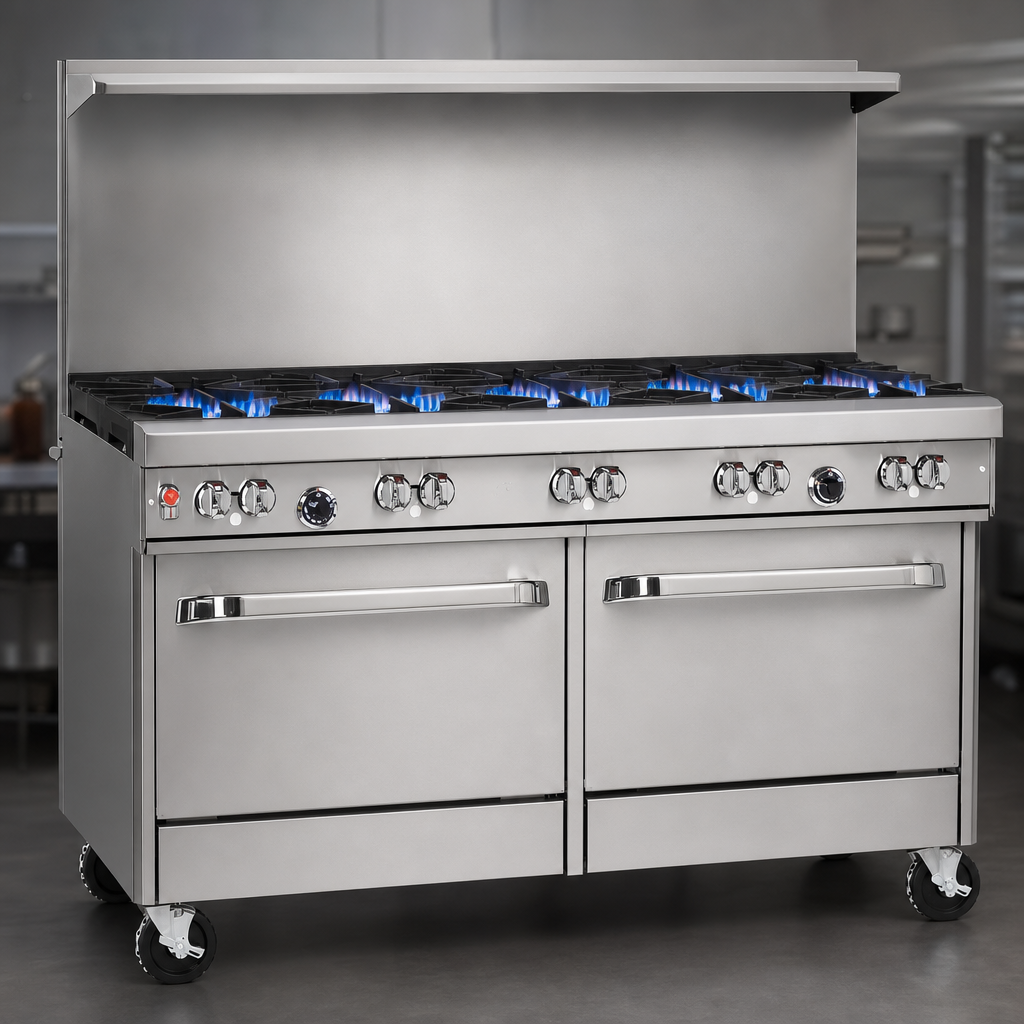

- Standing pilots—no electricity needed for top burners.
- (2) large stainless storage cabinets free up under-counter space for sheet pans, spices, or small equipment.
- CSA & NSF certified; ships with factory-installed regulator.
- Backed by Southbend’s 1-year parts & labor warranty and nationwide service network.
Quick-View Specifications
| Model | Ultimate 60" Range – Cabinet Base |
|---|---|
| Fuel | Natural Gas (LP convertible with kit) |
| Total BTU | 311,000 BTU/hr |
| Burners | 9 open (see configuration above) |
| Cooking Surface | 27" D x 60 ¾" W cast-iron grates |
| Overall Dimensions | 60 ¾" W x 34" D x 59 ½" H (to top of flue) |
| Work Height | 37" |
| Base | (2) stainless cabinets, spring-assisted doors |
| Gas Connection | ¾" NPT rear; min. inlet 7" W.C. (Nat) |
| Shipping Weight | Approx. 1,075 lb |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
Need casters, flame-failure safety, or salamander mounts? Ask—most factory options can be added prior to shipment.
• For floors other than quarry tile, cement, or natural stone, consult Southbend for approved leg or caster kits.
• Oversized cookware (12"+) should be used on rear burners only to avoid excess heat at the front rail.
