Southbend (Middleby) 4604CC-6L Ultimate Gas Ranges
Description

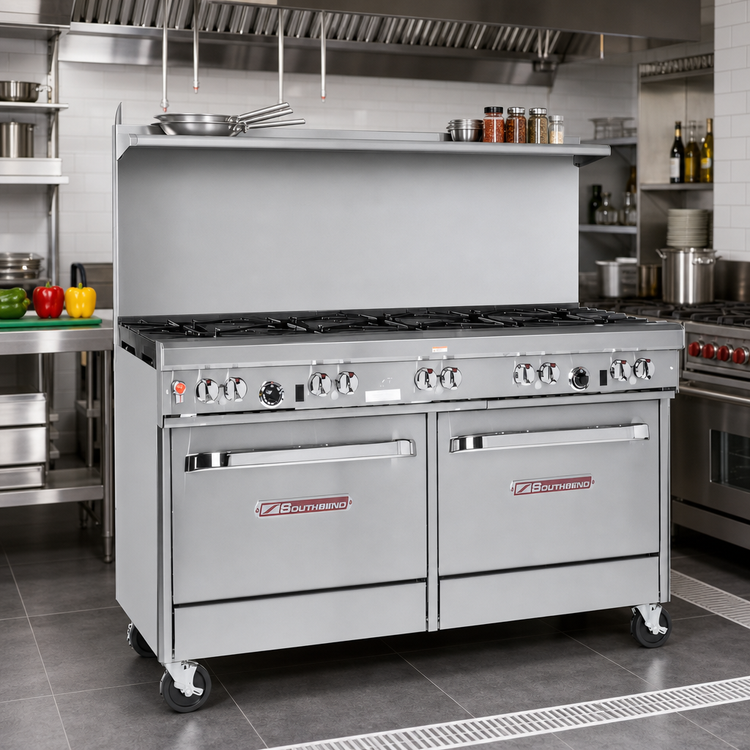

Ultimate 60" Gas Restaurant Range – Custom 9-Burner Configuration
Southbend 460 Series • 311,000 BTU • CSA & NSF CertifiedBring big-league fire power to your cookline with Southbend’s flagship Ultimate Range. Purpose-built for high-volume kitchens, this 60 inch workhorse delivers unequaled versatility, rugged all-stainless construction and the legendary reliability chefs expect from the Middleby family of brands.
Why You’ll Love It
- Spacious 60-3/4" wide, 27" deep cooking surface with four removable cast-iron grate sections (each rear section holds a 14" stock pot).
- Precision burner mix:
- (3) 33,000 BTU Star/Sauté burners – front left
- (2) 40,000 BTU Pyromax™ high-output burners – rear left
- (2) 33,000 BTU Star/Sauté burners – front right
- (2) 33,000 BTU lifetime Non-Clog burners – rear right
- Total input: 311,000 BTU/hr (Natural Gas).

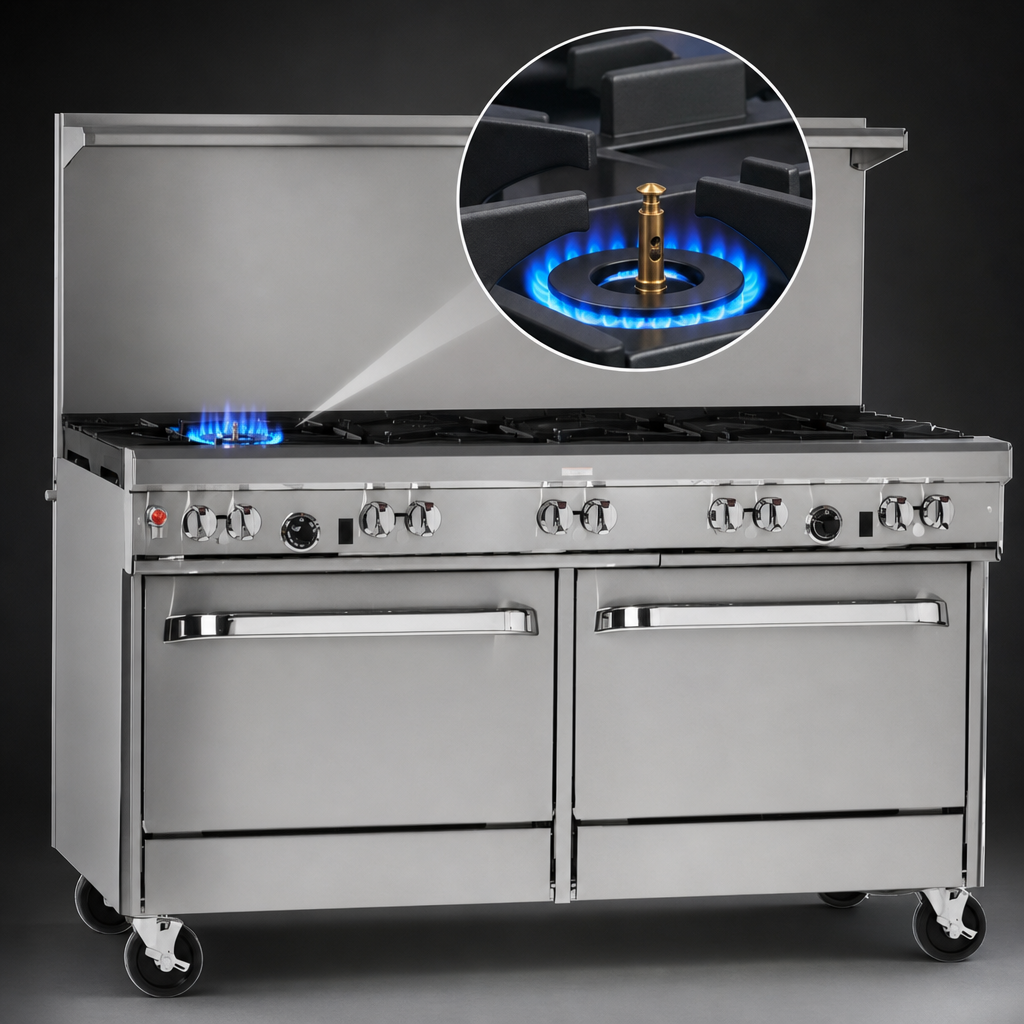

- Standing pilots on every open burner plus front-mounted master gas shut-off for rapid service lock-out.
- (2) full stainless cabinet bases provide ventilated, low-heat storage for sheet pans & utensils (doors available at no charge).
- 22-1/2" flue riser with heavy-duty condiment / plating shelf keeps the rail clear for service.
- 4" deep stainless front rail protects controls and doubles as a staging ledge.
- Factory-installed 3/4" pressure regulator and twin seamless drip trays speed daily clean-up.
- 6" adjustable stainless legs (casters optional).
- Backed by a 1-year parts & labor warranty and Middleby’s nationwide service network.
Built for Peak-Hour Performance
Sear, sauté, simmer and stock-pot all at once. The Pyromax™ burners crank out wok-level heat, the Star burners blanket pans edge-to-edge for flawless sauté work, and the clog-proof rear burners keep sauces or reductions steady for hours. One range, every station covered.
Technical Specifications
| Overall width | 60-3/4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking height | 37" (940 mm) |

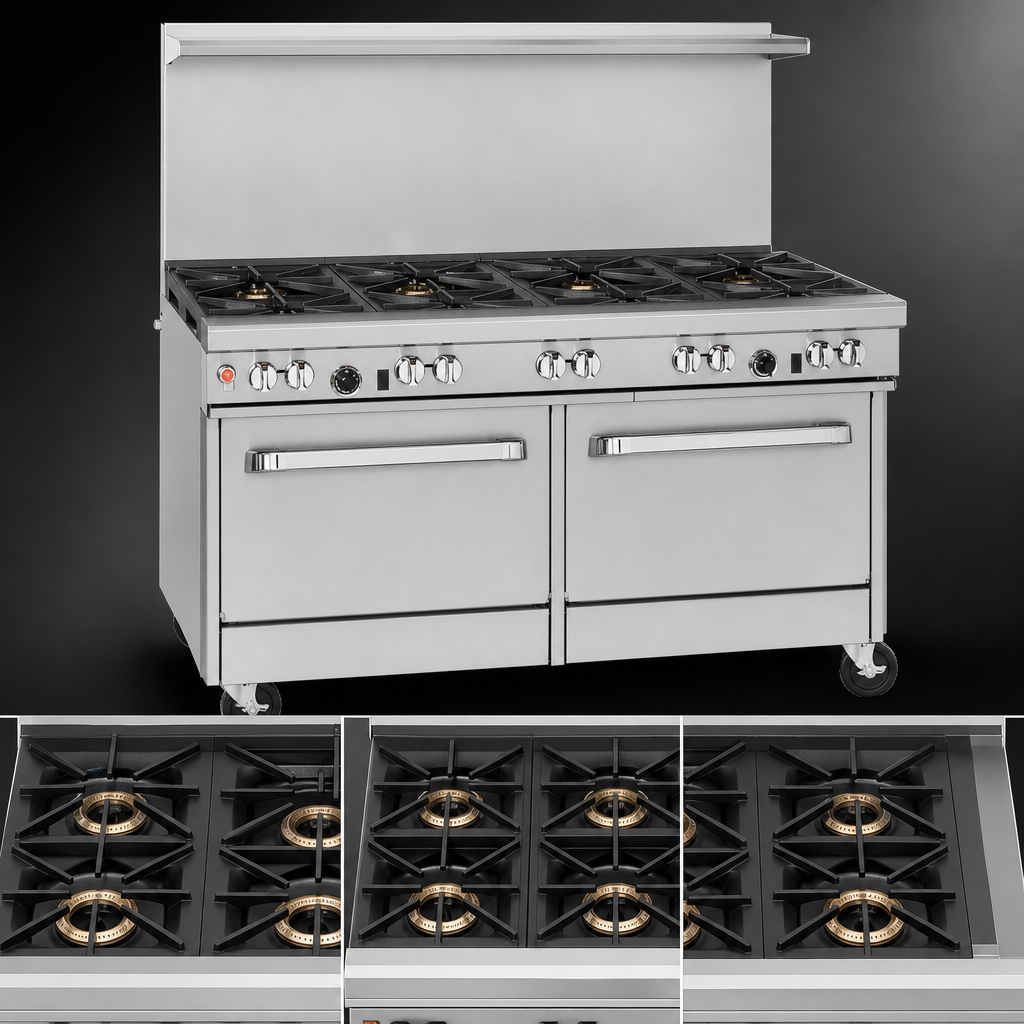

| Burners | 9 open burners (5 Star, 2 Pyromax, 2 Non-Clog) |
| Total input | 311,000 BTU/hr (Natural Gas) |
| Gas connection | 3/4" NPT female (rear, left-hand side) Min. inlet 7" W.C. NG | 11" W.C. LP |
| Base | (2) Stainless storage cabinets |
| Flue riser | 22-1/2" with integrated shelf |
| Material | Stainless steel front, sides, shelf & legs |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (see Southbend limited warranty for details) |
What’s Included
- Pre-installed 3/4" gas pressure regulator
- (2) removable full-width drip trays
- Standing pilots on all burners
- Operator manual & warranty registration card
